SAXSdb — 9w0o

▼

1. Structure Basics

entry_id	9w0o
deposition_date	2025-07-24
title	cryoEM structure of S1P3 in complex with heterotrimeric G protein
keywords	;G protein-coupled receptor, Bitter taste receptor 14, Bitter taste receptor 46, ligand binding, signal transduction, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	34.87 Å
rg_electron	34.94 Å
i0	151781000.00
molecular_weight	100130.0 kDa
excluded_volume	125970 Å³
envelope_volume	164900 Å³
shell_volume	40811 Å³
envelope_diameter	124.9 Å
shell_rg	39.47 Å
envelope_rg	35.15 Å
shape_rg	34.92 Å
total_rg	35.32 Å
total_atoms	7024
n_residues	900
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	118.5 Å
rg_real	35.05 Å
rg_real_error	1.08 Å
i0_real	1.5180e+08
i0_real_error	2.4730e+06
rg_reciprocal	34.94 Å
i0_reciprocal	151800000.0000
total_estimate	0.8549
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	34.2 Å
skewness	0.494
kurtosis	-0.212
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	39400000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.833; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.920; Smooth: 0.690

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Guanine nucleotide-binding protein G(i) subunit alpha-1
formula_weight	40447.1 kDa
mutation	S47A/G202TG203A/E245A/A326S
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	7024

MGCTLSAEDKAAVERSKMIDRNLREDGEKAAREVKLLLLGAGESGKCTIVKQMKIIHEAGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTTGIVETHFTFKDLHFKMFDVTAQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHASMKLFDSICNNKWFTDTSIILFLNKKDLFEEKIKKSPLTICYPEYAGSNTYEEAAAYIQCQFEDLNKRKDTKEIYTHFTCSTDTKNVQFVFDAVTDVIIKNNLKDCGLF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	38745.4 kDa
mutation	Q6E/E130Q/N234D
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MHHHHHHGSLLQSELDELRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTRQGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPDGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	6000.0 kDa
mutation	E17Q/E58Q
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

IAQARKLVQQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASQNPFR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Sphingosine 1-phosphate receptor 3
formula_weight	47985.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MKTIIALSYIFCLVFAMATALPPRLQPVRGNETLREHYQYVGKLAGRLKEASEGSTLTTVLFLVICSFIVLENLMVLIAIWKNNKFHNRMYFFIGNLALCDLLAGIAYKVNILMSGKKTFSLSPTVWFLREGSMFVALGASTCSLLAIAIERHLTMIKMRPYDANKRHRVFLLIGMCWLIAFTLGALPILGWNCLHNLPDCSTILPLYSKKYIAFCISIFTAILVTIVILYARIYFLVKSSSRKVANHNNSERSMALLRTVVIVVSVFIACWSPLFILFLIDVACRVQACPILFKAQWFIVLAVLNSAMNPVIYTLASKEMRRAFFRLVCNCLVRGRGARASPIQPALDPSRSKSSSSNNSSHSPKVKEDLPHTAPSSCIMDKNAALQNGIFCNWSHPQFEKGGGSGGGSGGSAWSHPQFEKDYKDDDDK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.00 Å
resolution_method	—
num_particles	669267

fit	/app/data/saxs_computation/w0/9w0o/9w0o.fit
pddf	/app/data/pr_computation/w0/9w0o/9w0o.pr.out
profile	/app/data/saxs_computation/w0/9w0o/9w0o.dat

cryoEM structure of S1P3 in complex with heterotrimeric G protein

SAXS Profile

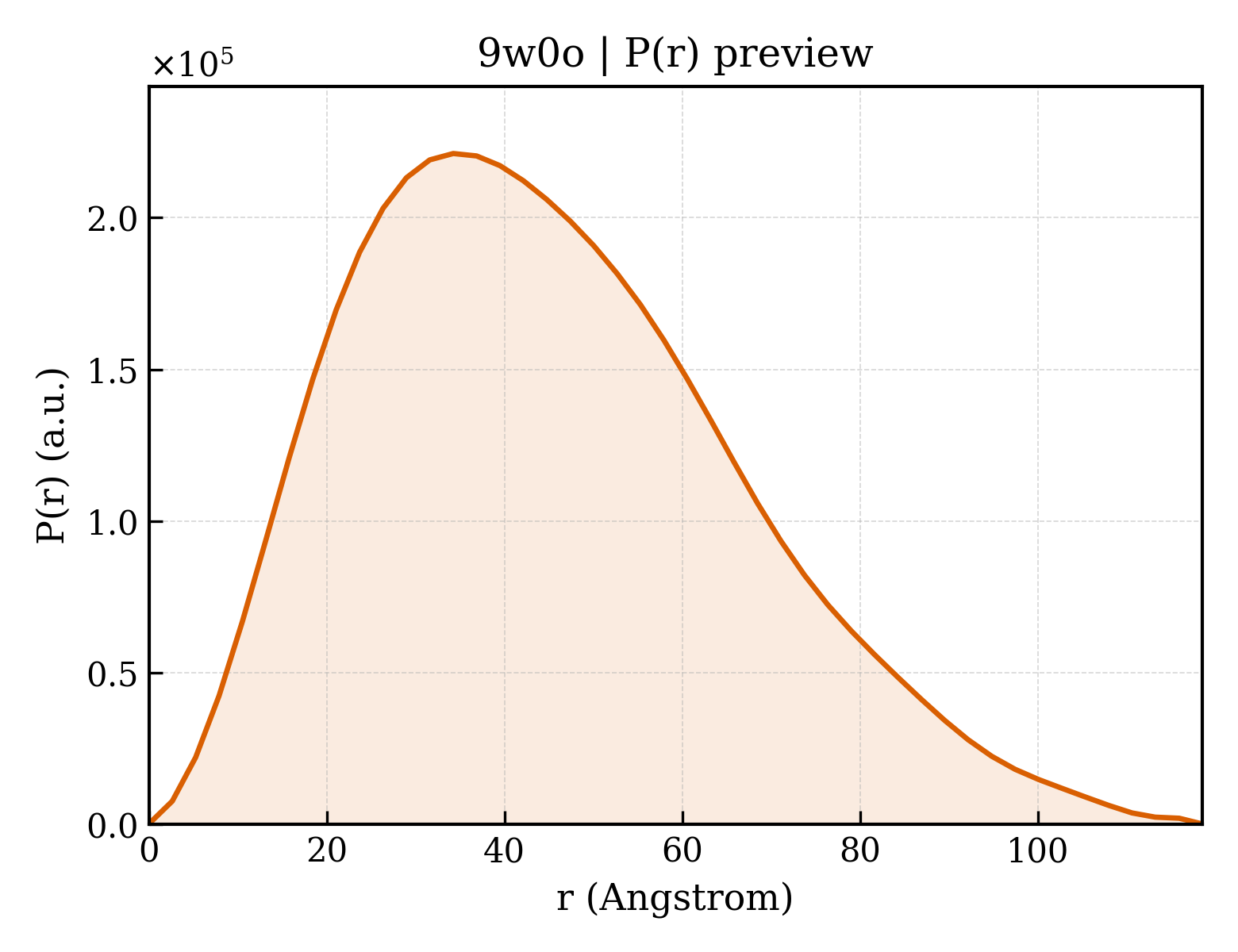

P(r) Distribution
