SAXSdb — 9ydv

▼

1. Structure Basics

entry_id	9ydv
deposition_date	2025-09-23
title	MRS2905 bound P2Y14 Receptor in complex with Gi
keywords	GPCR, P2Y Receptor, Purinergic, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	38.85 Å
rg_electron	38.52 Å
i0	456402000.00
molecular_weight	116430.0 kDa
excluded_volume	113020 Å³
envelope_volume	219590 Å³
shell_volume	49031 Å³
envelope_diameter	126.4 Å
shell_rg	42.68 Å
envelope_rg	38.13 Å
shape_rg	38.51 Å
total_rg	38.73 Å
total_atoms	8806
n_residues	1127
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	121.4 Å
rg_real	38.76 Å
rg_real_error	0.75 Å
i0_real	4.5640e+08
i0_real_error	7.2950e+06
rg_reciprocal	38.82 Å
i0_reciprocal	456400000.0000
total_estimate	0.8960
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	53.3 Å
skewness	0.156
kurtosis	-0.660
angular_range	— – 0.2050 Å⁻¹
current_alpha	0.0001
highest_alpha	40400000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.757

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Guanine nucleotide-binding protein G(i) subunit alpha-1
formula_weight	40414.0 kDa
ec_number	3.6.5.-
mutation	S47N G203A E245A A326S
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	8806

MGCTLSAEDKAAVERSKMIDRNLREDGEKAAREVKLLLLGAGESGKNTIVKQMKIIHEAGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTTGIVETHFTFKDLHFKMFDVGAQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHASMKLFDSICNNKWFTDTSIILFLNKKDLFEEKIKKSPLTICYPEYAGSNTYEEAAAYIQCQFEDLNKRKDTKEIYTHFTCSTDTKNVQFVFDAVTDVIIKNNLKDCGLF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	37342.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

GSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	scFv16 protein
formula_weight	26679.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

DVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAA

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	P2Y purinoceptor 14
formula_weight	39011.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MINSTSTQPPDESCSQNLLITQQIIPVLYCMVFIAGILLNGVSGWIFFYVPSSKSFIIYLKNIVIADFVMSLTFPFKILGDSGLGPWQLNVFVCRVSAVLFYVNMYVSIVFFGLISFDRYYKIVKPLWTSFIQSVSYSKLLSVIVWMLMLLLAVPNIILTNQSVREVTQIKCIELKSELGRKWHKASNYIFVAIFWIVFLLLIVFYTAITKKIFKSHLKSSRNSTSVKKKSSRNIFSIVFVFFVCFVPYHIARIPYTKSQTEAHYSCQSKEILRYMKEFTLLLSAANVCLDPIIYFFLCQPFREILCKKLHIPLKAQNDLDISRIKRGNTTLESTDTL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 6 non-polymer

description	1-{5-O-[(R)-hydroxy(phosphonomethyl)phosphoryl]-beta-D-ribofuranosyl}-2-sulfanylidene-2,3-dihydropyrimidin-4(1H)-one
formula_weight	418.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.050 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.05 Å
resolution_method	—
num_particles	337217

fit	/app/data/saxs_computation/yd/9ydv/9ydv.fit
pddf	/app/data/pr_computation/yd/9ydv/9ydv.pr.out
profile	/app/data/saxs_computation/yd/9ydv/9ydv.dat

MRS2905 bound P2Y14 Receptor in complex with Gi

SAXS Profile

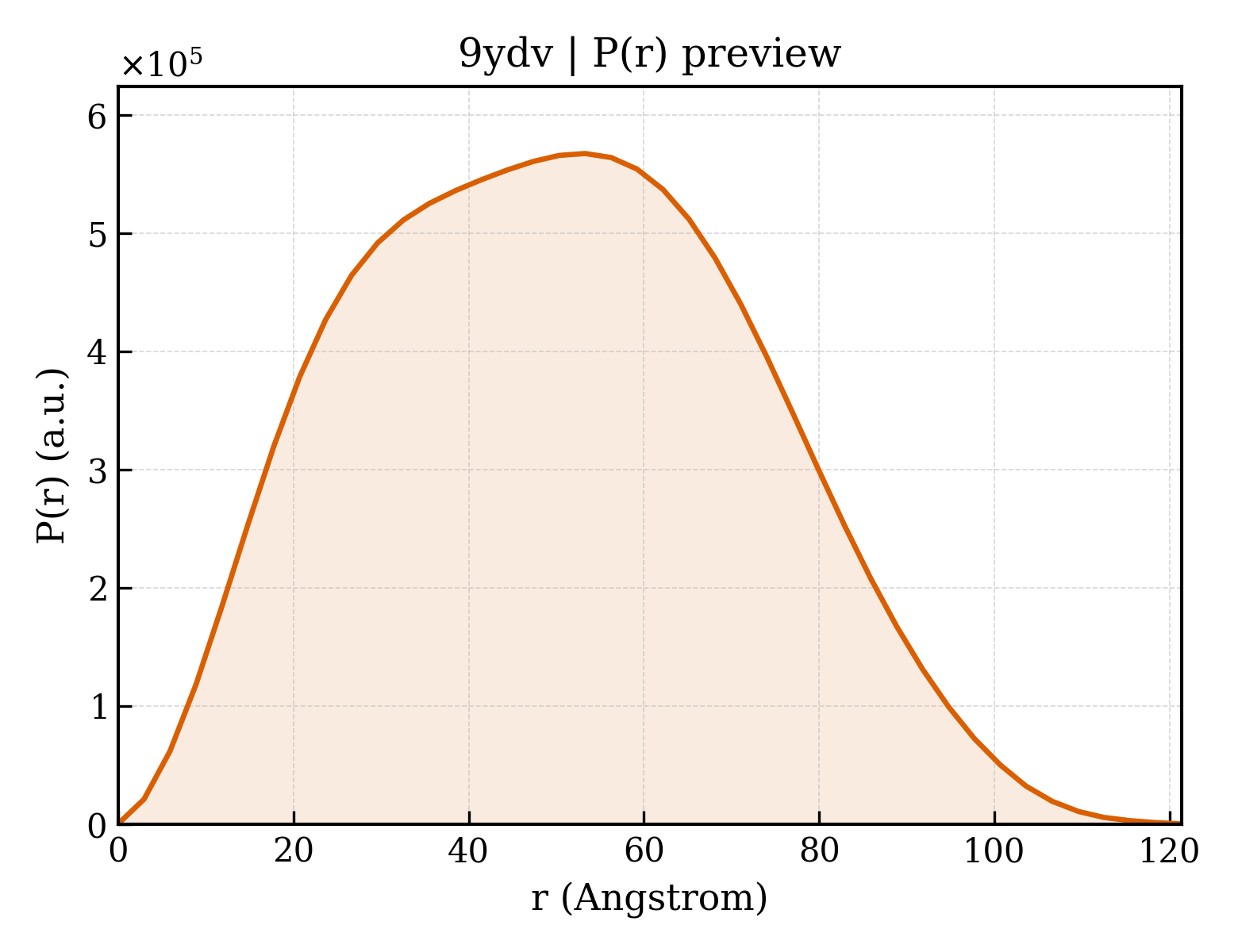

P(r) Distribution
