6oya

Structure of the Rhodopsin-Transducin-Nanobody Complex

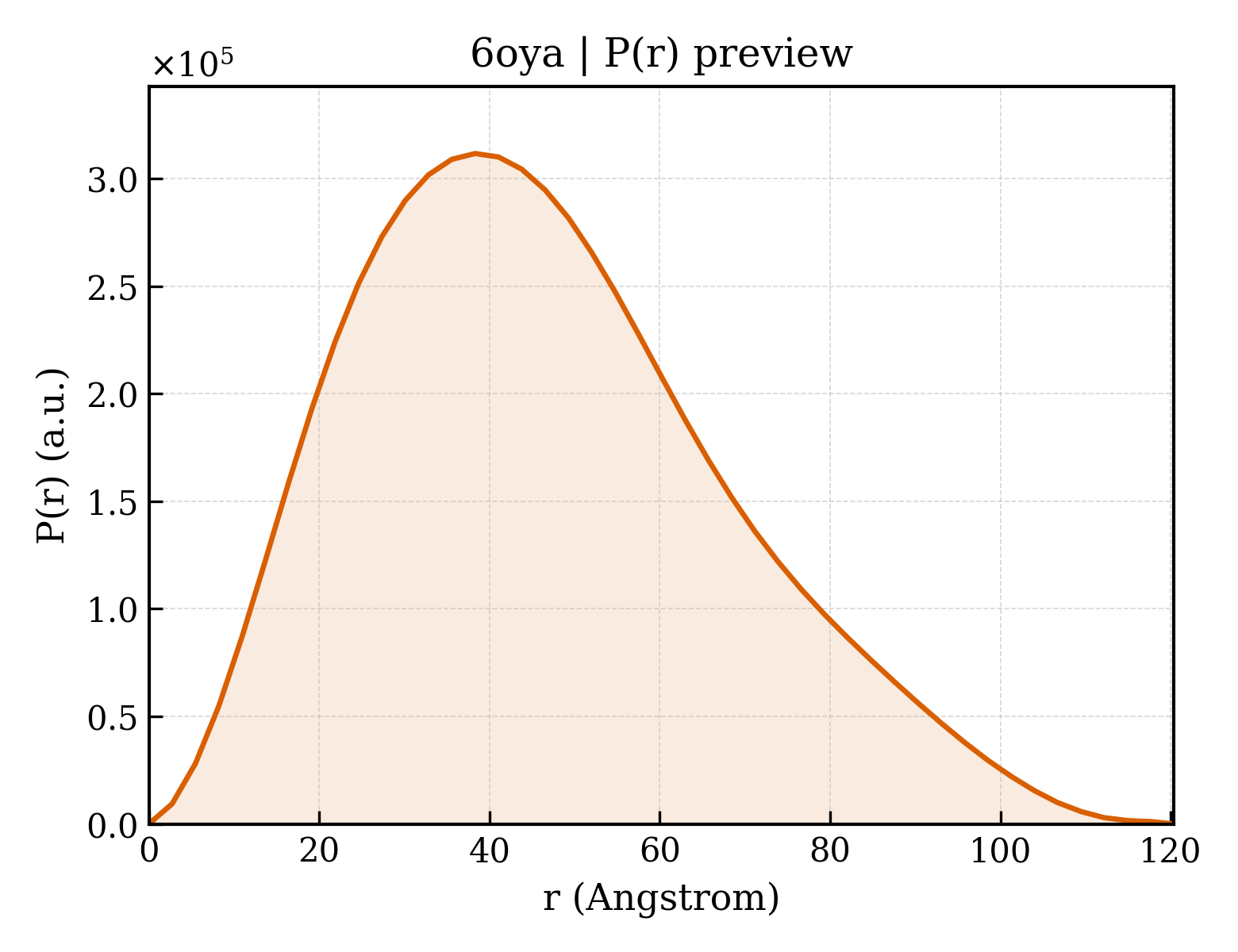

Method: ELECTRON MICROSCOPY Dmax: 120.4 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gt-alpha/Gi1-alpha chimera

Bos taurus

UniProt P04695

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain A； UniProt 1–201 Not recorded Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62871） Guanine nucleotide-binding protein G(T) subunit gamma-T1 × 1 （P02698） Camelid antibody VHH fragment × 1 Rhodopsin × 1 （P02699） RET RETINAL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；Blot for 1 second before plunging; avoid light as much as possible. Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OYA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1AQG NMR STRUCTURE OF THE RHODOPSIN-BOUND C-TERMINAL PEPTIDE OF THE TRANSDUCIN ALPHA-SUBUNIT, 20 STRUCTURES Deposited 1997-07-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 339–349（11 aa） Fragment：RHODOPSIN BINDING DOMAIN, RESIDUES 340-350
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；274 K；Ionic strength (raw mmCIF value) 120；Pressure AMBIENT
NMR sample composition 20 mM sodium phosphate, 100 mM KCl, 0.1 mM EDTA, 1 mM DTT, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
1FQJ CRYSTAL STRUCTURE OF THE HETEROTRIMERIC COMPLEX OF THE RGS DOMAIN OF RGS9, THE GAMMA SUBUNIT OF PHOSPHODIESTERASE AND THE GT/I1 CHIMERA ALPHA SUBUNIT [(RGS9)-(PDEGAMMA)-(GT/I1ALPHA)-(GDP)-(ALF4-)-(MG2+)] Deposited 2000-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 26–215（190 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Chain A 295–350（56 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Not recorded MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；277 K；15.0% PEG8000, 200mM Tris pH9.0, 0.2% beta-ME, 1mM (NH4)2WS4, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.02 Å R-free 0.265
1FQJ CRYSTAL STRUCTURE OF THE HETEROTRIMERIC COMPLEX OF THE RGS DOMAIN OF RGS9, THE GAMMA SUBUNIT OF PHOSPHODIESTERASE AND THE GT/I1 CHIMERA ALPHA SUBUNIT [(RGS9)-(PDEGAMMA)-(GT/I1ALPHA)-(GDP)-(ALF4-)-(MG2+)] Deposited 2000-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 26–215（190 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Chain D 295–350（56 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Not recorded MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；277 K；15.0% PEG8000, 200mM Tris pH9.0, 0.2% beta-ME, 1mM (NH4)2WS4, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.02 Å R-free 0.265
1FQK CRYSTAL STRUCTURE OF THE HETERODIMERIC COMPLEX OF THE RGS DOMAIN OF RGS9, AND THE GT/I1 CHIMERA ALPHA SUBUNIT [(RGS9)-(GT/I1ALPHA)-(GDP)-(ALF4-)-(MG2+)] Deposited 2000-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 26–215（190 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Chain A 295–350（56 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Not recorded MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10.5% PEG8000, 110mM magnesium acetate, 50mM Tris pH 8.5, 0.2% beta-ME, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.268
1FQK CRYSTAL STRUCTURE OF THE HETERODIMERIC COMPLEX OF THE RGS DOMAIN OF RGS9, AND THE GT/I1 CHIMERA ALPHA SUBUNIT [(RGS9)-(GT/I1ALPHA)-(GDP)-(ALF4-)-(MG2+)] Deposited 2000-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 26–215（190 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Chain C 295–350（56 aa） Fragment：UNP P04695 residues 26-215 and 295-350 linked via UNP P10824 residues 220-298
Not recorded MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；10.5% PEG8000, 110mM magnesium acetate, 50mM Tris pH 8.5, 0.2% beta-ME, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.268
1GOT HETEROTRIMERIC COMPLEX OF A GT-ALPHA/GI-ALPHA CHIMERA AND THE GT-BETA-GAMMA SUBUNITS Deposited 1996-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–349（349 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；10 MG/ML OF HETEROTRIMERIC COMPLEX WERE MIXED 1:1 WITH WELL SOLUTION CONTAINING 10% PEG-8000, 50 MM TRIS, PH 8.0, 10% GLYCEROL, 50 MM NACL, .1 MM MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS WELL SOLUTION IN HANGING DROPS AT 4 DEGREES C., vapor diffusion - hanging drop, temperature 277K
Resolution 2.00 Å R-free 0.295
1LVZ METARHODOPSIN II BOUND STRUCTURE OF C-TERMINAL PEPTIDE OF ALPHA-SUBUNIT OF TRANSDUCIN Deposited 2002-05-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 339–349（11 aa） Fragment：S2 Peptide, Residues 339-349
Mutation：K340R, C346S No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.6；283 K；Ionic strength (raw mmCIF value) 10 mM HEPES, 20 mM KCl；Pressure ambient
NMR sample composition 2.6mM S2 peptide U-15N, 0.063mM rhodopsin as part of intact disk membranes from bovine retina; buffer: 10 mM HEPES, 20mM KCl, 0.05mM DTPA | 90% H2O/10% D2O
NMR sample composition 2.6mM S2 peptide U-15N, 13C, 0.063mM rhodopsin as part of intact disk membranes from bovine retina; buffer: 10 mM HEPES, 20mM KCl, 0.05mM DTPA | 90% H2O/10% D2O
Resolution not provided
1TAD GTPASE MECHANISM OF GPROTEINS FROM THE 1.7-ANGSTROM CRYSTAL STRUCTURE OF TRANSDUCIN ALPHA-GDP-ALF4- Deposited 1995-01-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 26–349（324 aa）
Not recorded CA CALCIUM ION × 1 CAC CACODYLATE ION × 2 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å R-free 0.266
1TAD GTPASE MECHANISM OF GPROTEINS FROM THE 1.7-ANGSTROM CRYSTAL STRUCTURE OF TRANSDUCIN ALPHA-GDP-ALF4- Deposited 1995-01-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 26–349（324 aa）
Not recorded CA CALCIUM ION × 1 CAC CACODYLATE ION × 2 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å R-free 0.266
1TAD GTPASE MECHANISM OF GPROTEINS FROM THE 1.7-ANGSTROM CRYSTAL STRUCTURE OF TRANSDUCIN ALPHA-GDP-ALF4- Deposited 1995-01-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 26–349（324 aa）
Not recorded CA CALCIUM ION × 1 CAC CACODYLATE ION × 2 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å R-free 0.266
1TAG STRUCTURAL DETERMINANTS FOR ACTIVATION OF THE ALPHA-SUBUNIT OF A HETEROTRIMERIC G PROTEIN Deposited 1994-11-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 26–349（324 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.211
1TND THE 2.2 ANGSTROMS CRYSTAL STRUCTURE OF TRANSDUCIN-ALPHA COMPLEXED WITH GTP GAMMA S Deposited 1994-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 26–349（324 aa）
Not recorded MG MAGNESIUM ION × 1 CAC CACODYLATE ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1TND THE 2.2 ANGSTROMS CRYSTAL STRUCTURE OF TRANSDUCIN-ALPHA COMPLEXED WITH GTP GAMMA S Deposited 1994-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 26–349（324 aa）
Not recorded MG MAGNESIUM ION × 1 CAC CACODYLATE ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1TND THE 2.2 ANGSTROMS CRYSTAL STRUCTURE OF TRANSDUCIN-ALPHA COMPLEXED WITH GTP GAMMA S Deposited 1994-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 26–349（324 aa）
Not recorded MG MAGNESIUM ION × 1 CAC CACODYLATE ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
2X72 CRYSTAL STRUCTURE OF THE CONSTITUTIVELY ACTIVE E113Q,D2C,D282C RHODOPSIN MUTANT WITH BOUND GALPHACT PEPTIDE. Deposited 2010-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 340–350（11 aa） Fragment：RESIDUES 340-350
Mutation：YES PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 4 RET RETINAL × 2 LPP 2-(HEXADECANOYLOXY)-1-[(PHOSPHONOOXY)METHYL]ETHYL HEXADECANOATE × 2 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.5；3.0-3.4 M AMMONIUM SULFATE, 100 MM SODIUM ACETATE PH 4.5
Resolution 3.00 Å R-free 0.244
3DQB Crystal structure of the active G-protein-coupled receptor opsin in complex with a C-terminal peptide derived from the Galpha subunit of transducin Deposited 2008-07-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 340–350（11 aa） Fragment：C-terminal domain, UNP residues 340-350
Mutation：K341L BOG octyl beta-D-glucopyranoside × 3 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；AMMONIUM SULFATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.20 Å R-free 0.248
3PQR Crystal structure of Metarhodopsin II in complex with a C-terminal peptide derived from the Galpha subunit of transducin Deposited 2010-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 340–350（11 aa） Fragment：C-terminal peptide (UNP residues 340-350)
Mutation：K341L,C347V RET RETINAL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 1 SO4 SULFATE ION × 1 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；ammonium sulfate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.250
3PQR Crystal structure of Metarhodopsin II in complex with a C-terminal peptide derived from the Galpha subunit of transducin Deposited 2010-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 340–350（11 aa） Fragment：C-terminal peptide (UNP residues 340-350)
Mutation：K341L,C347V RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BOG octyl beta-D-glucopyranoside × 4 PLM PALMITIC ACID × 2 SO4 SULFATE ION × 2 ACT ACETATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；ammonium sulfate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.250
3V00 Studies of a constitutively active G-alpha subunit provide insights into the mechanism of G protein activation. Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain C 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；1.9 M Ammonium Sulphate in 0.05 M Sodium Cacodylate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.90 Å R-free 0.272
3V00 Studies of a constitutively active G-alpha subunit provide insights into the mechanism of G protein activation. Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain B 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；1.9 M Ammonium Sulphate in 0.05 M Sodium Cacodylate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.90 Å R-free 0.272
3V00 Studies of a constitutively active G-alpha subunit provide insights into the mechanism of G protein activation. Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain A 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；1.9 M Ammonium Sulphate in 0.05 M Sodium Cacodylate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.90 Å R-free 0.272
3V00 Studies of a constitutively active G-alpha subunit provide insights into the mechanism of G protein activation. Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain A 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain B 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain B 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain C 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain C 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N GDP GUANOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；1.9 M Ammonium Sulphate in 0.05 M Sodium Cacodylate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.90 Å R-free 0.272
3V00 Studies of a constitutively active G-alpha subunit provide insights into the mechanism of G protein activation. Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain A 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain B 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain B 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain C 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain C 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N GDP GUANOSINE-5'-DIPHOSPHATE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；1.9 M Ammonium Sulphate in 0.05 M Sodium Cacodylate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.90 Å R-free 0.272
3V00 Studies of a constitutively active G-alpha subunit provide insights into the mechanism of G protein activation. Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain A 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain C 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain C 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N GDP GUANOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；1.9 M Ammonium Sulphate in 0.05 M Sodium Cacodylate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.90 Å R-free 0.272
3V00 Studies of a constitutively active G-alpha subunit provide insights into the mechanism of G protein activation. Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–215（215 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Chain B 295–350（56 aa） Fragment：UNP P04695 1-215 & 295-350, UNP P10824 220-298
Mutation：G56P, K244H and D247N Mutation：G56P, K244H and D247N GDP GUANOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；1.9 M Ammonium Sulphate in 0.05 M Sodium Cacodylate buffer, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.90 Å R-free 0.272
4BEY Night blindness causing G90D rhodopsin in complex with GaCT2 peptide Deposited 2013-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 340–350（11 aa） Fragment：RESIDUES 340-350
Mutation：YES SO4 SULFATE ION × 1 ACT ACETATE ION × 1 PLM PALMITIC ACID × 1 BOG octyl beta-D-glucopyranoside × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å R-free 0.259
4J4Q Crystal structure of active conformation of GPCR opsin stabilized by octylglucoside Deposited 2013-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 340–350（11 aa） Fragment：C-terminal derived peptide, UNP RESIDUES 340-350
Mutation：K341L, C347V BOG octyl beta-D-glucopyranoside × 4 PLM PALMITIC ACID × 1 SO4 SULFATE ION × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；AMMONIUM SULFATE, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.230
6OY9 Structure of the Rhodopsin-Transducin Complex Deposited 2019-05-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–201（201 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7JSN Structure of the Visual Signaling Complex between Transducin and Phosphodiesterase 6 Deposited 2020-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–215（215 aa）
Chain E 295–350（56 aa）
Chain F 1–215（215 aa）
Chain F 295–350（56 aa）
Mutation：R174C,Q200L Mutation：R174C,Q200L Mutation：R174C,Q200L Mutation：R174C,Q200L ZN ZINC ION × 2 MG MAGNESIUM ION × 2 VDN 2-{2-ETHOXY-5-[(4-ETHYLPIPERAZIN-1-YL)SULFONYL]PHENYL}-5-METHYL-7-PROPYLIMIDAZO[5,1-F][1,2,4]TRIAZIN-4(1H)-ONE × 2 35G GUANOSINE-3',5'-MONOPHOSPHATE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 5 mM MgCl2 and 1 uM vardenafil
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å

16 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GNAT1_BOVIN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 10–210； UniProt 1–201

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

OrganismNot specified

UniProt P62871

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain B； UniProt 1–340 Not recorded Gt-alpha/Gi1-alpha chimera × 1 （P04695） Guanine nucleotide-binding protein G(T) subunit gamma-T1 × 1 （P02698） Camelid antibody VHH fragment × 1 Rhodopsin × 1 （P02699） RET RETINAL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；Blot for 1 second before plunging; avoid light as much as possible. Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OYA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1B9X STRUCTURAL ANALYSIS OF PHOSDUCIN AND ITS PHOSPHORYLATION-REGULATED INTERACTION WITH TRANSDUCIN Deposited 1999-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–340（340 aa） Fragment：LYS-C RESISTANT FRAGMENT, THE BETA SUBUNIT
Not recorded GD GADOLINIUM ATOM × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.261
1B9Y STRUCTURAL ANALYSIS OF PHOSDUCIN AND ITS PHOSPHORYLATION-REGULATED INTERACTION WITH TRANSDUCIN BETA-GAMMA Deposited 1999-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–340（340 aa） Fragment：LYS-C RESISTANT FRAGMENT, THE BETA SUBUNIT
Not recorded GD GADOLINIUM ATOM × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.266
1GG2 G PROTEIN HETEROTRIMER MUTANT GI_ALPHA_1(G203A) BETA_1 GAMMA_2 WITH GDP BOUND Deposited 1996-11-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–339（339 aa） Fragment：BETA 1
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.0
Resolution 2.40 Å R-free 0.289
1GOT HETEROTRIMERIC COMPLEX OF A GT-ALPHA/GI-ALPHA CHIMERA AND THE GT-BETA-GAMMA SUBUNITS Deposited 1996-08-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；10 MG/ML OF HETEROTRIMERIC COMPLEX WERE MIXED 1:1 WITH WELL SOLUTION CONTAINING 10% PEG-8000, 50 MM TRIS, PH 8.0, 10% GLYCEROL, 50 MM NACL, .1 MM MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS WELL SOLUTION IN HANGING DROPS AT 4 DEGREES C., vapor diffusion - hanging drop, temperature 277K
Resolution 2.00 Å R-free 0.295
1GP2 G PROTEIN HETEROTRIMER GI_ALPHA_1 BETA_1 GAMMA_2 WITH GDP BOUND Deposited 1996-11-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–339（339 aa） Fragment：BETA 1
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.0
Resolution 2.30 Å R-free 0.307
1OMW Crystal Structure of the complex between G Protein-Coupled Receptor Kinase 2 and Heterotrimeric G Protein beta 1 and gamma 2 subunits Deposited 2003-02-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；277 K；PEG 3350, Sodium Chloride, CHAPS, ATP, Magnesium Chloride, Mastoparan , MES pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
1XHM The Crystal Structure of a Biologically Active Peptide (SIGK) Bound to a G Protein Beta:Gamma Heterodimer Deposited 2004-09-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–340（340 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 4000, GLYCEROL, HEPES, PH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.287
24XZ P2Y14R-Gi complex bound to UDP Deposited 2026-03-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 2.93 Å
2BCJ Crystal Structure of G Protein-Coupled Receptor Kinase 2 in Complex with Galpha-q and Gbetagamma Subunits Deposited 2005-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–340（339 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；9% PEG8000, 1M NaCl, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.06 Å R-free 0.292
2TRC PHOSDUCIN/TRANSDUCIN BETA-GAMMA COMPLEX Deposited 1997-01-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa） Fragment：LYS-C RESISTANT FRAGMENT, THE GAMMA SUBUNIT CLEAVED AFTER RESIDUE 68
Not recorded GD GADOLINIUM ATOM × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；THE PROTEIN COMPLEX (10 MG/ML SOLUTION) WAS CRYSTALLIZED FROM 50 MM SODIUM CITRATE (PH 5.0), 150 MM MAGNESIUM ACETATE, 9.5% PEG 8000, BY HANGING DROP METHOD AT 4 DEGREES C., vapor diffusion - hanging drop, temperature 277K
Resolution 2.40 Å R-free 0.277
3AH8 Structure of heterotrimeric G protein Galpha-q beta gamma in complex with an inhibitor YM-254890 Deposited 2010-04-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.1；293 K；7% PEG 4000, 30% (v/v) glycerol, 70 mM acetate-NaOH, pH 5.1, VAPOR DIFFUSION, temperature 293K
Resolution 2.90 Å R-free 0.315
3CIK Human GRK2 in Complex with Gbetagamma subunits Deposited 2008-03-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.25；277 K；200 mM NaCl, 5% ethylene glycol, 6.3% PEG 3350, pH 5.25, vapor diffusion, hanging drop, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.75 Å R-free 0.269
3KRW Human GRK2 in complex with Gbetgamma subunits and balanol (soak) Deposited 2009-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded BA1 BALANOL × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 277 K；Well contained 100 mM MES, pH 5.6, 200 mM NaCl, 9% PEG 3350. Drops were 1 uL protein, 1 uL well, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.90 Å R-free 0.265
3KRX Human GRK2 in complex with Gbetgamma subunits and balanol (co-crystal) Deposited 2009-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded BA1 BALANOL × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 277 K；Well contained 100 mM MES, pH 6.0, 200 mM NaCl, 9% PEG 3350. Drops were 1 uL protein, 1 uL well, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.270
3PSC Bovine GRK2 in complex with Gbetagamma subunits Deposited 2010-12-01 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；9% PEG3350, 200 mM NaCl, 100 mM MES pH 6.5, 1 mM ATP, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.67 Å R-free 0.257
3PVU Bovine GRK2 in complex with Gbetagamma subunits and a selective kinase inhibitor (CMPD101) Deposited 2010-12-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded QRW 3-({[4-methyl-5-(pyridin-4-yl)-4H-1,2,4-triazol-3-yl]methyl}amino)-N-[2-(trifluoromethyl)benzyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.25；277 K；7% PEG3350, 200 mM NaCl, 100 mM MES pH 5.25, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.48 Å R-free 0.274
3PVW Bovine GRK2 in complex with Gbetagamma subunits and a selective kinase inhibitor (CMPD103A) Deposited 2010-12-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded QRX N-(2,6-difluorobenzyl)-3-({[4-propyl-5-(pyrimidin-4-yl)-4H-1,2,4-triazol-3-yl]methyl}amino)benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；277 K；7% PEG3350, 250 mM NaCl, 100 mM MES pH 6.25, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.49 Å R-free 0.285
3UZS Structure of the C13.28 RNA Aptamer Bound to the G Protein-Coupled Receptor Kinase 2-Heterotrimeric G Protein Beta 1 and Gamma 2 Subunit Complex Deposited 2011-12-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mM Tris pH 8.5, 200 mM NaCl and 3% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 4.52 Å R-free 0.268
3V5W Human G Protein-Coupled Receptor Kinase 2 in Complex with Soluble Gbetagamma Subunits and Paroxetine Deposited 2011-12-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded 8PR Paroxetine × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；100 mM MES pH 5.8, 200 mM NaCl, and 8% (w/v) PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.07 Å R-free 0.247
4MK0 Crystal structure of G protein-coupled receptor kinase 2 in complex with a a rationally designed paroxetine derivative Deposited 2013-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–340（339 aa）
Not recorded GOL GLYCEROL × 1 29X 5-{[(3S,4R)-4-(4-fluorophenyl)piperidin-3-yl]methoxy}-1H-isoindol-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；277 K；6% PEG 3350, 1M NaCl, 2 mM MgCl2, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.40 Å R-free 0.238
5KDO Heterotrimeric complex of the 4 alanine insertion variant of the Gi alpha1 subunit and the Gbeta1-Ggamma1 Deposited 2016-06-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；19-24 % PEG 8000, 1-5% 2-propanolol, 1% OG, 100 mM HEPES (pH 7.0) and 100 mM NaOAc (pH 6.4)
Resolution 1.90 Å R-free 0.208
5WG3 Human GRK2 in complex with Gbetagamma subunits and CCG258748 Deposited 2017-07-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded AFM 2-fluoro-5-[(3S,4R)-3-{[(1H-indazol-5-yl)oxy]methyl}piperidin-4-yl]-N-[(1H-pyrazol-3-yl)methyl]benzamide × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6, 1.1 M NaCl, 8% PEG3350
Resolution 2.90 Å R-free 0.248
5WG4 Human GRK2 in complex with Gbetagamma subunits and CCG257284 Deposited 2017-07-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded AFV 2-fluoro-5-[(3S,4R)-3-{[(1H-indazol-5-yl)oxy]methyl}piperidin-4-yl]-N-[(pyridin-2-yl)methyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6, 6% PEG 3350, 1 M NaCl
Resolution 2.31 Å R-free 0.279
5WG5 Human GRK2 in complex with Gbetagamma subunits and CCG224061 Deposited 2017-07-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded ZSO 5-{[(3S,4R)-4-(4-fluorophenyl)piperidin-3-yl]methoxy}-2H-indazole × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6, 8-15% PEG3350, 0.8-1.2 M NaCl
Resolution 3.10 Å R-free 0.232
6B20 Crystal structure of a complex between G protein beta gamma dimer and an inhibitory Nanobody regulator Deposited 2017-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 3–340（338 aa）
Mutation：V71L UNX UNKNOWN LIGAND × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；25-30% (w/v) PEG 3350 in 0.1-0.2 M Bis-Tris-HCl, pH 5.5-5.7, and 0.2-0.3 M MgCl2
Resolution 2.34 Å R-free 0.249
6B20 Crystal structure of a complex between G protein beta gamma dimer and an inhibitory Nanobody regulator Deposited 2017-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 3–340（338 aa）
Mutation：V71L UNX UNKNOWN LIGAND × 5 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；25-30% (w/v) PEG 3350 in 0.1-0.2 M Bis-Tris-HCl, pH 5.5-5.7, and 0.2-0.3 M MgCl2
Resolution 2.34 Å R-free 0.249
6C2Y Human GRK2 in complex with Gbetagamma subunits and CCG257142 Deposited 2018-01-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded EJS (4R,5R,6S)-4-[4-fluoro-3-({[3-(methoxymethyl)-1,2,4-oxadiazol-5-yl]methyl}carbamoyl)phenyl]-N-(2H-indazol-5-yl)-6-methyl-2-oxohexahydropyrimidine-5-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 800 mM NaCl, 8% PEG 3350
Resolution 2.74 Å R-free 0.292
6OY9 Structure of the Rhodopsin-Transducin Complex Deposited 2019-05-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6PCV Single Particle Reconstruction of Phosphatidylinositol (3,4,5) trisphosphate-dependent Rac exchanger 1 bound to G protein beta gamma subunits Deposited 2019-06-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6QNO Rhodopsin-Gi protein complex Deposited 2019-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–340（340 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；The detergent lauryl-maltose neopentyl glycol (LMNG) was used before the last purification step by gel filtration. In the gel filtration, detergent-free buffer was used.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.38 Å
6U7C Human GRK2 in complex with Gbetagamma subunits and CCG258747 Deposited 2019-09-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded Q1Y 5-[(3S,4R)-3-{[(2H-1,3-benzodioxol-5-yl)oxy]methyl}piperidin-4-yl]-2-fluoro-N-[(2H-indazol-3-yl)methyl]benzamide × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 1.1 M NaCl, 6% PEG 3350
Resolution 2.44 Å R-free 0.262
7BZ2 Cryo-EM structure of the formoterol-bound beta2 adrenergic receptor-Gs protein complex. Deposited 2020-04-26 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–340（340 aa）
Not recorded H98 ~{N}-[5-[(1~{R})-2-[[(2~{R})-1-(4-methoxyphenyl)propan-2-yl]amino]-1-oxidanyl-ethyl]-2-oxidanyl-phenyl]methanamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.82 Å
7D68 Cryo-EM structure of the human glucagon-like peptide-2 receptor-Gs protein complex Deposited 2020-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 2–340（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7DHI Cryo-EM structure of the partial agonist salbutamol-bound beta2 adrenergic receptor-Gs protein complex. Deposited 2020-11-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–340（340 aa）
Not recorded 68H SALBUTAMOL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
7DHR Cryo-EM structure of the full agonist isoprenaline-bound beta2 adrenergic receptor-Gs protein complex. Deposited 2020-11-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–340（340 aa）
Not recorded 5FW ISOPRENALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7E14 Compound2_GLP-1R_OWL833_Gs complex structure Deposited 2021-01-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded V6G 3-[(1S,2S)-1-(5-[(4S)-2,2-dimethyloxan-4-yl]-2-{(4S)-2-(4-fluoro-3,5-dimethylphenyl)-3-[3-(4-fluoro-1-methyl-1H-indazol-5-yl)-2-oxo-2,3-dihydro-1H-imidazol-1-yl]-4-methyl-2,4,6,7-tetrahydro-5H-pyrazolo[4,3-c]pyridine-5-carbonyl}-1H-indol-1-yl)-2-methylcyclopropyl]-1,2,4-oxadiazol-5(4H)-one × 1 CLR CHOLESTEROL × 5 HNO N-tert-butyl-6,7-bis(chloranyl)quinoxalin-2-amine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7JJO Structural Basis of the Activation of Heterotrimeric Gs-protein by Isoproterenol-bound Beta1-Adrenergic Receptor Deposited 2020-07-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded 5FW ISOPRENALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
7O7F Structural basis of the activation of the CC chemokine receptor 5 by a chemokine agonist Deposited 2021-04-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–340（340 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
7PWD Structure of an inhibited GRK2-G-beta and G-gamma complex Deposited 2021-10-06 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–340（340 aa）
Not recorded 8DS 4-chloranyl-N-[2-(4-chlorophenyl)ethyl]thieno[2,3-c]pyridine-2-carboxamide × 1 CL CHLORIDE ION × 2 1PE PENTAETHYLENE GLYCOL × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；ethylene glycol, PEG 3350, MES, NaCl
Resolution 2.60 Å R-free 0.230
7S0F Isoproterenol bound beta1 adrenergic receptor in complex with heterotrimeric Gi protein Deposited 2021-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–340（339 aa）
Not recorded 5FW ISOPRENALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.96 Å
7S0G Isoproterenol bound beta1 adrenergic receptor in complex with heterotrimeric Gi/s chimera protein Deposited 2021-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–340（339 aa）
Not recorded 5FW ISOPRENALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
7SQO Structure of the orexin-2 receptor(OX2R) bound to TAK-925, Gi and scFv16 Deposited 2021-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded OLA OLEIC ACID × 4 A6F methyl (2R,3S)-3-[(methanesulfonyl)amino]-2-({[(1s,4S)-4-phenylcyclohexyl]oxy}methyl)piperidine-1-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
7TD0 Lysophosphatidic acid receptor 1-Gi complex bound to LPA Deposited 2021-12-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7TD1 Lysophosphatidic acid receptor 1-Gi complex bound to LPA, state a Deposited 2021-12-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
7TD2 Lysophosphatidic acid receptor 1-Gi complex bound to LPA, state a Deposited 2021-12-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.11 Å
7TD3 Sphingosine-1-phosphate receptor 1-Gi complex bound to S1P Deposited 2021-12-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded S1P (2S,3R,4E)-2-amino-3-hydroxyoctadec-4-en-1-yl dihydrogen phosphate × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7TD4 Sphingosine-1-phosphate receptor 1-Gi complex bound to Siponimod Deposited 2021-12-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 J8C 1-[[4-[(~{E})-~{N}-[[4-cyclohexyl-3-(trifluoromethyl)phenyl]methoxy]-~{C}-methyl-carbonimidoyl]-2-ethyl-phenyl]methyl]azetidine-3-carboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
7X1T Structure of Thyrotropin-Releasing Hormone Receptor bound with Taltirelin. Deposited 2022-02-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–340（340 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
7X1U Structure of Thyrotropin-Releasing Hormone Receptor bound with an Endogenous Peptide Agonist TRH. Deposited 2022-02-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–340（340 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.19 Å
7XAT Structure of somatostatin receptor 2 bound with SST14. Deposited 2022-03-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 2–340（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.85 Å
7XAU Structure of somatostatin receptor 2 bound with octreotide. Deposited 2022-03-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 2–340（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
7XAV Structure of somatostatin receptor 2 bound with lanreotide. Deposited 2022-03-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 2–340（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.87 Å
7YJ4 Cryo-EM structure of the INSL5-bound human relaxin family peptidereceptor 4 (RXFP4)-Gi complex Deposited 2022-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain T 2–340（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.19 Å
8DCR Cryo-EM structure of dobutamine-bound beta1-adrenergic receptor in complex with heterotrimeric Gs-protein Deposited 2022-06-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded Y00 DOBUTAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8DCS Cryo-EM structure of cyanopindolol-bound beta1-adrenergic receptor in complex with heterotrimeric Gs-protein Deposited 2022-06-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded P32 Cyanopindolol × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8P12 Cryo-EM structure of Rhodopsin-Gi bound to antibody fragment Fab13 Deposited 2023-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–340（340 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.21 Å
8P13 Cryo-EM structure of Rhodopsin-Gi bound with antibody fragments scFv16 and Fab79, conformation 1 Deposited 2023-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–340（340 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8P15 Cryo-EM structure of Rhodopsin-Gi bound with antibody fragments scFv16 and Fab79, conformation 2 Deposited 2023-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–340（340 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
8SOC Phosphoinositide phosphate 3 kinase gamma bound with ADP and Gbetagamma Deposited 2023-04-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–340（340 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 2
Resolution 3.50 Å
8SOD Phosphoinositide phosphate 3 kinase gamma bound with ADP and two Gbetagamma subunits in State 1 Deposited 2023-04-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–340（340 aa）
Chain E 1–340（340 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 2
Resolution 3.40 Å
8SOE Phosphoinositide phosphate 3 kinase gamma bound with ADP and two Gbetagamma subunits in State 2 Deposited 2023-04-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–340（340 aa）
Chain E 1–340（340 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 2
Resolution 3.60 Å
8YH0 A3R-Gi complex bound to NECA Deposited 2024-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded NEC N-ETHYL-5'-CARBOXAMIDO ADENOSINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
8YH2 A3R-Gi complex bound to adenosine Deposited 2024-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded ADN ADENOSINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
8YH3 A3R-Gi complex bound to m6A Deposited 2024-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded 6MD N-methyladenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8YH5 A3R-Gi complex bound to i6A Deposited 2024-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded ZIR N-(3-methylbut-2-en-1-yl)adenosine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
8YH6 A3R-Gi complex bound to namodenoson Deposited 2024-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–340（339 aa）
Not recorded XS0 namodenoson × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
8YKD Cryo-EM structure of ADGRG2-Gs complex with NTF nanobody Deposited 2024-03-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 2–340（339 aa）
Not recorded AND 3-BETA-HYDROXY-5-ANDROSTEN-17-ONE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9CBL Cryo-EM structure of epinephrine-bound alpha-2A-adrenergic receptor in complex with heterotrimeric Gi-protein Deposited 2024-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–340（339 aa）
Not recorded ALE L-EPINEPHRINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9CBM Cryo-EM structure of dexmedetomidine-bound alpha-2A-adrenergic receptor in complex with heterotrimeric Gi-protein Deposited 2024-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–340（339 aa）
Not recorded CZX 4-[(1~{S})-1-(2,3-dimethylphenyl)ethyl]-1~{H}-imidazole × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9EPR Cryo-EM Structure of Jumping Spider Rhodopsin-1 bound to a Gi heterotrimer Deposited 2024-03-19 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–340（340 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å
9Y7H Gb1g2 crosslinked to PLCb3 Deposited 2025-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 8–339（332 aa）
Not recorded ME7 1,1'-ethane-1,2-diylbis(1H-pyrrole-2,5-dione) × 1 CA CALCIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl, 0.1 mM EDTA and 0.1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
9YAO Gbg crosslinked to PLCb3 - second conformation Deposited 2025-09-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 8–339（332 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl, 0.1 mM EDTA and 0.1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å
9YAP Gbg crosslinked to PLCb3 - second conformation Deposited 2025-09-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–340（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 100 mM NaCl, 0.1 mM EDTA and 0.1 mM EGTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å

72 other PDB entries and 73 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GBB1_BOVIN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–340； UniProt 1–340

Guanine nucleotide-binding protein G(T) subunit gamma-T1

OrganismNot specified

UniProt P02698

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain G； UniProt 2–74 Not recorded Gt-alpha/Gi1-alpha chimera × 1 （P04695） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62871） Camelid antibody VHH fragment × 1 Rhodopsin × 1 （P02699） RET RETINAL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；Blot for 1 second before plunging; avoid light as much as possible. Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OYA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1A0R HETEROTRIMERIC COMPLEX OF PHOSDUCIN/TRANSDUCIN BETA-GAMMA Deposited 1997-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–65（65 aa）
Not recorded FAR FARNESYL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.8；277 K；THE PROTEIN COMPLEX (10 MG/ML SOLUTION) WAS CRYSTALLIZED FROM 400 MM SODIUM CACODYLATE (PH 6.8), 1 MM ZINC CHLORIDE, 25 % ETHYLENE GLYCOL, 12 % PEG 8000, BY MICROBATCH CRYSTALLIZATION AT 4 DEGREES C., microbatch, temperature 277K
Resolution 2.80 Å R-free 0.264
1B9X STRUCTURAL ANALYSIS OF PHOSDUCIN AND ITS PHOSPHORYLATION-REGULATED INTERACTION WITH TRANSDUCIN Deposited 1999-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–67（67 aa） Fragment：LYS-C RESISTANT FRAGMENT, THE GAMMA SUBUNIT CLEAVED AFTER RESIDUE 68
Not recorded GD GADOLINIUM ATOM × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.261
1B9Y STRUCTURAL ANALYSIS OF PHOSDUCIN AND ITS PHOSPHORYLATION-REGULATED INTERACTION WITH TRANSDUCIN BETA-GAMMA Deposited 1999-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–67（67 aa） Fragment：LYS-C RESISTANT FRAGMENT, THE GAMMA SUBUNIT CLEAVED AFTER RESIDUE 68
Not recorded GD GADOLINIUM ATOM × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.266
1GOT HETEROTRIMERIC COMPLEX OF A GT-ALPHA/GI-ALPHA CHIMERA AND THE GT-BETA-GAMMA SUBUNITS Deposited 1996-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–65（65 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；10 MG/ML OF HETEROTRIMERIC COMPLEX WERE MIXED 1:1 WITH WELL SOLUTION CONTAINING 10% PEG-8000, 50 MM TRIS, PH 8.0, 10% GLYCEROL, 50 MM NACL, .1 MM MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS WELL SOLUTION IN HANGING DROPS AT 4 DEGREES C., vapor diffusion - hanging drop, temperature 277K
Resolution 2.00 Å R-free 0.295
1MF6 Transducin gamma subunit, C-terminal domain 60-71, rhodopsin-bound state: Ensemble of 15 models determined by TrNOE spectroscopy Deposited 2002-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 60–71（12 aa） Fragment：Residues 60-71
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；277 K
NMR sample composition 0.1 mM Rhodopsin, 2 mM peptide DKNPFKELKGGC-farnesyl. | 90% H2O/10% D2O
Resolution not provided
1TBG BETA-GAMMA DIMER OF THE HETEROTRIMERIC G-PROTEIN TRANSDUCIN Deposited 1996-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Chain F 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Chain G 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Chain H 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；277 K；15-20 MG/ML PROTEIN MIXED 1:1 WITH WELL SOLUTION (10MM FUMARATE, PH 4.2, 10MM MGSO4, 2MM GDCL3, 5% W/V GLYCEROL, 5% W/V PEG 4000, 15MM BETA-MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS. WELL SOLUTION IN HANGING DROPS AT 4 DEGREES CELSIUS., vapor diffusion - hanging drop, temperature 277K
Resolution 2.10 Å R-free 0.306
1TBG BETA-GAMMA DIMER OF THE HETEROTRIMERIC G-PROTEIN TRANSDUCIN Deposited 1996-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；277 K；15-20 MG/ML PROTEIN MIXED 1:1 WITH WELL SOLUTION (10MM FUMARATE, PH 4.2, 10MM MGSO4, 2MM GDCL3, 5% W/V GLYCEROL, 5% W/V PEG 4000, 15MM BETA-MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS. WELL SOLUTION IN HANGING DROPS AT 4 DEGREES CELSIUS., vapor diffusion - hanging drop, temperature 277K
Resolution 2.10 Å R-free 0.306
1TBG BETA-GAMMA DIMER OF THE HETEROTRIMERIC G-PROTEIN TRANSDUCIN Deposited 1996-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；277 K；15-20 MG/ML PROTEIN MIXED 1:1 WITH WELL SOLUTION (10MM FUMARATE, PH 4.2, 10MM MGSO4, 2MM GDCL3, 5% W/V GLYCEROL, 5% W/V PEG 4000, 15MM BETA-MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS. WELL SOLUTION IN HANGING DROPS AT 4 DEGREES CELSIUS., vapor diffusion - hanging drop, temperature 277K
Resolution 2.10 Å R-free 0.306
1TBG BETA-GAMMA DIMER OF THE HETEROTRIMERIC G-PROTEIN TRANSDUCIN Deposited 1996-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；277 K；15-20 MG/ML PROTEIN MIXED 1:1 WITH WELL SOLUTION (10MM FUMARATE, PH 4.2, 10MM MGSO4, 2MM GDCL3, 5% W/V GLYCEROL, 5% W/V PEG 4000, 15MM BETA-MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS. WELL SOLUTION IN HANGING DROPS AT 4 DEGREES CELSIUS., vapor diffusion - hanging drop, temperature 277K
Resolution 2.10 Å R-free 0.306
1TBG BETA-GAMMA DIMER OF THE HETEROTRIMERIC G-PROTEIN TRANSDUCIN Deposited 1996-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–67（67 aa） Fragment：GAMMA-1 SUBUNIT
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；277 K；15-20 MG/ML PROTEIN MIXED 1:1 WITH WELL SOLUTION (10MM FUMARATE, PH 4.2, 10MM MGSO4, 2MM GDCL3, 5% W/V GLYCEROL, 5% W/V PEG 4000, 15MM BETA-MERCAPTOETHANOL. MIXTURE EQUILIBRATED VS. WELL SOLUTION IN HANGING DROPS AT 4 DEGREES CELSIUS., vapor diffusion - hanging drop, temperature 277K
Resolution 2.10 Å R-free 0.306
2TRC PHOSDUCIN/TRANSDUCIN BETA-GAMMA COMPLEX Deposited 1997-01-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–67（67 aa） Fragment：LYS-C RESISTANT FRAGMENT, THE GAMMA SUBUNIT CLEAVED AFTER RESIDUE 68
Not recorded GD GADOLINIUM ATOM × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；THE PROTEIN COMPLEX (10 MG/ML SOLUTION) WAS CRYSTALLIZED FROM 50 MM SODIUM CITRATE (PH 5.0), 150 MM MAGNESIUM ACETATE, 9.5% PEG 8000, BY HANGING DROP METHOD AT 4 DEGREES C., vapor diffusion - hanging drop, temperature 277K
Resolution 2.40 Å R-free 0.277
5KDO Heterotrimeric complex of the 4 alanine insertion variant of the Gi alpha1 subunit and the Gbeta1-Ggamma1 Deposited 2016-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–74（74 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；19-24 % PEG 8000, 1-5% 2-propanolol, 1% OG, 100 mM HEPES (pH 7.0) and 100 mM NaOAc (pH 6.4)
Resolution 1.90 Å R-free 0.208
6B20 Crystal structure of a complex between G protein beta gamma dimer and an inhibitory Nanobody regulator Deposited 2017-09-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 7–66（60 aa）
Not recorded UNX UNKNOWN LIGAND × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；25-30% (w/v) PEG 3350 in 0.1-0.2 M Bis-Tris-HCl, pH 5.5-5.7, and 0.2-0.3 M MgCl2
Resolution 2.34 Å R-free 0.249
6B20 Crystal structure of a complex between G protein beta gamma dimer and an inhibitory Nanobody regulator Deposited 2017-09-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 7–66（60 aa）
Not recorded UNX UNKNOWN LIGAND × 5 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277.15 K；25-30% (w/v) PEG 3350 in 0.1-0.2 M Bis-Tris-HCl, pH 5.5-5.7, and 0.2-0.3 M MgCl2
Resolution 2.34 Å R-free 0.249
6OY9 Structure of the Rhodopsin-Transducin Complex Deposited 2019-05-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 2–74（73 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6QNO Rhodopsin-Gi protein complex Deposited 2019-02-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric
Chain G 1–74（74 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；The detergent lauryl-maltose neopentyl glycol (LMNG) was used before the last purification step by gel filtration. In the gel filtration, detergent-free buffer was used.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.38 Å
7O7F Structural basis of the activation of the CC chemokine receptor 5 by a chemokine agonist Deposited 2021-04-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
8P12 Cryo-EM structure of Rhodopsin-Gi bound to antibody fragment Fab13 Deposited 2023-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain G 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.21 Å
8P13 Cryo-EM structure of Rhodopsin-Gi bound with antibody fragments scFv16 and Fab79, conformation 1 Deposited 2023-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8P15 Cryo-EM structure of Rhodopsin-Gi bound with antibody fragments scFv16 and Fab79, conformation 2 Deposited 2023-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
9EPR Cryo-EM Structure of Jumping Spider Rhodopsin-1 bound to a Gi heterotrimer Deposited 2024-03-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–74（74 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å

16 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GBG1_BOVIN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain G； PDBConstruct 9–81； UniProt 2–74

Rhodopsin

OrganismNot specified

UniProt P02699

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain R； UniProt 1–348 Not recorded Gt-alpha/Gi1-alpha chimera × 1 （P04695） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62871） Guanine nucleotide-binding protein G(T) subunit gamma-T1 × 1 （P02698） Camelid antibody VHH fragment × 1 RET RETINAL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；Blot for 1 second before plunging; avoid light as much as possible. Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OYA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EDS SOLUTION STRUCTURE OF INTRADISKAL LOOP 1 OF BOVINE RHODOPSIN (RHODOPSIN RESIDUES 92-123) Deposited 2000-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 93–123（31 aa） Fragment：FIRST INTRADISKAL LOOP (RESIDUES 93-123)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions 303 K；Pressure 1
NMR sample composition 2 mM peptide | DMSO
Resolution not provided
1EDV SOLUTION STRUCTURE OF 2ND INTRADISKAL LOOP OF BOVINE RHODOPSIN (RESIDUES 172-205) Deposited 2000-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 172–205（34 aa） Fragment：SECOND INTRADISKAL LOOP (RESIDUES 172-205)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions 303 K；Pressure 1
NMR sample composition 2 mM peptide | DMSO
Resolution not provided
1EDW SOLUTION STRUCTURE OF THIRD INTRADISKAL LOOP OF BOVINE RHODOPSIN (RESIDUES 268-293) Deposited 2000-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 268–293（26 aa） Fragment：THIRD INTRADISKAL LOOP (RESIDUES 268-293)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions 303 K；Pressure 1
NMR sample composition 2 mM peptide | DMSO
Resolution not provided
1EDX SOLUTION STRUCTURE OF AMINO TERMINUS OF BOVINE RHODOPSIN (RESIDUES 1-40) Deposited 2000-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–40（40 aa） Fragment：AMINO TERMINAL (RESIDUES 1-40)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions 303 K；Pressure 1
NMR sample composition 2 mM peptide | DMSO
Resolution not provided
1F88 CRYSTAL STRUCTURE OF BOVINE RHODOPSIN Deposited 2000-06-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded HG MERCURY (II) ION × 6 ZN ZINC ION × 4 RET RETINAL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；MES, 2-mercaptoethanol, zinc acetate, heptanetriol, nonyl-glucoside, ammonium sulfate are in the hanging drops. mercury acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K, temperature 277K
Resolution 2.80 Å R-free 0.238
1F88 CRYSTAL STRUCTURE OF BOVINE RHODOPSIN Deposited 2000-06-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Not recorded HG MERCURY (II) ION × 3 ZN ZINC ION × 2 RET RETINAL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；MES, 2-mercaptoethanol, zinc acetate, heptanetriol, nonyl-glucoside, ammonium sulfate are in the hanging drops. mercury acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K, temperature 277K
Resolution 2.80 Å R-free 0.238
1F88 CRYSTAL STRUCTURE OF BOVINE RHODOPSIN Deposited 2000-06-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–348（348 aa）
Not recorded HG MERCURY (II) ION × 3 ZN ZINC ION × 2 RET RETINAL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；MES, 2-mercaptoethanol, zinc acetate, heptanetriol, nonyl-glucoside, ammonium sulfate are in the hanging drops. mercury acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K, temperature 277K
Resolution 2.80 Å R-free 0.238
1FDF HELIX 7 BOVINE RHODOPSIN Deposited 2000-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 291–315（25 aa） Fragment：HELIX 7, RESIDUES 291-315
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 0；Pressure 1
NMR sample composition peptide | DMSO
Resolution not provided
1GZM Structure of Bovine Rhodopsin in a Trigonal Crystal Form Deposited 2002-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 2 PLM PALMITIC ACID × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 LDA LAURYL DIMETHYLAMINE-N-OXIDE × 3 C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 12 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；VAPOUR DIFFUSION IN SITTING DROPS OF 15 MG/ML PROTEIN AND 0.2% C8E4, 0.05%LDAO AGAINST 0.8M LI2SO4, 1.6% PEG8000 AND 20% GLYCEROL, pH 8.5
Resolution 2.65 Å R-free 0.235
1HZX CRYSTAL STRUCTURE OF BOVINE RHODOPSIN Deposited 2001-01-26 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 5 HG MERCURY (II) ION × 3 ZN ZINC ION × 4 PLM PALMITIC ACID × 2 RET RETINAL × 1 HTO HEPTANE-1,2,3-TRIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；MES, 2-MERCAPTOETHANOL, ZINC ACETATE, HEPTANETRIOL, NONYL-GLUCOSIDE, AMMONIUM SULFATE ARE IN THE HANGING DROPS. MERCURY ACETATE, pH 6.00
Resolution 2.80 Å R-free 0.212
1HZX CRYSTAL STRUCTURE OF BOVINE RHODOPSIN Deposited 2001-01-26 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 2 HG MERCURY (II) ION × 3 ZN ZINC ION × 3 PLM PALMITIC ACID × 1 RET RETINAL × 1 HTO HEPTANE-1,2,3-TRIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；MES, 2-MERCAPTOETHANOL, ZINC ACETATE, HEPTANETRIOL, NONYL-GLUCOSIDE, AMMONIUM SULFATE ARE IN THE HANGING DROPS. MERCURY ACETATE, pH 6.00
Resolution 2.80 Å R-free 0.212
1HZX CRYSTAL STRUCTURE OF BOVINE RHODOPSIN Deposited 2001-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 7 HG MERCURY (II) ION × 6 ZN ZINC ION × 7 PLM PALMITIC ACID × 3 RET RETINAL × 2 HTO HEPTANE-1,2,3-TRIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；MES, 2-MERCAPTOETHANOL, ZINC ACETATE, HEPTANETRIOL, NONYL-GLUCOSIDE, AMMONIUM SULFATE ARE IN THE HANGING DROPS. MERCURY ACETATE, pH 6.00
Resolution 2.80 Å R-free 0.212
1HZX CRYSTAL STRUCTURE OF BOVINE RHODOPSIN Deposited 2001-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 7 HG MERCURY (II) ION × 6 ZN ZINC ION × 7 PLM PALMITIC ACID × 3 RET RETINAL × 2 HTO HEPTANE-1,2,3-TRIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；MES, 2-MERCAPTOETHANOL, ZINC ACETATE, HEPTANETRIOL, NONYL-GLUCOSIDE, AMMONIUM SULFATE ARE IN THE HANGING DROPS. MERCURY ACETATE, pH 6.00
Resolution 2.80 Å R-free 0.212
1JFP Structure of bovine rhodopsin (dark adapted) Deposited 2001-06-21 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Not recorded RET RETINAL × 1 SOLUTION NMR
NMR measurement conditions pH 6；283 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1
NMR sample composition fragments of rhodopsin | aqueous or DMSO
Resolution not provided
1L9H Crystal structure of bovine rhodopsin at 2.6 angstroms RESOLUTION Deposited 2002-03-23 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 5 HG MERCURY (II) ION × 3 ZN ZINC ION × 4 HTO HEPTANE-1,2,3-TRIOL × 4 PLM PALMITIC ACID × 3 RET RETINAL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.60 Å R-free 0.225
1L9H Crystal structure of bovine rhodopsin at 2.6 angstroms RESOLUTION Deposited 2002-03-23 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 2 HG MERCURY (II) ION × 3 ZN ZINC ION × 3 PLM PALMITIC ACID × 2 RET RETINAL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.60 Å R-free 0.225
1L9H Crystal structure of bovine rhodopsin at 2.6 angstroms RESOLUTION Deposited 2002-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 7 HG MERCURY (II) ION × 6 ZN ZINC ION × 7 HTO HEPTANE-1,2,3-TRIOL × 4 PLM PALMITIC ACID × 5 RET RETINAL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.60 Å R-free 0.225
1L9H Crystal structure of bovine rhodopsin at 2.6 angstroms RESOLUTION Deposited 2002-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) BNG nonyl beta-D-glucopyranoside × 7 HG MERCURY (II) ION × 6 ZN ZINC ION × 7 HTO HEPTANE-1,2,3-TRIOL × 4 PLM PALMITIC ACID × 5 RET RETINAL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.60 Å R-free 0.225
1LN6 STRUCTURE OF BOVINE RHODOPSIN (Metarhodopsin II) Deposited 2002-05-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Not recorded RET RETINAL × 1 SOLUTION NMR
NMR measurement conditions pH 6；283 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1
NMR sample composition FRAGMENTS OF RHODOPSIN | D2O, DMSO, DPC MICELLES
Resolution not provided
1NZS NMR structures of phosphorylated carboxy terminus of bovine rhodopsin in arrestin-bound state Deposited 2003-02-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 330–348（19 aa） Fragment：C-terminal domain, residues 330-348
Mutation：all serines and threonines phosphorylated Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；277 K；Ionic strength (raw mmCIF value) 0.1M phosphate；Pressure ambient
NMR sample composition 0.16 mM of purified arrestin, 1.77 mM of 7PP, 7-phospho-Rh(330-348) or unphosphorylated Rh(330-348) in sodium phosphate buffer, 0.1 M, pH 6.5 and 10% D2O in a total volume of 0.6 ml | 90% H2O/10% D2O
Resolution not provided
1U19 Crystal Structure of Bovine Rhodopsin at 2.2 Angstroms Resolution Deposited 2004-07-15 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 3 ZN ZINC ION × 4 RET RETINAL × 1 PLM PALMITIC ACID × 3 HTG heptyl 1-thio-beta-D-glucopyranoside × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.20 Å R-free 0.222
1U19 Crystal Structure of Bovine Rhodopsin at 2.2 Angstroms Resolution Deposited 2004-07-15 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 3 ZN ZINC ION × 3 RET RETINAL × 1 PLM PALMITIC ACID × 3 HTG heptyl 1-thio-beta-D-glucopyranoside × 3 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.20 Å R-free 0.222
1VQX ARRESTIN-BOUND NMR STRUCTURES OF THE PHOSPHORYLATED CARBOXY-TERMINAL DOMAIN OF RHODOPSIN, REFINED Deposited 2005-01-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 330–348（19 aa） Fragment：C-TERMINAL DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；278 K；Ionic strength (raw mmCIF value) 100 mM；Pressure AMBIENT
NMR sample composition 0.16 MM PURIFIED ARRESTIN, 1.77 MM 7-PHOSPHO-RH(330-348) IN SODIUM PHOSPHATE BUFFER, 10% D2O IN A TOTAL VOLUME OF 0.6 ML
Resolution not provided
2G87 Crystallographic model of bathorhodopsin Deposited 2006-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 6 ZN ZINC ION × 7 RET RETINAL × 2 PLM PALMITIC ACID × 6 HTG heptyl 1-thio-beta-D-glucopyranoside × 4 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；2.9M ammonium sulfate, 0.05M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.60 Å R-free 0.181
2G87 Crystallographic model of bathorhodopsin Deposited 2006-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 6 ZN ZINC ION × 7 RET RETINAL × 2 PLM PALMITIC ACID × 6 HTG heptyl 1-thio-beta-D-glucopyranoside × 4 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；2.9M ammonium sulfate, 0.05M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.60 Å R-free 0.181
2HPY Crystallographic model of lumirhodopsin Deposited 2006-07-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 6 ZN ZINC ION × 7 RET RETINAL × 2 PLM PALMITIC ACID × 6 HTG heptyl 1-thio-beta-D-glucopyranoside × 4 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；2.9M AMMONIUM SULFATE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.80 Å R-free 0.238
2HPY Crystallographic model of lumirhodopsin Deposited 2006-07-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 6 ZN ZINC ION × 7 RET RETINAL × 2 PLM PALMITIC ACID × 6 HTG heptyl 1-thio-beta-D-glucopyranoside × 4 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；2.9M AMMONIUM SULFATE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.80 Å R-free 0.238
2I35 Crystal structure of rhombohedral crystal form of ground-state rhodopsin Deposited 2006-08-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 1 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；278 K；80 mM MES, pH 6.3, 110 mM N-nonyl-beta-D-glucoside, 200 mM zinc acetate, 16 mM beta-mercaptoethanol, 0.4% Merpol DA, 0.1% sodium azide, equilibrated against 3.0 M ammonium sulfate, VAPOR DIFFUSION, temperature 278K
Resolution 3.80 Å R-free 0.418
2I36 Crystal structure of trigonal crystal form of ground-state rhodopsin Deposited 2006-08-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；278 K；80 mM MES, pH 6.3, 110 mM N-nonyl-beta-D-glucoside, 200 mM zinc acetate, 0.1% sodium azide, 16 mM beta-mercaptoethanol, 2.6% Merpol HCS, equilibrated against 3.1-3.3 M ammonium sulfate, VAPOR DIFFUSION, temperature 278K
Resolution 4.10 Å R-free 0.412
2I36 Crystal structure of trigonal crystal form of ground-state rhodopsin Deposited 2006-08-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；278 K；80 mM MES, pH 6.3, 110 mM N-nonyl-beta-D-glucoside, 200 mM zinc acetate, 0.1% sodium azide, 16 mM beta-mercaptoethanol, 2.6% Merpol HCS, equilibrated against 3.1-3.3 M ammonium sulfate, VAPOR DIFFUSION, temperature 278K
Resolution 4.10 Å R-free 0.412
2I36 Crystal structure of trigonal crystal form of ground-state rhodopsin Deposited 2006-08-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；278 K；80 mM MES, pH 6.3, 110 mM N-nonyl-beta-D-glucoside, 200 mM zinc acetate, 0.1% sodium azide, 16 mM beta-mercaptoethanol, 2.6% Merpol HCS, equilibrated against 3.1-3.3 M ammonium sulfate, VAPOR DIFFUSION, temperature 278K
Resolution 4.10 Å R-free 0.412
2I37 Crystal structure of a photoactivated rhodopsin Deposited 2006-08-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；278 K；80 mM MES, pH 6.3, 110 mM N-nonyl-beta-D-glucoside, 200 mM zinc acetate, 0.1% sodium azide, 16 mM beta-mercaptoethanol, 2.6% Merpol HCS, equilibrated against 3.1-3.3 M ammonium sulfate, VAPOR DIFFUSION, temperature 278K
Resolution 4.15 Å R-free 0.382
2I37 Crystal structure of a photoactivated rhodopsin Deposited 2006-08-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；278 K；80 mM MES, pH 6.3, 110 mM N-nonyl-beta-D-glucoside, 200 mM zinc acetate, 0.1% sodium azide, 16 mM beta-mercaptoethanol, 2.6% Merpol HCS, equilibrated against 3.1-3.3 M ammonium sulfate, VAPOR DIFFUSION, temperature 278K
Resolution 4.15 Å R-free 0.382
2I37 Crystal structure of a photoactivated rhodopsin Deposited 2006-08-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；278 K；80 mM MES, pH 6.3, 110 mM N-nonyl-beta-D-glucoside, 200 mM zinc acetate, 0.1% sodium azide, 16 mM beta-mercaptoethanol, 2.6% Merpol HCS, equilibrated against 3.1-3.3 M ammonium sulfate, VAPOR DIFFUSION, temperature 278K
Resolution 4.15 Å R-free 0.382
2J4Y Crystal structure of a rhodopsin stabilizing mutant expressed in mammalian cells Deposited 2006-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；VAPOUR DIFFUSION IN SITTING DROPS OF 10-15 MG/ML PROTEIN AND 0.2% C8E4,0.05%LDAO AGAINST 1.1-1.7M LITHIUM SULFATE, 0.1M HEPES PH 7.5
Resolution 3.40 Å R-free 0.330
2PED Crystallographic model of 9-cis-rhodopsin Deposited 2007-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 6 ZN ZINC ION × 7 RET RETINAL × 2 PLM PALMITIC ACID × 6 HTG heptyl 1-thio-beta-D-glucopyranoside × 4 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；2.9M AMMONIUM SULFATE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.95 Å R-free 0.289
2PED Crystallographic model of 9-cis-rhodopsin Deposited 2007-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) HG MERCURY (II) ION × 6 ZN ZINC ION × 7 RET RETINAL × 2 PLM PALMITIC ACID × 6 HTG heptyl 1-thio-beta-D-glucopyranoside × 4 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；2.9M AMMONIUM SULFATE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.95 Å R-free 0.289
2X72 CRYSTAL STRUCTURE OF THE CONSTITUTIVELY ACTIVE E113Q,D2C,D282C RHODOPSIN MUTANT WITH BOUND GALPHACT PEPTIDE. Deposited 2010-02-22 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 4 RET RETINAL × 2 LPP 2-(HEXADECANOYLOXY)-1-[(PHOSPHONOOXY)METHYL]ETHYL HEXADECANOATE × 2 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.5；3.0-3.4 M AMMONIUM SULFATE, 100 MM SODIUM ACETATE PH 4.5
Resolution 3.00 Å R-free 0.244
3C9L Structure of ground-state bovine rhodospin in a hexagonal crystal form Deposited 2008-02-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Not recorded ZN ZINC ION × 1 ACE ACETYL GROUP × 1 RET RETINAL × 1 PLM PALMITIC ACID × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 1 LDA LAURYL DIMETHYLAMINE-N-OXIDE × 1 C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 6 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å R-free 0.216
3C9M Structure of a mutant bovine rhodopsin in hexagonal crystal form Deposited 2008-02-16 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Mutation：N2C, D282C NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ACE ACETYL GROUP × 1 RET RETINAL × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.40 Å R-free 0.219
3CAP Crystal Structure of Native Opsin: the G Protein-Coupled Receptor Rhodopsin in its Ligand-free State Deposited 2008-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded BGL 2-O-octyl-beta-D-glucopyranose × 6 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；AMMONIUM SULFATE, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.90 Å R-free 0.266
3DQB Crystal structure of the active G-protein-coupled receptor opsin in complex with a C-terminal peptide derived from the Galpha subunit of transducin Deposited 2008-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 3 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；AMMONIUM SULFATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.20 Å R-free 0.248
3OAX Crystal structure of bovine rhodopsin with beta-ionone Deposited 2010-08-05 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 1 PLM PALMITIC ACID × 2 HG MERCURY (II) ION × 3 ZN ZINC ION × 4 4E6 (4E,6E)-hexadeca-1,4,6-triene × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 ID3 (3E)-4-(2,6,6-trimethylcyclohex-1-en-1-yl)but-3-en-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；zinc acetate, ammonium sulfate, beta-ionone, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.60 Å R-free 0.262
3OAX Crystal structure of bovine rhodopsin with beta-ionone Deposited 2010-08-05 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 1 PLM PALMITIC ACID × 2 HG MERCURY (II) ION × 3 ZN ZINC ION × 3 4E6 (4E,6E)-hexadeca-1,4,6-triene × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 ID3 (3E)-4-(2,6,6-trimethylcyclohex-1-en-1-yl)but-3-en-2-one × 1 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；zinc acetate, ammonium sulfate, beta-ionone, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.60 Å R-free 0.262
3OAX Crystal structure of bovine rhodopsin with beta-ionone Deposited 2010-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 2 PLM PALMITIC ACID × 4 HG MERCURY (II) ION × 6 ZN ZINC ION × 7 4E6 (4E,6E)-hexadeca-1,4,6-triene × 2 HTG heptyl 1-thio-beta-D-glucopyranoside × 4 ID3 (3E)-4-(2,6,6-trimethylcyclohex-1-en-1-yl)but-3-en-2-one × 2 HTO HEPTANE-1,2,3-TRIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；283 K；zinc acetate, ammonium sulfate, beta-ionone, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K
Resolution 2.60 Å R-free 0.262
3PQR Crystal structure of Metarhodopsin II in complex with a C-terminal peptide derived from the Galpha subunit of transducin Deposited 2010-11-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded RET RETINAL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 1 SO4 SULFATE ION × 1 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；ammonium sulfate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.250
3PQR Crystal structure of Metarhodopsin II in complex with a C-terminal peptide derived from the Galpha subunit of transducin Deposited 2010-11-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Not recorded RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BOG octyl beta-D-glucopyranoside × 4 PLM PALMITIC ACID × 2 SO4 SULFATE ION × 2 ACT ACETATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；ammonium sulfate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.250
3PXO Crystal structure of Metarhodopsin II Deposited 2010-12-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 4 PLM PALMITIC ACID × 2 RET RETINAL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；3.0-3.4 M ammonium sulfate, 0.1 M sodium acetate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.245
4A4M Crystal structure of the light-activated constitutively active N2C, M257Y,D282C rhodopsin mutant in complex with a peptide resembling the C-terminus of the Galpha-protein subunit (GaCT) Deposited 2011-10-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 2 ACT ACETATE ION × 2 BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.5；3.0-3.4 M AMMONIUM SULPHATE, 100 MM SODIUM ACETATE PH 4.5
Resolution 3.30 Å R-free 0.262
4BEY Night blindness causing G90D rhodopsin in complex with GaCT2 peptide Deposited 2013-03-12 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 ACT ACETATE ION × 1 PLM PALMITIC ACID × 1 BOG octyl beta-D-glucopyranoside × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å R-free 0.259
4BEZ Night blindness causing G90D rhodopsin in the active conformation Deposited 2013-03-12 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 2 SO4 SULFATE ION × 2 PLM PALMITIC ACID × 2 BOG octyl beta-D-glucopyranoside × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.30 Å R-free 0.244
4J4Q Crystal structure of active conformation of GPCR opsin stabilized by octylglucoside Deposited 2013-02-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 4 PLM PALMITIC ACID × 1 SO4 SULFATE ION × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；AMMONIUM SULFATE, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.65 Å R-free 0.230
4PXF Crystal structure of the active G-protein-coupled receptor opsin in complex with the finger-loop peptide derived from the full-length arrestin-1 Deposited 2014-03-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 6 PLM PALMITIC ACID × 2 SO4 SULFATE ION × 2 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；3.2 M (NH4)2SO4 in 0.1 M 2-(N-morpholino)ethanesulfonic acid (MES), pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.75 Å R-free 0.251
4X1H Opsin/G(alpha) peptide complex stabilized by nonyl-glucoside Deposited 2014-11-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BNG nonyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；3.1M ammonium sulfate, 100mM citrate
Resolution 2.29 Å R-free 0.229
5DYS Crystal Structure of T94I rhodopsin mutant Deposited 2015-09-25 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Mutation：N2C, D282C, T94I Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 1 ACT ACETATE ION × 2 BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Ammonium Sulfate, Sodium acetate
Resolution 2.30 Å R-free 0.231
5EN0 Crystal Structure of T94I rhodopsin mutant Deposited 2015-11-08 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Mutation：N2C, T94I, D282C Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 1 ACT ACETATE ION × 2 BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Ammonium sulfate, Sodium acetate
Resolution 2.81 Å R-free 0.253
5TE3 Crystal structure of Bos taurus opsin at 2.7 Angstrom Deposited 2016-09-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 3 PLM PALMITIC ACID × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；contained 2.8-3.4 M ammonium sulfate in 0.05-0.1 M NaAcO buffer, pH 5.2-5.6
Resolution 2.70 Å R-free 0.254
5TE3 Crystal structure of Bos taurus opsin at 2.7 Angstrom Deposited 2016-09-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 6 PLM PALMITIC ACID × 4 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；contained 2.8-3.4 M ammonium sulfate in 0.05-0.1 M NaAcO buffer, pH 5.2-5.6
Resolution 2.70 Å R-free 0.254
5TE5 Crystal structure of Bos taurus opsin regenerated with 6-carbon ring retinal chromophore Deposited 2016-09-20 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 7AB (2E)-{(4E)-4-[(3E)-4-(2,6,6-trimethylcyclohex-1-en-1-yl)but-3-en-2-ylidene]cyclohex-2-en-1-ylidene}acetaldehyde × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；2.8-3.4 M ammonium sulfate in 0.05-0.1 M MES, pH 6.1-6.6, or 0.05-0.1 M NaAcO buffer, pH 5.2-5.6
Resolution 4.01 Å R-free 0.357
5WKT 3.2-Angstrom In situ Mylar structure of bovine opsin at 100 K Deposited 2017-07-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 3 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；280 K；100 mM sodium acetate , 3.8 M (NH4)2SO4, ~12% (w/v) trehalose
Resolution 3.20 Å R-free 0.295
6FK6 Crystal structure of N2C/D282C stabilized opsin bound to RS01 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–326（326 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 BOG octyl beta-D-glucopyranoside × 4 DOK (2~{S})-2-(4-chlorophenyl)-3-methyl-1-spiro[1,3-benzodioxole-2,4'-piperidine]-1'-yl-butan-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；AMMONIUM SULPHATE, SODIUM ACETATE, D(+)-TREHALOSE, PH 6.0
Resolution 2.36 Å R-free 0.226
6FK7 Crystal structure of N2C/D282C stabilized opsin bound to RS06 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa） Fragment：RESIDUES 1-326
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 2 BOG octyl beta-D-glucopyranoside × 10 DO5 (2~{R},3~{R})-2-(4-chlorophenyl)-3-oxidanyl-1-spiro[1,3-benzodioxole-2,4'-piperidine]-1'-yl-butan-1-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；AMMONIUM SULPHATE, SODIUM ACETATE, D(+)-TREHALOSE, PH 6.0
Resolution 2.62 Å R-free 0.253
6FK8 Crystal structure of N2C/D282C stabilized opsin bound to RS08 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa） Fragment：RESIDUES 1-326
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 DNZ (2~{R},3~{S})-3-azanyl-2-(4-chlorophenyl)-1-spiro[1,3-benzodioxole-2,4'-piperidine]-1'-yl-butan-1-one × 1 BOG octyl beta-D-glucopyranoside × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；see publication
Resolution 2.87 Å R-free 0.247
6FK9 Crystal structure of N2C/D282C stabilized opsin bound to RS09 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa） Fragment：RESIDUES 1-326
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 BOG octyl beta-D-glucopyranoside × 4 DNK (2~{S})-3-methyl-2-phenyl-1-spiro[1,3-benzodioxole-2,4'-piperidine]-1'-yl-butan-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；see publication
Resolution 2.63 Å R-free 0.261
6FKA Crystal structure of N2C/D282C stabilized opsin bound to RS11 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa） Fragment：RESIDUES 1-326
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 BOG octyl beta-D-glucopyranoside × 5 DN5 (2~{S})-2-(3,4-dichlorophenyl)-3-methyl-1-spiro[1,3-benzodioxole-2,4'-piperidine]-1'-yl-butan-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；see publication
Resolution 2.70 Å R-free 0.222
6FKB Crystal structure of N2C/D282C stabilized opsin bound to RS13 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–328（328 aa） Fragment：RESIDUES 1-326
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BMA beta-D-mannopyranose × 1 MAN alpha-D-mannopyranose × 2 BOG octyl beta-D-glucopyranoside × 5 DLH 2-(4-chlorophenyl)-1-spiro[1,3-benzodioxole-2,4'-piperidine]-1'-yl-ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；see publication
Resolution 3.03 Å R-free 0.272
6FKC Crystal structure of N2C/D282C stabilized opsin bound to RS15 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa） Fragment：RESIDUES 1-326
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 DLB 3-[1'-[(2~{S})-2-(4-chlorophenyl)-3-methyl-butanoyl]spiro[1,3-benzodioxole-2,4'-piperidine]-5-yl]propanoic acid × 1 BOG octyl beta-D-glucopyranoside × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；see publication
Resolution 2.46 Å R-free 0.240
6FKD Crystal structure of N2C/D282C stabilized opsin bound to RS16 Deposited 2018-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–348（348 aa） Fragment：RESIDUES 1-326
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) PLM PALMITIC ACID × 1 BOG octyl beta-D-glucopyranoside × 5 DL2 5-chloranyl-2-(2-oxidanylidene-2-spiro[1,3-benzodioxole-2,4'-piperidine]-1'-yl-ethyl)-3~{H}-pyridin-6-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；see publication
Resolution 2.49 Å R-free 0.250
6FUF Crystal structure of the rhodopsin-mini-Go complex Deposited 2018-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–317（316 aa）
Not recorded RET RETINAL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M MES pH 5.5 10-20% PEG4000
Resolution 3.12 Å R-free 0.280
6NWE Crystal structure of bovine opsin with beta octyl glucoside bound Deposited 2019-02-06 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 5 PLM PALMITIC ACID × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；3.1-3.3M ammonium sulfate, 0.1M sodium acetate buffer, pH 5.5
Resolution 2.71 Å R-free 0.223
6OFJ Cryo-EM structure of the native rhodopsin dimer from rod photoreceptor cells Deposited 2019-03-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
6OY9 Structure of the Rhodopsin-Transducin Complex Deposited 2019-05-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 1–348（348 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6PEL Crystal structure of bovine opsin with citronellol bound Deposited 2019-06-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded ODM (3R)-3,7-dimethyloct-6-en-1-ol × 1 BOG octyl beta-D-glucopyranoside × 1 PLM PALMITIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；3.1-3.3M ammonium sulfate, 0.1M sodium acetate buffer, pH 5.5
Resolution 3.19 Å R-free 0.248
6PGS Crystal structure of bovine opsin with geraniol bound Deposited 2019-06-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 1 PLM PALMITIC ACID × 1 64Z Geraniol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；3.1-3.3M ammonium sulfate, 0.1M sodium acetate buffer, pH 5.5
Resolution 2.90 Å R-free 0.235
6PH7 Crystal structure of bovine opsin with nerol bound Deposited 2019-06-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 1 PLM PALMITIC ACID × 1 NZZ (2Z)-3,7-dimethylocta-2,6-dien-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；3.1-3.3 ammonium sulfate, 0.1M sodium acetate buffer, pH 5.5
Resolution 2.90 Å R-free 0.225
6PH7 Crystal structure of bovine opsin with nerol bound Deposited 2019-06-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Not recorded BOG octyl beta-D-glucopyranoside × 2 PLM PALMITIC ACID × 2 NZZ (2Z)-3,7-dimethylocta-2,6-dien-1-ol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；3.1-3.3 ammonium sulfate, 0.1M sodium acetate buffer, pH 5.5
Resolution 2.90 Å R-free 0.225
6QNO Rhodopsin-Gi protein complex Deposited 2019-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 1–348（348 aa）
Not recorded RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；The detergent lauryl-maltose neopentyl glycol (LMNG) was used before the last purification step by gel filtration. In the gel filtration, detergent-free buffer was used.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.38 Å
7MT8 Rhodopsin kinase (GRK1)-S5E/S488E/T489E in complex with rhodopsin Deposited 2021-05-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 1–348（348 aa）
Not recorded SGV SANGIVAMYCIN × 1 RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.80 Å
7MT9 Rhodopsin kinase (GRK1) in complex with rhodopsin Deposited 2021-05-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 1–348（348 aa）
Not recorded SGV SANGIVAMYCIN × 1 RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å
7MTA Rhodopsin kinase (GRK1)-S5E/S488E/T489E in complex with rhodopsin and Fab1 Deposited 2021-05-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 1–348（348 aa）
Not recorded SGV SANGIVAMYCIN × 1 RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7MTB Rhodopsin kinase (GRK1)-S5E/S488E/T489E in complex with rhodopsin and Fab6 Deposited 2021-05-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 1–348（348 aa）
Not recorded SGV SANGIVAMYCIN × 1 RET RETINAL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7ZBC Dark state crystal structure of bovine rhodopsin in Lipidic Cubic Phase (SACLA) Deposited 2022-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded ACE ACETYL GROUP × 2 RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DAO LAURIC ACID × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 13 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 9；294 K；36 % PEG 600, 100 mM Bicine pH 9.0
Resolution 1.80 Å R-free 0.223
7ZBE Dark state crystal structure of bovine rhodopsin in Lipidic Cubic Phase (SwissFEL) Deposited 2022-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded ACE ACETYL GROUP × 2 RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DAO LAURIC ACID × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 13 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 9；294 K；36 % PEG 600, 100 mM Bicine pH 9.0
Resolution 1.80 Å R-free 0.247
8A6C 1 picosecond light activated crystal structure of bovine rhodopsin in Lipidic Cubic Phase Deposited 2022-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded ACE ACETYL GROUP × 2 RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DAO LAURIC ACID × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 13 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 9；294 K；36% PEG 600, 100 mM Bicine pH 9.0
Resolution 1.80 Å R-free 0.398
8A6D 10 picosecond light activated crystal structure of bovine rhodopsin in Lipidic Cubic Phase Deposited 2022-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded ACE ACETYL GROUP × 2 RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DAO LAURIC ACID × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 13 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 9；294 K；36 % PEG 600, 100 mM Bicine pH 9.0
Resolution 1.80 Å R-free 0.347
8A6E 100 picosecond light activated crystal structure of bovine rhodopsin in Lipidic Cubic Phase (SACLA) Deposited 2022-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DAO LAURIC ACID × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 13 PLM PALMITIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 9；294 K；36 % PEG 600, 100 mM Bicine pH 9.0
Resolution 1.80 Å R-free 0.369
8FCZ Crystal structure of ground-state rhodopsin in complex with a nanobody Deposited 2022-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded RET RETINAL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277.15 K；30% PEG 600 0.1 M Tricine pH 8 1.2 mM F3215-0002 2% IPTG 50 mM phenol 5 mM EDTA 5 mM beta mercaptoethanol 50 mM Cyglu-4
Resolution 3.70 Å R-free 0.332
8FD0 Crystal structure of bovine rod opsin in complex with a nanobody Deposited 2022-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.16；277.15 K；25% PEG 600 0.1 M Tricine pH 8.16 5 mM EDTA 5 mM beta mercaptoethanol 10 mM hydroxylamine 50 mM CYGLU-4 * reservoir solution contained 30% PEG 600
Resolution 3.71 Å R-free 0.295
8FD1 Crystal structure of photoactivated rhodopsin in complex with a nanobody Deposited 2022-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–348（348 aa）
Chain B 1–348（348 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；277.15 K；25.5% PEG 600 0.1 M Tricine pH 7.8 5 mM EDTA 5 mM beta mercaptoethanol 50 mM Cyglu-4
Resolution 4.25 Å R-free 0.295
8P12 Cryo-EM structure of Rhodopsin-Gi bound to antibody fragment Fab13 Deposited 2023-05-11 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 1–348（348 aa）
Mutation：N2C, M257Y, D282C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.21 Å
8P13 Cryo-EM structure of Rhodopsin-Gi bound with antibody fragments scFv16 and Fab79, conformation 1 Deposited 2023-05-11 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 1–348（348 aa）
Mutation：N2C, M257Y, D282C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8P15 Cryo-EM structure of Rhodopsin-Gi bound with antibody fragments scFv16 and Fab79, conformation 2 Deposited 2023-05-11 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 1–348（348 aa）
Mutation：N2C, M257Y, D282C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES (pH 7.5), 100 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
9NNZ Structure of rod opsin in complex with a megabody Deposited 2025-03-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–348（348 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；LEICA EM GP2
Resolution 3.94 Å
9NOZ Structure of photoactivated rhodopsin in complex with a megabody Deposited 2025-03-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–348（348 aa）
Chain D 1–348（348 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；LEICA EM GP2
Resolution 3.48 Å
9NYX Structure of Native Bovine Rhodopsin in Complex with Mb7 in the Dark State Deposited 2025-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–322（322 aa）
Chain D 1–322（322 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) RET RETINAL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å

74 other PDB entries and 95 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name OPSD_BOVIN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain R； PDBConstruct 1–348； UniProt 1–348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 6oya

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6oya
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6oya
Deposition date deposition_date2019-05-14
Structure title titleStructure of the Rhodopsin-Transducin-Nanobody Complex
Keywords keywordsGPCR, G protein, Complex, SIGNALING PROTEIN-IMMUNE SYSTEM complex; SIGNALING PROTEIN/IMMUNE SYSTEM
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier35.84 Å
Radius of gyration Rg (electron density) rg_electron35.81 Å
Forward intensity I(0) i0212785000.00
Molecular weight molecular_weight118520.0 kDa
Excluded volume excluded_volume148650 ų
Envelope volume envelope_volume193810 ų
Hydration-shell volume shell_volume46241 ų
Envelope diameter envelope_diameter126.1 Å
Shell Rg shell_rg41.06 Å
Envelope Rg envelope_rg35.57 Å
Shape Rg shape_rg35.85 Å
Total Rg total_rg36.06 Å
Total atoms total_atoms8321
Residues n_residues1056
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax120.4 Å
Rg (real space) rg_real35.99 Å
Rg uncertainty (real space) rg_real_error1.00 Å
I(0) (real space) i0_real2.1280e+08
I(0) uncertainty (real space) i0_real_error3.6210e+06
Rg (reciprocal space) rg_reciprocal35.90 Å
I(0) (reciprocal space) i0_reciprocal212800000.0000
Solution quality estimate total_estimate0.8652
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary38.3 Å
Skewness Skewness skewness0.466
Kurtosis Kurtosis kurtosis-0.283
Angular range angular_range— – 0.2200 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha45410000.0000
Real-space data points n_real_points45
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.844; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.766
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id6oyaB00
Class class2 — Mainly Beta
Architecture architecture130 — 7 Propeller
Topology topology10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily10 — YVTN repeat-like/Quinoprotein amine dehydrogenase
Domain ID domain_id6oyaG00
Class class4 — Few Secondary Structures
Architecture architecture10 — Irregular
Topology topology260 — G Protein Gi Gamma 2
Homologous superfamily homologous superfamily10 — Transducin (heterotrimeric G protein), gamma chain
Domain ID domain_id6oyaR00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily10 — Rhodopsin 7-helix transmembrane proteins
▶

8. Citations (1)

▶

9. Files and Curves (10)
