SAXSdb — 9uym

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Retinoic acid receptor responder protein 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Nanobody 32 × 1 Single-chain fragment variable 30 (scFv30) × 1 Beta-arrestin-2,Beta-arrestin-1 × 1 （P32121,P49407） Chemerin-like receptor 2,Vasopressin V2 receptor × 1 （P30518,P46091） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RARR2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 16–153； UniProt 20–157

Beta-arrestin-2,Beta-arrestin-1

Homo sapiens

UniProt P32121

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Retinoic acid receptor responder protein 2 × 1 （Q99969） Nanobody 32 × 1 Single-chain fragment variable 30 (scFv30) × 1 Chemerin-like receptor 2,Vasopressin V2 receptor × 1 （P30518,P46091） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARRB2_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–349； UniProt 1–349

Beta-arrestin-2,Beta-arrestin-1

Homo sapiens

UniProt P49407

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Retinoic acid receptor responder protein 2 × 1 （Q99969） Nanobody 32 × 1 Single-chain fragment variable 30 (scFv30) × 1 Chemerin-like receptor 2,Vasopressin V2 receptor × 1 （P30518,P46091） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARRB1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 350–369； UniProt 357–376

Chemerin-like receptor 2,Vasopressin V2 receptor

Homo sapiens

UniProt P30518

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Retinoic acid receptor responder protein 2 × 1 （Q99969） Nanobody 32 × 1 Single-chain fragment variable 30 (scFv30) × 1 Beta-arrestin-2,Beta-arrestin-1 × 1 （P32121,P49407） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	V2R_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 386–414； UniProt 343–371

Chemerin-like receptor 2,Vasopressin V2 receptor

Homo sapiens

UniProt P46091

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Retinoic acid receptor responder protein 2 × 1 （Q99969） Nanobody 32 × 1 Single-chain fragment variable 30 (scFv30) × 1 Beta-arrestin-2,Beta-arrestin-1 × 1 （P32121,P49407） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CML2_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 65–385； UniProt 2–322

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9uym
Deposition date deposition_date	2025-05-15
Structure title title	Composite map of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 2
Keywords keywords	;G protein-coupled receptor 1, chemerin, beta-arrestin 2, signaling protein, MEMBRANE PROTEIN/IMMUNE SYSTEM, MEMBRANE PROTEIN-IMMUNE SYSTEM complex ;; MEMBRANE PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9uym__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9uym__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

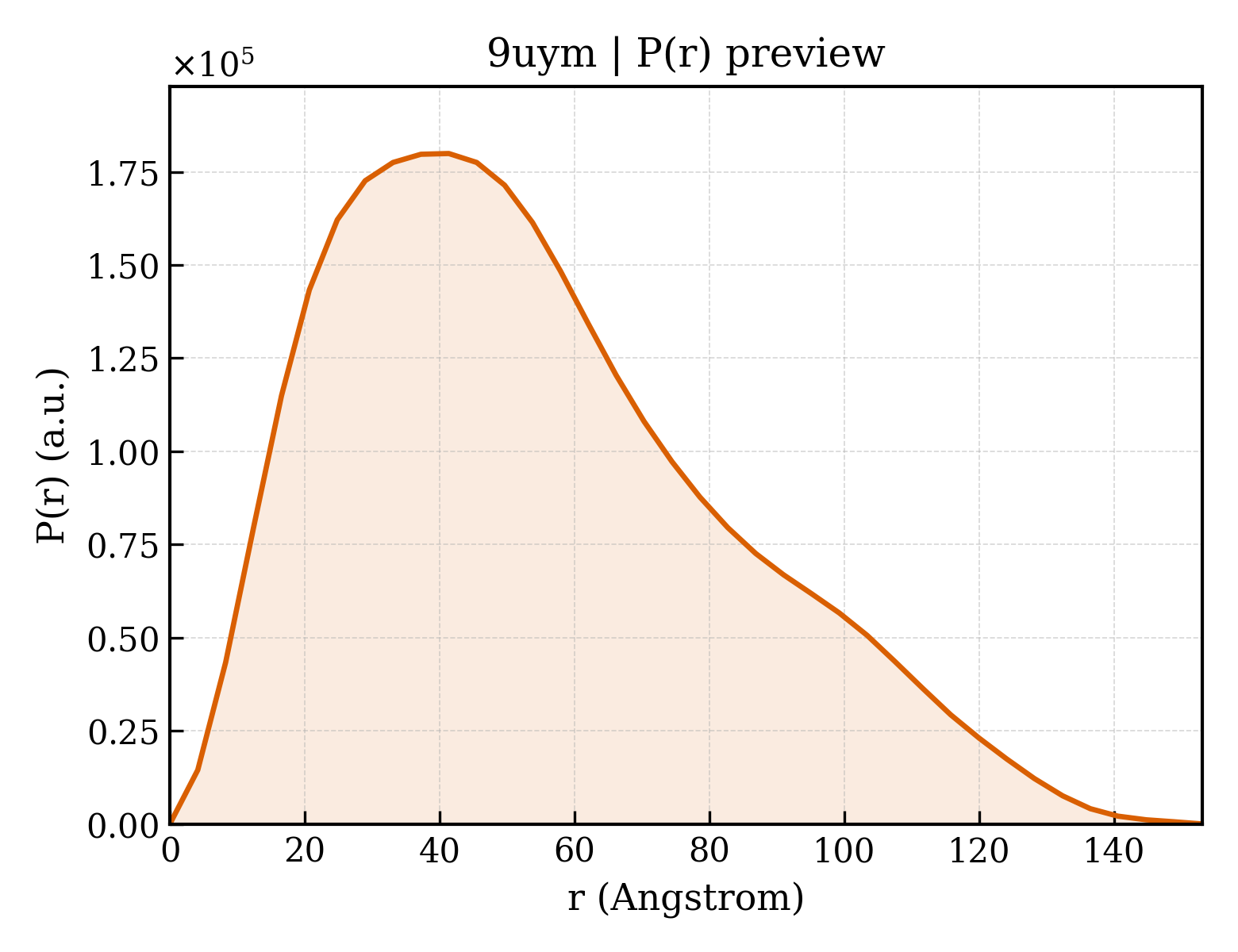

9uym__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.50 Å
Rg (electron density)	42.19 Å
Total Rg	42.15 Å
Atom count	7581
Residues	1008
Excluded volume	135890 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9uym__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Retinoic acid receptor responder protein 2
Molecular weight formula_weight	17720.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	7581

MKTIIALSYIFCLVFAELTEAQRRGLQVALEEFHKHPPVQWAFQETSVESAVDTPFPAGIFVRLEFKLQQTSCRKRDWKKPECKVRPNGRKRKCLACIKLGSEDKVLGRLVHCPIETQVLREAEEHQETQCLRVQRAGEDPHSFYFPGQFAFS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Nanobody 32
Molecular weight formula_weight	13238.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLQESGGGLVQAGGSLRLSCVVSGFFFDTVTMAWYRRAPGKHRELVASATAGGTTTYADSVKDRFTISRDNAKNTVYLQMNSLKPEDTAVYYCNTFVRSLSWGQGTQVTVSSHHHHHH

Source Source

Source organism organism	Escherichia phage EcSzw-2
NCBI taxonomy ID ncbi_taxonomy_id	2419741
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	Single-chain fragment variable 30 (scFv30)
Molecular weight formula_weight	26157.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYKYVPVTFGQGTKVEIKGTTAASGSSGGSSSGAEVQLVESGGGLVQPGGSLRLSCAASGFNVYSSSIHWVRQAPGKGLEWVASISSYYGYTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARSRQFWYSGLDYWGQGTLVTVSSA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Beta-arrestin-2,Beta-arrestin-1
Molecular weight formula_weight	41508.5 kDa
Mutation mutation	C17G,C60V,C126S,C141L,C151V,C243V,C252V and C270S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MGEKPGTRVFKKSSPNGKLTVYLGKRDFVDHLDKVDPVDGVVLVDPDYLKDRKVFVTLTVAFRYGREDLDVLGLSFRKDLFIATYQAFPPVPNPPRPPTRLQDRLLRKLGQHAHPFFFTIPQNLPSSVTLQPGPEDTGKALGVDFEIRAFVAKSLEEKSHKRNSVRLVIRKVQFAPEKPGPQPSAETTRHFLMSDRSLHLEASLDKELYYHGEPLNVNVHVTNNSTKTVKKIKVSVRQYADIVLFSTAQYKVPVAQLEQDDQVSPSSTFSKVYTITPLLSDNREKRGLALDGKLKHEDTNLASSTIVKEGANKEVLGILVSYRVKVKLVVSRGGDVSVELPFVLMHPKPKEEPPHREVPENETPVDTNL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Chemerin-like receptor 2,Vasopressin V2 receptor
Molecular weight formula_weight	48031.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MKTIIALSYIFCLVFAGSWSHPQFEKGSGAGASAGSWSHPQFEKGSDYKDDDDKEFLEVLFQGPEDLEETLFEEFENYSYDLDYYSLESDLEEKVQLGVVHWVSLVLYCLAFVLGIPGNAIVIWFTGFKWKKTVTTLWFLNLAIADFIFLLFLPLYISYVAMNFHWPFGIWLCKANSFTAQLNMFASVFFLTVISLDHYIHLIHPVLSHRHRTLKNSLIVIIFIWLLASLIGGPALYFRDTVEFNNHTLCYNNFQKHDPDLTLIRHHVLTWVKFIIGYLFPLLTMSICYLCLIFKVKKRSILISSRHFWTILVVVVAFVVCWTPYHLFSIWELTIHHNSYSHHVMQAGIPLSTGLAFLNSCLNPILYVLISKKFQARFRSSVAEIARGRTPPSLGPQDESCTTASSSLAKDTSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 6 Entity 6 non-polymer

Description description	CHOLESTEROL HEMISUCCINATE
Molecular weight formula_weight	486.7 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	123307

Composite map of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 2
