SAXSdb — 9l0d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vacuolar fusion protein MON1 homolog A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Vacuolar fusion protein CCZ1 homolog B × 1 （P86790） Regulator of MON1-CCZ1 complex × 1 （Q96DM3） Ras-related protein Rab-7a × 1 （P51149）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MON1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–418； UniProt 235–652

Vacuolar fusion protein CCZ1 homolog B

Homo sapiens

UniProt P86790

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Vacuolar fusion protein MON1 homolog A × 1 （Q86VX9） Regulator of MON1-CCZ1 complex × 1 （Q96DM3） Ras-related protein Rab-7a × 1 （P51149）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCZ1B_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–482； UniProt 1–482

Regulator of MON1-CCZ1 complex

Homo sapiens

UniProt Q96DM3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Vacuolar fusion protein MON1 homolog A × 1 （Q86VX9） Vacuolar fusion protein CCZ1 homolog B × 1 （P86790） Ras-related protein Rab-7a × 1 （P51149）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RMC1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–657； UniProt 1–657

Ras-related protein Rab-7a

Homo sapiens

UniProt P51149

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Vacuolar fusion protein MON1 homolog A × 1 （Q86VX9） Vacuolar fusion protein CCZ1 homolog B × 1 （P86790） Regulator of MON1-CCZ1 complex × 1 （Q96DM3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAB7A_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–207； UniProt 1–207

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9l0d
Deposition date deposition_date	2024-12-12
Structure title title	Cryo-EM structure of the human MON1A/CCZ1/C18orf8 complex
Keywords keywords	MON1A, CCZ1, C18orf8, Rab7A, autophagy, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9l0d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9l0d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

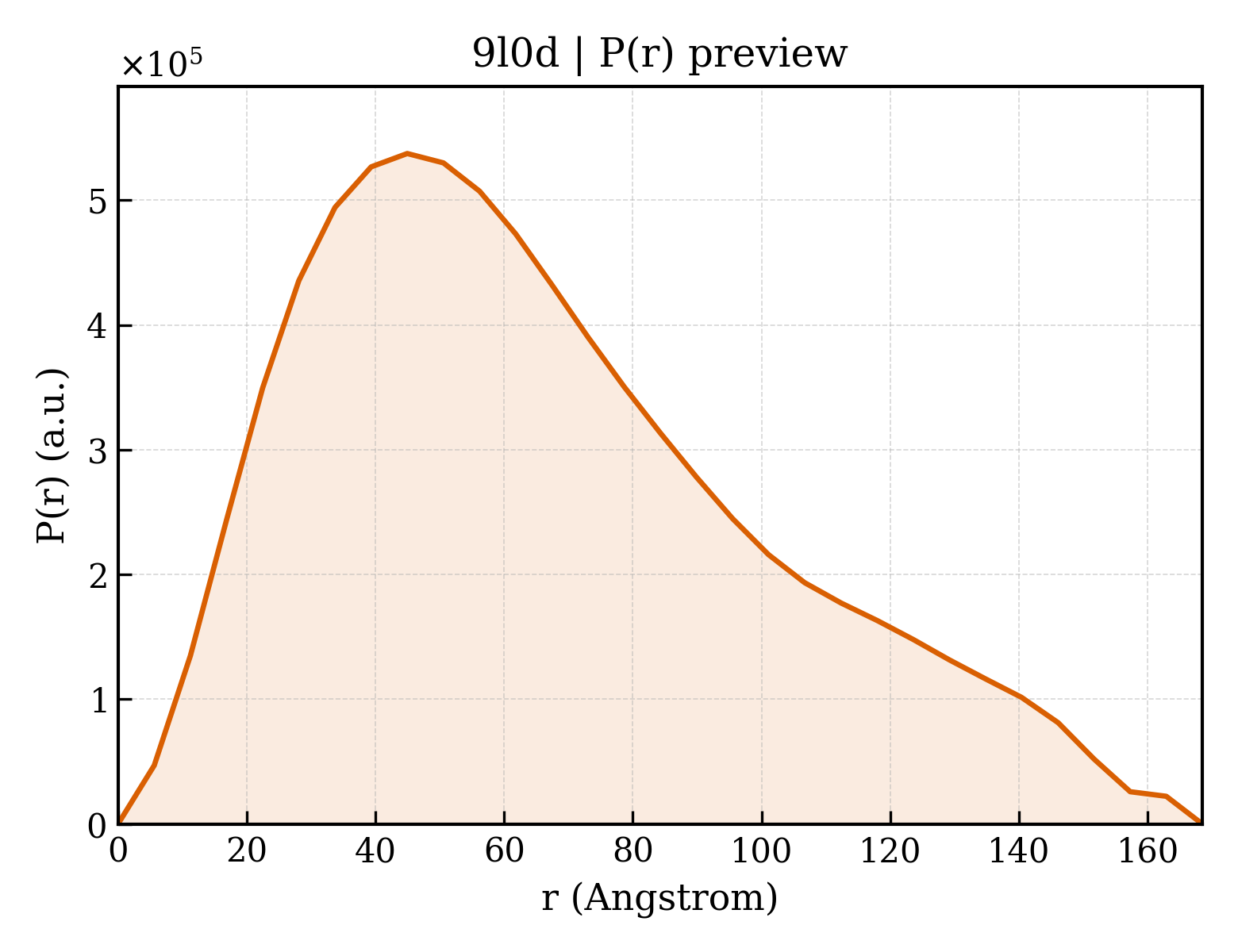

9l0d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.88 Å
Rg (electron density)	52.32 Å
Total Rg	52.21 Å
Atom count	13894
Residues	1718
Excluded volume	248610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9l0d__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Vacuolar fusion protein MON1 homolog A
Molecular weight formula_weight	47562.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	13894

GTTEGDEEDATEAWRLHQKHVFVLSEAGKPVYSRYGSEEALSSTMGVMVALVSFLEADKNAIRSIHADGYKVVFVRRSPLVLVAVARTRQSAQELAQELLYIYYQILSLLTGAQLSHIFQQKQNYDLRRLLSGSERITDNLLQLMARDPSFLMGAARCLPLAAAVRDTVSASLQQARARSLVFSILLARNQLVALVRRKDQFLHPIDLHLLFNLISSSSSFREGEAWTPVCLPKFNAAGFFHAHISYLEPDTDLCLLLVSTDREDFFAVSDCRRRFQERLRKRGAHLALREALRTPYYSVAQVGIPDLRHFLYKSKSSGLFTSPEIEAPYTSEEEQERLLGLYQYLHSRAHNASRPLKTIYYTGPNENLLAWVTGAFELYMCYSPLGTKASAVSAIHKLMRWIRKEEDRLFILTPLTY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Vacuolar fusion protein CCZ1 homolog B
Molecular weight formula_weight	55935.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MAAAAAGAGSGPWAAQEKQFPPALLSFFIYNPRFGPREGQEENKILFYHPNEVEKNEKIRNVGLCEAIVQFTRTFSPSKPAKSLHTQKNRQFFNEPEENFWMVMVVRNPIIEKQSKDGKPVIEYQEEELLDKVYSSVLRQCYSMYKLFNGTFLKAMEDGGVKLLKERLEKFFHRYLQTLHLQSCDLLDIFGGISFFPLDKMTYLKIQSFINRMEESLNIVKYTAFLYNDQLIWSGLEQDDMRILYKYLTTSLFPRHIEPELAGRDSPIRAEMPGNLQHYGRFLTGPLNLNDPDAKCRFPKIFVNTDDTYEELHLIVYKAMSAAVCFMIDASVHPTLDFCRRLDSIVGPQLTVLASDICEQFNINKRMSGSEKEPQFKFIYFNHMNLAEKSTVHMRKTPSVSLTSVHPDLMKILGDINSDFTRVDEDEEIIVKAMSDYWVVGKKSDRRELYVILNQKNANLIEVNEEVKKLCATQFNNIFFLD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Regulator of MON1-CCZ1 complex
Molecular weight formula_weight	75068.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGEEDYYLELCERPVQFEKANPVNCVFFDEANKQVFAVRSGGATGVVVKGPDDRNPISFRMDDKGEVKCIKFSLENKILAVQRTSKTVDFCNFIPDNSQLEYTQECKTKNANILGFCWTSSTEIVFITDQGIEFYQVLPEKRSLKLLKSHNLNVNWYMYCPESAVILLSTTVLENVLQPFHFRAGTMSKLPKFEIELPAAPKSTKPSLSERDIAMATIYGQLYVLFLRHHSRTSNSTGAEVVLYHLPREGACKKMHILKLNRTGKFALNVVDNLVVVHHQDTETSVIFDIKLRGEFDGSVTFHHPVLPARSIQPYQIPITGPAAVTSQSPVPCKLYSSSWIVFQPDIIISASQGYLWNLQVKLEPIVNLLPDKGRLMDFLLQRKECKMVILSVCSQMLSESDRASLPVIATVFDKLNHEYKKYLDAEQSYAMAVEAGQSRSSPLLKRPVRTQAVLDQSDVYTHVLSAFVEKKEMPHKFVIAVLMEYIRSLNQFQIAVQHYLHELVIKTLVQHNLFYMLHQFLQYHVLSDSKPLACLLLSLESFYPPAHQLSLDMLKRLSTANDEIVEVLLSKHQVLAALRFIRGIGGHDNISARKFLDAAKQTEDNMLFYTIFRFFEQRNQRLRGSPNFTPGEHCEEHVAFFKQIFGDQALMRPTTF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Ras-related protein Rab-7a
Molecular weight formula_weight	23529.7 kDa
EC 编号 ec_number	3.6.5.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MTSRKKVLLKVIILGDSGVGKNSLMNQYVNKKFSNQYKATIGADFLTKEVMVDDRLVTMQIWDTAGQERFQSLGVAFYRGADCCVLVFDVTAPNTFKTLDSWRDEFLIQASPRDPENFPFVVLGNKIDLENRQVATKRAQAWCYSKNNIPYFETSAKEAINVEQAFQTIARNALKQETEVELYNEFPEPIKLDKNDRAKASAESCSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Resolution resolution	3.41 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	77193

Cryo-EM structure of the human MON1A/CCZ1/C18orf8 complex
