SAXSdb — 9ldu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3C-like proteinase

Human coronavirus 229E

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	(1beta,6beta,7beta,8alpha,9beta,10alpha,13alpha,14R,16beta)-1,6,7,14-tetrahydroxy-7,20-epoxykauran-15-one × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	R1AB_CVH22
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–299； UniProt 2967–3265 Author chain B； PDBConstruct 1–299； UniProt 2967–3265

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ldu
Deposition date deposition_date	2025-01-06
Last revision last_revision	2026-05-20
Structure title title	Crystal structure of HCoV 229E main protease in complex with Oridonin
Keywords keywords	HCoV 229E, main protease, Bofutrelvir, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ldu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ldu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

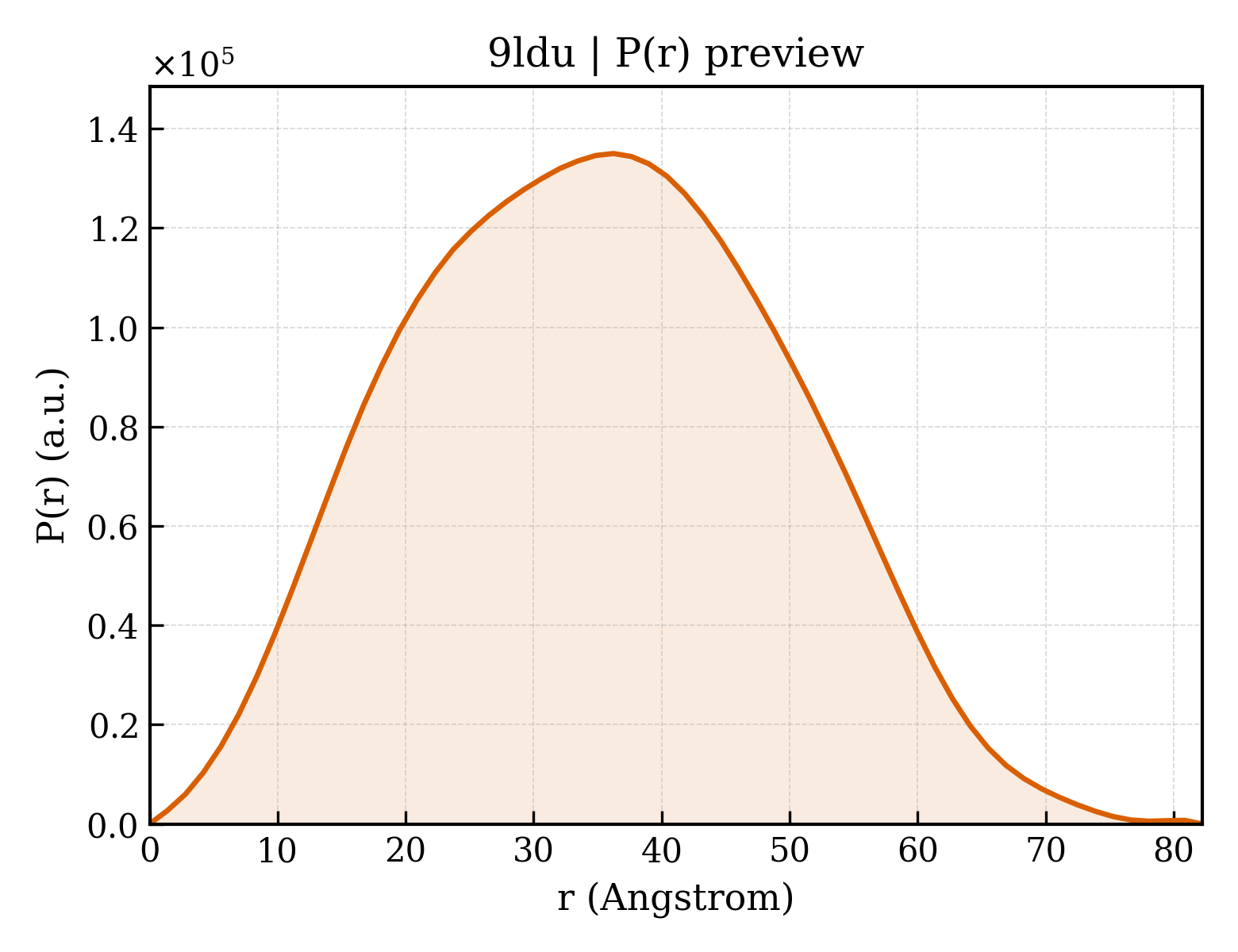

9ldu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.93 Å
Rg (electron density)	25.95 Å
Total Rg	26.69 Å
Atom count	4480
Residues	580
Excluded volume	79477 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ldu__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	3C-like proteinase
Molecular weight formula_weight	32771.2 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4647

GLRKMAQPSGFVEKCVVRVCYGNTVLNGLWLGDIVYCPRHVIASNTTSAIDYDHEYSIMRLHNFSIISGTAFLGVVGATMHGVTLKIKVSQTNMHTPRHSFRTLKSGEGFNILACYDGCAQGVFGVNMRTNWTIRGSFINGACGSPGYNLKNGEVEFVYMHQIELGSGSHVGSSFDGVMYGGFEDQPNLQVESANQMLTVNVVAFLYAAILNGCTWWLKGEKLFVEHYNEWAQANGFTAMNGEDAFSILAAKTGVCVERLLHAIQVLNNGFGGKQILGYSSLNDEFSINEVVKQMFGVN

Source Source

Source organism organism	Human coronavirus 229E
Common name common_name	HCoV-229E
NCBI taxonomy ID ncbi_taxonomy_id	11137
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	(1beta,6beta,7beta,8alpha,9beta,10alpha,13alpha,14R,16beta)-1,6,7,14-tetrahydroxy-7,20-epoxykauran-15-one
Molecular weight formula_weight	366.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	167

▶

Unit-cell length a length_a	53.820 Å
Unit-cell length b length_b	75.430 Å
Unit-cell length c length_c	77.830 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.08 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	1.940 Å
Low-resolution limit resolution_low	77.820 Å
R factor r_factor	0.2183
R_work r_work	0.2159
R_free r_free	0.2624

Crystal structure of HCoV 229E main protease in complex with Oridonin
