SAXSdb — 9lhz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sodium channel protein PaFPC1

Periplaneta americana

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–1553	Not recorded	Delta-actitoxin-Avd2a × 1 （P01535） ;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.79 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9LHZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5X0M Structure of a eukaryotic voltage-gated sodium channel at near atomic resolution Deposited 2017-01-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1553（1553 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；25 mM Tris-HCl, pH 7.4, 50mM NaCl, 0.1% digitonin, 2.5 mM D-Desthiobiotin and protease inhibitor cocktail cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 3.5 s and flash-frozen in liquid ethane cooled by liquid nitrogen.	Resolution 3.80 Å
6A90 Complex of voltage-gated sodium channel NavPaS from American cockroach Periplaneta americana and Dc1a Deposited 2018-07-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1553（1553 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 NA SODIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
6A91 Complex of voltage-gated sodium channel NavPaS from American cockroach Periplaneta americana bound with saxitoxin and Dc1a Deposited 2018-07-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1553（1553 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 9SL [(3aS,4R,10aS)-2,6-diamino-10,10-dihydroxy-3a,4,9,10-tetrahydro-3H,8H-pyrrolo[1,2-c]purin-4-yl]methyl carbamate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
6A95 Complex of voltage-gated sodium channel NavPaS from American cockroach Periplaneta americana bound with tetrodotoxin and Dc1a Deposited 2018-07-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1553（1553 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 9SR (1R,5R,6R,7R,9S,11S,12S,13S,14S)-3-amino-14-(hydroxymethyl)-8,10-dioxa-2,4-diazatetracyclo[7.3.1.1~7,11~.0~1,6~]tetradec-3-ene-5,9,12,13,14-pentol (non-preferred name) × 1 NA SODIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
6NT3 Cryo-EM structure of a human-cockroach hybrid Nav channel. Deposited 2019-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1154（1154 aa） Chain A 1287–1505（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 Y01 CHOLESTEROL HEMISUCCINATE × 1 76F (7E,21R,24S)-27-amino-24-hydroxy-18,24-dioxo-19,23,25-trioxa-24lambda~5~-phosphaheptacos-7-en-21-yl (9Z,12E)-octadeca-9,12-dienoate × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 1 AJP Digitonin × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6NT4 Cryo-EM structure of a human-cockroach hybrid Nav channel bound to alpha-scorpion toxin AaH2. Deposited 2019-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1154（1154 aa） Chain A 1287–1505（219 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 76F (7E,21R,24S)-27-amino-24-hydroxy-18,24-dioxo-19,23,25-trioxa-24lambda~5~-phosphaheptacos-7-en-21-yl (9Z,12E)-octadeca-9,12-dienoate × 5 AJP Digitonin × 1 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 1 Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8F0P Structure of VSD4-NaV1.7-NaVPas channel chimera bound to the hybrid inhibitor GNE-1305 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1155（1155 aa） Chain A 1286–1553（268 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 5 Y01 CHOLESTEROL HEMISUCCINATE × 1 X7L N-[6-(cyclopentylmethoxy)-1,3-benzothiazol-2-yl]-4-{[(1S,2S)-2-(dimethylamino)cyclohexyl]amino}-2-fluorobenzene-1-sulfonamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.20 Å
8F0Q Structure of VSD4-NaV1.7-NaVPas channel chimera bound to the acylsulfonamide inhibitor GDC-0310 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1155（1155 aa） Chain A 1286–1553（268 aa）	Not recorded	BMA beta-D-mannopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X7R 5-cyclopropyl-4-({1-[(1S)-1-(3,5-dichlorophenyl)ethyl]piperidin-4-yl}methoxy)-2-fluoro-N-(methanesulfonyl)benzamide × 1 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 5 Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
8F0R Structure of VSD4-NaV1.7-NaVPas channel chimera bound to the arylsulfonamide inhibitor GNE-3565 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1155（1155 aa） Chain A 1286–1553（268 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 X7W 5-chloro-4-({(1S,2S,4S)-2-(dimethylamino)-4-[3-(trifluoromethyl)phenyl]cyclohexyl}amino)-2-fluoro-N-(pyrimidin-4-yl)benzene-1-sulfonamide × 1 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 2 Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8F0S Structure of VSD4-NaV1.7-NaVPas channel chimera bound to the hybrid inhibitor GNE-9296 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1155（1155 aa） Fragment：Chimeric construct of human Nav1.7 VSD4 and the NavPaS channel from American cockroach Periplaneta americana Chain A 1286–1553（268 aa） Fragment：Chimeric construct of human Nav1.7 VSD4 and the NavPaS channel from American cockroach Periplaneta americana	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X80 5-chloro-4-(cyclopentylmethoxy)-N-(4-{[(1S,2S)-2-(dimethylamino)cyclohexyl]amino}-2-fluorobenzene-1-sulfonyl)-2-fluorobenzamide × 1 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 1 Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8VQC Structure of the voltage-gated sodium channel NavPas from American Cockroach Periplaneta Americana in complex with scorpion alpha-toxin LqhaIT Deposited 2024-01-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1553（1553 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM Tris pH 7.5, 50 mM NaCl, 0.1% (w/v) digitonin cryo-EM vitrification conditions Cryogen ETHANE；Sample was applied on the grid in Vitrobot Mark IV chamber (Thermo Fisher Scientific), blotted for 4 secs with a blot force of 25 and then plunged into ethane	Resolution 3.90 Å
9LKZ Complex of voltage-gated sodium channel NavPaS from American cockroach Periplaneta americana and scorpion alpha toxin LqhaIT Deposited 2025-01-17	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–1553（1553 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.87 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SCNA1_PERAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 44–1596； UniProt 1–1553

Delta-actitoxin-Avd2a

Anemonia sulcata

UniProt P01535

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 1–27	Not recorded	Sodium channel protein PaFPC1 × 1 （D0E0C2） ;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.79 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9LHZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ANS THREE-DIMENSIONAL STRUCTURE IN SOLUTION OF NEUROTOXIN III FROM THE SEA ANEMONE ANEMONIA SULCATA Deposited 1994-06-09	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–27（27 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STX3_ANESU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 1–27； UniProt 1–27

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lhz
Deposition date deposition_date	2025-01-13
Structure title title	Complex of voltage-gated sodium channel NavPaS from American cockroach Periplaneta americana and sea anemone toxin Av3
Keywords keywords	Complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.95 Å
Radius of gyration Rg (electron density) rg_electron	37.63 Å
Forward intensity I(0) i0	303061000.00
Molecular weight molecular_weight	152220.0 kDa
Excluded volume excluded_volume	194800 Å³
Envelope volume envelope_volume	275060 Å³
Hydration-shell volume shell_volume	59967 Å³
Envelope diameter envelope_diameter	131.2 Å
Shell Rg shell_rg	44.33 Å
Envelope Rg envelope_rg	37.64 Å
Shape Rg shape_rg	37.64 Å
Total Rg total_rg	38.04 Å
Total atoms total_atoms	10753
Residues n_residues	1349
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

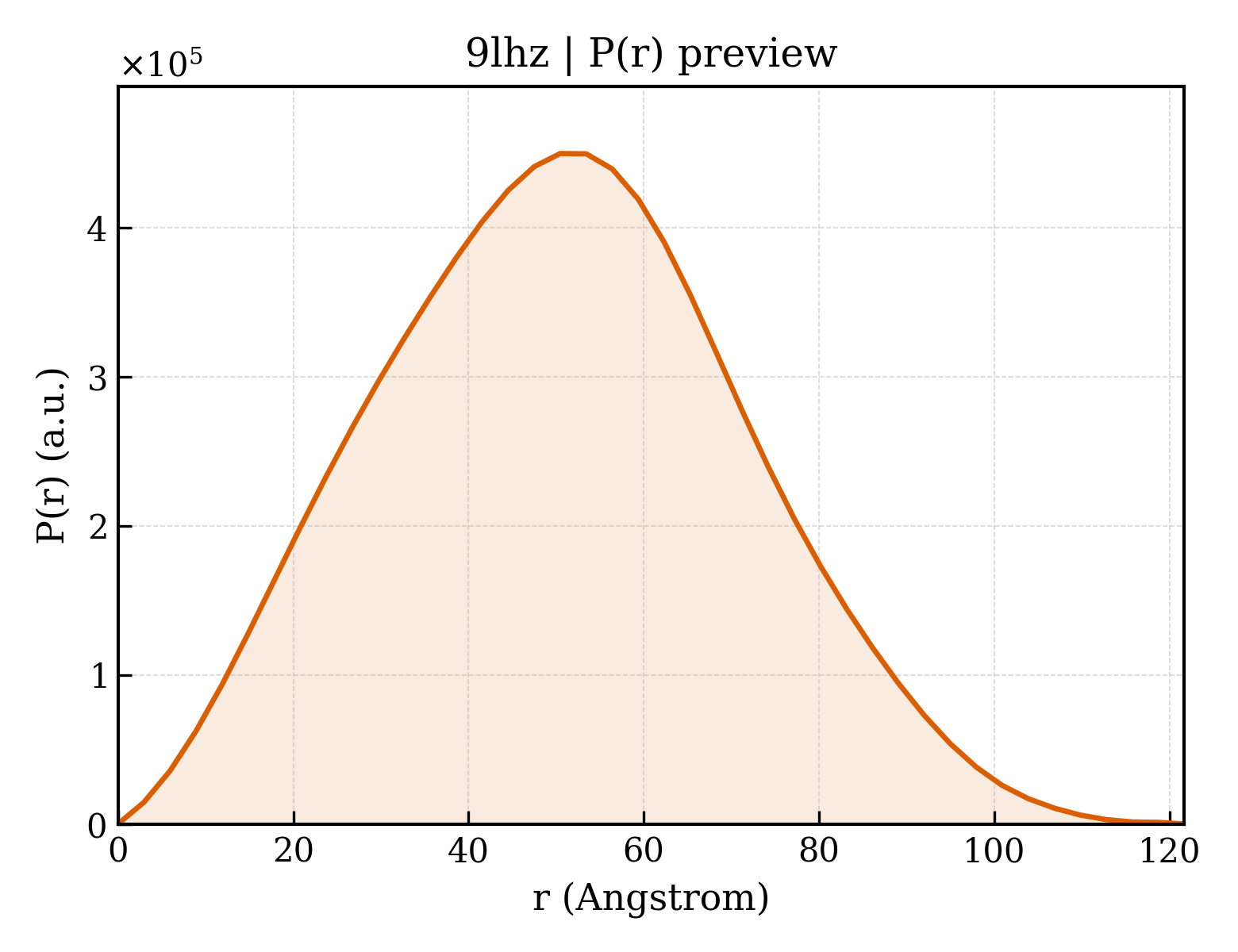

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.7 Å
Rg (real space) rg_real	38.71 Å
Rg uncertainty (real space) rg_real_error	0.63 Å
I(0) (real space) i0_real	3.0310e+08
I(0) uncertainty (real space) i0_real_error	4.4000e+06
Rg (reciprocal space) rg_reciprocal	38.86 Å
I(0) (reciprocal space) i0_reciprocal	303100000.0000
Solution quality estimate total_estimate	0.8914
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	50.5 Å
Skewness Skewness skewness	0.134
Kurtosis Kurtosis kurtosis	-0.413
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	32860000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.880

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Sodium channel protein PaFPC1
Molecular weight formula_weight	183875.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10753

MASWSHPQFEKGGGARGGSGGGSWSHPQFEKGFDYKDDDDKGTMADNSPLIREERQRLFRPYTRAMLTAPSAQPAKENGKTEENKDNSRDKGRGANKDRDGSAHPDQALEQGSRLPARMRNIFPAELASTPLEDFDPFYKNKKTFVVVTKAGDIFRFSGEKSLWMLDPFTPIRRVAISTMVQPIFSYFIMITILIHCIFMIMPATQTTYILELVFLSIYTIEVVVKVLARGFILHPFAYLRDPWNWLDFLVTLIGYITLVVDLGHLYALRAFRVLRSWRTVTIVPGWRTIVDALSLSITSLKDLVLLLLFSLFVFAVLGLQIYMGVLTQKCVKHFPADGSWGNFTDERWFNYTSNSSHWYIPDDWIEYPLCGNSSGAGMCPPGYTCLQGYGGNPNYGYTSFDTFGWAFLSVFRLVTLDYWEDLYQLALRSAGPWHILFFIIVVFYGTFCFLNFILAVVVMSYTHMVKRADEEKAAERELKKEKKAASVANNTANGQEQTTIEMNGDEAVVIDNNDQAARQQSDPETPAPSVTQRLTDFLCVWDCCVPWQKLQGAIGAVVLSPFFELFIAVIIVLNITFMALDHHDMNIEFERILRTGNYIFTSIYIVEAVLKIIALSPKFYFKDSWNVFDFIIVVFAILELGLEGVQGLSVFRSFRLLRVFRLAKFWPTLNNFMSVMTKSYGAFVNVMYVMFLLLFIFAIIGMQLFGMNYIDNMERFPDGDLPRWNFTDFLHSFMIVFRALCGEWIESMWDCMLVGDWSCIPFFVAVFFVGNLVILNLLIALLLNNYGSFCTSPTSDEEDSKDEDALAQIVRIFKRFKPNLNAVKLSPMKPDSEDIVESQEIQGNNIADAEDVLAGEFPPDCCCNAFYKCFPSRPARDSSVQRMWSNIRRVCFLLAKNKYFQKFVTAVLVITSVLLALEDIYLPQRPVLVNITLYVDYVLTAFFVIEMIIMLFAVGFKKYFTSKWYWLDFIVVVAYLLNFVLMCAGIEALQTLRLLRVFRLFRPLSKVNGMQVVTSTLVEAVPHIFNVILVGIFFWLVFAIMGVQLFAGKFYKCVDENSTVLSHEITMDRNDCLHENYTWENSPMNFDHVGNAYLSLLQVATFKGWLQIMNDAIDSREVHKQPIRETNIYMYLYFIFFIVFGSFFILKLFVCILIDIFRQQRRKAEGLSATDSRTQLIYRRAVMRTMSAKPVKRIPKPTCHPQSLMYDISVNRKFEYTMMILIILNVAVMAIDHYGQSMEFSEVLDYLNLIFIIIFFVECVIKVSGLRHHYFKDPWNIIDFLYVVLAIAGLMLSDVIEKYFISPTLLRILRILRVGRLLRYFQSARGMRLLLLALRKALRTLFNVSFLLFVIMFVYAVFGMEFFMHIRDAGAIDDVYNFKTFGQSIILLFQLATSAGWDGVYFAIANEEDCRAPDHELGYPGNCGSRALGIAYLVSYLIITCLVVINMYAAVILDYVLEVYEDSKEGLTDDDYDMFFEVWQQFDPEATQYIRYDQLSELLEALQPPLQVQKPNKYKILSMNIPICKDDHIFYKDVLEALVKDVFSRRGSPVEAGDVQAPNVDEAEYKPVSSTLQRQREEYCVRLIQNAWRKHKQQN

来源 Source

来源生物 organism	Periplaneta americana
通用名 common_name	American cockroach
NCBI Class编号 ncbi_taxonomy_id	6978
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Delta-actitoxin-Avd2a
Molecular weight formula_weight	2940.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

RSCCPCYWGGCPWGQNCYPEGCSGPKV

来源 Source

来源生物 organism	Anemonia sulcata
通用名 common_name	snake-locks sea anemone
NCBI Class编号 ncbi_taxonomy_id	6108
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 branched

Description description	;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE
Molecular weight formula_weight	510.7 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.790 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.79 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	353627

fit	/app/data/saxs_computation/lh/9lhz/9lhz.fit
pddf	/app/data/pr_computation/lh/9lhz/9lhz.pr.out
profile	/app/data/saxs_computation/lh/9lhz/9lhz.dat
