9li6

Structure of ABCC2(E1404Q) in Arabidopsis thaliana in the DNP-GS bound state

Method: ELECTRON MICROSCOPY D_max: 153.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9li6
沉积日期 deposition_date	2025-01-13
结构标题 title	Structure of ABCC2(E1404Q) in Arabidopsis thaliana in the DNP-GS bound state
关键词 keywords	Plant detoxification effect, Transporter, ABCC2 protein, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.63 Å
回转半径 Rg (电子) rg_electron	51.12 Å
零角强度 I(0) i0	1229480000.00
分子量 molecular_weight	307660.0 kDa
排除体积 excluded_volume	391470 Å³
包络体积 envelope_volume	605490 Å³
水化壳体积 shell_volume	96678 Å³
包络直径 envelope_diameter	163.2 Å
壳层 Rg shell_rg	57.25 Å
包络 Rg envelope_rg	49.65 Å
形状 Rg shape_rg	51.16 Å
总 Rg total_rg	51.21 Å
总原子数 total_atoms	21722
残基数 n_residues	2732
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

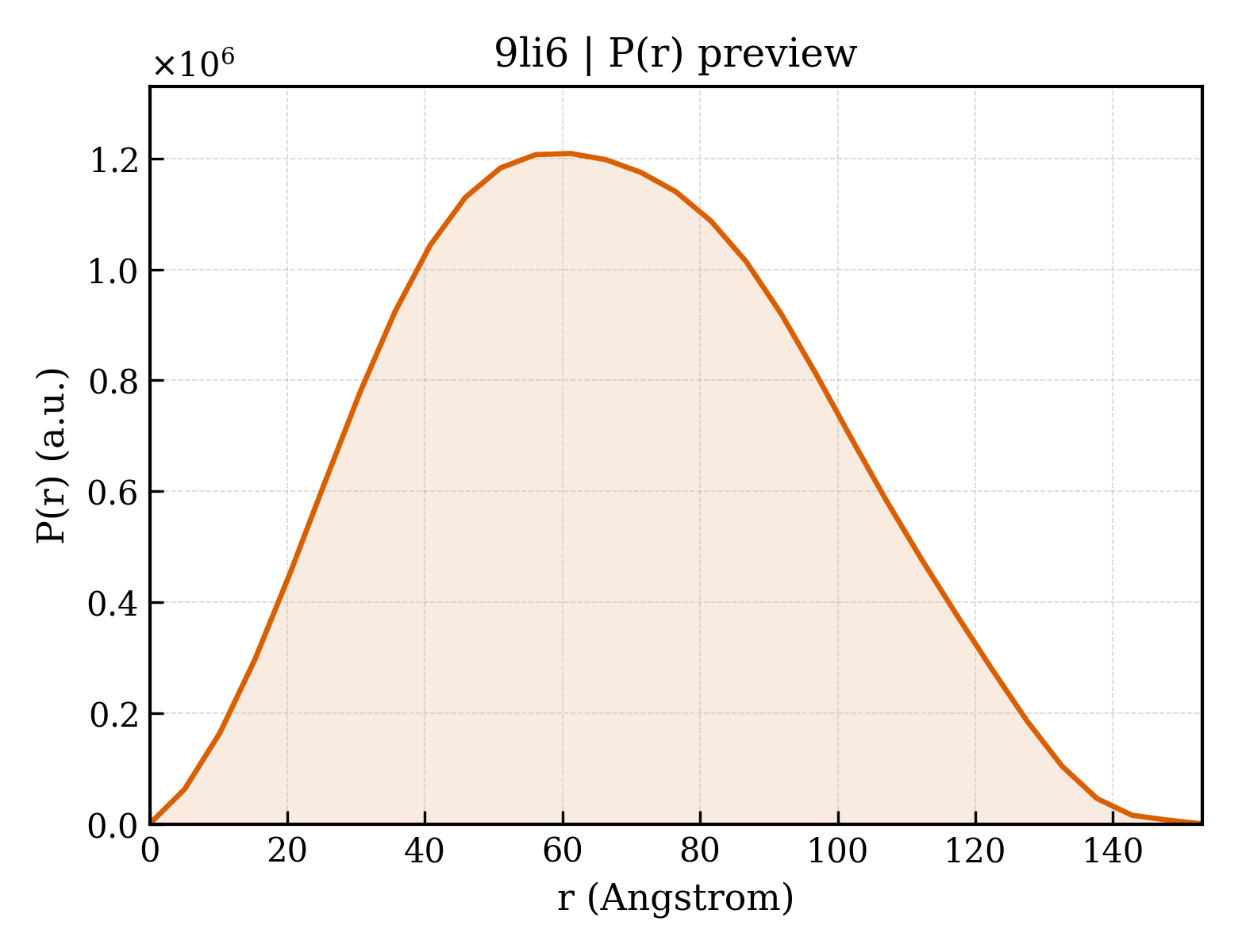

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	153.0 Å
Rg (实空间) rg_real	51.50 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	1.2290e+09
I(0) 误差 (实空间) i0_real_error	2.2280e+07
Rg (倒空间) rg_reciprocal	51.73 Å
I(0) (倒空间) i0_reciprocal	1230000000.0000
解质量估计 total_estimate	0.8469
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	61.2 Å
偏度 Skewness skewness	0.160
峰度 Kurtosis kurtosis	-0.649
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	178800000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.992; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.033

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	ABC transporter C family member 2
分子量 formula_weight	182309.9 kDa
EC 编号 ec_number	7.6.2.2
突变 mutation	E1404Q
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	21722

MGFEFIEWYCKPVPNGVWTKQVANAFGAYTPCATDSFVLGISQLVLLVLCLYRIWLALKDHKVERFCLRSRLYNYFLALLAAYATAEPLFRLIMGISVLDFDGPGLPPFEAFGLGVKAFAWGAVMVMILMETKIYIRELRWYVRFAVIYALVGDMVLLNLVLSVKEYYSSYVLYLYTSEVGAQVLFGILLFMHLPNLDTYPGYMPVRSETVDDYEYEEISDGQQICPEKHANIFDKIFFSWMNPLMTLGSKRPLTEKDVWYLDTWDQTETLFTSFQHSWDKELQKPQPWLLRALNNSLGGRFWWGGFWKIGNDCSQFVGPLLLNQLLKSMQEDAPAWMGYIYAFSIFVGVVFGVLCEAQYFQNVMRVGYRLRSALIAAVFRKSLRLTNEGRRKFQTGKITNLMTTDAESLQQICQSLHTMWSAPFRIIIALILLYQQLGVASLIGALLLVLMFPLQTVIISKMQKLTKEGLQRTDKRIGLMNEVLAAMDTVKCYAWENSFQSKVQTVRDDELSWFRKSQLLGALNMFILNSIPVLVTIVSFGVFTLLGGDLTPARAFTSLSLFAVLRFPLFMLPNIITQVVNANVSLKRLEEVLATEERILLPNPPIEPGEPAISIRNGYFSWDSKGDRPTLSNINLDVPLGSLVAVVGSTGEGKTSLISAILGELPATSDAIVTLRGSVAYVPQVSWIFNATVRDNILFGSPFDREKYERAIDVTSLKHDLELLPGGDLTEIGERGVNISGGQKQRVSMARAVYSNSDVYIFDDPLSALDAHVGQQVFEKCIKRELGQKTRVLVTNQLHFLSQVDRIVLVHEGTVKEEGTYEELSSNGPLFQRLMENAGKVEEYSEENGEAEADQTAEQPVANGNTNGLQMDGSDDKKSKEGNKKGGKSVLIKQEERETGVVSWRVLKRYQDALGGAWVVMMLLLCYVLTEVFRVTSSTWLSEWTDAGTPKSHGPLFYNLIYALLSFGQVLVTLTNSYWLIMSSLYAAKKLHDNMLHSILRAPMSFFHTNPLGRIINRFAKDLGDIDRTVAVFVNMFMGQVSQLLSTVVLIGIVSTLSLWAIMPLLVLFYGAYLYYQNTAREVKRMDSISRSPVYAQFGEALNGLSTIRAYKAYDRMADINGRSMDNNIRFTLVNMGANRWLGIRLETLGGLMIWLTASFAVMQNGRAENQQAFASTMGLLLSYALNITSLLTGVLRLASLAENSLNAVERVGNYIEIPPEAPPVIENNRPPPGWPSSGSIKFEDVVLRYRPQLPPVLHGVSFFIHPTDKVGIVGRTGAGKSSLLNALFRIVEVEKGRILIDDCDVGKFGLMDLRKVLGIIPQSPVLFSGTVRFNLDPFGEHNDADLWESLERAHLKDTIRRNPLGLDAEVSEAGENFSVGQRQLLSLSRALLRRSKILVLDQATAAVDVRTDALIQKTIREEFKSCTMLIIAHRLNTIIDCDKILVLDSGRVQEFSSPENLLSNEGSSFSKMVQSTGAANAEYLRSLVLDNKRAKDDSHHLQGQRKWLASSRWAAAAQFALAASLTSSHNDLQSLEIEDDSSILKRTNDAVVTLRSVLEGKHDKEIAESLEEHNISREGWLSSLYRMVEGLAVMSRLARNRMQQPDYNFEGNTFDWDNVEM

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	thale cress
NCBI 分类编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	GLUTATHIONE S-(2,4 DINITROBENZENE)
分子量 formula_weight	473.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.49 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	59733

fit	/app/data/saxs_computation/li/9li6/9li6.fit
pddf	/app/data/pr_computation/li/9li6/9li6.pr.out
profile	/app/data/saxs_computation/li/9li6/9li6.dat
