9m4t

CryoEM structure of the alpha1AAR complex with silodosin

Method: ELECTRON MICROSCOPY Dmax: 70.2 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-1A adrenergic receptor

Homo sapiens

UniProt P35348

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 19–341 Not recorded A1EMV Silodosin × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.19 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9M4T Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8HN1 Cryo-EM structure of AdTx1-alpha1AAR-Nb6 Deposited 2022-12-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–371（371 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8THK Cryo-EM structure of A61603-bound alpha-1A-adrenergic receptor in complex with heterotrimeric Gq-protein Deposited 2023-07-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 15–350（336 aa）
Not recorded CGZ N-[(5S)-5-(4,5-dihydro-1H-imidazol-2-yl)-2-hydroxy-5,6,7,8-tetrahydronaphthalen-1-yl]methanesulfonamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8THL Cryo-EM structure of epinephrine-bound alpha-1A-adrenergic receptor in complex with heterotrimeric Gq-protein Deposited 2023-07-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 15–350（336 aa）
Not recorded ALE L-EPINEPHRINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9IQV Cryo-EM structure of MT3-alpha1AAR Deposited 2024-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–214（210 aa）
Chain B 262–341（80 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.30 Å
9M4Q CryoEM structure of the alpha1AAR complex with doxazosin Deposited 2025-03-04 Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 19–341（323 aa）
Not recorded A1EM4 Doxazosin, (S)- × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.99 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ADA1A_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–323； UniProt 19–341

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9m4t

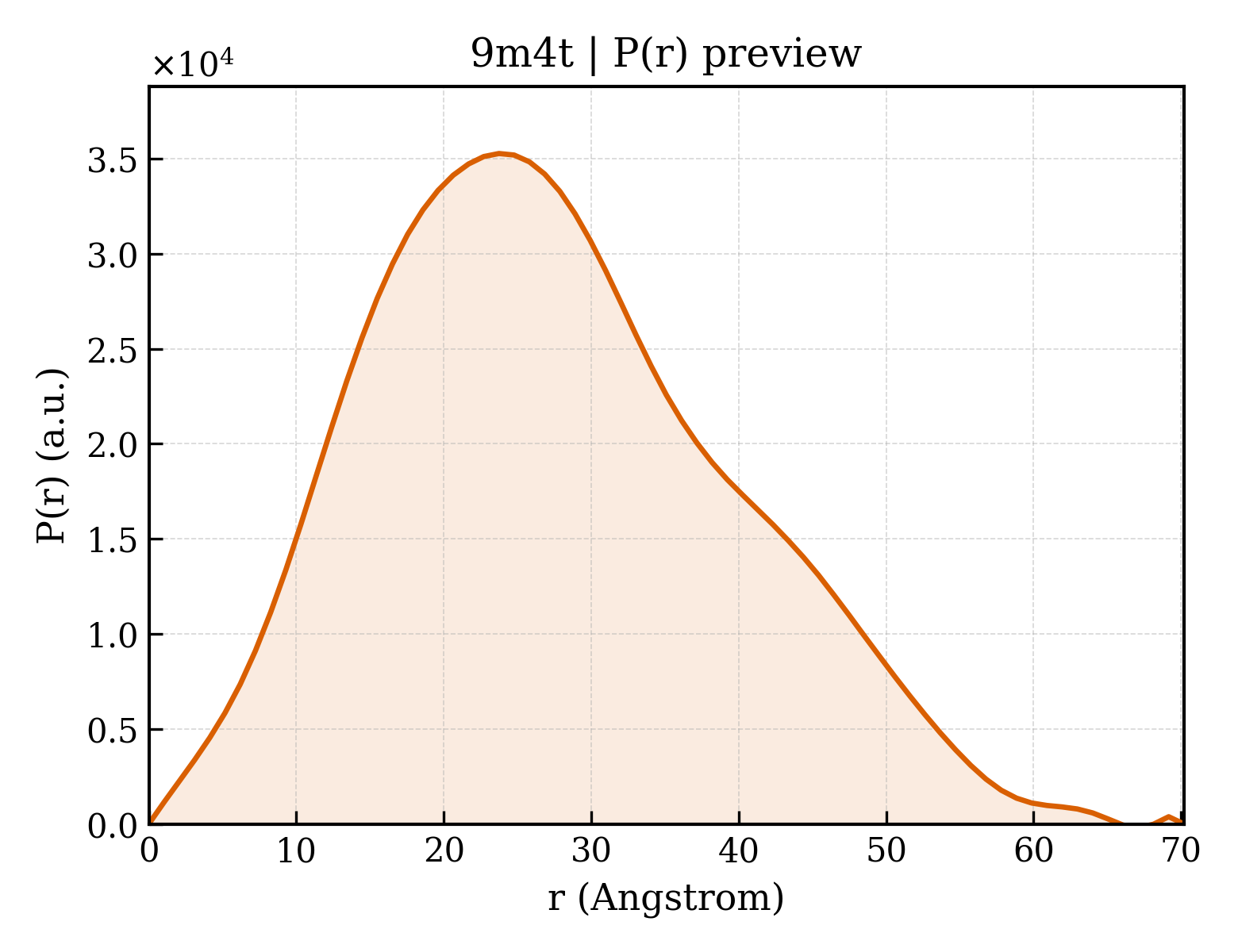

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9m4t
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9m4t
Deposition date deposition_date2025-03-04
Structure title titleCryoEM structure of the alpha1AAR complex with silodosin
Keywords keywordsGPCR, Alpha1AAR, Silodosin, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier21.09 Å
Radius of gyration Rg (electron density) rg_electron20.14 Å
Forward intensity I(0) i013465200.00
Molecular weight molecular_weight31361.0 kDa
Excluded volume excluded_volume40879 ų
Envelope volume envelope_volume46903 ų
Hydration-shell volume shell_volume19785 ų
Envelope diameter envelope_diameter70.4 Å
Shell Rg shell_rg26.30 Å
Envelope Rg envelope_rg20.58 Å
Shape Rg shape_rg20.22 Å
Total Rg total_rg20.85 Å
Total atoms total_atoms4512
Residues n_residues277
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax70.2 Å
Rg (real space) rg_real21.11 Å
Rg uncertainty (real space) rg_real_error0.56 Å
I(0) (real space) i0_real1.3470e+07
I(0) uncertainty (real space) i0_real_error1.8100e+05
Rg (reciprocal space) rg_reciprocal21.11 Å
I(0) (reciprocal space) i0_reciprocal13470000.0000
Solution quality estimate total_estimate0.8015
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary23.7 Å
Skewness Skewness skewness0.372
Kurtosis Kurtosis kurtosis-0.362
Angular range angular_range— – 0.3750 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha2618000.0000
Real-space data points n_real_points69
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.816; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.000
▶
