SAXSdb — 9m5h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope Glycoprotein E

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 600	D14.F25.S02 Fab light chain × 120 D14.F25.S02 Fab heavy chain × 120 2-acetamido-2-deoxy-beta-D-glucopyranose × 360	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B1PP76_9FLAV
Isoform	—
PDB entities	1, 4
Chains and sequence ranges	Author chain A； PDBConstruct 1–495； UniProt 281–775 Author chain C； PDBConstruct 1–495； UniProt 281–775 Author chain E； PDBConstruct 1–495； UniProt 281–775 Author chain B； PDBConstruct 1–75； UniProt 206–280 Author chain D； PDBConstruct 1–75； UniProt 206–280 Author chain F； PDBConstruct 1–75； UniProt 206–280

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9m5h
Deposition date deposition_date	2025-03-05
Structure title title	D14.F25.S02 Fab complexed to DENV2-US/BID/V594/2006 virus (5f-3f map)
Keywords keywords	Dengue virus, flavivirus, broadly neutralizing antibody, VIRUS; VIRUS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9m5h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

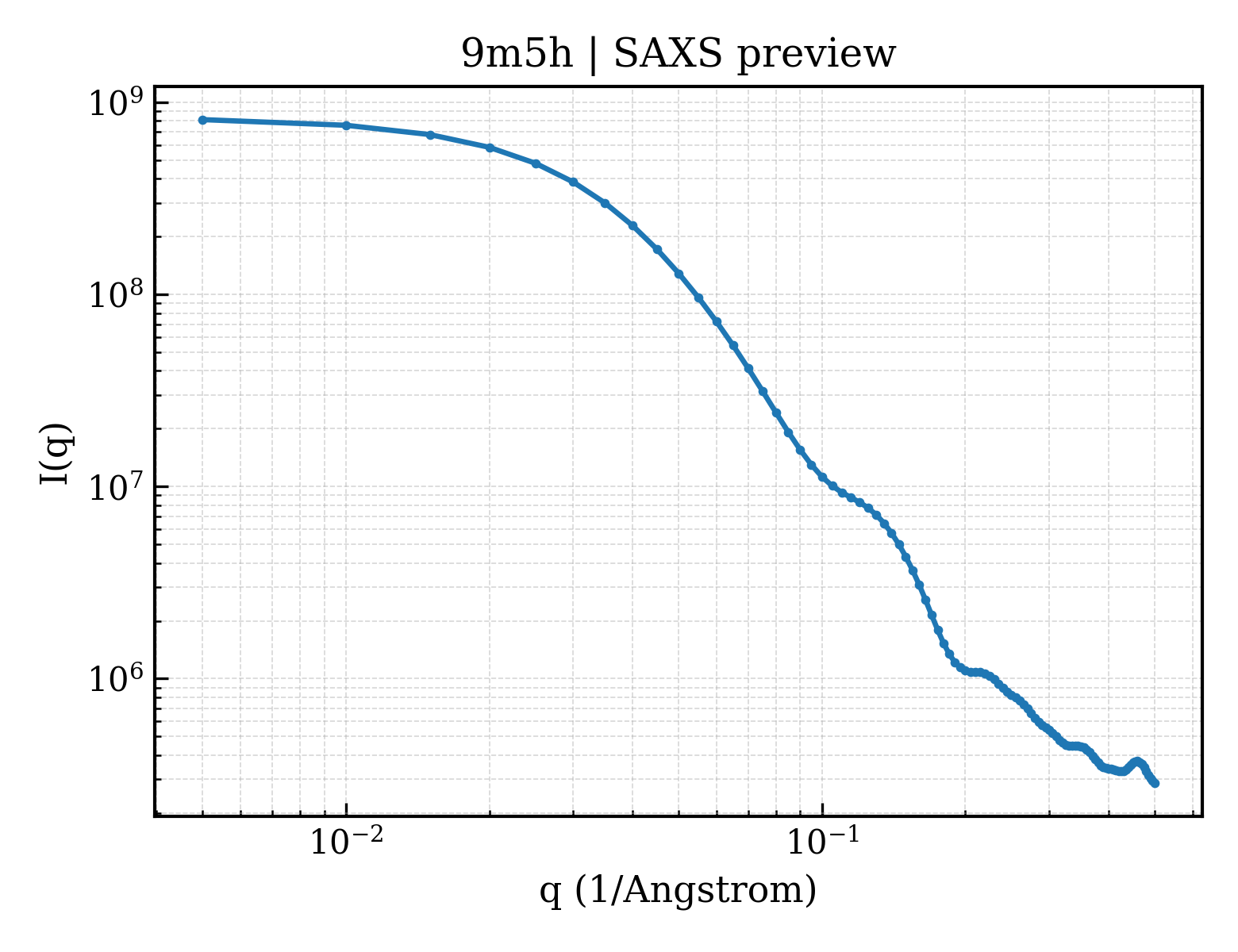

9m5h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9m5h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	225.10 Å
Total Rg	225.10 Å
Atom count	2015160
Residues	131280
Excluded volume	18093000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9m5h__assembly_1__model_1`	600-meric （600）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Envelope Glycoprotein E
Molecular weight formula_weight	54413.8 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,A,E
Atom count atom_count	33586

MRCIGISNRDFVEGVSGGSWVDIVLEHGSCVTTMAKNKPTLDFELIKTEAKQPATLRKYCIEAKLTNTTTESRCPTQGEPSLNEEQDKRFICKHSMVDRGWGNGCGLFGKGGIVTCAMFTCKKNMEGKVVLPENLEYTIVITPHSGEEHAVGNDTGKHGKEIKITPQSSITEAELTGYGTVTMECSPRTGLDFNEMVLLQMEDKAWLVHRQWFLDLPLPWLPGADTQGSNWIQKETLVTFKNPHAKKQDVVVLGSQEGAMHTALTGATEIQMSSGNLLFTGHLKCRLRMDKLQLKGMSYSMCTGKFKIVKEIAETQHGTIVIRVQYEGDGSPCKIPFEIMDLEKRHVLGRLITVNPIVTEKDSPVNIEAEPPFGDSYIIIGVEPGQLKLNWFKKGSSIGQMFETTMRGAKRMAILGDTAWDFGSLGGVFTSIGKALHQVFGAIYGAAFSGVSWTMKILIGVIITWIGMNSRSTSLSVSLVLVGVVTLYLGVMVQA

Entity 2 Entity 2 polymer

Description description	D14.F25.S02 Fab light chain
Molecular weight formula_weight	11679.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,M

QSALTQPRSVSGSPGQSVTISCTGTSSDVGGYKYVSWYQQHPGKAPKLMIYDVTKRPSGVPDRFSGSKSGNTASLTISGLQADDEADYYCCSYAGSYTHVVFGGGTKLTVL

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	D14.F25.S02 Fab heavy chain
Molecular weight formula_weight	13980.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,K

QVQLVQSGAEVKKPGSSAKVSCKASGGTFSSYAISWVRQAPGQGLEWMGSIMPIFGTVNYAQKFQGRVTITADESTSTAYMELSRLRSEDTAVYFCARGWGGNYRSADLWIYFDLWGQGTLVTVSSRS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 4 Entity 4 polymer

Description description	Membrane glycoprotein
Molecular weight formula_weight	8373.8 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

SVALVPHVGMGLETRTETWMSSEGAWKHVQRIETWILRHPGFTIMAAILAYTIGTTHFQRALIFILLTAVAPSMT

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	4.09 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	2305
