SAXSdb — 9mez

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related protein M-Ras

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–181	Not recorded	Leucine-zipper-like transcriptional regulator 1 × 1 （Q8N653） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–181	Not recorded	Leucine-zipper-like transcriptional regulator 1 × 1 （Q8N653） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 MLA MALONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 1–181	Not recorded	Leucine-zipper-like transcriptional regulator 1 × 1 （Q8N653） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 MLA MALONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 1–181	Not recorded	Leucine-zipper-like transcriptional regulator 1 × 1 （Q8N653） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 MLA MALONIC ACID × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
5	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain I； UniProt 1–181	Not recorded	Leucine-zipper-like transcriptional regulator 1 × 1 （Q8N653） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9MEZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7SD0 Cryo-EM structure of the SHOC2:PP1C:MRAS complex Deposited 2021-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–208（208 aa）	Not recorded	GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Used the "perpetually hydrated" method of applying graphene oxide. (Cheung et al., 2018)	Resolution 2.95 Å
7TVF Crystal structure of the SHOC2-MRAS-PP1CA (SMP) complex to a resolution of 2.17 Angstrom Deposited 2022-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–178（178 aa）	Mutation：Q71L	GOL GLYCEROL × 7 SO4 SULFATE ION × 5 MN MANGANESE (II) ION × 2 NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1 CL CHLORIDE ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；Crystals originally grown in 15% PEG 1500, 0.1M MIB pH 4.2 (15mg/ml of SMP) were used to make seeds. Microseeded into a condition with a reservoir consisting of 17.8% PEG 3350, 136mM sodium sulfate with 1:10 dilution of seeds (7.5mg/ml of SMP) using a ratio of 200nl protein:133nl reservoir:67nl diluted seeds	Resolution 2.17 Å R-free 0.226
7TVF Crystal structure of the SHOC2-MRAS-PP1CA (SMP) complex to a resolution of 2.17 Angstrom Deposited 2022-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–178（178 aa）	Mutation：Q71L	GOL GLYCEROL × 6 SO4 SULFATE ION × 3 MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 3 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；Crystals originally grown in 15% PEG 1500, 0.1M MIB pH 4.2 (15mg/ml of SMP) were used to make seeds. Microseeded into a condition with a reservoir consisting of 17.8% PEG 3350, 136mM sodium sulfate with 1:10 dilution of seeds (7.5mg/ml of SMP) using a ratio of 200nl protein:133nl reservoir:67nl diluted seeds	Resolution 2.17 Å R-free 0.226
7TXH Human MRas Q71R in complex with human Shoc2 LRR domain M173I and human PP1Ca Deposited 2022-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–178（178 aa）	Mutation：Q71R	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 6 MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1 M NaH2PO4 pH 6.5, 12% PEG 8000	Resolution 1.95 Å R-free 0.210
7TXH Human MRas Q71R in complex with human Shoc2 LRR domain M173I and human PP1Ca Deposited 2022-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–178（178 aa）	Mutation：Q71R	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 10 MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1 M NaH2PO4 pH 6.5, 12% PEG 8000	Resolution 1.95 Å R-free 0.210
7UPI Cryo-EM structure of SHOC2-PP1c-MRAS holophosphatase complex Deposited 2022-04-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–182（182 aa）	Mutation：Q71L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Fluorinated octyl maltoside added immediately prior to vitrification cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.89 Å
9B4R Crystal structure of MRAS bound to GMPPNP Deposited 2024-03-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–178（168 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；0.002 M divalent II mix, 50%v/v(30%w/v PEG 3000, 40%v/v 1,2,4-butanetriol, and 2%w/v NDSB 256)	Resolution 2.10 Å R-free 0.250
9B4T Crystal structure of the MRAS-p110alpha complex Deposited 2024-03-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–178（178 aa）	Mutation：Q35A	5H5 (2S)-2-({2-[1-(propan-2-yl)-1H-1,2,4-triazol-5-yl]-5,6-dihydroimidazo[1,2-d][1,4]benzoxazepin-9-yl}oxy)propanamide × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1 M (Tris/Bicine) 1.2%w/v cholic acid mix, 50%v/v (40%v/v ethylene glycol, 20%w/v PEG 8000)	Resolution 2.75 Å R-free 0.262
9C1A Crystal structure of GDP-bound human M-RAS protein in crystal form I Deposited 2024-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–178（178 aa）	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.2M CaCl2, 20% PEG3350	Resolution 1.96 Å R-free 0.200
9C1B Crystal structure of GDP-bound human M-RAS protein in crystal form II Deposited 2024-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–204（204 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PGE TRIETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；20% PEG3350	Resolution 2.27 Å R-free 0.247
9C1B Crystal structure of GDP-bound human M-RAS protein in crystal form II Deposited 2024-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–204（204 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；20% PEG3350	Resolution 2.27 Å R-free 0.247
9C1B Crystal structure of GDP-bound human M-RAS protein in crystal form II Deposited 2024-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–204（204 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PG4 TETRAETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；20% PEG3350	Resolution 2.27 Å R-free 0.247
9C1B Crystal structure of GDP-bound human M-RAS protein in crystal form II Deposited 2024-05-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–204（204 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；20% PEG3350	Resolution 2.27 Å R-free 0.247
9O0P Crystal structure of GDP-bound mutant MRAS in complex with MRTX1133 Deposited 2025-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–178（178 aa）	Mutation：F74Y, R105H, F106Y, L109Q	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 6IC 4-(4-[(1R,5S)-3,8-diazabicyclo[3.2.1]octan-3-yl]-8-fluoro-2-{[(2R,4R,7aS)-2-fluorotetrahydro-1H-pyrrolizin-7a(5H)-yl]methoxy}pyrido[4,3-d]pyrimidin-7-yl)-5-ethynyl-6-fluoronaphthalen-2-ol × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 0.2M ammonium fluoride	Resolution 1.50 Å R-free 0.221
9O0P Crystal structure of GDP-bound mutant MRAS in complex with MRTX1133 Deposited 2025-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–178（178 aa）	Mutation：F74Y, R105H, F106Y, L109Q	GDP GUANOSINE-5'-DIPHOSPHATE × 1 6IC 4-(4-[(1R,5S)-3,8-diazabicyclo[3.2.1]octan-3-yl]-8-fluoro-2-{[(2R,4R,7aS)-2-fluorotetrahydro-1H-pyrrolizin-7a(5H)-yl]methoxy}pyrido[4,3-d]pyrimidin-7-yl)-5-ethynyl-6-fluoronaphthalen-2-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 0.2M ammonium fluoride	Resolution 1.50 Å R-free 0.221
9O0Q Crystal structure of GMPPNP-bound mutant MRAS in complex with MRTX1133 Deposited 2025-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–178（178 aa）	Mutation：F74Y, R105H, F106Y, L109Q	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 6IC 4-(4-[(1R,5S)-3,8-diazabicyclo[3.2.1]octan-3-yl]-8-fluoro-2-{[(2R,4R,7aS)-2-fluorotetrahydro-1H-pyrrolizin-7a(5H)-yl]methoxy}pyrido[4,3-d]pyrimidin-7-yl)-5-ethynyl-6-fluoronaphthalen-2-ol × 1 SO4 SULFATE ION × 4 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.6M magnesium sulfate, 0.1M MES, pH 6.5	Resolution 1.90 Å R-free 0.207
9O0Q Crystal structure of GMPPNP-bound mutant MRAS in complex with MRTX1133 Deposited 2025-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–178（178 aa）	Mutation：F74Y, R105H, F106Y, L109Q	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 6IC 4-(4-[(1R,5S)-3,8-diazabicyclo[3.2.1]octan-3-yl]-8-fluoro-2-{[(2R,4R,7aS)-2-fluorotetrahydro-1H-pyrrolizin-7a(5H)-yl]methoxy}pyrido[4,3-d]pyrimidin-7-yl)-5-ethynyl-6-fluoronaphthalen-2-ol × 1 SO4 SULFATE ION × 6 GOL GLYCEROL × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.6M magnesium sulfate, 0.1M MES, pH 6.5	Resolution 1.90 Å R-free 0.207
9O0Q Crystal structure of GMPPNP-bound mutant MRAS in complex with MRTX1133 Deposited 2025-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–178（178 aa）	Mutation：F74Y, R105H, F106Y, L109Q	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 6IC 4-(4-[(1R,5S)-3,8-diazabicyclo[3.2.1]octan-3-yl]-8-fluoro-2-{[(2R,4R,7aS)-2-fluorotetrahydro-1H-pyrrolizin-7a(5H)-yl]methoxy}pyrido[4,3-d]pyrimidin-7-yl)-5-ethynyl-6-fluoronaphthalen-2-ol × 1 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.6M magnesium sulfate, 0.1M MES, pH 6.5	Resolution 1.90 Å R-free 0.207

10 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RASM_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–182； UniProt 1–181 Author chain C； PDBConstruct 2–182； UniProt 1–181 Author chain E； PDBConstruct 2–182； UniProt 1–181 Author chain G； PDBConstruct 2–182； UniProt 1–181 Author chain I； PDBConstruct 2–182； UniProt 1–181

Leucine-zipper-like transcriptional regulator 1

Homo sapiens

UniProt Q8N653

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 50–331 Chain B； UniProt 384–422	Not recorded	Ras-related protein M-Ras × 1 （O14807） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 50–331 Chain D； UniProt 384–422	Not recorded	Ras-related protein M-Ras × 1 （O14807） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 MLA MALONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 50–331 Chain F； UniProt 384–422	Not recorded	Ras-related protein M-Ras × 1 （O14807） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 MLA MALONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 50–331 Chain H； UniProt 384–422	Not recorded	Ras-related protein M-Ras × 1 （O14807） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 MLA MALONIC ACID × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255
5	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 50–331 Chain J； UniProt 384–422	Not recorded	Ras-related protein M-Ras × 1 （O14807） GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；11.2% w/v PEG3350, 5.26% Tacsimate pH 6.0	Resolution 2.80 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9MEZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9MEY Crystal structure of RIT1(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–329（280 aa） Chain B 382–422（41 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；277 K；44% Morpheus II PPT7, 100mM MonoSach II, 100mM MB6 buffer pH 8.2	Resolution 2.95 Å R-free 0.256
9MEY Crystal structure of RIT1(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 50–329（280 aa） Chain D 382–422（41 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；277 K；44% Morpheus II PPT7, 100mM MonoSach II, 100mM MB6 buffer pH 8.2	Resolution 2.95 Å R-free 0.256
9MF0 Crystal structure of KRAS(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–329（280 aa） Chain B 382–422（41 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；8% w/v PGA-LM. 0.3M sodium malonate dibasic monohydrate, 0.1M sodium acetate pH 5.0.	Resolution 3.30 Å R-free 0.233
9MF0 Crystal structure of KRAS(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 50–329（280 aa） Chain D 382–422（41 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；8% w/v PGA-LM. 0.3M sodium malonate dibasic monohydrate, 0.1M sodium acetate pH 5.0.	Resolution 3.30 Å R-free 0.233
9MF0 Crystal structure of KRAS(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 50–329（280 aa） Chain F 382–422（41 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；8% w/v PGA-LM. 0.3M sodium malonate dibasic monohydrate, 0.1M sodium acetate pH 5.0.	Resolution 3.30 Å R-free 0.233
9MF0 Crystal structure of KRAS(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 50–329（280 aa） Chain H 382–422（41 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；8% w/v PGA-LM. 0.3M sodium malonate dibasic monohydrate, 0.1M sodium acetate pH 5.0.	Resolution 3.30 Å R-free 0.233
9MF0 Crystal structure of KRAS(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 50–329（280 aa） Chain J 382–422（41 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；8% w/v PGA-LM. 0.3M sodium malonate dibasic monohydrate, 0.1M sodium acetate pH 5.0.	Resolution 3.30 Å R-free 0.233

2 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LZTR1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–283； UniProt 50–331 Author chain B； PDBConstruct 284–322； UniProt 384–422 Author chain D； PDBConstruct 2–283； UniProt 50–331 Author chain D； PDBConstruct 284–322； UniProt 384–422 Author chain F； PDBConstruct 2–283； UniProt 50–331 Author chain F； PDBConstruct 284–322； UniProt 384–422 Author chain H； PDBConstruct 2–283； UniProt 50–331 Author chain H； PDBConstruct 284–322； UniProt 384–422 Author chain J； PDBConstruct 2–283； UniProt 50–331 Author chain J； PDBConstruct 284–322； UniProt 384–422

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9mez
Deposition date deposition_date	2024-12-09
Structure title title	Crystal structure of MRAS(GDP) bound to LZTR1(Kelch domain)
Keywords keywords	Substrate adaptor, ONCOPROTEIN; ONCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	65.06 Å
Radius of gyration Rg (electron density) rg_electron	67.10 Å
Forward intensity I(0) i0	1103700000.00
Molecular weight molecular_weight	275810.0 kDa
Excluded volume excluded_volume	343420 Å³
Envelope volume envelope_volume	505800 Å³
Hydration-shell volume shell_volume	71858 Å³
Envelope diameter envelope_diameter	235.3 Å
Shell Rg shell_rg	53.43 Å
Envelope Rg envelope_rg	66.39 Å
Shape Rg shape_rg	67.10 Å
Total Rg total_rg	66.79 Å
Total atoms total_atoms	19463
Residues n_residues	2444
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	211.1 Å
Rg (real space) rg_real	66.55 Å
Rg uncertainty (real space) rg_real_error	2.11 Å
I(0) (real space) i0_real	1.1030e+09
I(0) uncertainty (real space) i0_real_error	2.3220e+07
Rg (reciprocal space) rg_reciprocal	63.67 Å
I(0) (reciprocal space) i0_reciprocal	1098000000.0000
Solution quality estimate total_estimate	0.5544
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	44.0 Å
Skewness Skewness skewness	0.640
Kurtosis Kurtosis kurtosis	-0.355
Angular range angular_range	— – 0.1200 Å⁻¹
Current regularization parameter α current_alpha	0.0007
Highest regularization parameter α highest_alpha	37410000.0000
Real-space data points n_real_points	25
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.684; Stabil: 0.999; Sysdev: 0.013; Positv: 1.000; Valcen: 0.666; Smooth: 0.449

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Ras-related protein M-Ras
Molecular weight formula_weight	20780.7 kDa
EC 编号 ec_number	3.6.5.2
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I
Atom count atom_count	19477

GMATSAVPSDNLPTYKLVVVGDGGVGKSALTIQFFQKIFVPDYDPTIEDSYLKHTEIDNQWAILDVLDTAGQEEFSAMREQYMRTGDGFLIVYSVTDKASFEHVDRFHQLILRVKDRESFPMILVANKVDLMHLRKITREQGKEMATKHNIPYIETSAKDPPLNVDKAFHDLVRVIRQQIPE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Leucine-zipper-like transcriptional regulator 1
Molecular weight formula_weight	36592.1 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J

GTVHRWRRLPPCDEFVGARRSKHTVVAYKDAIYVFGGDNGKTMLNDLLRFDVKDCSWCRAFTTGTPPAPRYHHSAVVYGSSMFVFGGYTGDIYSNSNLKNKNDLFEYKFATGQWTEWKIEGRLPVARSAHGATVYSDKLWIFAGYDGNARLNDMWTIGLQDRELTCWEEVAQSGEIPPSCCNFPVAVCRDKMFVFSGQSGAKITNNLFQFEFKDKTWTRIPTEHLLRGSPPPPQRRYGHTMVAFDRHLYVFGGAADNTLPNELHCYDVDFQTWEVVQPSSDSELPSGRLFHAAAVISDAMYIFGGTVDNNIRSGEMYRFQFS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	MALONIC ACID
Molecular weight formula_weight	104.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	14

▶

8. Citations (1)

▶

Unit-cell length a length_a	70.764 Å
Unit-cell length b length_b	110.788 Å
Unit-cell length c length_c	223.253 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.53 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	10

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	49.220 Å
R factor r_factor	0.2164
R_work r_work	0.2144
R_free r_free	0.2547

fit	/app/data/saxs_computation/me/9mez/9mez.fit
pddf	/app/data/pr_computation/me/9mez/9mez.pr.out
profile	/app/data/saxs_computation/me/9mez/9mez.dat

Crystal structure of MRAS(GDP) bound to LZTR1(Kelch domain)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related protein M-Ras

State in the Current Structure

Other States of the Same Protein in the Database

Leucine-zipper-like transcriptional regulator 1

State in the Current Structure

Other States of the Same Protein in the Database

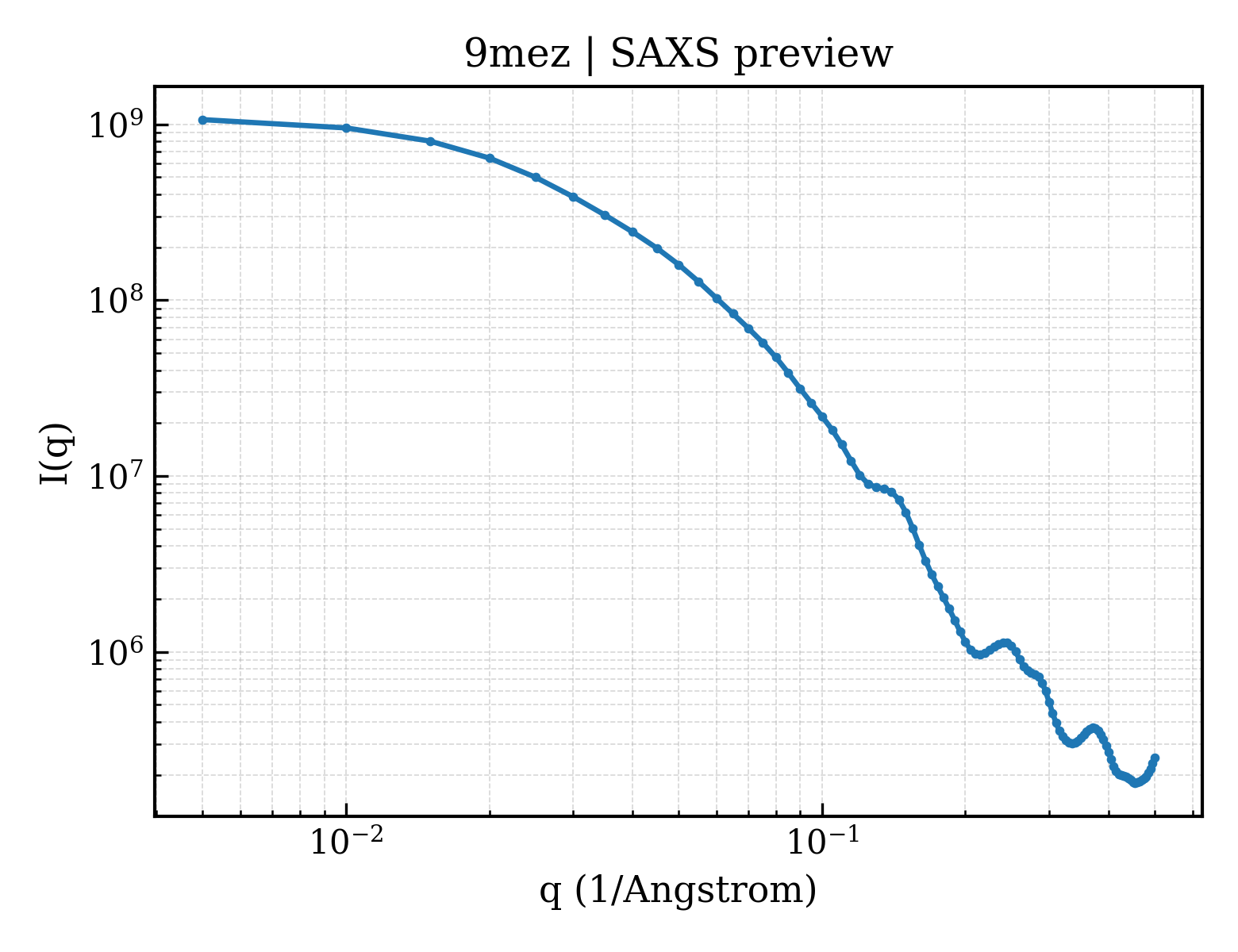

SAXS scattering curve SAXS Profile

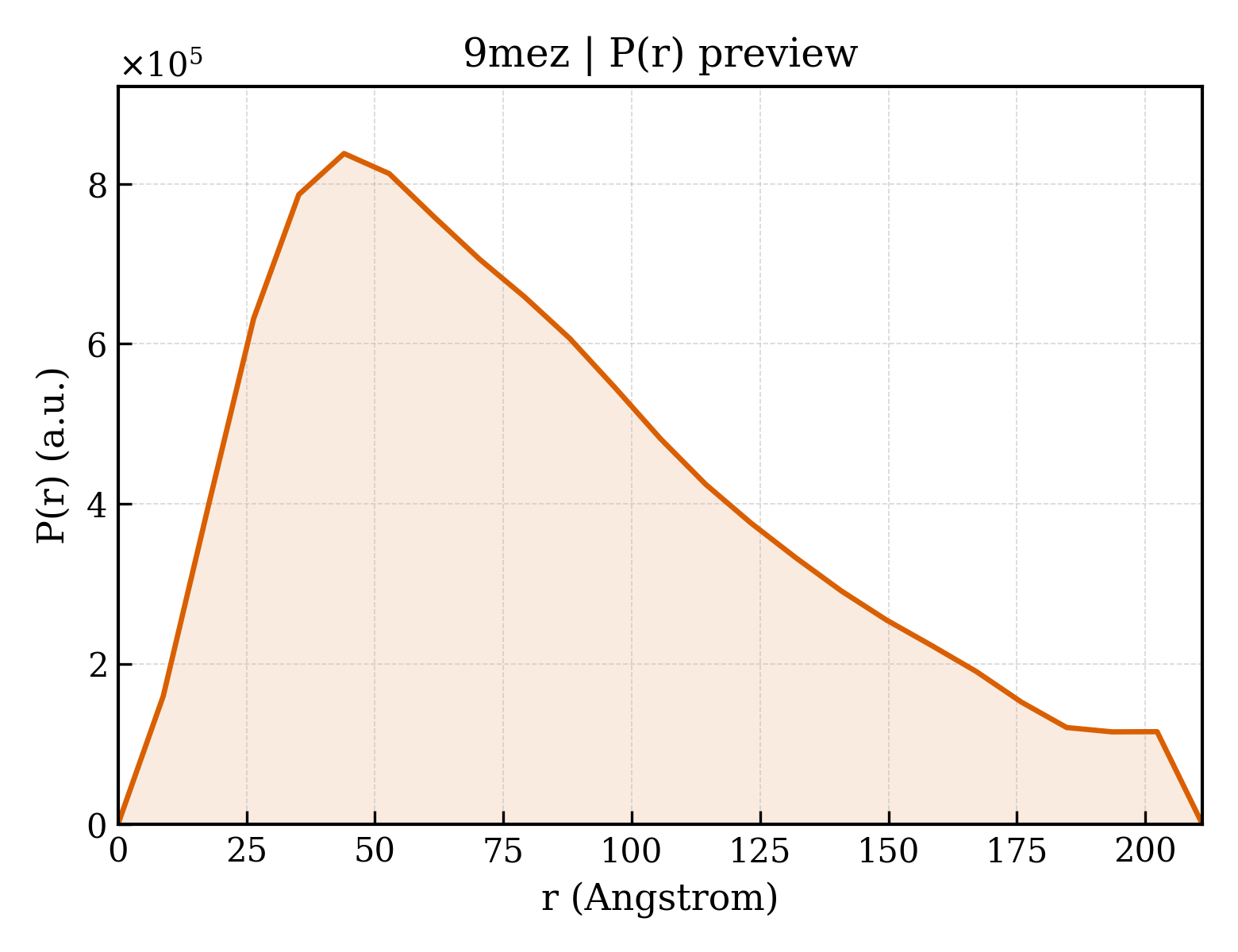

P(r) Distance Distribution P(r) Distribution
