SAXSdb — 9mnz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitochondrial pyruvate carrier 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain B； UniProt 1–127	Not recorded	Fab_8D3_2 heavy chain × 1 Nanobody × 1 Mitochondrial pyruvate carrier 1 × 1 （Q9Y5U8） MBP-PrA/G × 1 Fab_8D3_2 light chain × 1 I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.73 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9MNZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8YW6 Cryo-EM structure of apo human mitochondrial pyruvate carrier in the IMS-open conformation at pH 8.0 Deposited 2024-03-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	PC8 1,2-DIOCTANOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 CDL CARDIOLIPIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å
8YW8 Cryo-EM structure of human mitochondrial pyruvate carrier in complex with the inhibitor UK5099 Deposited 2024-03-30	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	CDL CARDIOLIPIN × 1 I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
8YW9 Cryo-EM structure of human mitochondrial pyruvate carrier in the matrix-facing conformation at pH 6.8 Deposited 2024-03-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–127（127 aa）	Not recorded	CDL CARDIOLIPIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
9GIV Structure of the human mitochondrial pyruvate carrier inhibited by a UK5099-derivative Deposited 2024-08-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	A1IL4 (2E)-2-cyano-3-[(5M)-5-(2-nitrophenyl)furan-2-yl]prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å
9GIW Structure of the human mitochondrial pyruvate carrier inhibited by zaprinast Deposited 2024-08-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	A1IL3 5-(2-propoxyphenyl)-3,4-dihydro-[1,2,3]triazolo[4,5-d]pyrimidin-7-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.92 Å
9GIX Structure of the human mitochondrial pyruvate carrier in the apo-state Deposited 2024-08-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å
9GIY Structure of the human mitochondrial pyruvate carrier inhibited by mitoglitazone Deposited 2024-08-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	LO7 Mitoglitazone × 1 A1IMZ Mitoglitazone (R-form) × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.79 Å
9KNW Cryo-EM structure of apo human mitochondrial pyruvate carrier in the IMS-open conformation at pH 6.8 Deposited 2024-11-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	CDL CARDIOLIPIN × 1 PC8 1,2-DIOCTANOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
9KNX Cryo-EM structure of human mitochondrial pyruvate carrier in the occluded conformation at pH 6.8 Deposited 2024-11-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	CDL CARDIOLIPIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.72 Å
9KNY Cryo-EM structure of pyruvate-treated human mitochondrial pyruvate carrier in the IMS-open conformation at pH 8.0 Deposited 2024-11-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–127（127 aa）	Not recorded	CDL CARDIOLIPIN × 1 PC8 1,2-DIOCTANOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9MNW Cryo-EM structure of human MPC in complex with GW604714 Deposited 2024-12-24	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–127（127 aa）	Not recorded	A1BM8 (5E)-5-({(5P)-5-[6-(4-acetylpiperazin-1-yl)-3-nitropyridin-2-yl]-2-fluorophenyl}methylidene)-1,3-thiazolidine-2,4-dione × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
9MNX Cryo-EM structure of human MPC in complex with UK5099 in LMNG Deposited 2024-12-24	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–127（127 aa）	Not recorded	I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
9MNY Cryo-EM structure of human MPC with pyruvate Deposited 2024-12-24	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–127（127 aa）	Mutation：V74W	PYR PYRUVIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.78 Å
9MO0 Cryo-EM structure of human MPC in complex with AKOS005153046 Deposited 2024-12-24	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–127（127 aa）	Not recorded	A1IL4 (2E)-2-cyano-3-[(5M)-5-(2-nitrophenyl)furan-2-yl]prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9O9S Structure of human MPC matrix-open Deposited 2025-04-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–124（124 aa）	Not recorded	I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9O9T Structure of human MPC IMS-open Deposited 2025-04-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–124（124 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MPC2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–127； UniProt 1–127

Mitochondrial pyruvate carrier 1

Homo sapiens

UniProt Q9Y5U8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 1–109	Not recorded	Fab_8D3_2 heavy chain × 1 Nanobody × 1 Mitochondrial pyruvate carrier 2 × 1 （O95563） MBP-PrA/G × 1 Fab_8D3_2 light chain × 1 I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.73 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9MNZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8YW6 Cryo-EM structure of apo human mitochondrial pyruvate carrier in the IMS-open conformation at pH 8.0 Deposited 2024-03-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–109（109 aa）	Not recorded	PC8 1,2-DIOCTANOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 CDL CARDIOLIPIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å
8YW8 Cryo-EM structure of human mitochondrial pyruvate carrier in complex with the inhibitor UK5099 Deposited 2024-03-30	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–109（109 aa）	Not recorded	CDL CARDIOLIPIN × 1 I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
8YW9 Cryo-EM structure of human mitochondrial pyruvate carrier in the matrix-facing conformation at pH 6.8 Deposited 2024-03-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–109（109 aa）	Not recorded	CDL CARDIOLIPIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
9KNW Cryo-EM structure of apo human mitochondrial pyruvate carrier in the IMS-open conformation at pH 6.8 Deposited 2024-11-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–109（109 aa）	Not recorded	CDL CARDIOLIPIN × 1 PC8 1,2-DIOCTANOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
9KNX Cryo-EM structure of human mitochondrial pyruvate carrier in the occluded conformation at pH 6.8 Deposited 2024-11-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–109（109 aa）	Not recorded	CDL CARDIOLIPIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.72 Å
9KNY Cryo-EM structure of pyruvate-treated human mitochondrial pyruvate carrier in the IMS-open conformation at pH 8.0 Deposited 2024-11-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–109（109 aa）	Not recorded	CDL CARDIOLIPIN × 1 PC8 1,2-DIOCTANOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9MNW Cryo-EM structure of human MPC in complex with GW604714 Deposited 2024-12-24	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–109（109 aa）	Not recorded	A1BM8 (5E)-5-({(5P)-5-[6-(4-acetylpiperazin-1-yl)-3-nitropyridin-2-yl]-2-fluorophenyl}methylidene)-1,3-thiazolidine-2,4-dione × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
9MNX Cryo-EM structure of human MPC in complex with UK5099 in LMNG Deposited 2024-12-24	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–109（109 aa）	Not recorded	I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
9MNY Cryo-EM structure of human MPC with pyruvate Deposited 2024-12-24	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–109（109 aa）	Not recorded	PYR PYRUVIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.78 Å
9MO0 Cryo-EM structure of human MPC in complex with AKOS005153046 Deposited 2024-12-24	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–109（109 aa）	Not recorded	A1IL4 (2E)-2-cyano-3-[(5M)-5-(2-nitrophenyl)furan-2-yl]prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9O9S Structure of human MPC matrix-open Deposited 2025-04-18	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–109（109 aa）	Not recorded	I2R (E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9O9T Structure of human MPC IMS-open Deposited 2025-04-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–109（109 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MPC1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–109； UniProt 1–109

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9mnz
Deposition date deposition_date	2024-12-24
Structure title title	Cryo-EM structure of human MPC in complex with UK5099 in nanodiscs
Keywords keywords	Membrane transporter, TRANSPORT PROTEIN-IMMUNE SYSTEM complex; TRANSPORT PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.58 Å
Radius of gyration Rg (electron density) rg_electron	40.43 Å
Forward intensity I(0) i0	89657400.00
Molecular weight molecular_weight	76357.0 kDa
Excluded volume excluded_volume	95560 Å³
Envelope volume envelope_volume	150960 Å³
Hydration-shell volume shell_volume	32687 Å³
Envelope diameter envelope_diameter	140.6 Å
Shell Rg shell_rg	43.49 Å
Envelope Rg envelope_rg	39.91 Å
Shape Rg shape_rg	40.47 Å
Total Rg total_rg	40.51 Å
Total atoms total_atoms	5379
Residues n_residues	682
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

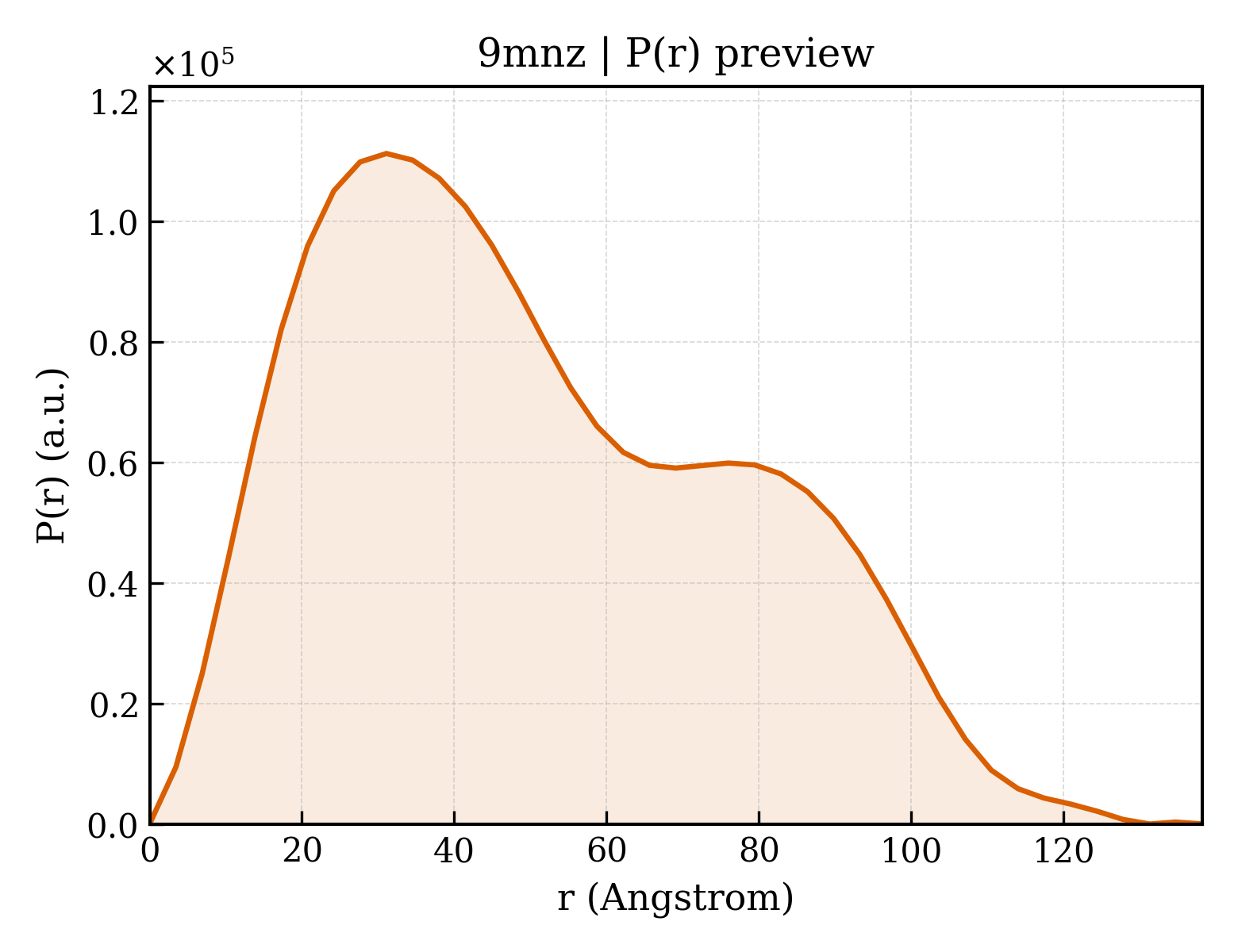

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	138.2 Å
Rg (real space) rg_real	40.14 Å
Rg uncertainty (real space) rg_real_error	1.64 Å
I(0) (real space) i0_real	8.9660e+07
I(0) uncertainty (real space) i0_real_error	1.8220e+06
Rg (reciprocal space) rg_reciprocal	39.81 Å
I(0) (reciprocal space) i0_reciprocal	89630000.0000
Solution quality estimate total_estimate	0.7044
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	31.1 Å
Skewness Skewness skewness	0.442
Kurtosis Kurtosis kurtosis	-0.723
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5995000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.568; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.451; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Fab_8D3_2 heavy chain
Molecular weight formula_weight	28833.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	5382

MDWTWRVFCLLAVAPGAHSDVQLVESGGGLVQPGKSLRLSCAASGFTFSNFGMHWVRQAPEMGLEWVAYISSGSTTKYYGDTVKGRFTISRDNPKNTLYLQMNSLRSEDTAMYYCARRPLYDGDYGYPMDYWGQGTSVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCGSLEVLFQGPHHHHHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Nanobody
Molecular weight formula_weight	16690.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MKYLLPTAAAGLLLLAAQPAMAQVQLQESGGGLVQAGGSLRLSCAASGTIFYYGTMGWYRQAPGKERELVASINRGGNTNYADSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCAVKSGLIYAHRYWGQGTQVTVSSLEHHHHHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Mitochondrial pyruvate carrier 2
Molecular weight formula_weight	14298.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSAAGARGLRATYHRLLDKVELMLPEKLRPLYNHPAGPRTVFFWAPIMKWGLVCAGLADMARPAEKLSTAQSAVLMATGFIWSRYSLVIIPKNWSLFAVNFFVGAAGASQLFRIWRYNQELKAKAHK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Mitochondrial pyruvate carrier 1
Molecular weight formula_weight	13094.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MAGALVRKAADYVRSKDFRDYLMSTHFWGPVANWGLPIAAINDMKKSPEIISGRMTFALCCYSLTFMRFAYKVQPRNWLLFACHATNEVAQLIQGGRLIKHEMTKTASALEVLFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	MBP-PrA/G
Molecular weight formula_weight	59233.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDQALAFAQILIMPNLTEEQRNGFIQSLKDDPSVSKEILAEAKKLNEHQAPKGGSGGAGSGDQQSAFYEILNMPNLNEAQRNGFIQSLKDDPSQSTNVLGEAKKLNESQAGGGSGGGSGGSAVTTYKLVINGKTLKGETTTKAVDAETAEKAFKQYANDNGVDGVWTYDDATKTFTVTEGSGHHHHHH

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	Fab_8D3_2 light chain
Molecular weight formula_weight	27359.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MVLQTQVFISLLLWISGAYGNIMLTQSPSSLAVSAGERVTMSCKSTQSILYNSNQKTYLAWYQQKPGQSPKLLIYWASTRASGVPDRFTGSGSGTDFTLTINSVQPEDLAVYYCHQYLSAWTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGECWSHPQFEK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 7 Entity 7 non-polymer

Description description	(E)-2-cyano-3-(1-phenylindol-3-yl)prop-2-enoic acid
Molecular weight formula_weight	288.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.730 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.73 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	570457

fit	/app/data/saxs_computation/mn/9mnz/9mnz.fit
pddf	/app/data/pr_computation/mn/9mnz/9mnz.pr.out
profile	/app/data/saxs_computation/mn/9mnz/9mnz.dat

Cryo-EM structure of human MPC in complex with UK5099 in nanodiscs
