9mw4

Co-crystal structure of feline coronavirus UU23 main protease with Pfizer intravenous compound PF-00835231

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ORF1ab polyprotein

Feline alphacoronavirus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	;N-[(2S)-1-({(2S,3S)-3,4-dihydroxy-1-[(3S)-2-oxopyrrolidin-3-yl]butan-2-yl}amino)-4-methyl-1-oxopentan-2-yl]-4-methoxy-1H-indole-2-carboxamide ; × 1 ACETIC ACID × 3 TETRAETHYLENE GLYCOL × 2 1,2-ETHANEDIOL × 4 DI(HYDROXYETHYL)ETHER × 3 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	D3KDL2_9ALPC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–300； UniProt 2890–3189

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9mw4
Deposition date deposition_date	2025-01-16
Structure title title	Co-crystal structure of feline coronavirus UU23 main protease with Pfizer intravenous compound PF-00835231
Keywords keywords	Mpro, UU23, feline coronavirus, VIRAL PROTEIN, main protease, PF-00835231, feline enteric coronavirus, alpha coronavirus; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9mw4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9mw4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

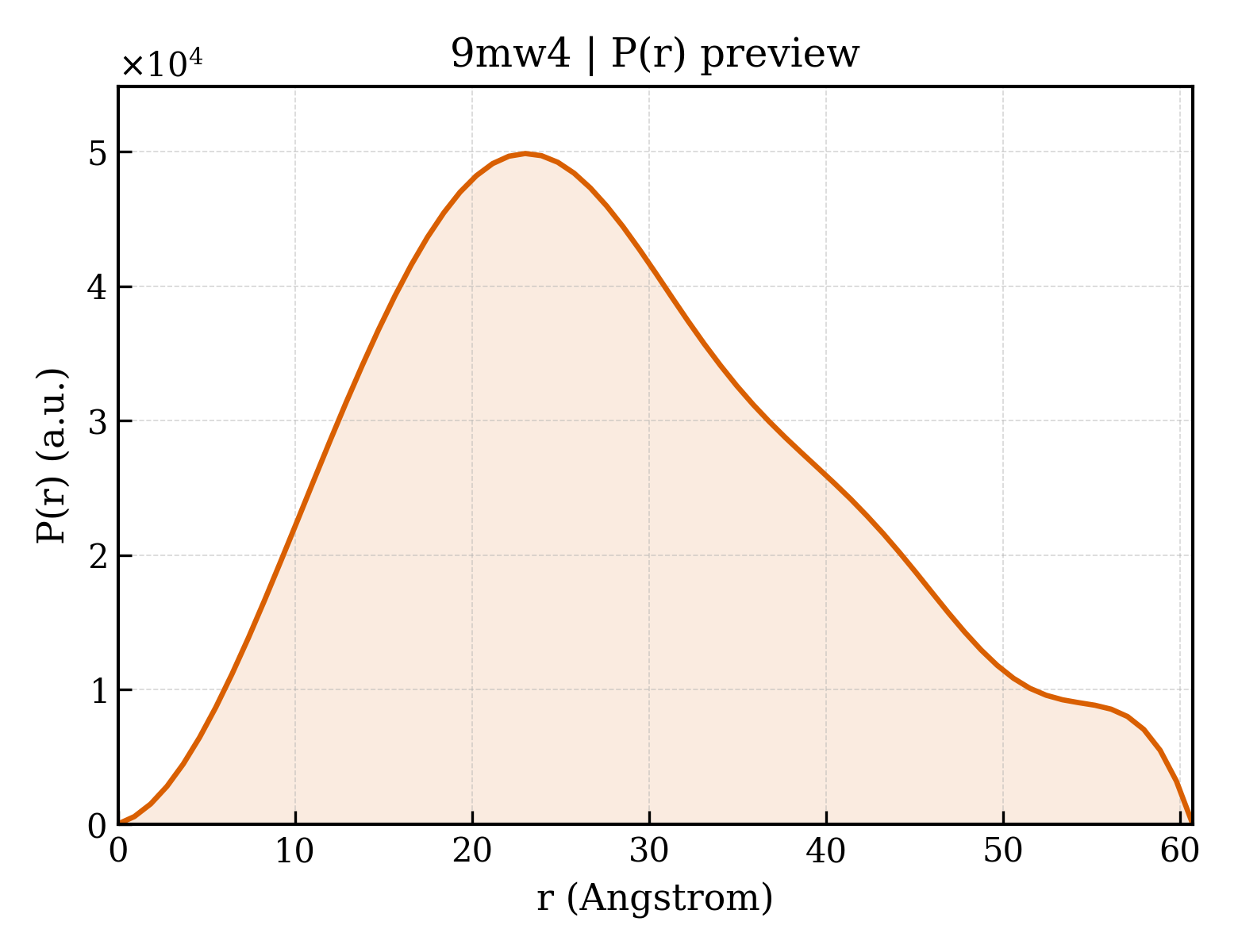

9mw4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.27 Å
Rg (electron density)	21.59 Å
Total Rg	22.36 Å
Atom count	4766
Residues	300
Excluded volume	42924 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9mw4__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	ORF1ab polyprotein
Molecular weight formula_weight	32727.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5421

SGLRKMAQPSGIVEPCIVRVAYGSNVLNGLWIGDEVICPRHVIASDTSRVINYDNELSSVRLHNFSIAKNNVFLGVVSAKYKGVNLVLKVNQVNPNTPAHKFKSVKPGESFNILACYEGCPGSVYGVNMRSQGTIKGSFIAGTCGSVGYVLENGILYFVYMHHLELGNGSHVGSNLEGEMYGGYEDQPSMQLEGTNVMSSDNVVAFLYAALINGERWFVTNASMSLESYNAWAKTNSFTEIVSTDAFNMLAAKTGYSVEKLLECIVRLNKGFGGRTILSYGSLCDEFTPTEVIRQMYGVN

Source Source

Source organism organism	Feline alphacoronavirus 1
NCBI taxonomy ID ncbi_taxonomy_id	2421386
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;N-[(2S)-1-({(2S,3S)-3,4-dihydroxy-1-[(3S)-2-oxopyrrolidin-3-yl]butan-2-yl}amino)-4-methyl-1-oxopentan-2-yl]-4-methoxy-1H-indole-2-carboxamide ;
Molecular weight formula_weight	474.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	433

▶

Unit-cell length a length_a	77.193 Å
Unit-cell length b length_b	77.193 Å
Unit-cell length c length_c	149.563 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 2 2
Space-group number int_tables_number	95
Crystal system crystal_system	tetragonal

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	34.520 Å
R factor r_factor	0.1573
R_work r_work	0.1570
R_free r_free	0.1758
