SAXSdb — 9nct

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

WD repeat-containing protein 5

Homo sapiens

UniProt P61964

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	;4-({6-cyclopropyl-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazol-3-yl}methyl)-2-methoxybenzonitrile ; × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	;4-({6-cyclopropyl-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazol-3-yl}methyl)-2-methoxybenzonitrile ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WDR5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 112–424； UniProt 22–334 Author chain B； PDBConstruct 112–424； UniProt 22–334

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nct
Deposition date deposition_date	2025-02-17
Structure title title	Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors
Keywords keywords	WDR5, Inhibitor, STRUCTURAL PROTEIN, STRUCTURAL PROTEIN-INHIBITOR complex; STRUCTURAL PROTEIN/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nct__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9nct__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

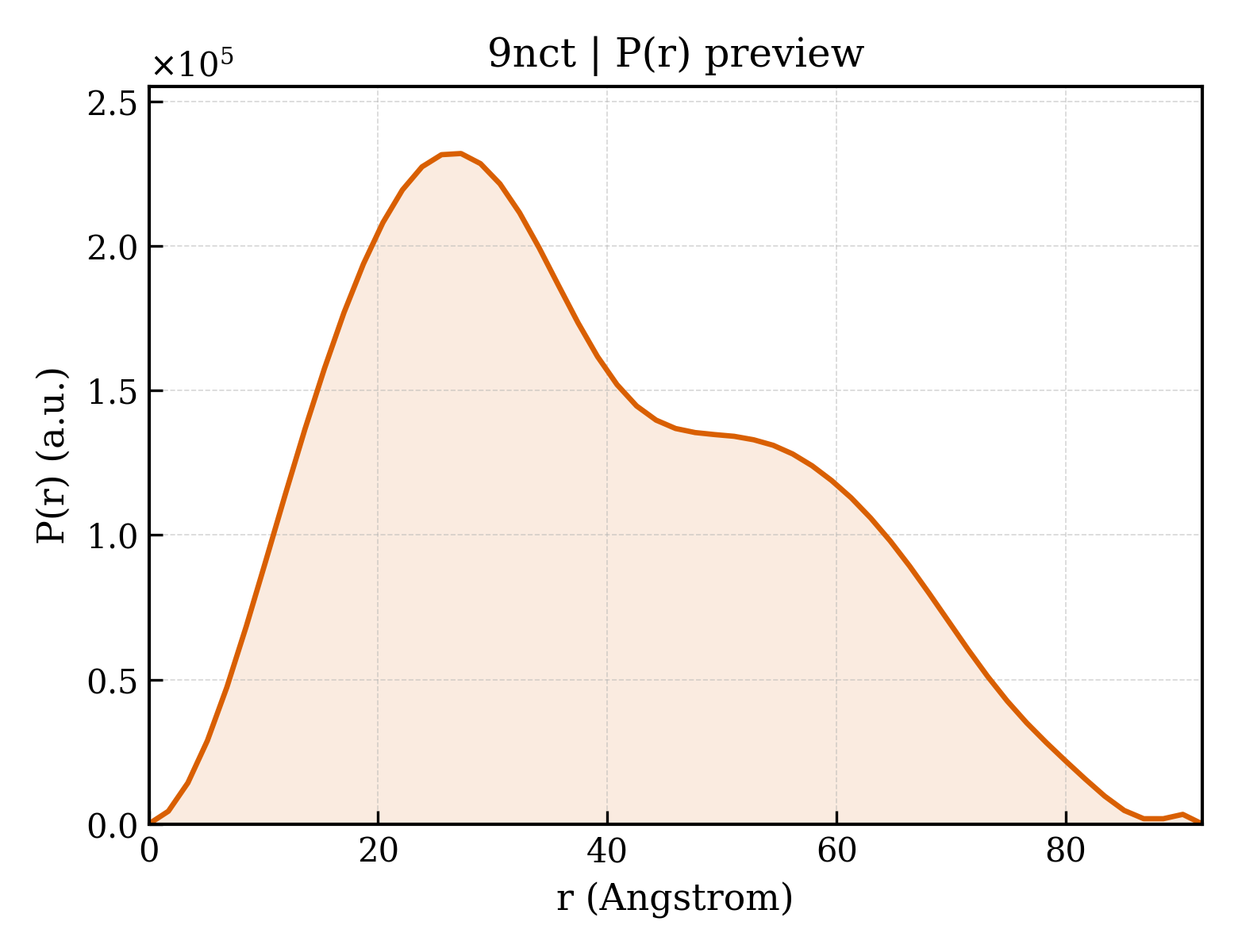

9nct__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.53 Å
Rg (electron density)	17.56 Å
Total Rg	18.60 Å
Atom count	2299
Residues	296
Excluded volume	40776 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nct__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9nct__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	WD repeat-containing protein 5
Molecular weight formula_weight	47074.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4873

MGSSHHHHHHGSSMSDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHREQIGGSATQSKPTPVKPNYALKFTLAGHTKAVSSVKFSPNGEWLASSSADKLIKIWGAYDGKFEKTISGHKLGISDVAWSSDSNLLVSASDDKTLKIWDVSSGKCLKTLKGHSNYVFCCNFNPQSNLIVSGSFDESVRIWDVKTGKCLKTLPAHSDPVSAVHFNRDGSLIVSSSYDGLCRIWDTASGQCLKTLIDDDNPPVSFVKFSPNGKYILAATLDNTLKLWDYSKGKCLKTYTGHKNEKYCIFANFSVTGGKWIVSGSEDNLVYIWNLQTKEIVQKLQGHTDVVISTACHPTENIIASAALENDKTIKLWKSDC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;4-({6-cyclopropyl-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazol-3-yl}methyl)-2-methoxybenzonitrile ;
Molecular weight formula_weight	450.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	266

▶

Unit-cell length a length_a	69.000 Å
Unit-cell length b length_b	46.880 Å
Unit-cell length c length_c	93.328 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	113.52 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	2.110 Å
Low-resolution limit resolution_low	44.670 Å
R factor r_factor	0.1787
R_work r_work	0.1752
R_free r_free	0.2279

Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors
