9ntx

Crystal structure of calcium-dependent protein kinase 1 (CDPK1) from Cryptosporidium parvum in complex with inhibitor WIN-1-159.

Method: X-RAY DIFFRACTION D_max: 76.2 Å Quality: REASONABLE

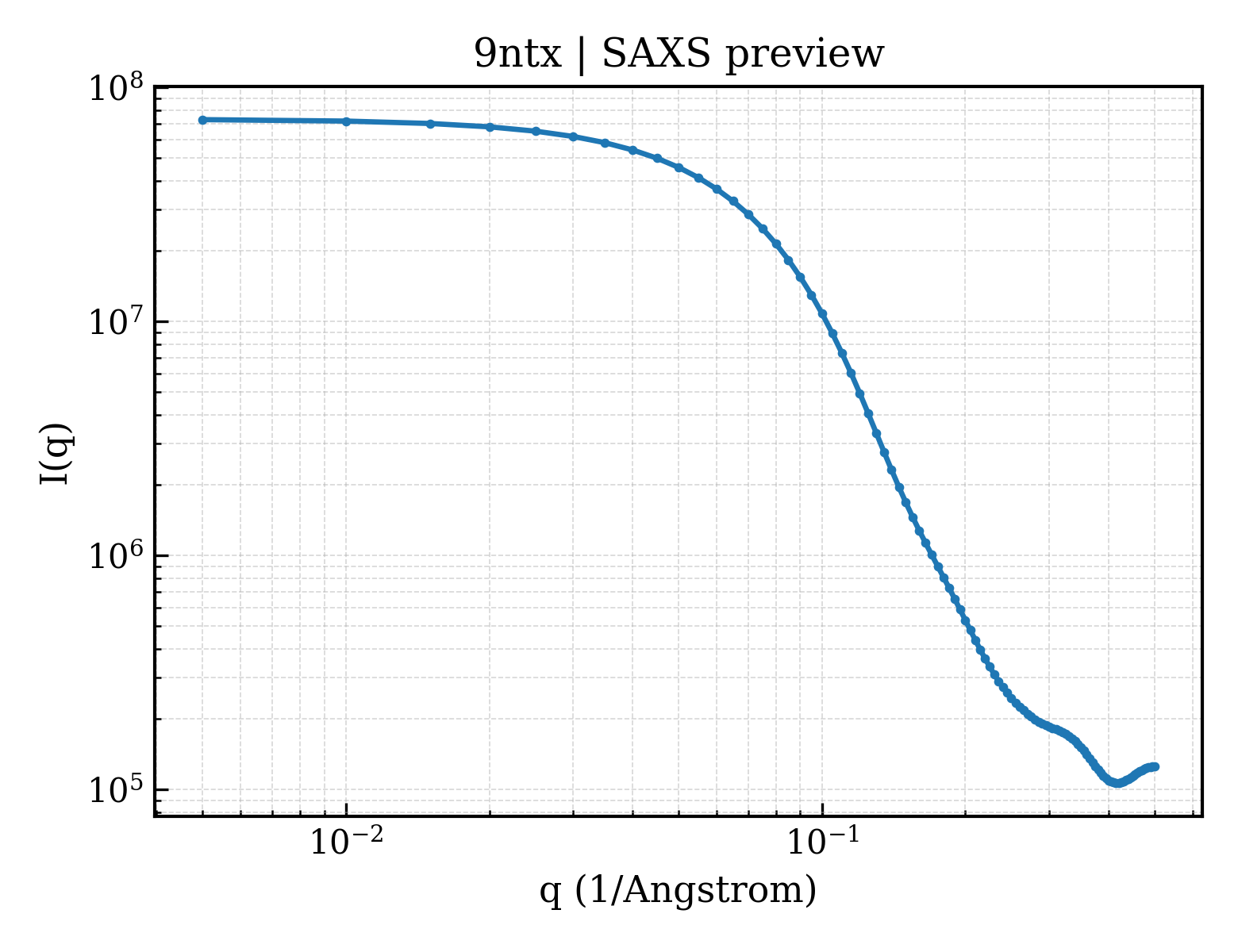

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ntx
沉积日期 deposition_date	2025-03-19
结构标题 title	Crystal structure of calcium-dependent protein kinase 1 (CDPK1) from Cryptosporidium parvum in complex with inhibitor WIN-1-159.
关键词 keywords	SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, Cryptosporidium parvum, CDPK1; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.84 Å
回转半径 Rg (电子) rg_electron	23.02 Å
零角强度 I(0) i0	73200300.00
分子量 molecular_weight	44824.0 kDa
排除体积 excluded_volume	43406 Å³
包络体积 envelope_volume	72313 Å³
水化壳体积 shell_volume	26290 Å³
包络直径 envelope_diameter	77.4 Å
壳层 Rg shell_rg	30.08 Å
包络 Rg envelope_rg	23.19 Å
形状 Rg shape_rg	23.01 Å
总 Rg total_rg	23.65 Å
总原子数 total_atoms	3381
残基数 n_residues	422
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	76.2 Å
Rg (实空间) rg_real	24.22 Å
Rg 误差 (实空间) rg_real_error	0.19 Å
I(0) (实空间) i0_real	7.2080e+07
I(0) 误差 (实空间) i0_real_error	8.4060e+05
Rg (倒空间) rg_reciprocal	23.79 Å
I(0) (倒空间) i0_reciprocal	73200000.0000
解质量估计 total_estimate	0.6988
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	27.4 Å
偏度 Skewness skewness	0.344
峰度 Kurtosis kurtosis	-0.297
角度范围 angular_range	— – 0.3350 Å⁻¹
当前正则化参数 α current_alpha	6.2170
最高正则化参数 α highest_alpha	12300000.0000
实空间数据点数 n_real_points	65
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.926; Stabil: 0.924; Sysdev: 0.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.573

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Calmodulin-domain protein kinase 1
分子量 formula_weight	56710.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3416

MGSSHHHHHHSSGRENLYFQGHMGTFAERYNIVCMLGKGSFGEVLKCKDRITQQEYAVKVINKASAKNKDTSTILREVELLKKLDHPNIMKLFEILEDSSSFYIVGELYTGGELFDEIIKRKRFSEHDAARIIKQVFSGITYMHKHNIVHRDLKPENILLESKEKDCDIKIIDFGLSTCFQQNTKMKDRIGTAYYIAPEVLRGTYDEKCDVWSAGVILYILLSGTPPFYGKNEYDILKRVETGKYAFDLPQWRTISDDAKDLIRKMLTFHPSLRITATQCLEHPWIQKYSSETPTISDLPSLESAMTNIRQFQAEKKLAQAALLYMASKLTTLDETKQLTEIFRKLDTNNDGMLDRDELVRGYHEFMRLKGVDSNSLIQNEGSTIEDQIDSLMPLLDMDGSGSIEYSEFIASAIDRTILLSRERMERAFKMFDKDGSGKISTKELFKLFSQADSSIQMEELESIIEQVDNNKDGEVDFNEFVEMLQNFVRNE

来源 Source

来源生物 organism	Cryptosporidium parvum Iowa II
NCBI 分类编号 ncbi_taxonomy_id	353152
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	(6M)-6-(2-chloro-4-methoxyphenyl)-8-methyl-2-[3-(piperazine-1-sulfonyl)anilino]pyrido[2,3-d]pyrimidin-7(8H)-one
分子量 formula_weight	541.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	14

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	59.518 Å
晶胞边长 b length_b	56.418 Å
晶胞边长 c length_c	81.707 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	104.71 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	45.920 Å
R 因子 r_factor	0.2128
R_work r_work	0.2111
R_free r_free	0.2462
