1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin-domain protein kinase 1

Cryptosporidium parvum Iowa II

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	(3M)-5-amino-3-[6-(cyclopropyloxy)naphthalen-2-yl]-1-(3-hydroxy-2,2-dimethylpropyl)-1H-pyrazole-4-carboxamide × 1 CALCIUM ION × 3 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A3FQ16_CRYPI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–492； UniProt 70–538

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nty
Deposition date deposition_date	2025-03-19
Last revision last_revision	2026-04-01
Structure title title	Crystal structure of calcium-dependent protein kinase 1 (CDPK1) from Cryptosporidium parvum in complex with inhibitor BKI-1708.
Keywords keywords	SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, Cryptosporidium parvum, CDPK1; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nty__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

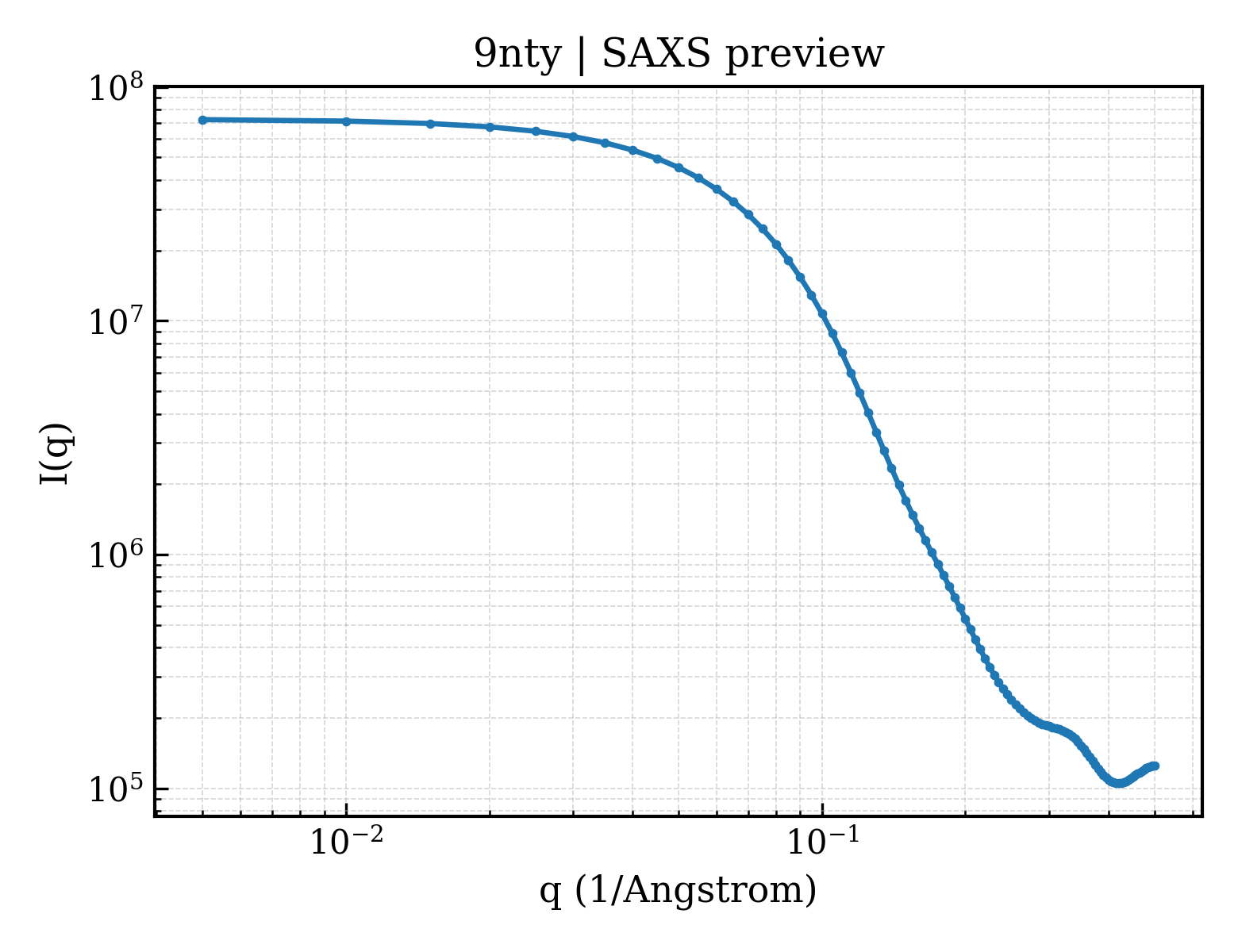

9nty__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9nty__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.15 Å
Rg (electron density)	23.03 Å
Total Rg	23.88 Å
Atom count	3373
Residues	422
Excluded volume	60154 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nty__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Calmodulin-domain protein kinase 1
Molecular weight formula_weight	56710.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3460

MGSSHHHHHHSSGRENLYFQGHMGTFAERYNIVCMLGKGSFGEVLKCKDRITQQEYAVKVINKASAKNKDTSTILREVELLKKLDHPNIMKLFEILEDSSSFYIVGELYTGGELFDEIIKRKRFSEHDAARIIKQVFSGITYMHKHNIVHRDLKPENILLESKEKDCDIKIIDFGLSTCFQQNTKMKDRIGTAYYIAPEVLRGTYDEKCDVWSAGVILYILLSGTPPFYGKNEYDILKRVETGKYAFDLPQWRTISDDAKDLIRKMLTFHPSLRITATQCLEHPWIQKYSSETPTISDLPSLESAMTNIRQFQAEKKLAQAALLYMASKLTTLDETKQLTEIFRKLDTNNDGMLDRDELVRGYHEFMRLKGVDSNSLIQNEGSTIEDQIDSLMPLLDMDGSGSIEYSEFIASAIDRTILLSRERMERAFKMFDKDGSGKISTKELFKLFSQADSSIQMEELESIIEQVDNNKDGEVDFNEFVEMLQNFVRNE

Source Source

Source organism organism	Cryptosporidium parvum Iowa II
NCBI taxonomy ID ncbi_taxonomy_id	353152
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	(3M)-5-amino-3-[6-(cyclopropyloxy)naphthalen-2-yl]-1-(3-hydroxy-2,2-dimethylpropyl)-1H-pyrazole-4-carboxamide
Molecular weight formula_weight	394.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▶

Unit-cell length a length_a	59.892 Å
Unit-cell length b length_b	55.873 Å
Unit-cell length c length_c	81.493 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.76 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	45.580 Å
R factor r_factor	0.2076
R_work r_work	0.2048
R_free r_free	0.2635

Crystal structure of calcium-dependent protein kinase 1 (CDPK1) from Cryptosporidium parvum in complex with inhibitor BKI-1708.
