9nu0

Crystal structure of calcium-dependent protein kinase 1 (CDPK1) from Cryptosporidium parvum in complex with inhibitor WIN-III-6.

Method: X-RAY DIFFRACTION D_max: 88.8 Å Quality: REASONABLE

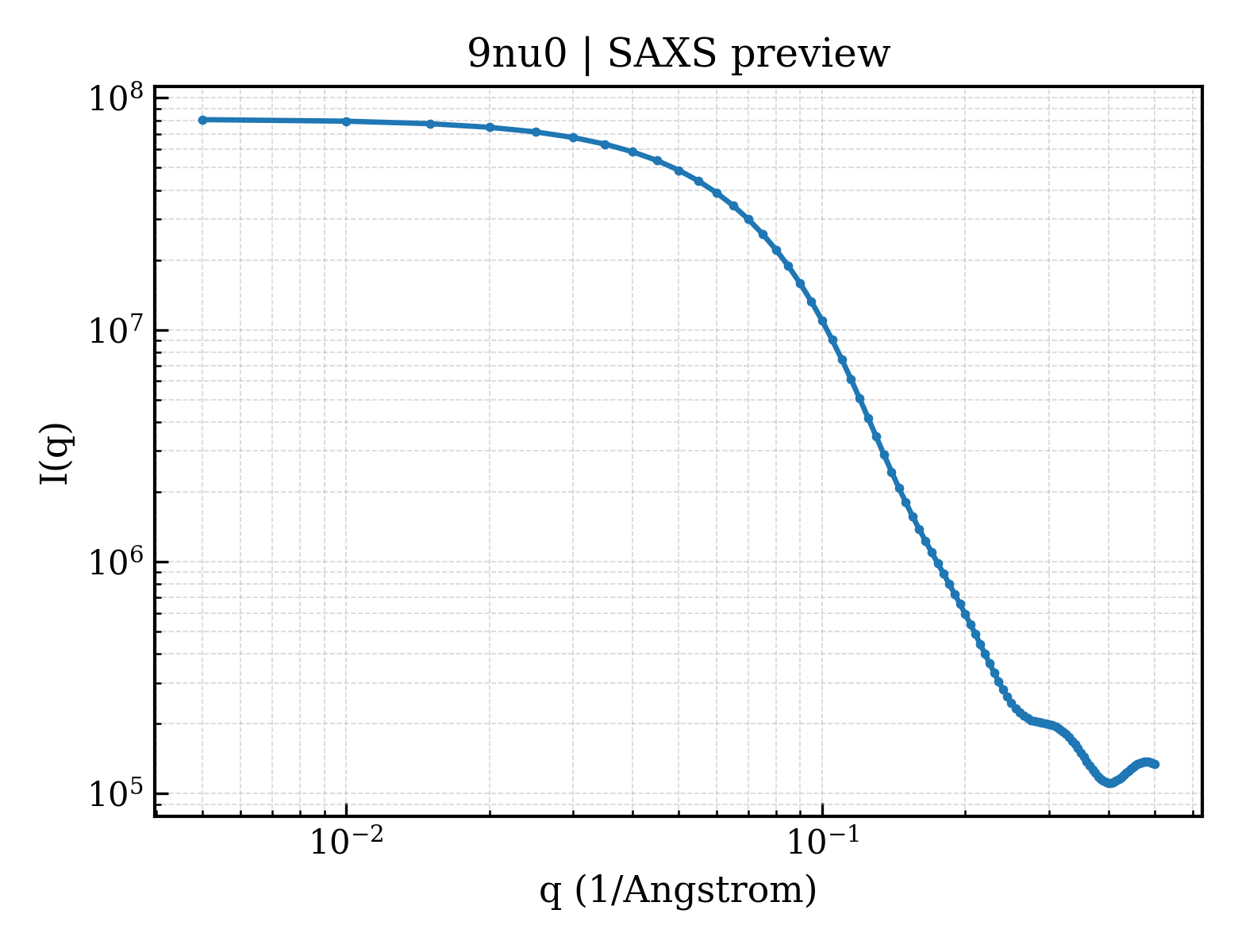

SAXS 散射曲线 SAXS Profile

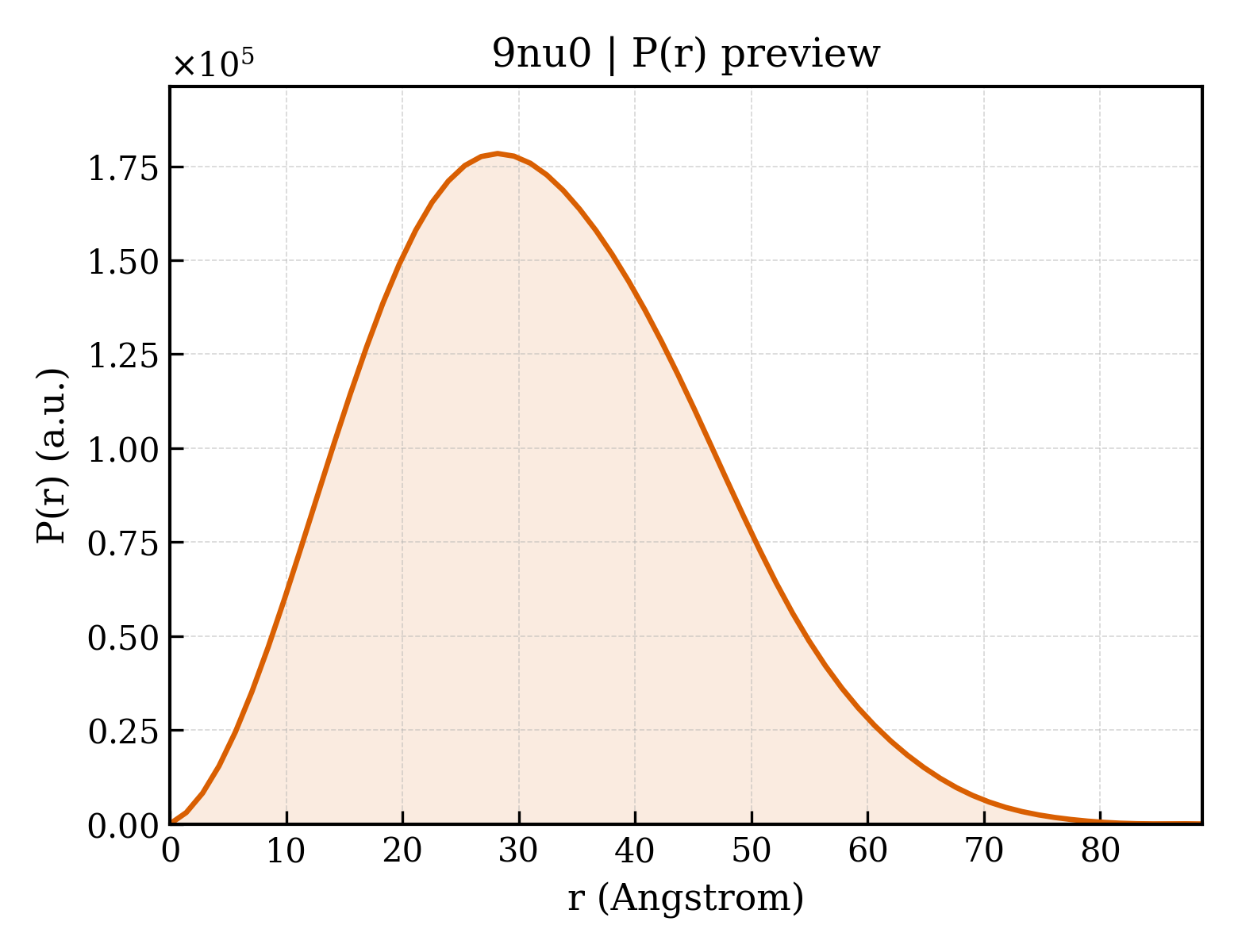

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nu0
沉积日期 deposition_date	2025-03-19
最后修订 last_revision	2026-04-01
结构标题 title	Crystal structure of calcium-dependent protein kinase 1 (CDPK1) from Cryptosporidium parvum in complex with inhibitor WIN-III-6.
关键词 keywords	SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, Cryptosporidium parvum, CDPK1; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.65 Å
回转半径 Rg (电子) rg_electron	23.89 Å
零角强度 I(0) i0	80973100.00
分子量 molecular_weight	47197.0 kDa
排除体积 excluded_volume	45709 Å³
包络体积 envelope_volume	76838 Å³
水化壳体积 shell_volume	27125 Å³
包络直径 envelope_diameter	86.1 Å
壳层 Rg shell_rg	30.77 Å
包络 Rg envelope_rg	24.06 Å
形状 Rg shape_rg	23.88 Å
总 Rg total_rg	24.51 Å
总原子数 total_atoms	3560
残基数 n_residues	450
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	88.8 Å
Rg (实空间) rg_real	24.63 Å
Rg 误差 (实空间) rg_real_error	0.71 Å
I(0) (实空间) i0_real	8.0970e+07
I(0) 误差 (实空间) i0_real_error	1.3110e+06
Rg (倒空间) rg_reciprocal	24.63 Å
I(0) (倒空间) i0_reciprocal	80970000.0000
解质量估计 total_estimate	0.6968
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.2 Å
偏度 Skewness skewness	0.346
峰度 Kurtosis kurtosis	-0.272
角度范围 angular_range	— – 0.3200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14280000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.713; Stabil: 1.000; Sysdev: 0.338; Positv: 1.000; Valcen: 0.901; Smooth: 1.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Calmodulin-domain protein kinase 1
分子量 formula_weight	56710.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3742

MGSSHHHHHHSSGRENLYFQGHMGTFAERYNIVCMLGKGSFGEVLKCKDRITQQEYAVKVINKASAKNKDTSTILREVELLKKLDHPNIMKLFEILEDSSSFYIVGELYTGGELFDEIIKRKRFSEHDAARIIKQVFSGITYMHKHNIVHRDLKPENILLESKEKDCDIKIIDFGLSTCFQQNTKMKDRIGTAYYIAPEVLRGTYDEKCDVWSAGVILYILLSGTPPFYGKNEYDILKRVETGKYAFDLPQWRTISDDAKDLIRKMLTFHPSLRITATQCLEHPWIQKYSSETPTISDLPSLESAMTNIRQFQAEKKLAQAALLYMASKLTTLDETKQLTEIFRKLDTNNDGMLDRDELVRGYHEFMRLKGVDSNSLIQNEGSTIEDQIDSLMPLLDMDGSGSIEYSEFIASAIDRTILLSRERMERAFKMFDKDGSGKISTKELFKLFSQADSSIQMEELESIIEQVDNNKDGEVDFNEFVEMLQNFVRNE

来源 Source

来源生物 organism	Cryptosporidium parvum Iowa II
NCBI 分类编号 ncbi_taxonomy_id	353152
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	(6M)-6-[2-chloro-4-(cyclopropylmethoxy)phenyl]-8-methyl-2-(methylamino)pyrido[2,3-d]pyrimidin-7(8H)-one
分子量 formula_weight	370.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	134

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	60.157 Å
晶胞边长 b length_b	56.637 Å
晶胞边长 c length_c	80.660 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	104.30 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.940 Å
最低分辨率 resolution_low	45.860 Å
R 因子 r_factor	0.1891
R_work r_work	0.1872
R_free r_free	0.2274

fit	/app/data/saxs_computation/nu/9nu0/9nu0.fit
pddf	/app/data/pr_computation/nu/9nu0/9nu0.pr.out
profile	/app/data/saxs_computation/nu/9nu0/9nu0.dat
