9nu1

Uromodulin filament lattice interface from human urine

Method: ELECTRON MICROSCOPY D_max: 138.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

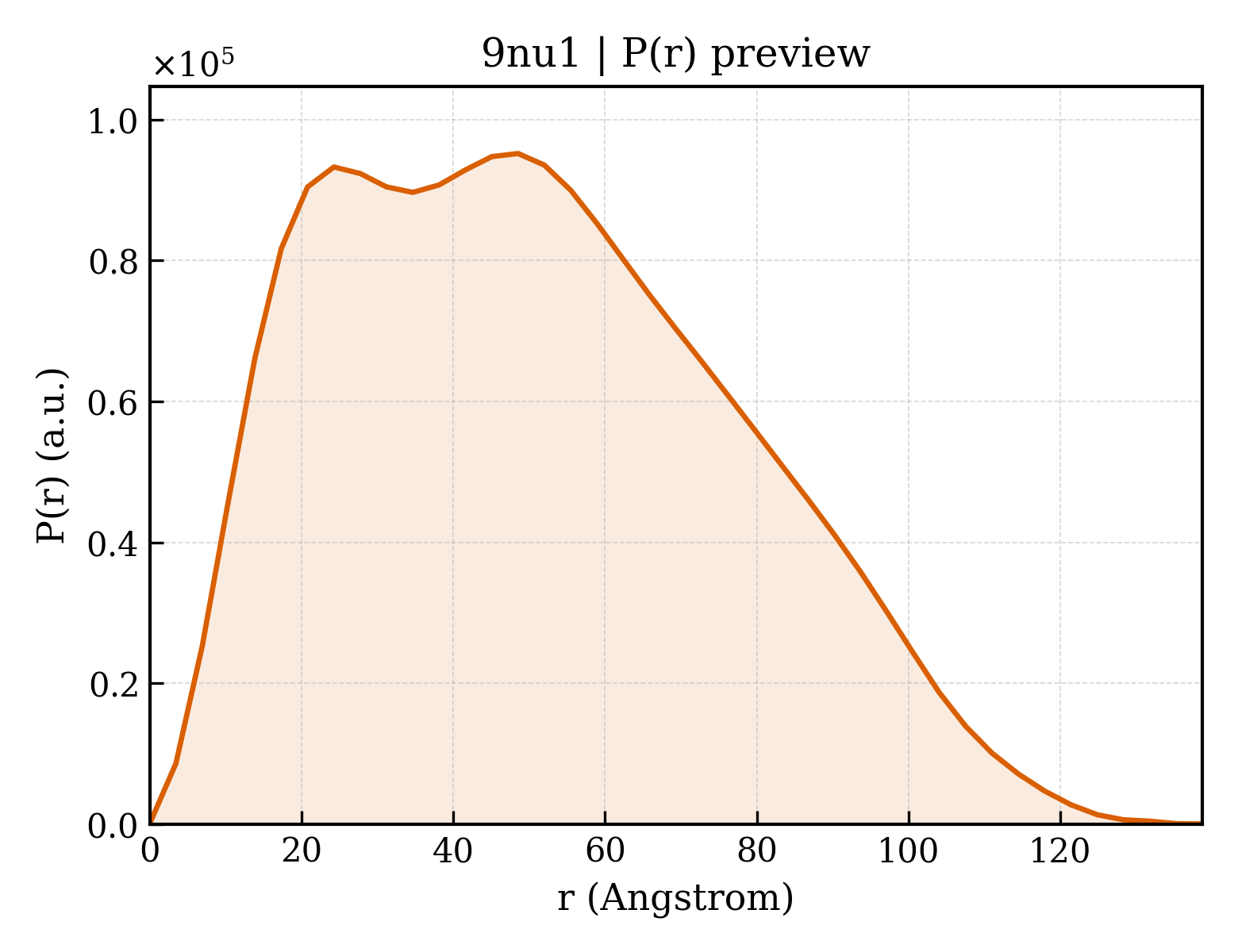

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nu1
沉积日期 deposition_date	2025-03-19
结构标题 title	Uromodulin filament lattice interface from human urine
关键词 keywords	;Kidney, urine, uropathogen, filament, lattice, ANTIMICROBIAL PROTEIN, kidney disease, UTI, urinary tract infection, infection, interface ;; ANTIMICROBIAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.91 Å
回转半径 Rg (电子) rg_electron	40.47 Å
零角强度 I(0) i0	88125300.00
分子量 molecular_weight	72932.0 kDa
排除体积 excluded_volume	90157 Å³
包络体积 envelope_volume	133920 Å³
水化壳体积 shell_volume	30341 Å³
包络直径 envelope_diameter	141.5 Å
壳层 Rg shell_rg	40.73 Å
包络 Rg envelope_rg	40.25 Å
形状 Rg shape_rg	40.48 Å
总 Rg total_rg	40.46 Å
总原子数 total_atoms	5092
残基数 n_residues	628
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	138.7 Å
Rg (实空间) rg_real	40.33 Å
Rg 误差 (实空间) rg_real_error	1.80 Å
I(0) (实空间) i0_real	8.8130e+07
I(0) 误差 (实空间) i0_real_error	1.5610e+06
Rg (倒空间) rg_reciprocal	40.08 Å
I(0) (倒空间) i0_reciprocal	88100000.0000
解质量估计 total_estimate	0.8110
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	48.6 Å
偏度 Skewness skewness	0.365
峰度 Kurtosis kurtosis	-0.629
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4433000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.562; Smooth: 0.825

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Uromodulin
分子量 formula_weight	69821.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,B,S
原子数 atom_count	5092

MGQPSLTWMLMVVVASWFITTAATDTSEARWCSECHSNATCTEDEAVTTCTCQEGFTGDGLTCVDLDECAIPGAHNCSANSSCVNTPGSFSCVCPEGFRLSPGLGCTDVDECAEPGLSHCHALATCVNVVGSYLCVCPAGYRGDGWHCECSPGSCGPGLDCVPEGDALVCADPCQAHRTLDEYWRSTEYGEGYACDTDLRGWYRFVGQGGARMAETCVPVLRCNTAAPMWLNGTHPSSDEGIVSRKACAHWSGHCCLWDASVQVKACAGGYYVYNLTAPPECHLAYCTDPSSVEGTCEECSIDEDCKSNNGRWHCQCKQDFNITDISLLEHRLECGANDMKVSLGKCQLKSLGFDKVFMYLSDSRCSGFNDRDNRDWVSVVTPARDGPCGTVLTRNETHATYSNTLYLADEIIIRDLNIKINFACSYPLDMKVSLKTALQPMVSALNIRVGGTGMFTVRMALFQTPSYTQPYQGSSVTLSTEAFLYVGTMLDGGDLSRFALLMTNCYATPSSNATDPLKYFIIQDRCPHTRDSTIQVVENGESSQGRFSVQMFRFAGNYDLVYLHCEVYLCDTMNEKCKPTCSGTRFRSGSVIDQSRVLNLGPITRKGVQATVSRAFSSLGLLKVWLPLLLSATLTLTFQ

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 3 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	2717300
