9nuf

Cryo-EM structure of the Nipah Virus nucleocapsid complex

Method: ELECTRON MICROSCOPY D_max: 206.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

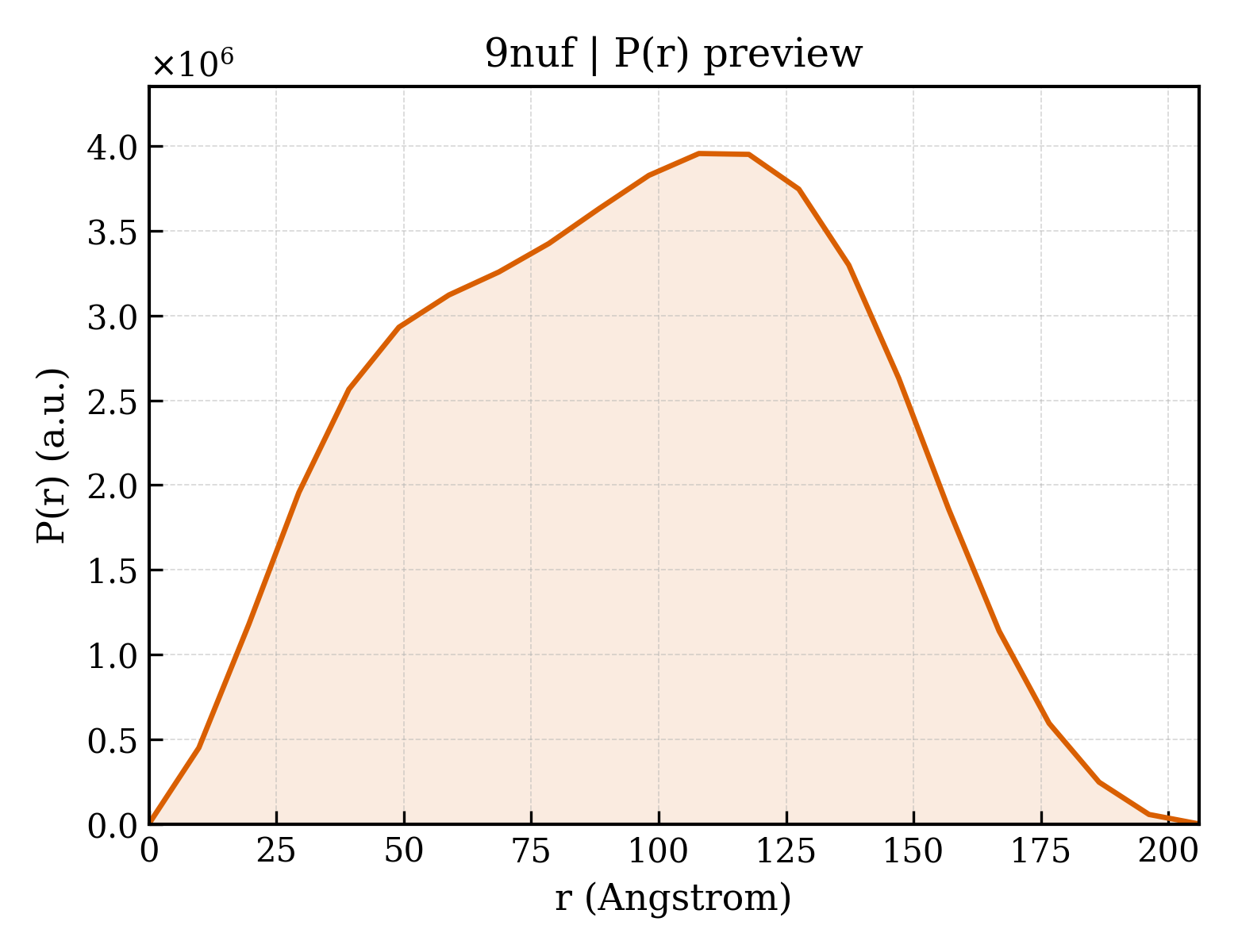

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nuf
沉积日期 deposition_date	2025-03-19
结构标题 title	Cryo-EM structure of the Nipah Virus nucleocapsid complex
关键词 keywords	Nipah virus, nucleocapsid (N) protein, ribonucleoprotein (RNP) complex, VIRAL PROTEIN-RNA complex; VIRAL PROTEIN/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	73.48 Å
回转半径 Rg (电子) rg_electron	73.31 Å
零角强度 I(0) i0	5893540000.00
分子量 molecular_weight	642420.0 kDa
排除体积 excluded_volume	800340 Å³
包络体积 envelope_volume	1285100 Å³
水化壳体积 shell_volume	141340 Å³
包络直径 envelope_diameter	213.5 Å
壳层 Rg shell_rg	81.90 Å
包络 Rg envelope_rg	68.96 Å
形状 Rg shape_rg	73.27 Å
总 Rg total_rg	73.58 Å
总原子数 total_atoms	44996
残基数 n_residues	5656
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	206.0 Å
Rg (实空间) rg_real	73.25 Å
Rg 误差 (实空间) rg_real_error	1.18 Å
I(0) (实空间) i0_real	5.8940e+09
I(0) 误差 (实空间) i0_real_error	1.2970e+08
Rg (倒空间) rg_reciprocal	74.07 Å
I(0) (倒空间) i0_reciprocal	5902000000.0000
解质量估计 total_estimate	0.8451
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	107.9 Å
偏度 Skewness skewness	-0.033
峰度 Kurtosis kurtosis	-0.830
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	182400000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.997; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Nucleoprotein
分子量 formula_weight	58231.9 kDa
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F,G,H,I,J,K,L,M,N,O,P,Q
原子数 atom_count	44996

MSDIFEEAASFRSYQSKLGRDGRASAATATLTTKIRIFVPATNSPELRWELTLFALDVIRSPSAAESMKVGAAFTLISMYSERPGALIRSLLNDPDIEAVIIDVGSMVNGIPVMERRGDKAQEEMEGLMRILKTARDSSKGKTPFVDSRAYGLRITDMSTLVSAVITIEAQIWILIAKAVTAPDTAEESETRRWAKYVQQKRVNPFFALTQQWLTEMRNLLSQSLSVRKFMVEILIEVKKGGSAKGRAVEIISDIGNYVEETGMAGFFATIRFGLETRYPALALNEFQSDLNTIKSLMLLYREIGPRAPYMVLLEESIQTKFAPGGYPLLWSFAMGVATTIDRSMGALNINRGYLEPMYFRLGQKSARHHAGGIDQNMANRLGLSSDQVAELAAAVQETSAGRQESNVQAREAKFAAGGVLIGGSDQDIDEGEEPIEQSGRQSVTFKREMSISSLANSVPSSSVSTSGGTRLTNSLLNLRSRLAAKAAKEAASSNATDDPAISNRTQGESEKKNNQDLKPAQNDLDFVRADV

来源 Source

来源生物 organism	Henipavirus nipahense
NCBI 分类编号 ncbi_taxonomy_id	3052225
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	RNA (84-MER)
分子量 formula_weight	25673.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	Z

UUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUU

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.960 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.96 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	138389

fit	/app/data/saxs_computation/nu/9nuf/9nuf.fit
pddf	/app/data/pr_computation/nu/9nuf/9nuf.pr.out
profile	/app/data/saxs_computation/nu/9nuf/9nuf.dat
