SAXSdb — 9och

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9och
沉积日期 deposition_date	2025-04-24
结构标题 title	Transporter associated with antigen processing (TAP) bound to the viral protein hUS6 in the outward-facing open state
关键词 keywords	ABC transporter, antigen processing, peptide transporter, MEMBRANE PROTEIN, immune evasion, cytomegalovirus, herpesvirus; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.71 Å
回转半径 Rg (电子) rg_electron	37.05 Å
零角强度 I(0) i0	240481000.00
分子量 molecular_weight	126600.0 kDa
排除体积 excluded_volume	159160 Å³
包络体积 envelope_volume	208680 Å³
水化壳体积 shell_volume	48390 Å³
包络直径 envelope_diameter	134.1 Å
壳层 Rg shell_rg	41.79 Å
包络 Rg envelope_rg	36.97 Å
形状 Rg shape_rg	37.02 Å
总 Rg total_rg	37.44 Å
总原子数 total_atoms	8895
残基数 n_residues	1134
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	124.4 Å
Rg (实空间) rg_real	36.98 Å
Rg 误差 (实空间) rg_real_error	1.07 Å
I(0) (实空间) i0_real	2.4050e+08
I(0) 误差 (实空间) i0_real_error	3.5530e+06
Rg (倒空间) rg_reciprocal	36.81 Å
I(0) (倒空间) i0_reciprocal	240400000.0000
解质量估计 total_estimate	0.6105
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.7 Å
偏度 Skewness skewness	0.540
峰度 Kurtosis kurtosis	-0.330
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	87710000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 0.048; Positv: 1.000; Valcen: 0.853; Smooth: 0.785

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Antigen peptide transporter 2
分子量 formula_weight	75736.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	8895

MRLPDLRPWTSLLLVDAALLWLLQGPLGTLLPQGLPGLWLEGTLRLGGLWGLLKLRGLLGFVGTLLLPLCLATPLTVSLRALVAGASRAPPARVASAPWSWLLVGYGAAGLSWSLWAVLSPPGAQEKEQDQVNNKVLMWRLLKLSRPDLPLLVAAFFFLVLAVLGETLIPHYSGRVIDILGGDFDPHAFASAIFFMCLFSFGSSLSAGCRGGCFTYTMSRINLRIREQLFSSLLRQDLGFFQETKTGELNSRLSSDTTLMSNWLPLNANVLLRSLVKVVGLYGFMLSISPRLTLLSLLHMPFTIAAEKVYNTRHQEVLREIQDAVARAGQVVREAVGGLQTVRSFGAEEHEVCRYKEALEQCRQLYWRRDLERALYLLVRRVLHLGVQMLMLSCGLQQMQDGELTQGSLLSFMIYQESVGSYVQTLVYIYGDMLSNVGAAEKVFSYMDRQPNLPSPGTLAPTTLQGVVKFQDVSFAYPNRPDRPVLKGLTFTLRPGEVTALVGPNGSGKSTVAALLQNLYQPTGGQVLLDEKPISQYEHCYLHSQVVSVGQEPVLFSGSVRNNIAYGLQSCEDDKVMAAAQAAHADDFIQEMEHGIYTDVGEKGSQLAAGQKQRLAIARALVRDPRVLILDEATSALDVQCEQALQDWNSRGDRTVLVIAHRLQTVQRAHQILVLQEGKLQKLAQL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	TAP transport inhibitor US6
分子量 formula_weight	26068.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MDLLIRLGFLLMCALPTPGERSSRDPKTLLSLSPRQQACVPRTKSHRPVCYNDTGDCTDADDSWKQLGEDFAHQCLQAAKKRPKTHKSRPNDRNLEGRLTCQRVRRLLPCDLDIHPSHRLLTLMNNCVCDGAVWNAFRLIERHGFFAVTLYLCCGITLLVVILALLCSITYESTGRGIRRCGSGSSGGGSSGSGGENLYFQGSGGGSGGSGGGMGRGVPHIVVDAYKRYKSAQLEVLFQ

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI 分类编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Antigen peptide transporter 1
分子量 formula_weight	95839.2 kDa
EC 编号 ec_number	7.4.2.14
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MASSRCPAPRGCRCLPGASLAWLGTVLLLLADWVLLRTALPRIFSLLVPTALPLLRVWAVGLSRWAVLWLGACGVLRATVGSKSENAGAQGWLAALKPLAAALGLALPGLALFRELISWGAPGSADSTRLLHWGSHPTAFVVSYAAALPAAALWHKLGSLWVPGGQGGSGNPVRRLLGCLGSETRRLSLFLVLVVLSSLGEMAIPFFTGRLTDWILQDGSADTFTRNLTLMSILTIASAVLEFVGDGIYNNTMGHVHSHLQGEVFGAVLRQETEFFQQNQTGNIMSRVTEDTSTLSDSLSENLSLFLWYLVRGLCLLGIMLWGSVSLTMVTLITLPLLFLLPKKVGKWYQLLEVQVRESLAKSSQVAIEALSAMPTVRSFANEEGEAQKFREKLQEIKTLNQKEAVAYAVNSWTTSISGMLLKVGILYIGGQLVTSGAVSSGNLVTFVLYQMQFTQAVEVLLSIYPRVQKAVGSSEKIFEYLDRTPRCPPSGLLTPLHLEGLVQFQDVSFAYPNRPDVLVLQGLTFTLRPGEVTALVGPNGSGKSTVAALLQNLYQPTGGQLLLDGKPLPQYEHRYLHRQVAAVGQEPQVFGRSLQENIAYGLTQKPTMEEITAAAVKSGAHSFISGLPQGYDTEVDEAGSQLSGGQRQAVALARALIRKPCVLILDDATSALDANSQLQVEQLLYESPERYSRSVLLITQHLSLVEQADHILFLEGGAIREGGTHQQLMEKKGCYWAMVQAPADAPESAQLEGSGGGAMVTTLSGLSGEQGPSGDMTTEEDSATHIKFSKRDEDGRELAGATMELRDSSGKTISTWISDGHVKDFYLYPGKYTFVETAAPDGYEVATPIEFTVNEDGQVTVDGEATEGDAHTSGGGHHHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	14445

fit	/app/data/saxs_computation/oc/9och/9och.fit
pddf	/app/data/pr_computation/oc/9och/9och.pr.out
profile	/app/data/saxs_computation/oc/9och/9och.dat

Transporter associated with antigen processing (TAP) bound to the viral protein hUS6 in the outward-facing open state

SAXS 散射曲线 SAXS Profile

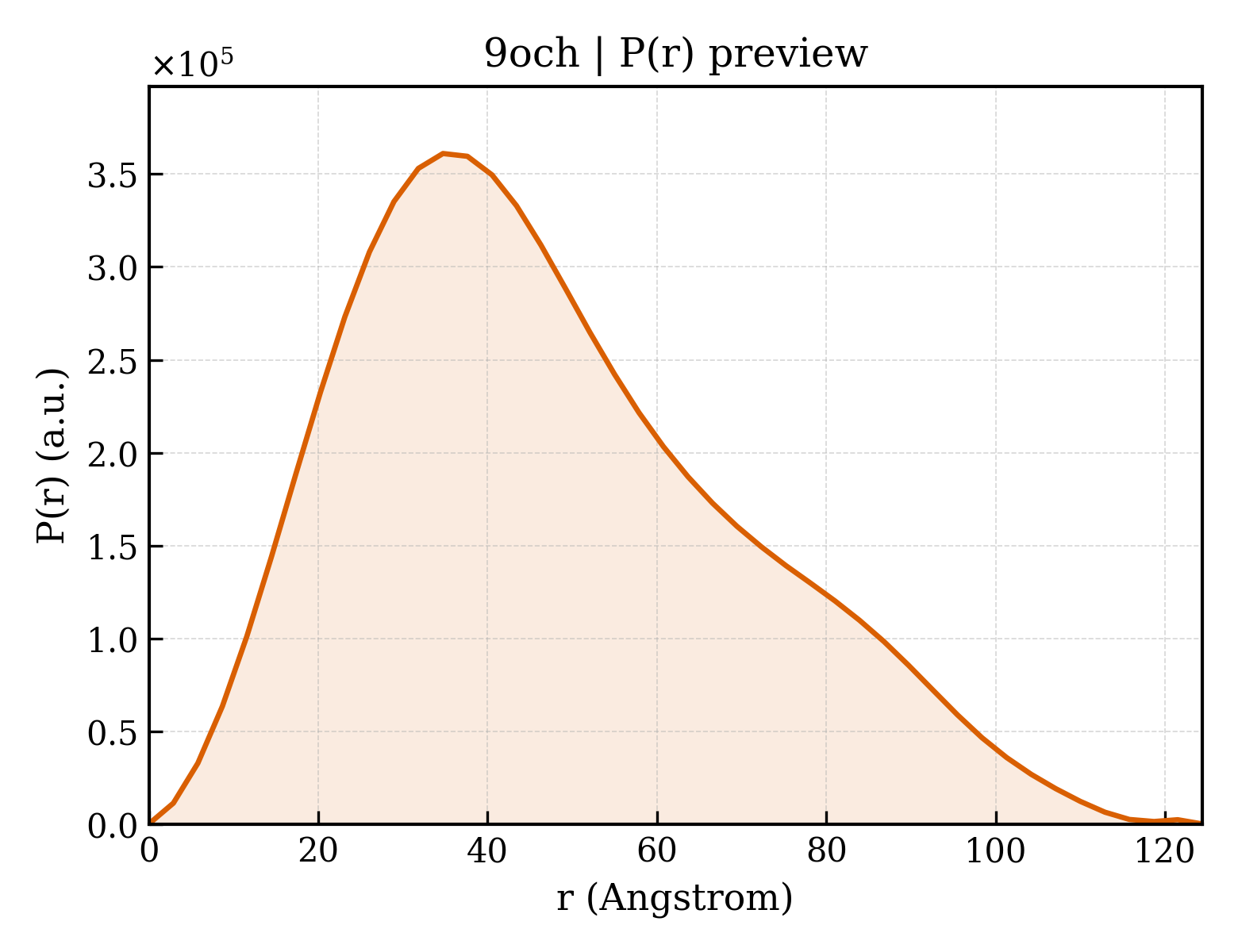

P(r) 距离分布 P(r) Distribution
