1. Protein Identity and Related Structures Protein Identity & Related Structures

Coiled-coil-helix-coiled-coil-helix domain-containing protein 10, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 18	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CHC10_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–98； UniProt 1–98 Author chain B； PDBConstruct 1–98； UniProt 1–98 Author chain C； PDBConstruct 1–98； UniProt 1–98 Author chain D； PDBConstruct 1–98； UniProt 1–98 Author chain E； PDBConstruct 1–98； UniProt 1–98 Author chain F； PDBConstruct 1–98； UniProt 1–98 Author chain G； PDBConstruct 1–98； UniProt 1–98 Author chain H； PDBConstruct 1–98； UniProt 1–98 Author chain I； PDBConstruct 1–98； UniProt 1–98 Author chain J； PDBConstruct 1–98； UniProt 1–98 Author chain K； PDBConstruct 1–98； UniProt 1–98 Author chain L； PDBConstruct 1–98； UniProt 1–98 Author chain M； PDBConstruct 1–98； UniProt 1–98 Author chain N； PDBConstruct 1–98； UniProt 1–98 Author chain O； PDBConstruct 1–98； UniProt 1–98 Author chain P； PDBConstruct 1–98； UniProt 1–98 Author chain Q； PDBConstruct 1–98； UniProt 1–98 Author chain R； PDBConstruct 1–98； UniProt 1–98

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9oyo
Deposition date deposition_date	2025-06-04
Structure title title	Structure of R15L D10-NT amyloid fibrils
Keywords keywords	CHCHD10, R15L, Amyloid Fibril, PROTEIN FIBRIL; PROTEIN FIBRIL
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9oyo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

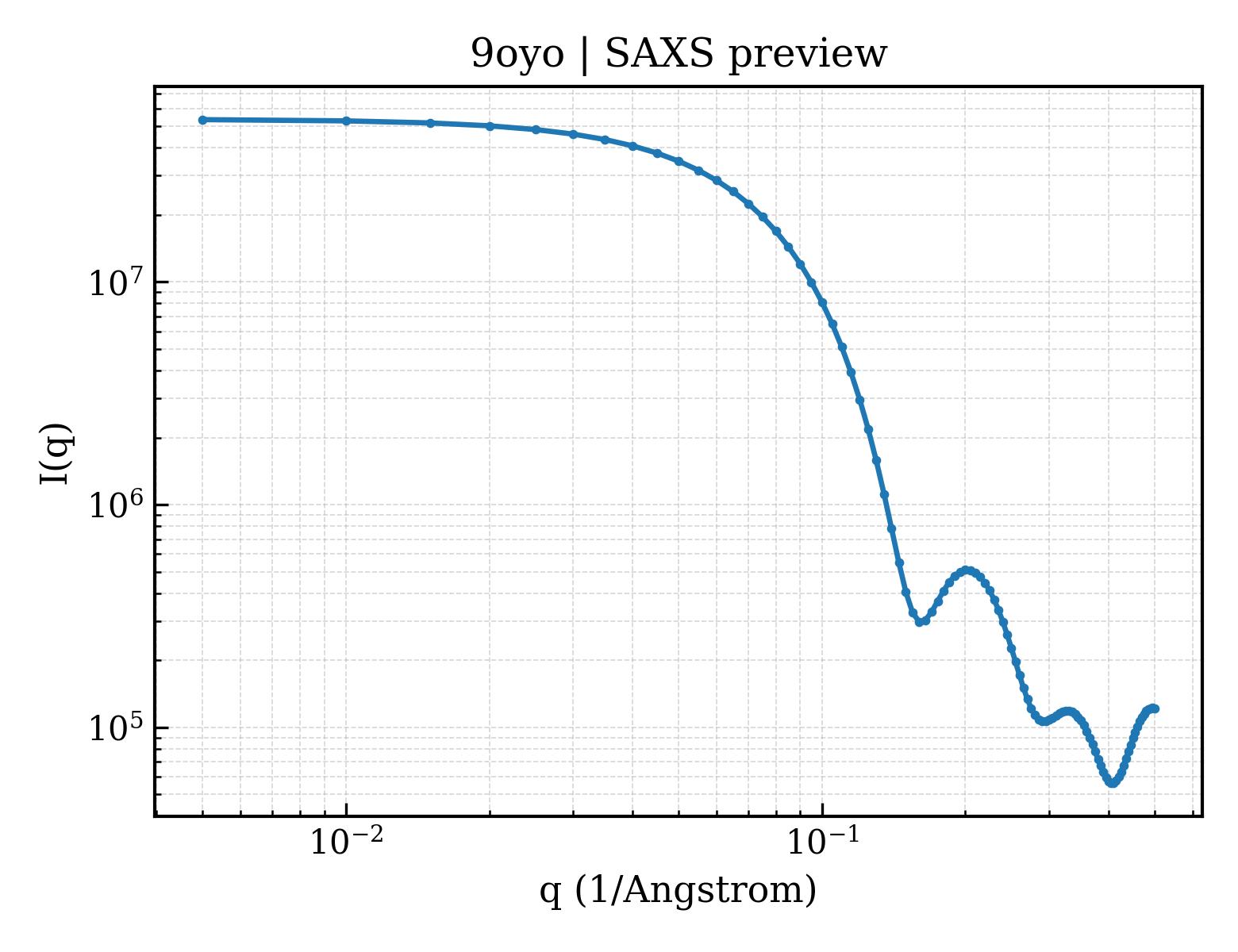

9oyo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9oyo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.71 Å
Rg (electron density)	21.82 Å
Total Rg	22.89 Å
Atom count	3762
Residues	612
Excluded volume	66924 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9oyo__assembly_1__model_1`	octadecameric （18）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.15 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	152213

Description description	Coiled-coil-helix-coiled-coil-helix domain-containing protein 10, mitochondrial
Molecular weight formula_weight	9208.3 kDa
Source method src_method	man
Copy count entity_count	18

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R
Atom count atom_count	3762
