SAXSdb — 9p07

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

vesicle-fusing ATPase

Schistosoma mansoni

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	(2Z)-N-[2-(3-methylpyridin-2-yl)-1,3-benzoxazol-5-yl]-3-(pyridin-4-yl)prop-2-enamide × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G4M0P7_SCHMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 37–839； UniProt 1–803 Author chain B； PDBConstruct 37–839； UniProt 1–803 Author chain C； PDBConstruct 37–839； UniProt 1–803 Author chain D； PDBConstruct 37–839； UniProt 1–803 Author chain E； PDBConstruct 37–839； UniProt 1–803 Author chain F； PDBConstruct 37–839； UniProt 1–803

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9p07
Deposition date deposition_date	2025-06-06
Structure title title	Cryo-EM structure of S. Mansoni p97 bound to compound 804
Keywords keywords	AAA-ATPase, Endoplasmic Reticulum, Hexamer, Inhibitor, CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9p07__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

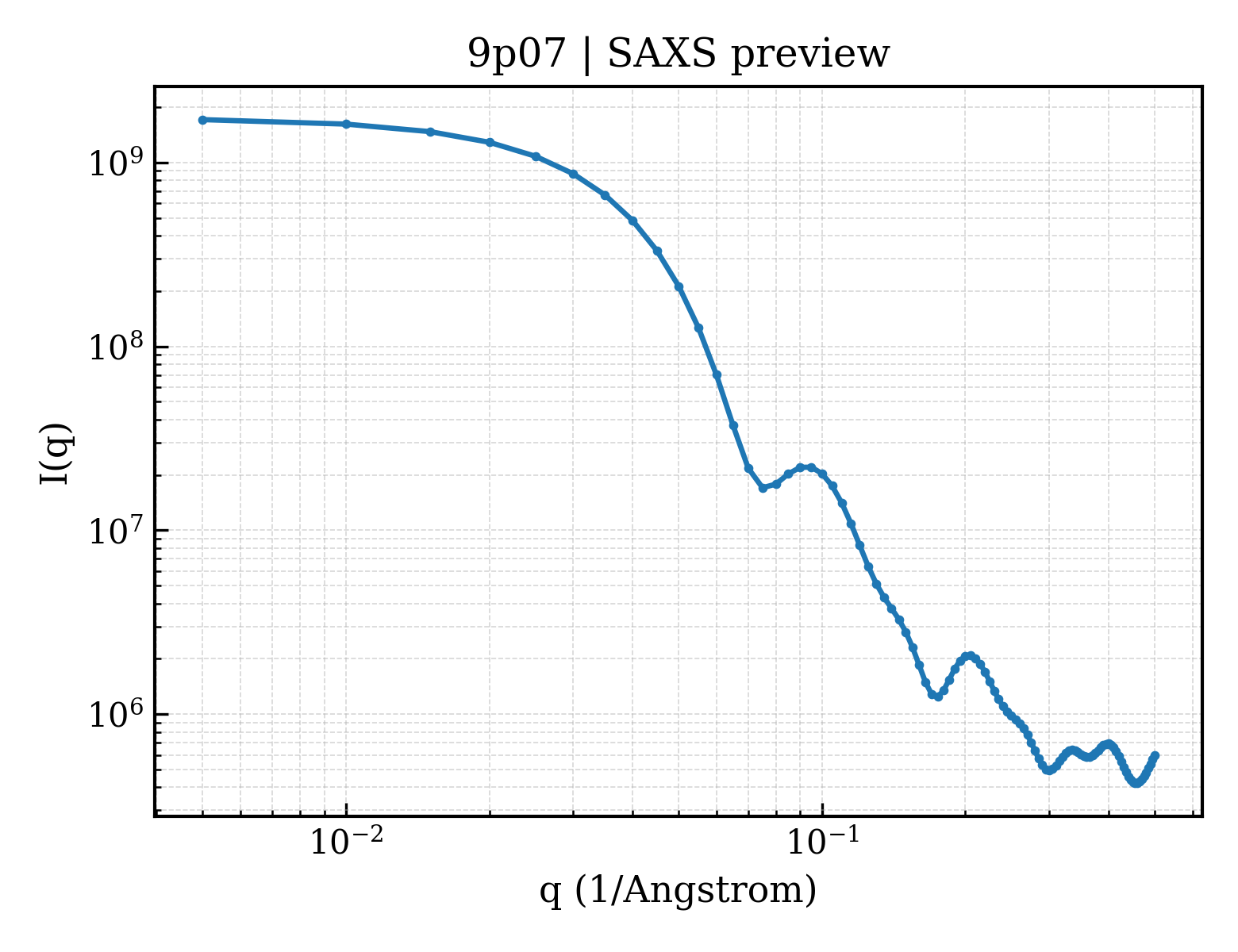

9p07__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

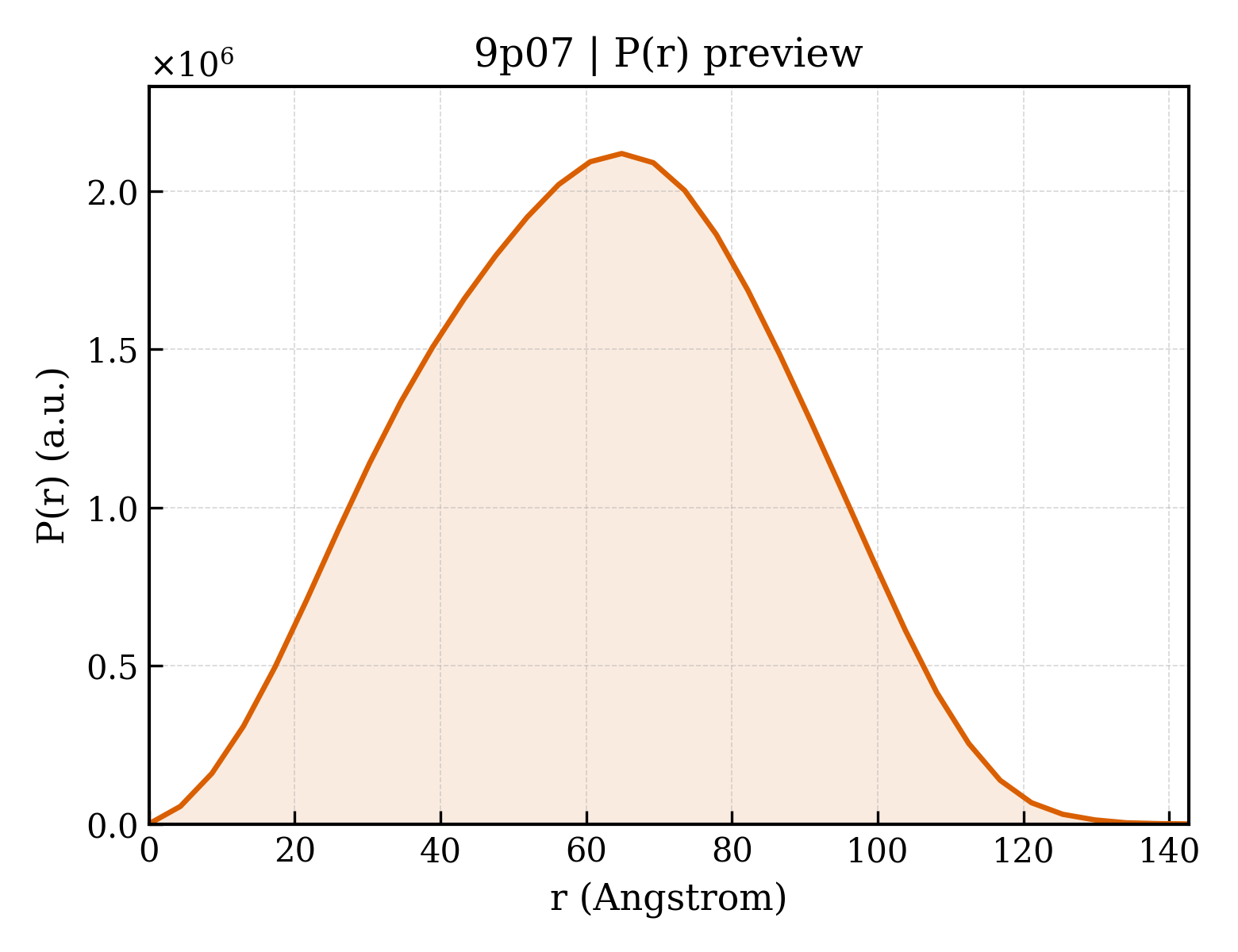

9p07__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.54 Å
Rg (electron density)	46.53 Å
Total Rg	46.90 Å
Atom count	49616
Residues	3127
Excluded volume	438920 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9p07__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	vesicle-fusing ATPase
Molecular weight formula_weight	92755.6 kDa
EC 编号 ec_number	3.6.4.6
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,D,F,B,E
Atom count atom_count	49624

MGSSHHHHHHSSGLVPRGSHMASMTGGQQMGRGSEFMCALNANPSNDPSSGEKVKFHRLIVDEPVKDDNSVVYLSQAKMDSMNLFRGDTVLVKGKKRKETVCVAIVDESCPDDKIRLNRCIRSNLRVKPGDIISIKSLPDILYGKRIHVLPIDDTIVGLTGNLYEAFLKPYFLAAYRPVHKGDIFIVRGGMRAVEFKVIETDPSPYCIVSPDTTIHTEGDPVKREDEEEKLNEIGYDDIGGCRKQLAQIKEMVELPLRHPQLFKAIGVKPPRGILLYGPPGTGKTLVARAVANESGSFFFLINGPEIMSKLAGESESNLRKAFEEAEKNAPAIIFIDELDAIAPKREKTHGEVERRIVSQLLTLMDGLKQRSHVIVMAATNRPNSVDPALRRFGRFDREIEIGIPDSIGRLEILRIHTRNIRLAEDVELEKIANEAHGHVGADLASLCSEAALQQIRNKMNLIDLEDDTIDAEVLNSLAVTMDDFRWALGKSNPSALRETTVEVPNVTWDDIGGLENVKRELQELVQYPVEHPDKFLKFGMTPSKGVLFYGPPGCGKTLLAKAIANECQANFISIKGPELLTMWFGESEANVRDIFDKARQAAPCVLFFDELDSIAKARGGSVGDAGGAADRVINQLLTEMDGMSAKKNVFIIGATNRPDIIDGAILRPGRLDQLIYIPLPDEASRVNILKANLRKSPIARDVDINFLAKATQGFSGADLTEICQRACKQAIRESIEAEIRAESEKKNKPNAMEDDFDPVPEITRRHFEEAMRFARRSVTENDVRKYEMFAQTLQQSRGIGNNFRFPGSDGSGIPTSTGGQGGGGSVYGSQNDAEDLYN

Source Source

Source organism organism	Schistosoma mansoni
NCBI taxonomy ID ncbi_taxonomy_id	6183
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	(2Z)-N-[2-(3-methylpyridin-2-yl)-1,3-benzoxazol-5-yl]-3-(pyridin-4-yl)prop-2-enamide
Molecular weight formula_weight	356.4 kDa
Source method src_method	syn
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.760 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.76 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	823143
