1. Protein Identity and Related Structures Protein Identity & Related Structures

Small-conductance mechanosensitive channel

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 7	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A376NUJ4_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–265； UniProt 17–281 Author chain B； PDBConstruct 1–265； UniProt 17–281 Author chain C； PDBConstruct 1–265； UniProt 17–281 Author chain D； PDBConstruct 1–265； UniProt 17–281 Author chain E； PDBConstruct 1–265； UniProt 17–281 Author chain F； PDBConstruct 1–265； UniProt 17–281 Author chain G； PDBConstruct 1–265； UniProt 17–281

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9p0o
Deposition date deposition_date	2025-06-07
Structure title title	MscS in Glyco-DIBMA Native Nanodiscs (C1 symmetry)
Keywords keywords	mechanosensitive channel, membrane protein, native nanodisc, polymer, Glyco-DIBMA, cryo-EM, lipid; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9p0o__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

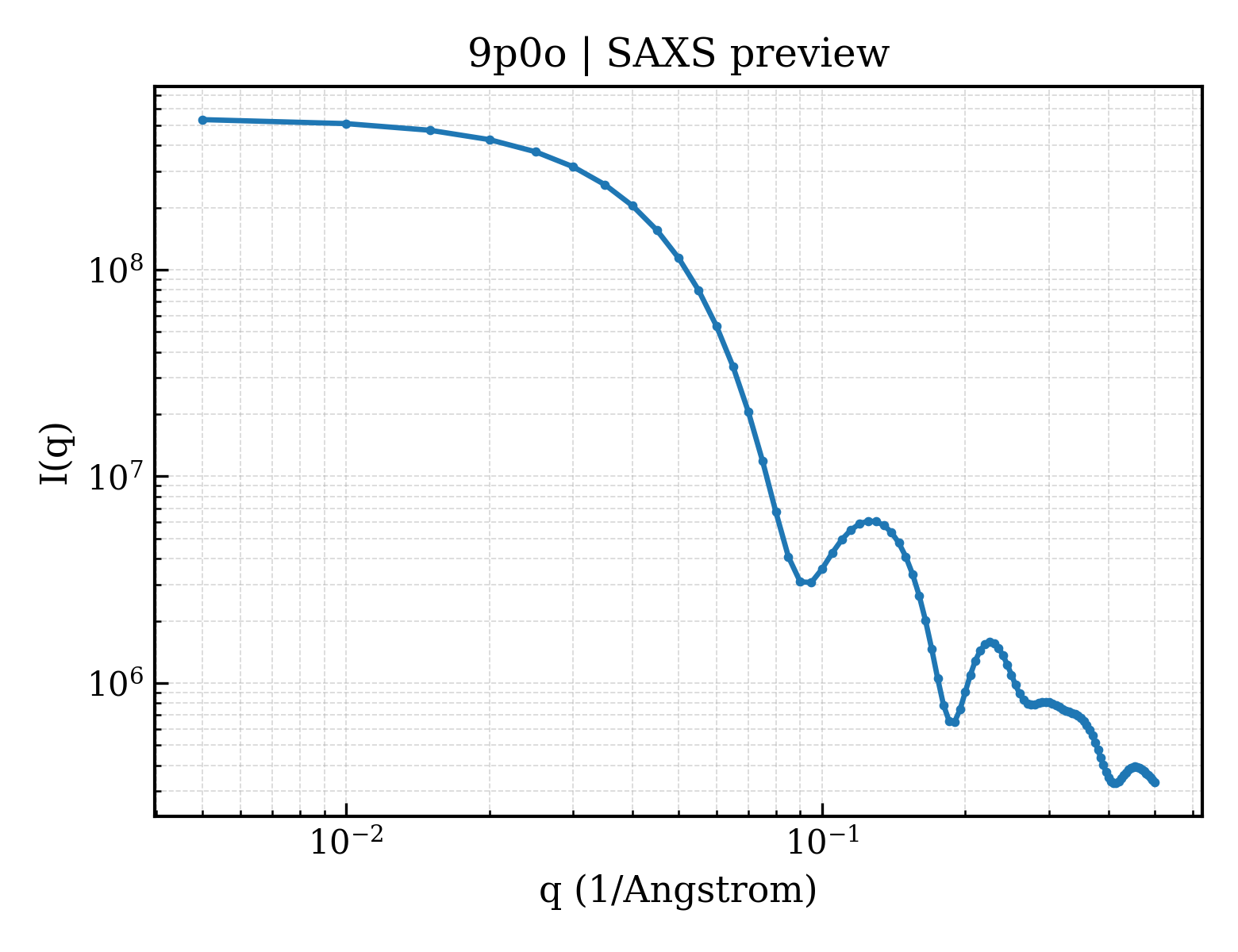

9p0o__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9p0o__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.17 Å
Rg (electron density)	41.64 Å
Total Rg	42.04 Å
Atom count	14014
Residues	1855
Excluded volume	253730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9p0o__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.340 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.34 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	368753

Description description	Small-conductance mechanosensitive channel
Molecular weight formula_weight	28718.6 kDa
Source method src_method	man
Copy count entity_count	7

MscS in Glyco-DIBMA Native Nanodiscs (C1 symmetry)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Small-conductance mechanosensitive channel

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

9p0o__assembly_1__model_1

9p0o__assembly_1__model_1 | I(q)

9p0o__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G
Atom count atom_count	14014

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli
