9p2r

Extended, CYR715-bound state of Manduca sexta soluble guanylate cyclase mutant beta C122S

Method: ELECTRON MICROSCOPY D_max: 152.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

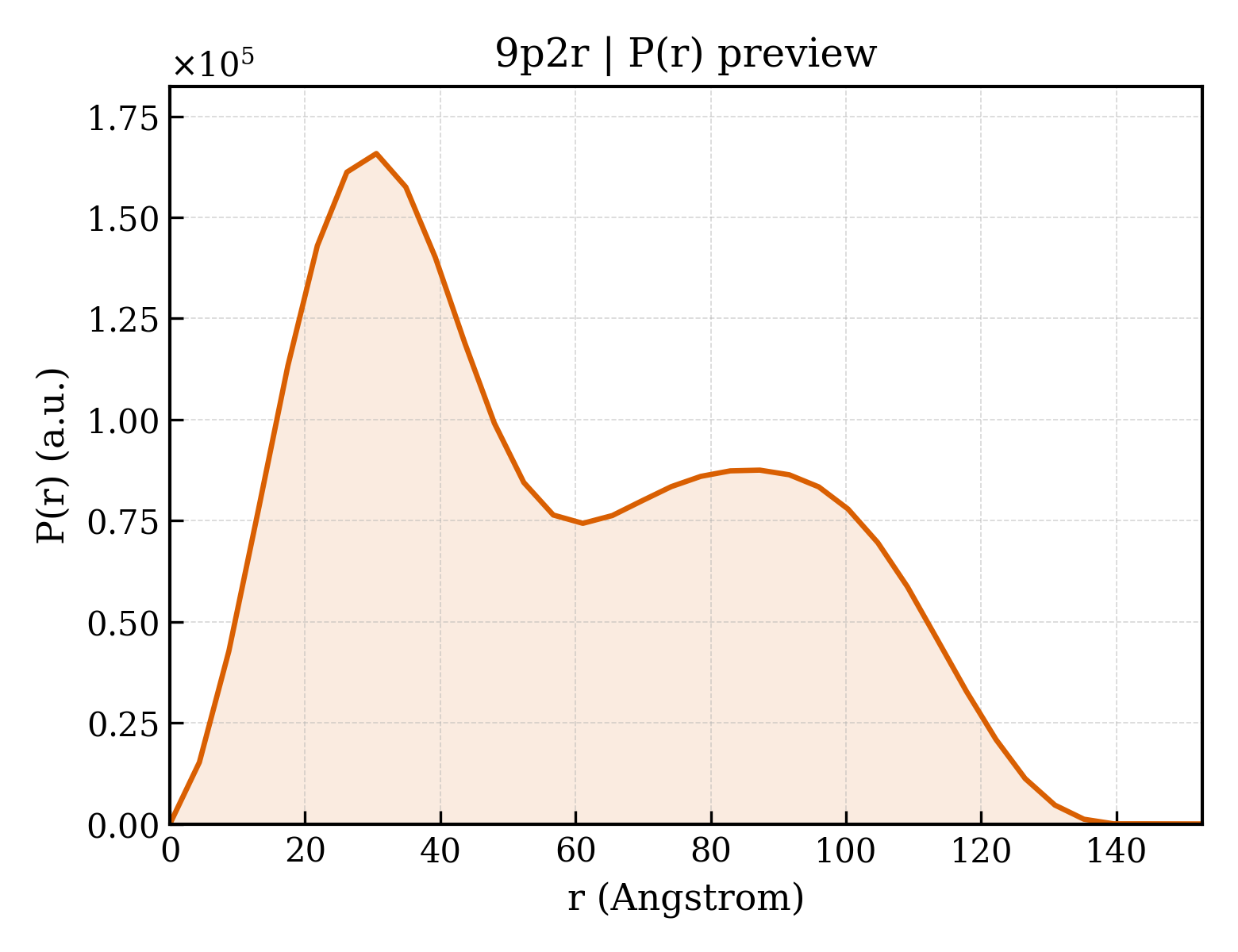

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9p2r
沉积日期 deposition_date	2025-06-12
结构标题 title	Extended, CYR715-bound state of Manduca sexta soluble guanylate cyclase mutant beta C122S
关键词 keywords	Cyclase, NO, SIGNALING PROTEIN; SIGNALING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.26 Å
回转半径 Rg (电子) rg_electron	45.55 Å
零角强度 I(0) i0	135009000.00
分子量 molecular_weight	97449.0 kDa
排除体积 excluded_volume	122520 Å³
包络体积 envelope_volume	176140 Å³
水化壳体积 shell_volume	33711 Å³
包络直径 envelope_diameter	145.1 Å
壳层 Rg shell_rg	46.56 Å
包络 Rg envelope_rg	44.89 Å
形状 Rg shape_rg	45.39 Å
总 Rg total_rg	46.14 Å
总原子数 total_atoms	13543
残基数 n_residues	877
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	152.7 Å
Rg (实空间) rg_real	45.84 Å
Rg 误差 (实空间) rg_real_error	2.14 Å
I(0) (实空间) i0_real	1.3500e+08
I(0) 误差 (实空间) i0_real_error	2.8850e+06
Rg (倒空间) rg_reciprocal	45.27 Å
I(0) (倒空间) i0_reciprocal	134900000.0000
解质量估计 total_estimate	0.6662
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.5 Å
偏度 Skewness skewness	0.372
峰度 Kurtosis kurtosis	-1.031
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	25270000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.205; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.167; Smooth: 0.874

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Soluble guanylyl cyclase alpha-1 subunit
分子量 formula_weight	78598.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	13543

MTCPFRRASSQHQFANGGSSAPKKPEFRSRTSSVHLTGPEEEDGERNTLTLKHMSEALQLLTAPSNECLHAAVTSLTKNQSDHYHKYNCLRRLPDDVKTCRNYAYLQEIYDAVRATDSVNTKDFMAKLGEYLILTAFSHNCRLERAFKCLGTNLTEFLTTLDSVHDVLHDQDTPLKDETMEYEANFVCTTSQEGKIQLHLTTESEPVAYLLVGSLKAIAKRLYDTQTDIRLRSYTNDPRRFRYEINAVPLHQKSKEDSCELVNEAASVATSTKVTDLKIGVASFCKAFPWHFITDKRLELVQLGAGFMRLFGTHLATHGSSLGTYFRLLRPRGVPLDFREILKRVNTPFMFCLKMPGSTALAEGLEIKGQMVFCAESDSLLFVGSPFLDGLEGLTGRGLFISDIPLHDATRDVILVGEQARAQDGLRRRMDKLKNSIEEASKAVDKEREKNVSLLHLIFPPHIAKRLWLGEKIEAKSHDDVTMLFSDIVGFTSICATATPMMVIAMLEDLYSVFDIFCEELDVYKVETIGDAYCVASGLHRKVETHAPQIAWMALRMVETCAQHLTHEGNPIKMRIGLHTGTVLAGVVGKTMLKYCLFGHNVTLANKFESGSEPLKINVSPTTYEWLIKFPGFDMEPRDRSCLPNSFPKDIHGTCYFLHKYTHPGTDPGEPQVKHIREALKDYGIGQANSTDVDTEEPT

来源 Source

来源生物 organism	Manduca sexta
通用名 common_name	tobacco hornworm
NCBI 分类编号 ncbi_taxonomy_id	7130
宿主生物 host_organism	Spodoptera aff. frugiperda 2 RZ-2014

Entity 2 polymer

描述 description	Guanylate cyclase soluble subunit beta-1
分子量 formula_weight	68165.9 kDa
EC 编号 ec_number	4.6.1.2
突变 mutation	C122S
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MYGFVNYALELLVMKTFDEETWETIKKKADVAMEGSFLVRQIYEDEITYNLITAAVEVLQIPADAILELFGKTFFEFCQDSGYDKILQVLGATPRDFLQNLDGLHDHLGTLYPGMRSPSFRSTERPEDGALVLHYYSDRPGLEHIVIGIVKTVASKLHNTEVKVEILKTKEECDHVQFLITETSTTGRVSAPEIAEIETLSLEPKVSPATFCRVFPFHLMFDRDLNIVQAGRTVSRLLPRVTRPGCKITDVLDTVRPHLEMTFANVLAHINTVYVLKTKPEEMSVTDPHEEIASLRLKGQMLYIPETDVVVFQCYPSVTNLDDLTRRGLCIADIPLHDATRDLVLMSEQFEADYKLTQNLEVLTDKLQQTFRELELEKQKTDRLLYSVLPISVATELRHRRPVPARRYDTVTLLFSGIVGFANYCARNSDHKGAMKIVRMLNDLYTAFDVLTDPKRNPNVYKVETVGDKYMAVSGLPEYEVAHAKHISLLALDMMDLSQTVTVDGEPVGITIGIHSGEVVTGVIGHRMPRYCLFGNTVNLTSRCETTGVPGTINVSEDTYNYLMREDNHDEQFELTYRGHVTMKGKAEPMQTWFLTRKIH

来源 Source

来源生物 organism	Manduca sexta
通用名 common_name	tobacco hornworm
NCBI 分类编号 ncbi_taxonomy_id	7130
宿主生物 host_organism	Spodoptera aff. frugiperda 2 RZ-2014

Entity 3 non-polymer

描述 description	PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER
分子量 formula_weight	521.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	;(2S,3R)-1-{5-fluoro-2-[(5P)-1-[(2-fluorophenyl)methyl]-5-(1,2-oxazol-3-yl)-1H-pyrazol-3-yl]pyrimidin-4-yl}-3-methylpiperidine-2-carboxylic acid ;
分子量 formula_weight	480.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	598571

fit	/app/data/saxs_computation/p2/9p2r/9p2r.fit
pddf	/app/data/pr_computation/p2/9p2r/9p2r.pr.out
profile	/app/data/saxs_computation/p2/9p2r/9p2r.dat
