SAXSdb — 9p3l

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9p3l
沉积日期 deposition_date	2025-06-14
结构标题 title	Structure of ANDV dimer of tetramer at conformation III
关键词 keywords	ANDV, hantavirus glycoprotein, dimer of tetramer, Gn and Gc, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	83.88 Å
回转半径 Rg (电子) rg_electron	84.14 Å
零角强度 I(0) i0	10859600000.00
分子量 molecular_weight	891260.0 kDa
排除体积 excluded_volume	1116900 Å³
包络体积 envelope_volume	1925300 Å³
水化壳体积 shell_volume	194360 Å³
包络直径 envelope_diameter	292.5 Å
壳层 Rg shell_rg	79.01 Å
包络 Rg envelope_rg	80.69 Å
形状 Rg shape_rg	84.14 Å
总 Rg total_rg	84.06 Å
总原子数 total_atoms	62312
残基数 n_residues	7928
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	228.7 Å
Rg (实空间) rg_real	80.71 Å
Rg 误差 (实空间) rg_real_error	0.88 Å
I(0) (实空间) i0_real	1.0510e+10
I(0) 误差 (实空间) i0_real_error	1.9730e+08
Rg (倒空间) rg_reciprocal	81.98 Å
I(0) (倒空间) i0_reciprocal	10800000000.0000
解质量估计 total_estimate	0.8993
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	84.2 Å
偏度 Skewness skewness	0.393
峰度 Kurtosis kurtosis	-0.546
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.3186
最高正则化参数 α highest_alpha	915900000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 0.981; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.023

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Glycoprotein N
分子量 formula_weight	72162.6 kDa
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K,M,O
原子数 atom_count	62312

MEGWYLVVLGVCYTLTLAMPKTIYELKMECPHTVGLGQGYIIGSTELGLISIEAASDIKLESSCNFDLHTTSMAQKSFTQVEWRKKSDTTDTTNAASTTFEAQTKTVNLRGTCILAPELYDTLKKVKKTVLCYDLTCNQTHCQPTVYLIAPVLTCMSIRSCMASVFTSRIQVIYEKTHCVTGQLIEGQCFNPAHTLTLSQPAHTYDTVTLPISCFFTPKKSEQLKVIKTFEGILTKTGCTENALQGYYVCFLGSHSEPLIVPSLEDIRSAEVVSRMLVHPRGEDHDAIQNSQSHLRIVGPITAKVPSTSSTDTLKGTAFAGVPMYSSLSTLVRNADPEFVFSPGIVPESNHSTCDKKTVPITWTGYLPISGEMEKVTGCTVFCTLAGPGASCEAYSENGIFNISSPTCLVNKVQRFRGSEQKINFICQRVDQDVVVYCNGQKKVILTKTLVIGQCIYTFTSLFSLMPDVAHSLAVELCVPGLHGWATVMLLSTFCFGWVLIPAVTLIILKCLRVLTFSCSHYTNESKFKFILEKVKIEYQKTMGSMVCDVCHHECETAKELESHRQSCINGQCPYCMTITEATESALQAHYSICKLTGRFQEALKKSLKKPEVKKGCYRTLGVFRYKSRCYVGLVWCLLLTCEIVIWAASA

来源 Source

来源生物 organism	Orthohantavirus andesense
NCBI 分类编号 ncbi_taxonomy_id	1980456
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Glycoprotein C
分子量 formula_weight	58843.7 kDa
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,J,L,N,P

ETPLMESGWSDTAHGVGEIPMKTDLELDFSLPSSSSYSYRRKLTNPANKEESIPFHFQMEKQVIHAEIQPLGHWMDATFNIKTAFHCYGACQKYSYPWQTSKCFFEKDYQYETGWGCNPGDCPGVGTGCTACGVYLDKLKSVGKAYKIISLKYTRKVCIQLGTEQTCKHIDANDCLVTPSVKVCIVGTVSKLQPSDTLLFLGPLEQGGIILKQWCTTSCAFGDPGDIMSTPSGMRCPEHTGSFRKICGFATTPVCEYQGNTISGYKRMMATKDSFQSFNLTEPHITTNKLEWIDPDGNTRDHVNLVLNRDVSFQDLSDNPCKVDLHTQAIEGAWGSGVGFTLTCTVGLTECPSFMTSIKACDLAMCYGSTVTNLARGSNTVKVVGKGGHSGSSFKCCHDTDCSSEGLLASAPHLERVTGFNQIDSDKVYDDGAPPCTFKCWFTKLGEWLLGILNGNWIVVVVLVVILILSIIMFSVLCPRRGHKKTVGSLEVLFQGPGHHHHHHHHSAWSHPQFEKGGGSGGGGSGGSAWSHPQFEK

来源 Source

来源生物 organism	Orthohantavirus andesense
NCBI 分类编号 ncbi_taxonomy_id	1980456
宿主生物 host_organism	Homo sapiens

Entity 3 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	8

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	8

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	8

Entity 6 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	8

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.37 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	73185

fit	/app/data/saxs_computation/p3/9p3l/9p3l.fit
pddf	/app/data/pr_computation/p3/9p3l/9p3l.pr.out
profile	/app/data/saxs_computation/p3/9p3l/9p3l.dat

Structure of ANDV dimer of tetramer at conformation III

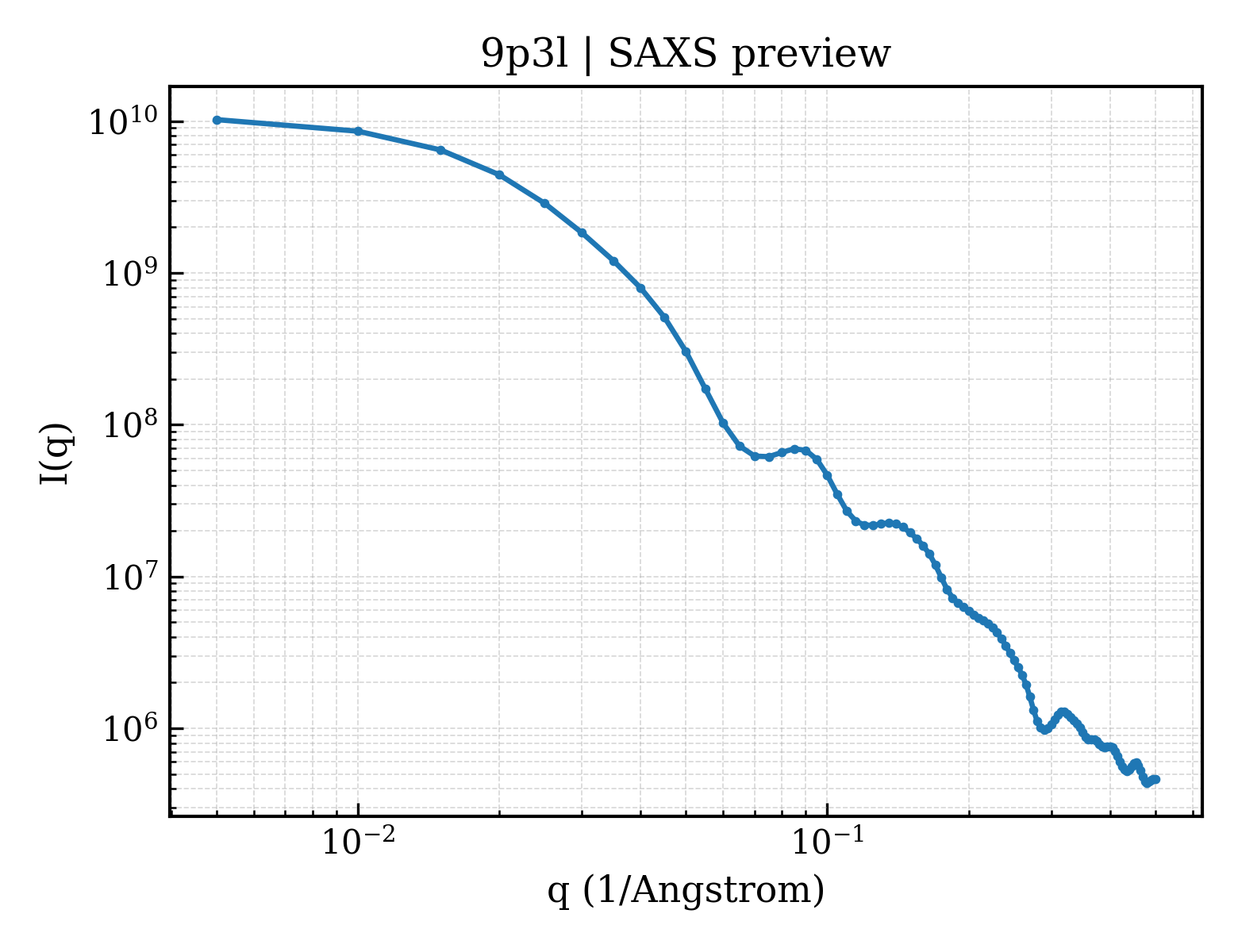

SAXS 散射曲线 SAXS Profile

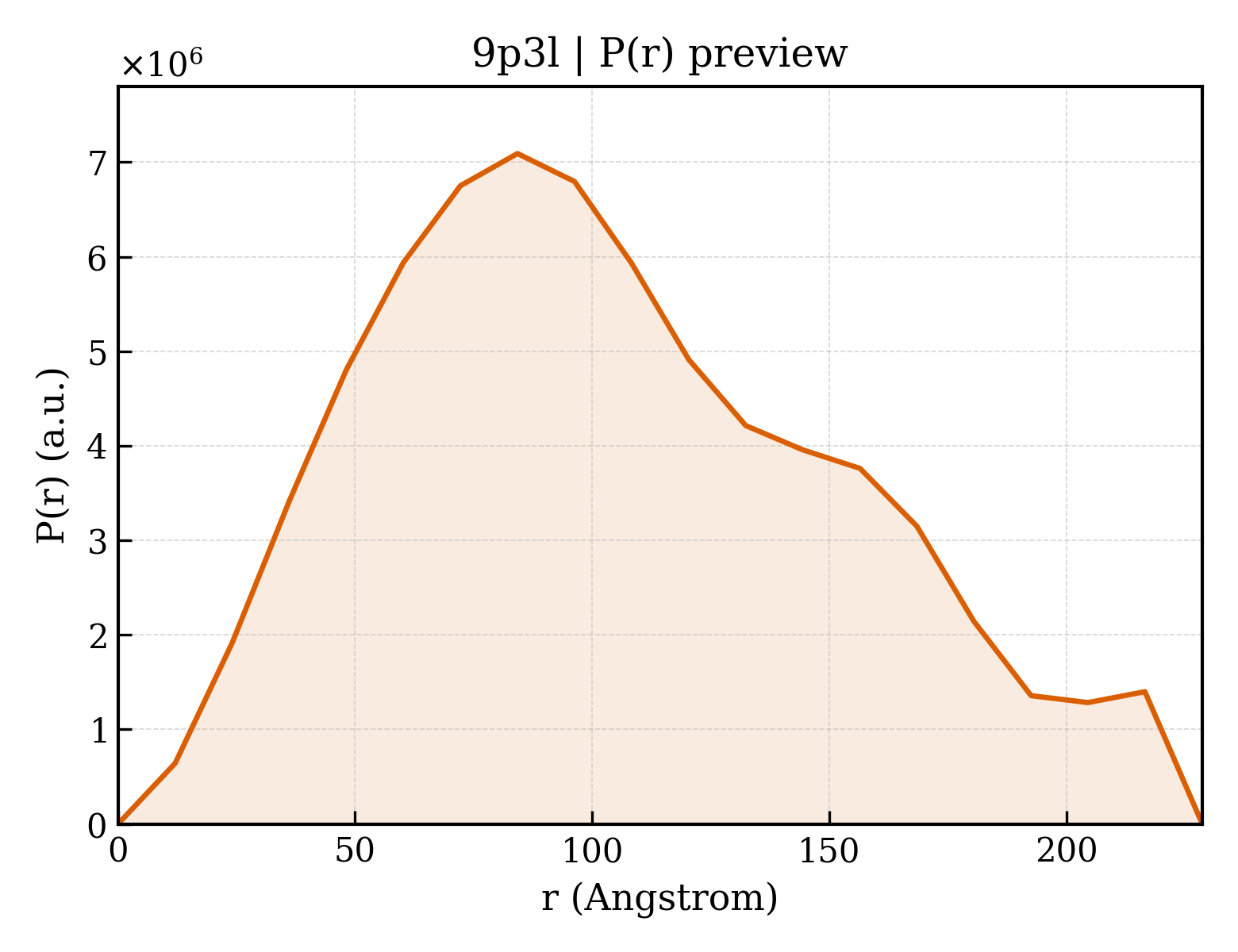

P(r) 距离分布 P(r) Distribution
