8dbz

CryoEM structure of Hantavirus ANDV Gn(H) protein complex with 2Fabs ANDV-5 and ANDV-34

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycoprotein N

Andes orthohantavirus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Fv (H) ANDV-34 × 1 Fv (L) ANDV-34 × 1 Fv (H) ANDV-5 × 1 Fv (L) ANDV-5 × 1 COV44-79 heavy chain constant domain × 2 （P0DOX5） Fab Fc (L) KappaC × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GP_ANDV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–353； UniProt 22–374

COV44-79 heavy chain constant domain

Homo sapiens

UniProt P0DOX5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Glycoprotein N × 1 （Q9E006） Fv (H) ANDV-34 × 1 Fv (L) ANDV-34 × 1 Fv (H) ANDV-5 × 1 Fv (L) ANDV-5 × 1 Fab Fc (L) KappaC × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IGG1_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–103； UniProt 120–222 Author chain H； PDBConstruct 1–103； UniProt 120–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8dbz
Deposition date deposition_date	2022-06-15
Structure title title	CryoEM structure of Hantavirus ANDV Gn(H) protein complex with 2Fabs ANDV-5 and ANDV-34
Keywords keywords	Fab, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8dbz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8dbz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

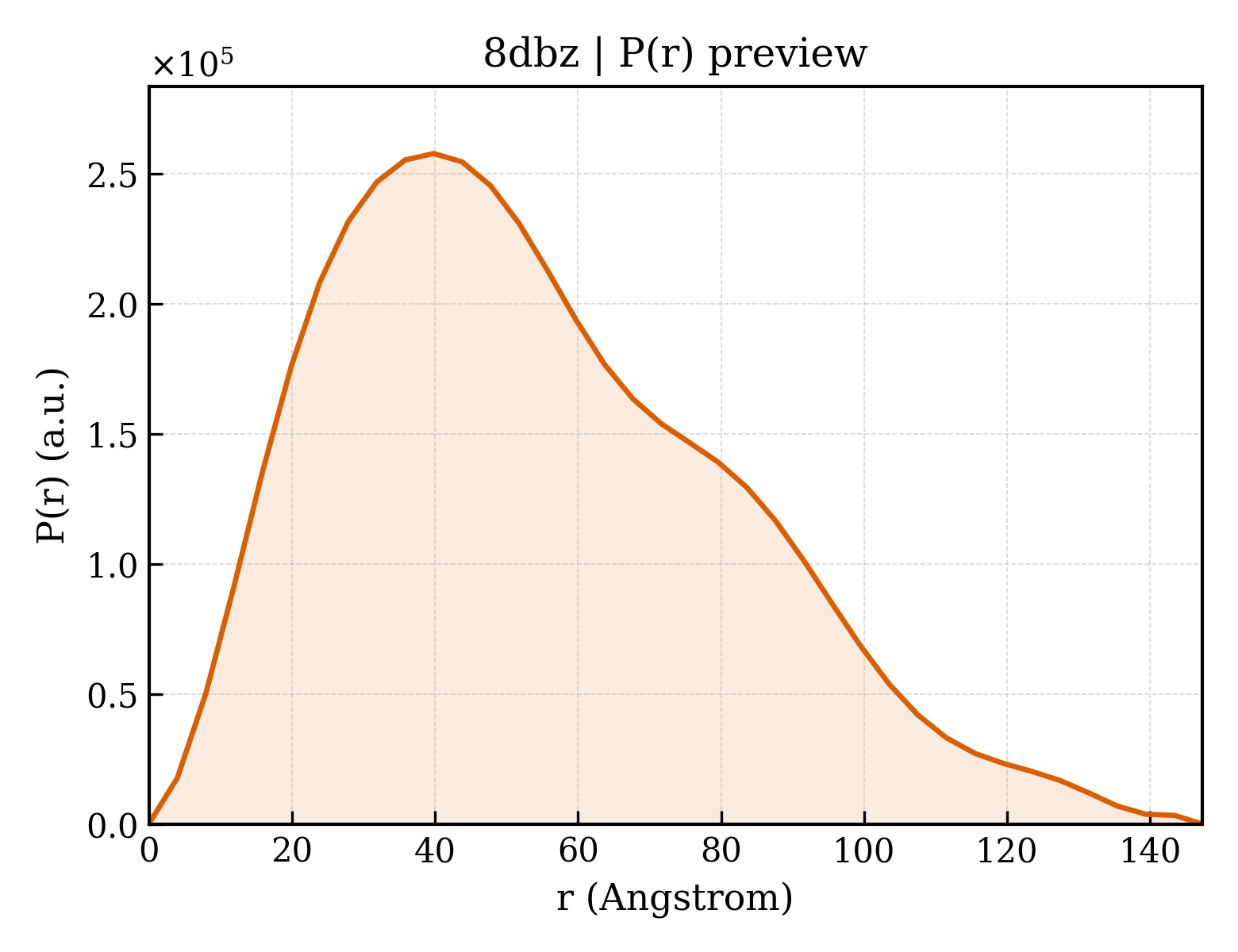

8dbz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.20 Å
Rg (electron density)	41.13 Å
Total Rg	40.69 Å
Atom count	7960
Residues	1184
Excluded volume	138020 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8dbz__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Glycoprotein N
Molecular weight formula_weight	38767.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7960

TIYELKMECPHTVGLGQGYIIGSTELGLISIEAASDIKLESSCNFDLHTTSMAQKSFTQVEWRKKSDTTDTTNAASTTFEAQTKTVNLRGTCILAPELYDTLKKVKKTVLCYDLTCNQTHCQPTVYLIAPVLTCMSIRSCMASVFTSRIQVIYEKTHCVTGQLIEGQCFNPAHTLTLSQPAHTYDTVTLPISCFFTPKKSEQLKVIKTFEGILTKTGCTENALQGYYVCFLGSHSEPLIVPSLEDIRSAEVVSRMLVHPRGEDHDAIQNSQSHLRIVGPITAKVPSTSSTDTLKGTAFAGVPMYSSLSTLVRNADPEFVFSPGIVPESNHSTCDKKTVPITWTGYLPISGEME

Source Source

Source organism organism	Andes orthohantavirus
NCBI taxonomy ID ncbi_taxonomy_id	1980456
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Fv (H) ANDV-34
Molecular weight formula_weight	13609.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

QVHLVQSGGELRKPGSSVKVSCKASGGTFSSFAITWLRQAPGQGLEWVGAYIPVFGSAIHGQKVHGRVTLTADESTTTAYMELSSLRSEDTAVYFCARGPTQNWEYSYYTYFESWGQGTLVTVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Fv (L) ANDV-34
Molecular weight formula_weight	11912.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

QIVLTQSPGTLSLSPGERATLSCRASQSVTSRYLAWYQQKPGQAPRLLIYDTSSRATGIPDRFSGSGSETDFTLTISRLAPEDFAVYYCQQYGTSPAVTFGQGTRLEIK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Fv (H) ANDV-5
Molecular weight formula_weight	14013.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLLQSGAEVKKPGSSVRVSCQSSGDIYNYYGISWVRQAPGQGLEWMGGIIPVYGRPNYVQKFRGRVTFTVDKSTSTAYMELSTLRADDTAVYYCARDTARSHYFGSGNDYGMDVWGQGTTVIVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Fv (L) ANDV-5
Molecular weight formula_weight	12187.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DIVMTQSPLSLPVTPGEPASISCRSSQSLLHSNGFNFVDWYLQKPGQSPQLLIYLGSTRASGVPDRFSGSGSGTDFTLEISRVEAEDVGVYYCMQALQFPRTFGQGTKLDIK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	COV44-79 heavy chain constant domain
Molecular weight formula_weight	10585.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,H

ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	Fab Fc (L) KappaC
Molecular weight formula_weight	11848.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,I

RTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLRSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	208851
