9p97

CryoEM structure of the closed integrin alphaEbeta7 bound to fab LF61

Method: ELECTRON MICROSCOPY D_max: 159.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

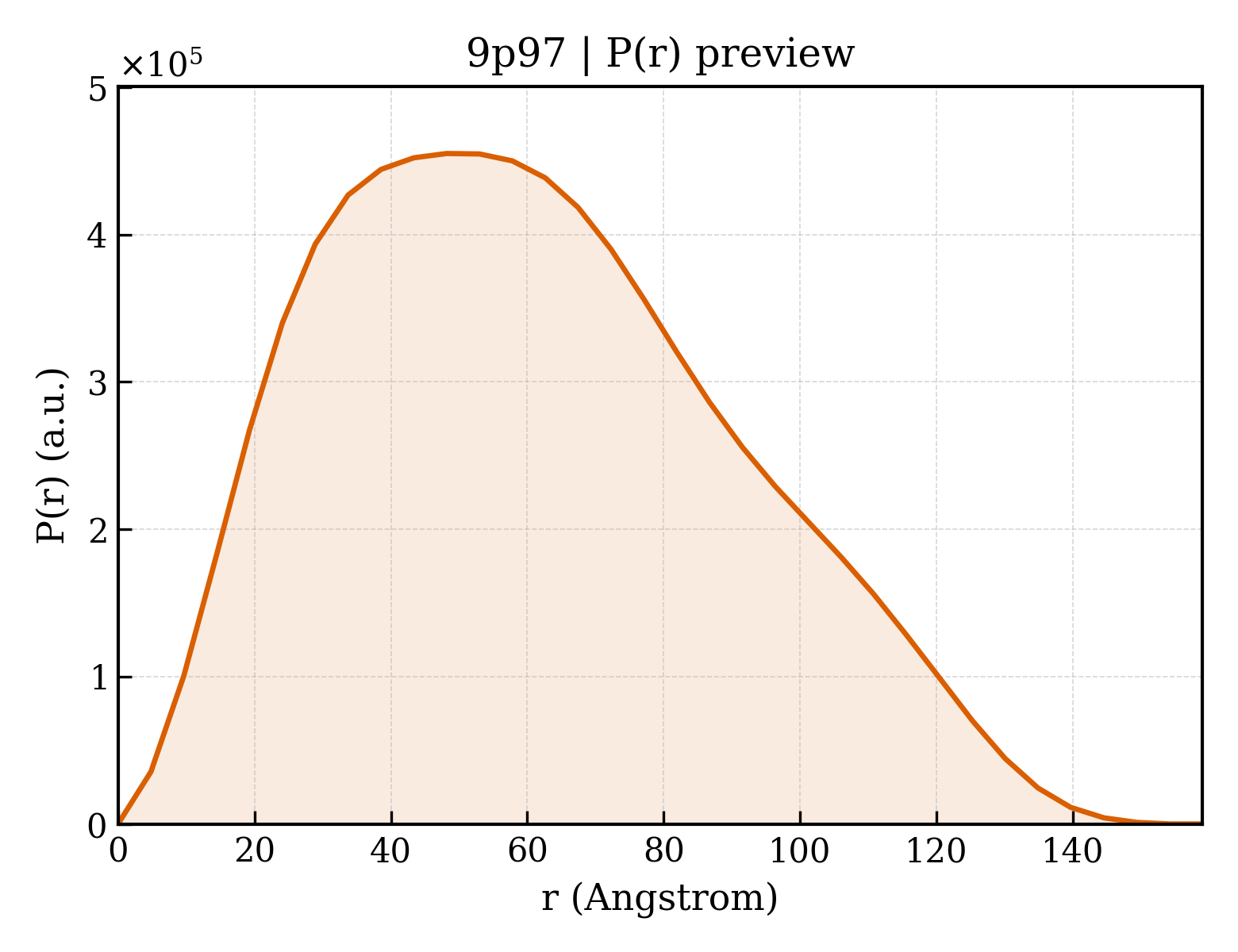

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9p97
沉积日期 deposition_date	2025-06-24
最后修订 last_revision	2025-09-24
结构标题 title	CryoEM structure of the closed integrin alphaEbeta7 bound to fab LF61
关键词 keywords	aEb7, gut adhesion, tissue residence, membrane receptor, CELL ADHESION; CELL ADHESION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.45 Å
回转半径 Rg (电子) rg_electron	47.57 Å
零角强度 I(0) i0	461503000.00
分子量 molecular_weight	174210.0 kDa
排除体积 excluded_volume	216940 Å³
包络体积 envelope_volume	317200 Å³
水化壳体积 shell_volume	58527 Å³
包络直径 envelope_diameter	160.1 Å
壳层 Rg shell_rg	48.02 Å
包络 Rg envelope_rg	47.27 Å
形状 Rg shape_rg	47.53 Å
总 Rg total_rg	47.74 Å
总原子数 total_atoms	24231
残基数 n_residues	1570
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	159.0 Å
Rg (实空间) rg_real	47.70 Å
Rg 误差 (实空间) rg_real_error	1.56 Å
I(0) (实空间) i0_real	4.6150e+08
I(0) 误差 (实空间) i0_real_error	8.1600e+06
Rg (倒空间) rg_reciprocal	47.46 Å
I(0) (倒空间) i0_reciprocal	461400000.0000
解质量估计 total_estimate	0.8158
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	48.2 Å
偏度 Skewness skewness	0.359
峰度 Kurtosis kurtosis	-0.585
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	41310000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.931; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Integrin alpha-E
分子量 formula_weight	129950.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	24231

MWLFHTLLCIASLALLAAFNVDVARPWLTPKGGAPFVLSSLLHQDPSTNQTWLLVTSPRTKRTPGPLHRCSLVQDEILCHPVEHVPIPKGRHRGVTVVRSHHGVLICIQVLVRRPHSLSSELTGTCSLLGPDLRPQAQANFFDLENLLDPDARVDTGDCYSNKEGGGEDDVNTARQRRALEKEEEEDKEEEEDEEEEEAGTEIAIILDGSGSIDPPDFQRAKDFISNMMRNFYEKCFECNFALVQYGGVIQTEFDLRDSQDVMASLARVQNITQVGSVTKTASAMQHVLDSIFTSSHGSRRKASKVMVVLTDGGIFEDPLNLTTVINSPKMQGVERFAIGVGEEFKSARTARELNLIASDPDETHAFKVTNYMALDGLLSKLRYNIISMEGTVGDALHYQLAQIGFSAQILDERQVLLGAVGAFDWSGGALLYDTRSRRGRFLNQTAAAAADAEAAQYSYLGYAVAVLHKTCSLSYIAGAPRYKHHGAVFELQKEGREASFLPVLEGEQMGSYFGSELCPVDIDMDGSTDFLLVAAPFYHVHGEEGRVYVYRLSEQDGSFSLARILSGHPGFTNARFGFAMAAMGDLSQDKLTDVAIGAPLEGFGADDGASFGSVYIYNGHWDGLSASPSQRIRASTVAPGLQYFGMSMAGGFDISGDGLADITVGTLGQAVVFRSRPVVRLKVSMAFTPSALPIGFNGVVNVRLCFEISSVTTASESGLREALLNFTLDVDVGKQRRRLQCSDVRSCLGCLREWSSGSQLCEDLLLMPTEGELCEEDCFSNASVKVSYQLQTPEGQTDHPQPILDRYTEPFAIFQLPYEKACKNKLFCVAELQLATTVSQQELVVGLTKELTLNINLTNSGEDSYMTSMALNYPRNLQLKRMQKPPSPNIQCDDPQPVASVLIMNCRIGHPVLKRSSAHVSVVWQLEENAFPNRTADITVTVTNSNERRSLANETHTLQFRHGFVAVLSKPSIMYVNTGQGLSHHKEFLFHVHGENLFGAEYQLQICVPTKLRGLQVVAVKKLTRTQASTVCTWSQERACAYSSVQHVEEWHSVSCVIASDKENVTVAAEISWDHSEELLKDVTELQILGEISFNKSLYEGLNAENHRTKITVVFLKDEKYHGTGGLEVLFQGPGENAQCEKELQALEKENAQLEWELQALEKELAQWSHPQFEK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 polymer

描述 description	Integrin beta-7
分子量 formula_weight	84538.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MVALPMVLVLLLVLSRGESELDAKIPSTGDATEWRNPHLSMLGSCQPAPSCQKCILSHPSCAWCKQLNFTASGEAEARRCARREELLARGCPLEELEEPRGQQEVLQDQPLSQGARGEGATQLAPQRVRVTLRPGEPQQLQVRFLRAEGYPVDLYYLMDLSYSMKDDLERVRQLGHALLVRLQEVTHSVRIGFGSFVDKTVLPFVSTVPSKLRHPCPTRLERCQSPFSFHHVLSLTGDAQAFEREVGRQSVSGNLDSPEGGFDAILQAALCQEQIGWRNVSRLLVFTSDDTFHTAGDGKLGGIFMPSDGHCHLDSNGLYSRSTEFDYPSVGQVAQALSAANIQPIFAVTSAALPVYQELSKLIPKSAVGELSEDSSNVVQLIMDAYNSLSSTVTLEHSSLPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRALGFSEELIVELHTLCDCNCSDTQPQAPHCSDGQGHLQCGVCSCAPGRLGRLCECSVAELSSPDLESGCRAPNGTGPLCSGKGHCQCGRCSCSGQSSGHLCECDDASCERHEGILCGGFGRCQCGVCHCHANRTGRACECSGDMDSCISPEGGLCSGHGRCKCNRCQCLDGYYGALCDQCPGCKTPCERHRDCAECGAFRTGPLATNCSTACAHTNVTLALAPILDDGWCKERTLDNQLFFFLVEDDARGTVVLRVRPQEKGADHDTSGLEVLFQGPGKNAQCKKKLQALKKKNAQLKWKLQALKKKLAQGGHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 polymer

描述 description	Fab LF61 Heavy Chain
分子量 formula_weight	23634.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MVQLQRAGPTIVKPGSAVKLSCKATGFAYEDYYIFWVRQREGGNGQKWIGRIHPGSGETKYNDKFKGKATLTADTEASSAYMRLTSLTSEDTAVWYCGWERSVGRATFAYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVP

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

Entity 4 polymer

描述 description	Fab LF61 Light Chain
分子量 formula_weight	23439.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

AAITFNLAPESLVVTAGSKVTFSCKASQDFLNSATKRNYLTWYQQRDGKPPKLLIYWASARLSGVPARFTGSGGGGTEFTLTISSVKAADIGTYYCRQLRSRPLTFGGGTKLTVKQPKSSPSVTLFPPSSEELETNKATLVCTITDFYPGVVTVDWKVDGTPVTQGMETTQPSKQSNNKYMASSYLTLTARAWERHSSYSCQVTHEGHTVEKSLS

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 7 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 9 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.920 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.92 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	402099

fit	/app/data/saxs_computation/p9/9p97/9p97.fit
pddf	/app/data/pr_computation/p9/9p97/9p97.pr.out
profile	/app/data/saxs_computation/p9/9p97/9p97.dat
