SAXSdb — 9pcx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vesicle-fusing ATPase

Cricetulus griseus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Syntaxin-1A × 2 （P32851） Synaptosomal-associated protein 25,Synaptosomal-associated protein 25, Alpha-soluble NSF attachment protein chimera × 6 （P60881） ADENOSINE-5'-DIPHOSPHATE × 5 ADENOSINE-5'-TRIPHOSPHATE × 7 PHOSPHATE ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NSF_CRIGR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–747； UniProt 1–744 Author chain B； PDBConstruct 4–747； UniProt 1–744 Author chain C； PDBConstruct 4–747； UniProt 1–744 Author chain D； PDBConstruct 4–747； UniProt 1–744 Author chain E； PDBConstruct 4–747； UniProt 1–744 Author chain F； PDBConstruct 4–747； UniProt 1–744

Syntaxin-1A

Rattus norvegicus

UniProt P32851

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Vesicle-fusing ATPase × 6 （P18708） Synaptosomal-associated protein 25,Synaptosomal-associated protein 25, Alpha-soluble NSF attachment protein chimera × 6 （P60881） ADENOSINE-5'-DIPHOSPHATE × 5 ADENOSINE-5'-TRIPHOSPHATE × 7 PHOSPHATE ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STX1A_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–267； UniProt 1–267 Author chain H； PDBConstruct 1–267； UniProt 1–267

Synaptosomal-associated protein 25,Synaptosomal-associated protein 25, Alpha-soluble NSF attachment protein chimera

Rattus norvegicus

UniProt P60881

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Vesicle-fusing ATPase × 6 （P18708） Syntaxin-1A × 2 （P32851） ADENOSINE-5'-DIPHOSPHATE × 5 ADENOSINE-5'-TRIPHOSPHATE × 7 PHOSPHATE ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SNP25_RAT
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 17–222； UniProt 1–206 Author chain J； PDBConstruct 17–222； UniProt 1–206 Author chain K； PDBConstruct 17–222； UniProt 1–206 Author chain L； PDBConstruct 17–222； UniProt 1–206 Author chain M； PDBConstruct 17–222； UniProt 1–206 Author chain N； PDBConstruct 17–222； UniProt 1–206

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9pcx
Deposition date deposition_date	2025-06-29
Structure title title	22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 14
Keywords keywords	;ATPase, SNARE, hydrolysis, disassembly, translocation, exocytosis, neurotransmitter release, synapse, synaptic transmission, membrane fusion, HYDROLASE ;; HYDROLASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9pcx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

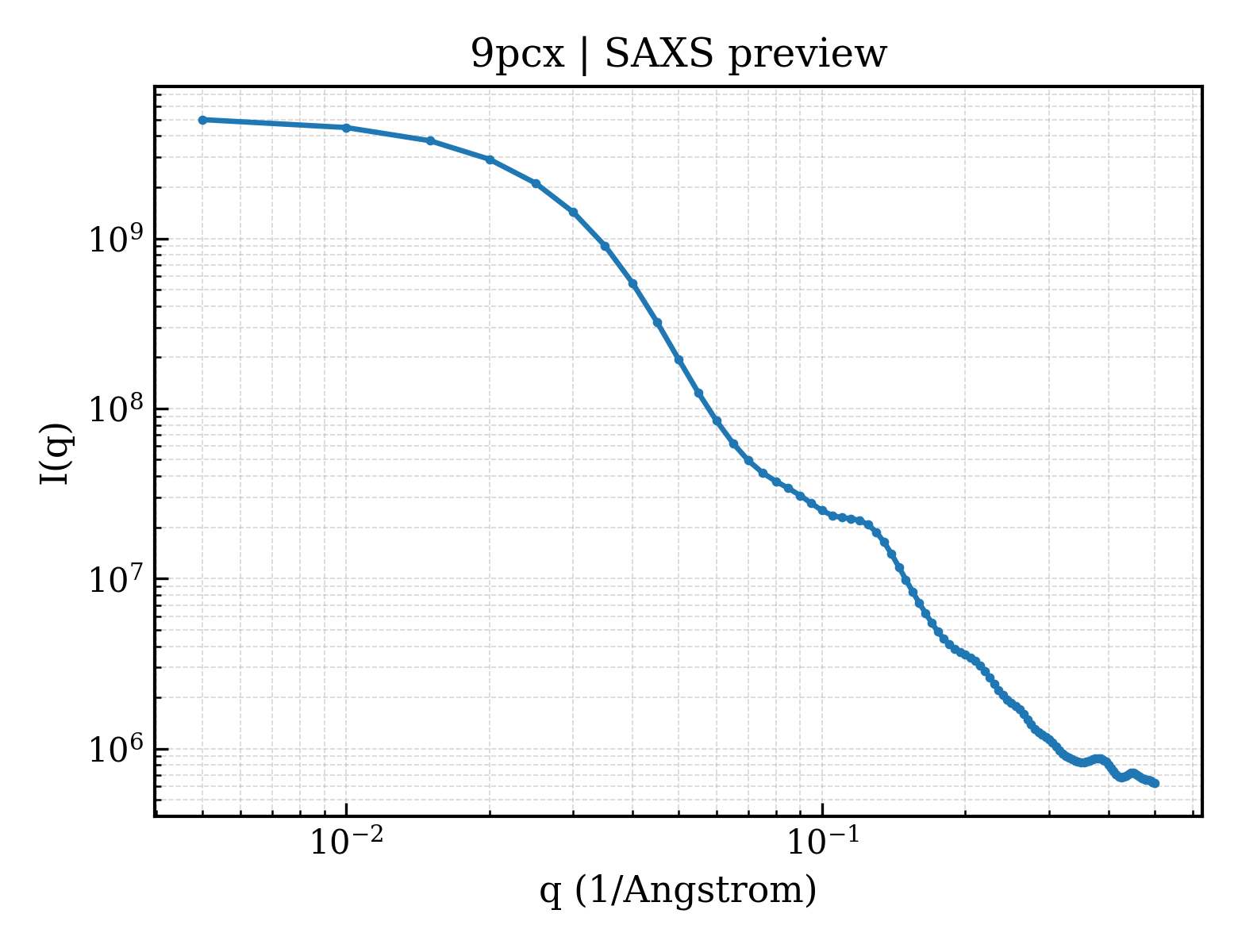

9pcx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9pcx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.39 Å
Rg (electron density)	65.16 Å
Total Rg	65.19 Å
Atom count	85115
Residues	5376
Excluded volume	756850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9pcx__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Vesicle-fusing ATPase
Molecular weight formula_weight	82907.4 kDa
EC 编号 ec_number	3.6.4.6
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	85115

GAHMAGRSMQAARCPTDELSLSNCAVVSEKDYQSGQHVIVRTSPNHKYIFTLRTHPSVVPGSVAFSLPQRKWAGLSIGQEIEVALYSFDKAKQCIGTMTIEIDFLQKKNIDSNPYDTDKMAAEFIQQFNNQAFSVGQQLVFSFNDKLFGLLVKDIEAMDPSILKGEPASGKRQKIEVGLVVGNSQVAFEKAENSSLNLIGKAKTKENRQSIINPDWNFEKMGIGGLDKEFSDIFRRAFASRVFPPEIVEQMGCKHVKGILLYGPPGCGKTLLARQIGKMLNAREPKVVNGPEILNKYVGESEANIRKLFADAEEEQRRLGANSGLHIIIFDEIDAICKQRGSMAGSTGVHDTVVNQLLSKIDGVEQLNNILVIGMTNRPDLIDEALLRPGRLEVKMEIGLPDEKGRLQILHIHTARMRGHQLLSADVDIKELAVETKNFSGAELEGLVRAAQSTAMNRHIKASTKVEVDMEKAESLQVTRGDFLASLENDIKPAFGTNQEDYASYIMNGIIKWGDPVTRVLDDGELLVQQTKNSDRTPLVSVLLEGPPHSGKTALAAKIAEESNFPFIKICSPDKMIGFSETAKCQAMKKIFDDAYKSQLSCVVVDDIERLLDYVPIGPRFSNLVLQALLVLLKKAPPQGRKLLIIGTTSRKDVLQEMEMLNAFSTTIHVPNIATGEQLLEALELLGNFKDKERTTIAQQVKGKKVWIGIKKLLMLIEMSLQMDPEYRVRKFLALLREEGASPLDFD

Source Source

Source organism organism	Cricetulus griseus
Common name common_name	Chinese hamster
NCBI taxonomy ID ncbi_taxonomy_id	10029
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Syntaxin-1A
Molecular weight formula_weight	31045.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,G

MKDRTQELRTAKDSDDDDDVTVTVDRDRFMDEFFEQVEEIRGFIDKIAENVEEVKRKHSAILASPNPDEKTKEELEELMSDIKKTANKVRSKLKSIEQSIEQEEGLNRSSADLRIRKTQHSTLSRKFVEVMSEYNATQSDYRERCKGRIQRQLEITGRTTTSEELEDMLESGNPAIFASGIIMDSSISKQALSEIETRHSEIIKLENSIRELHDMFMDMAMLVESQGEMIDRIEYNVEHAVDYVERAVSDTKKAVKYQSKARRKKIM

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Synaptosomal-associated protein 25,Synaptosomal-associated protein 25, Alpha-soluble NSF attachment protein chimera
Molecular weight formula_weight	58309.3 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J,K,L,M,N

MGSSHHHHHHSQDPNSMAEDADMRNELEEMQRRADQLADESLESTRRMLQLVEESKDAGIRTLVMLDEQGEQLERIEEGMDQINKDMKEAEKNLTDLGKFAGLAVAPANKLKSSDAYKKAWGNNQDGVVASQPARVVDEREQMAISGGFIRRVTNDARENEMDENLEQVSGIIGNLRHMALDMGNEIDTQNRQIDRIMEKADSNKTRIDEANQRATKMLGSGGMDTSGKQAEAMALLAEAERKVKNSQSFFSGLFGGSSKIEEACEIYARAANMFKMAKNWSAAGNAFCQAAQLHLQLQSKHDAATCFVDAGNAFKKADPQEAINCLMRAIEIYTDMGRFTIAAKHHISIAEIYETELVDVEKAIAHYEQSADYYKGEESNSSANKCLLKVAGYAAQLEQYQKAIDIYEQVGTSAMDSPLLKYSAKDYFFKAALCHFCIDMLNAKLAVQKYEELFPAFSDSRECKLMKKLLEAHEEQNVDSYTESVKEYDSISRLDQWLTTMLLRIKKTIQGDEEDLR

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 6 Entity 6 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	4.03 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	50776
