1sfc

NEURONAL SYNAPTIC FUSION COMPLEX

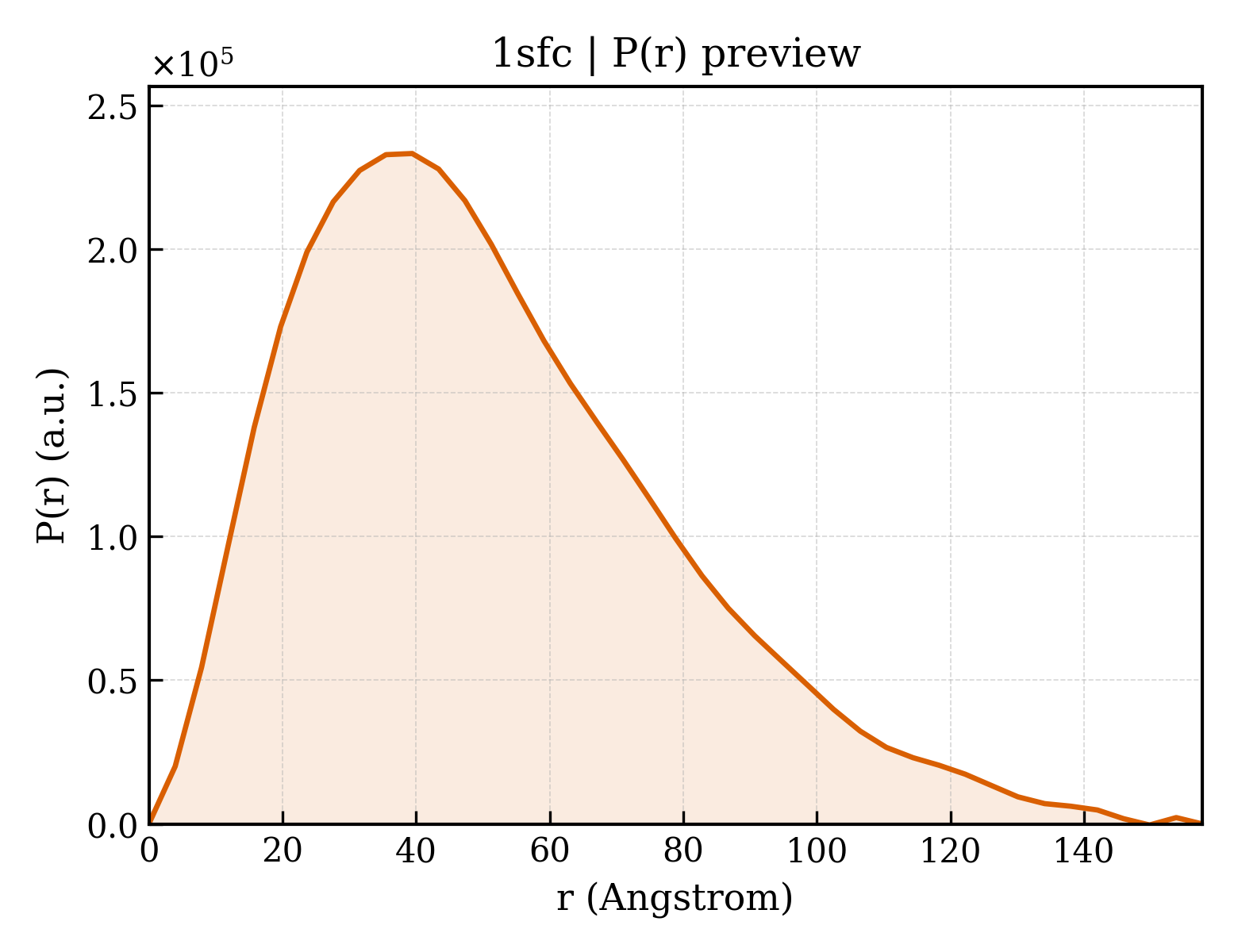

Method: X-RAY DIFFRACTION Dmax: 157.7 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (SYNAPTOBREVIN 2)

Rattus norvegicus

UniProt P63045

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain A； UniProt 1–96 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNTAXIN 1A) × 1 （P32851） PROTEIN (SNAP-25B) × 1 （P60881） PROTEIN (SNAP-25B) × 1 （P60881） SR STRONTIUM ION × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303
2 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain E； UniProt 1–96 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNTAXIN 1A) × 1 （P32851） PROTEIN (SNAP-25B) × 1 （P60881） PROTEIN (SNAP-25B) × 1 （P60881） SR STRONTIUM ION × 5 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303
3 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain I； UniProt 1–96 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNTAXIN 1A) × 1 （P32851） PROTEIN (SNAP-25B) × 1 （P60881） PROTEIN (SNAP-25B) × 1 （P60881） SR STRONTIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 3 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1SFC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KIL Three-dimensional structure of the complexin/SNARE complex Deposited 2001-12-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 28–92（65 aa） Fragment：SNARE motif (29-93)
Not recorded MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；27%(v/v) Iso-Propanol, 200mM MgCl2, 100mM Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.305
1N7S High Resolution Structure of a Truncated Neuronal SNARE Complex Deposited 2002-11-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 28–89（62 aa） Fragment：SBc
Not recorded CA CALCIUM ION × 3 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；MPD, CaCl2, MES, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 4.0K
Resolution 1.45 Å R-free 0.224
2KOG lipid-bound synaptobrevin solution NMR structure Deposited 2009-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–116（116 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6；318 K；Ionic strength (raw mmCIF value) 150；Pressure ambient
NMR sample composition 1 mM [U-99% 13C; U-99% 15N] synaptobrevin-1, 200 mM DPC-2, 20 mM MES-3, 150 mM NaCl-4, 5 mM DTT-5, 1 mM EDTA-6, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2N1T Dynamic binding mode of a synaptotagmin-1-SNARE complex in solution Deposited 2015-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 25–93（69 aa） Fragment：UNP residues 25-93
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.4；298 K；Pressure ambient
NMR sample composition 30 uM [U-100% 13C; U-100% 15N] protein, 25 mM Tris-HCl, 125 mM KSCN, 1 mM CaCl2, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3HD7 HELICAL EXTENSION OF THE NEURONAL SNARE COMPLEX INTO THE MEMBRANE, spacegroup C 1 2 1 Deposited 2009-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 30–116（87 aa） Fragment：C-terminal fragment, UNP residues 30-116
Not recorded GGG glycylglycylglycine × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；29% PEG 400, 0.1M HEPES, 0.2M lithium sulfate, 0.1M sodium chloride, 0.03M glycylglycylglycine, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.40 Å R-free 0.271
3HD7 HELICAL EXTENSION OF THE NEURONAL SNARE COMPLEX INTO THE MEMBRANE, spacegroup C 1 2 1 Deposited 2009-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 30–116（87 aa） Fragment：C-terminal fragment, UNP residues 30-116
Not recorded GGG glycylglycylglycine × 1 SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；29% PEG 400, 0.1M HEPES, 0.2M lithium sulfate, 0.1M sodium chloride, 0.03M glycylglycylglycine, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.40 Å R-free 0.271
3IPD Helical extension of the neuronal SNARE complex into the membrane, spacegroup I 21 21 21 Deposited 2009-08-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 30–116（87 aa） Fragment：C-terminal fragment, UNP Residues 30-116
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；293 K；16% MPD, 0.1M TRIS, 0.05M MAGNESIUM CHLORIDE, 3% SORBITOL, pH 8.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 4.80 Å R-free 0.332
3IPD Helical extension of the neuronal SNARE complex into the membrane, spacegroup I 21 21 21 Deposited 2009-08-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 30–116（87 aa） Fragment：C-terminal fragment, UNP Residues 30-116
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；293 K；16% MPD, 0.1M TRIS, 0.05M MAGNESIUM CHLORIDE, 3% SORBITOL, pH 8.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 4.80 Å R-free 0.332
3J96 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State I) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain K 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging；90 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 7.60 Å R-free 0.303
3J97 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State II) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain K 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging；90 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 7.80 Å R-free 0.311
3J98 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State IIIa) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain K 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging.；90 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 8.40 Å R-free 0.328
3J99 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State IIIb) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain K 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging.；77 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 8.20 Å R-free 0.304
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded CA CALCIUM ION × 18 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.352
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain G 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded CA CALCIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.352
5CCH Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded CA CALCIUM ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.60 Å R-free 0.289
5CCI Structure of the Mg2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 28–89（62 aa） Fragment：UNP residues 28-89
Not recorded MG MAGNESIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.75% v/v PEG3350, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2
Resolution 4.10 Å R-free 0.323
5W5C Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2AB complex Deposited 2017-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 28–66（39 aa） Fragment：UNP residues 29-66
Not recorded MG MAGNESIUM ION × 2 GOL GLYCEROL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM HEPES, pH7.4, 15-20% PEG3350, 200 mM ammonium formate
Resolution 1.85 Å R-free 0.232
5W5D Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2B complex Deposited 2017-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 28–66（39 aa） Fragment：UNP residues 29-66
Not recorded MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；100 mM HEPES, pH7.0, 15-17% PEG3350, 240 mM sodium malonate
Resolution 2.50 Å R-free 0.231
6A30 Crystal Structure of Munc13-1 MUN Domain and Synaptobrevin-2 Juxtamembrane Linker Region Deposited 2018-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 87–92（6 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；PEG 3350, magnesium nitrate, 2-(N-Morpholino)ethanesulfonic acid (MES)
Resolution 2.79 Å R-free 0.239
6IP1 alpha-SNAP-SNARE subcomplex in the whole 20S complex Deposited 2018-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–94（94 aa） Fragment：UNP residues 1-94
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6MDM The 20S supercomplex engaging the SNAP-25 N-terminus (class 1) Deposited 2018-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain J 1–89（89 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 4.40 Å
6MDN The 20S supercomplex engaging the SNAP-25 N-terminus (class 2) Deposited 2018-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain J 1–72（72 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 4.40 Å
6MTI Synaptotagmin-1 C2A, C2B domains and SNARE-pin proteins (5CCI) individually docked into Cryo-EM map of C2AB-SNARE complexes helically organized on lipid nanotube surface in presence of Mg2+ Deposited 2018-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain A 28–89（62 aa） Fragment：residues 28-89
Chain E 28–89（62 aa） Fragment：residues 28-89
Chain I 28–89（62 aa） Fragment：residues 28-89
Chain M 28–89（62 aa） Fragment：residues 28-89
Chain Q 28–89（62 aa） Fragment：residues 28-89
Chain U 28–89（62 aa） Fragment：residues 28-89
Not recorded MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.40 Å
6WVW Crystal structure of the R59P-SNAP25 containing SNARE complex Deposited 2020-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 28–89（62 aa）
Not recorded CA CALCIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM MES (pH 6.0), 100 mM CaCl2, 20-25% (v/v)
Resolution 2.11 Å R-free 0.244
6WVW Crystal structure of the R59P-SNAP25 containing SNARE complex Deposited 2020-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 28–89（62 aa）
Not recorded CA CALCIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM MES (pH 6.0), 100 mM CaCl2, 20-25% (v/v)
Resolution 2.11 Å R-free 0.244
7UDB Cryo-EM structure of a synaptobrevin-Munc18-1-syntaxin-1 complex class 2 Deposited 2022-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 29–83（55 aa）
Mutation：Q36C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å

22 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name VAMP2_RAT
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–96； UniProt 1–96 Author chain E； PDBConstruct 1–96； UniProt 1–96 Author chain I； PDBConstruct 1–96； UniProt 1–96

PROTEIN (SYNTAXIN 1A)

Rattus norvegicus

UniProt P32851

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain B； UniProt 180–262 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNAPTOBREVIN 2) × 1 （P63045） PROTEIN (SNAP-25B) × 1 （P60881） PROTEIN (SNAP-25B) × 1 （P60881） SR STRONTIUM ION × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303
2 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain F； UniProt 180–262 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNAPTOBREVIN 2) × 1 （P63045） PROTEIN (SNAP-25B) × 1 （P60881） PROTEIN (SNAP-25B) × 1 （P60881） SR STRONTIUM ION × 5 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303
3 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain J； UniProt 180–262 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNAPTOBREVIN 2) × 1 （P63045） PROTEIN (SNAP-25B) × 1 （P60881） PROTEIN (SNAP-25B) × 1 （P60881） SR STRONTIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 3 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1SFC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BR0 THREE DIMENSIONAL STRUCTURE OF THE N-TERMINAL DOMAIN OF SYNTAXIN 1A Deposited 1998-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–146（120 aa） Fragment：N-TERMINAL
Mutation：C145S No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.3；305 K；Ionic strength (raw mmCIF value) 60 mM phosphate；Pressure 1
Resolution not provided
1EZ3 CRYSTAL STRUCTURE OF THE NEURONAL T-SNARE SYNTAXIN-1A Deposited 2000-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–150（127 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；296 K；PEG 1500, sodium acetate, DTT, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 296.0K
Resolution 1.90 Å R-free 0.286
1EZ3 CRYSTAL STRUCTURE OF THE NEURONAL T-SNARE SYNTAXIN-1A Deposited 2000-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–150（127 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；296 K；PEG 1500, sodium acetate, DTT, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 296.0K
Resolution 1.90 Å R-free 0.286
1EZ3 CRYSTAL STRUCTURE OF THE NEURONAL T-SNARE SYNTAXIN-1A Deposited 2000-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 24–150（127 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；296 K；PEG 1500, sodium acetate, DTT, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 296.0K
Resolution 1.90 Å R-free 0.286
1HVV SELF-ASSOCIATION OF THE H3 REGION OF SYNTAXIN 1A: IMPLICATIONS FOR SNARE COMPLEX ASSEMBLY Deposited 2001-01-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 190–264（75 aa） Fragment：RESIDUES 190-264
Chain B 190–264（75 aa） Fragment：RESIDUES 190-264
Chain C 190–264（75 aa） Fragment：RESIDUES 190-264
Chain D 190–264（75 aa） Fragment：RESIDUES 190-264
Not recorded TAR D(-)-TARTARIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；sodium potassium tartrate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.273
1JTH Crystal structure and biophysical properties of a complex between the N-terminal region of SNAP25 and the SNARE region of syntaxin 1a Deposited 2001-08-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 191–267（77 aa） Fragment：H3, SNARE motif
Chain D 191–267（77 aa） Fragment：H3, SNARE motif
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；294 K；ammonium sulfate, MES, pH 6.5, VAPOR DIFFUSION, temperature 294K
Resolution 2.00 Å R-free 0.289
1KIL Three-dimensional structure of the complexin/SNARE complex Deposited 2001-12-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 192–250（59 aa） Fragment：SNARE motif (191-253)
Not recorded MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；27%(v/v) Iso-Propanol, 200mM MgCl2, 100mM Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.305
1N7S High Resolution Structure of a Truncated Neuronal SNARE Complex Deposited 2002-11-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 191–256（66 aa） Fragment：SXc
Not recorded CA CALCIUM ION × 3 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；MPD, CaCl2, MES, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 4.0K
Resolution 1.45 Å R-free 0.224
1URQ Crystal structure of neuronal Q-SNAREs in complex with R-SNARE motif of Tomosyn Deposited 2003-10-31 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 188–259（72 aa） Fragment：T-SNARE COILED-COIL HOMOLOGY, RESIDUES 188-259
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；30% MPD, 50MM CACL2, 50MM MES PH 6.0
Resolution 2.00 Å R-free 0.225
2M8R Pre-Fusion Solution NMR Structure of Neuronal SNARE Syntaxin 1A Deposited 2013-05-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 183–288（106 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；313 K；Pressure ambient
NMR sample composition 1 mM [U-13C; U-15N; U-2H] syntaxin, 100 mM DPC, 10 mM HEPES, 10 mM MES, 10 mM sodium acetate, 150 mM sodium chloride, 5 mM DTT, 1 mM EDTA, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] syntaxin, 100 mM [U-99% 2H] DPC, 150 mM sodium chloride, 0.02 % sodium azide, 10 mM sodium phosphate, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2N1T Dynamic binding mode of a synaptotagmin-1-SNARE complex in solution Deposited 2015-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 188–259（72 aa） Fragment：UNP residues 188-259
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.4；298 K；Pressure ambient
NMR sample composition 30 uM [U-100% 13C; U-100% 15N] protein, 25 mM Tris-HCl, 125 mM KSCN, 1 mM CaCl2, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3C98 Revised structure of the munc18a-syntaxin1 complex Deposited 2008-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–267（267 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；294 K；PEG400, Ammonium Acetate, Sodium Acetate, EDTA, 2-mercaptoethanol, pH 5.3, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.60 Å R-free 0.263
3HD7 HELICAL EXTENSION OF THE NEURONAL SNARE COMPLEX INTO THE MEMBRANE, spacegroup C 1 2 1 Deposited 2009-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 183–288（106 aa） Fragment：C-terminal fragment, UNP residues 183-288
Not recorded GGG glycylglycylglycine × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；29% PEG 400, 0.1M HEPES, 0.2M lithium sulfate, 0.1M sodium chloride, 0.03M glycylglycylglycine, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.40 Å R-free 0.271
3HD7 HELICAL EXTENSION OF THE NEURONAL SNARE COMPLEX INTO THE MEMBRANE, spacegroup C 1 2 1 Deposited 2009-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 183–288（106 aa） Fragment：C-terminal fragment, UNP residues 183-288
Not recorded GGG glycylglycylglycine × 1 SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；29% PEG 400, 0.1M HEPES, 0.2M lithium sulfate, 0.1M sodium chloride, 0.03M glycylglycylglycine, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.40 Å R-free 0.271
3IPD Helical extension of the neuronal SNARE complex into the membrane, spacegroup I 21 21 21 Deposited 2009-08-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 183–288（106 aa） Fragment：C-terminal fragment, UNP Residues 183-288
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；293 K；16% MPD, 0.1M TRIS, 0.05M MAGNESIUM CHLORIDE, 3% SORBITOL, pH 8.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 4.80 Å R-free 0.332
3IPD Helical extension of the neuronal SNARE complex into the membrane, spacegroup I 21 21 21 Deposited 2009-08-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 183–288（106 aa） Fragment：C-terminal fragment, UNP Residues 183-288
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；293 K；16% MPD, 0.1M TRIS, 0.05M MAGNESIUM CHLORIDE, 3% SORBITOL, pH 8.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 4.80 Å R-free 0.332
3J96 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State I) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain L 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging；90 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 7.60 Å R-free 0.303
3J97 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State II) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain L 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging；90 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 7.80 Å R-free 0.311
3J98 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State IIIa) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain L 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging.；90 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 8.40 Å R-free 0.328
3J99 Structure of 20S supercomplex determined by single particle cryoelectron microscopy (State IIIb) Deposited 2014-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain L 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40；pH 8；50 mM Tris-Cl, 150 mM NaCl, 1 mM AMPPNP, 1 mM EDTA, 1 mM DTT, 0.05% v/v Nonident P-40
cryo-EM vitrification conditions Blot for 3.5 seconds before plunging.；77 K；Cryogen ETHANE；Blot for 3.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 8.20 Å R-free 0.304
3RK2 Truncated SNARE complex Deposited 2011-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；294 K；0.05 M calcium acetate, 27% 2-methyl-2,4-pentanediol (MPD), 0.1 M sodium cacodylate pH 6.5-7.0, VAPOR DIFFUSION, temperature 294K
Resolution 2.20 Å R-free 0.268
3RK2 Truncated SNARE complex Deposited 2011-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；294 K；0.05 M calcium acetate, 27% 2-methyl-2,4-pentanediol (MPD), 0.1 M sodium cacodylate pH 6.5-7.0, VAPOR DIFFUSION, temperature 294K
Resolution 2.20 Å R-free 0.268
3RK3 Truncated SNARE complex with complexin Deposited 2011-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.50 Å R-free 0.316
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain J 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain N 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain V 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain Z 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
3RL0 Truncated SNARE complex with complexin (P1) Deposited 2011-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain d 191–253（63 aa） Fragment：UNP residues 191-253
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；13-15% polyethyleneglycol (PEG) 5000MME, 0.2 M ammonium sulfate, 0.01 M EDTA, and 0.1 M Tris pH 7.5, VAPOR DIFFUSION, temperature 294K
Resolution 3.80 Å R-free 0.345
4JEH Crystal Structure of Munc18a and Syntaxin1 lacking N-peptide complex Deposited 2013-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–266（243 aa） Fragment：unp residues 24-266
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；27% PEG 400, 10 mM EDTA, 10 mM DTT, 224 mM ammonium acetate, and 100 mM sodium acetate , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.223
4JEH Crystal Structure of Munc18a and Syntaxin1 lacking N-peptide complex Deposited 2013-02-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 24–266（243 aa） Fragment：unp residues 24-266
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；27% PEG 400, 10 mM EDTA, 10 mM DTT, 224 mM ammonium acetate, and 100 mM sodium acetate , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.223
4JEU Crystal Structure of Munc18a and Syntaxin1 with native N-terminus complex Deposited 2013-02-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–243（242 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；298 K；27% PEG 400, 10 mM EDTA, 10 mM DTT, 224 mM ammonium acetate, and 100 mM sodium acetate , pH 5.2, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.20 Å R-free 0.263
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded CA CALCIUM ION × 18 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.352
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded CA CALCIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.352
5CCH Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded CA CALCIUM ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.60 Å R-free 0.289
5CCI Structure of the Mg2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded MG MAGNESIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.75% v/v PEG3350, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2
Resolution 4.10 Å R-free 0.323
5KJ7 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from XFEL diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded CA CALCIUM ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.329
5KJ7 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from XFEL diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded CA CALCIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.329
5KJ8 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from synchrotron diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded CA CALCIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 4.10 Å R-free 0.297
5KJ8 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from synchrotron diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 4.10 Å R-free 0.297
5W5C Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2AB complex Deposited 2017-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain B 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded MG MAGNESIUM ION × 2 GOL GLYCEROL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM HEPES, pH7.4, 15-20% PEG3350, 200 mM ammonium formate
Resolution 1.85 Å R-free 0.232
5W5D Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2B complex Deposited 2017-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain B 191–256（66 aa） Fragment：UNP residues 191-256
Not recorded MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；100 mM HEPES, pH7.0, 15-17% PEG3350, 240 mM sodium malonate
Resolution 2.50 Å R-free 0.231
6IP1 alpha-SNAP-SNARE subcomplex in the whole 20S complex Deposited 2018-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 2–253（252 aa） Fragment：UNP residues 2-253
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6MDM The 20S supercomplex engaging the SNAP-25 N-terminus (class 1) Deposited 2018-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain I 1–256（256 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 4.40 Å
6MDN The 20S supercomplex engaging the SNAP-25 N-terminus (class 2) Deposited 2018-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain I 1–256（256 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 4.40 Å
6MTI Synaptotagmin-1 C2A, C2B domains and SNARE-pin proteins (5CCI) individually docked into Cryo-EM map of C2AB-SNARE complexes helically organized on lipid nanotube surface in presence of Mg2+ Deposited 2018-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain B 191–256（66 aa） Fragment：residues 191-256
Chain F 191–256（66 aa） Fragment：residues 191-256
Chain J 191–256（66 aa） Fragment：residues 191-256
Chain N 191–256（66 aa） Fragment：residues 191-256
Chain R 191–256（66 aa） Fragment：residues 191-256
Chain V 191–256（66 aa） Fragment：residues 191-256
Not recorded MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.40 Å
6WVW Crystal structure of the R59P-SNAP25 containing SNARE complex Deposited 2020-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 191–256（66 aa）
Not recorded CA CALCIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM MES (pH 6.0), 100 mM CaCl2, 20-25% (v/v)
Resolution 2.11 Å R-free 0.244
6WVW Crystal structure of the R59P-SNAP25 containing SNARE complex Deposited 2020-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 191–256（66 aa）
Not recorded CA CALCIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM MES (pH 6.0), 100 mM CaCl2, 20-25% (v/v)
Resolution 2.11 Å R-free 0.244
7UDB Cryo-EM structure of a synaptobrevin-Munc18-1-syntaxin-1 complex class 2 Deposited 2022-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–253（252 aa）
Mutation：C145A,L165A,E166A,L205C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7UDC cryo-EM structures of a synaptobrevin-Munc18-1-syntaxin-1 complex class1 Deposited 2022-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–253（252 aa）
Mutation：C145A, L165A, E166A, L205C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7XSJ The structure of the Mint1/Munc18-1/syntaxin-1 complex Deposited 2022-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 25–267（243 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；0.2M Sodium Malonate, pH 7.0, 20% (v/v) PEG 3350
Resolution 3.20 Å R-free 0.270
9OJZ 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 5 Deposited 2025-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9OK3 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), 3:2:1 alphaSNAP-syntaxin-1a-SNAP-25 subcomplex local refinement, non-hydrolyzing, class 13 Deposited 2025-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–267（267 aa）
Chain B 1–267（267 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.74 Å
9OLO 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 19 Deposited 2025-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 10 PO4 PHOSPHATE ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9OM6 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), 4:2:2 alphaSNAP-syntaxin-1a-SNAP-25 subcomplex local refinement, hydrolyzing, class 23 Deposited 2025-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–267（267 aa）
Chain B 1–267（267 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.14 Å
9PAF 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 6 Deposited 2025-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.82 Å
9PAG 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 7 Deposited 2025-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9PB9 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 8 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.45 Å
9PBA 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 9 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9PBF 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 10 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain I 1–267（267 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.01 Å
9PBV 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 11 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain L 1–267（267 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
9PC3 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 12 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.69 Å
9PCX 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 14 Deposited 2025-06-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.03 Å
9PCZ 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 15 Deposited 2025-06-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain I 1–267（267 aa）
Chain J 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 10 PO4 PHOSPHATE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.65 Å
9PD1 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 20 Deposited 2025-06-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9PD8 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 21 Deposited 2025-06-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain G 1–267（267 aa）
Chain H 1–267（267 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.23 Å
9PFF Min22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a H3:SNAP-25 SN1), non-hydrolyzing, class 27 Deposited 2025-07-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain H 191–267（77 aa）
Chain J 191–267（77 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
9PFG Min22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a H3:SNAP-25 SN1), 4:2:2 alphaSNAP-syntaxin-1a H3-SNAP-25 SN1 subcomplex local refinement, non-hydrolyzing, class 28 Deposited 2025-07-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 191–267（77 aa）
Chain D 191–267（77 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å

53 other PDB entries and 70 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name STX1A_RAT
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–83； UniProt 180–262 Author chain F； PDBConstruct 1–83； UniProt 180–262 Author chain J； PDBConstruct 1–83； UniProt 180–262

PROTEIN (SNAP-25B)

Rattus norvegicus

UniProt P60881

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain C； UniProt 1–83 Chain D； UniProt 120–206 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNAPTOBREVIN 2) × 1 （P63045） PROTEIN (SYNTAXIN 1A) × 1 （P32851） SR STRONTIUM ION × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303
2 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain G； UniProt 1–83 Chain H； UniProt 120–206 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNAPTOBREVIN 2) × 1 （P63045） PROTEIN (SYNTAXIN 1A) × 1 （P32851） SR STRONTIUM ION × 5 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303
3 Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain K； UniProt 1–83 Chain L； UniProt 120–206 Fragment：PROTEOLYTICALLY PROTECTED FRAGMENT PROTEIN (SYNAPTOBREVIN 2) × 1 （P63045） PROTEIN (SYNTAXIN 1A) × 1 （P32851） SR STRONTIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 3 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；35% MPD, 5% PEG350(MME), 25MM TRIS PH 7.0,. 70MM SRCL2, 250MM UREA, 7MM SARKOSYL Resolution 2.40 Å R-free 0.303

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1SFC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1JTH Crystal structure and biophysical properties of a complex between the N-terminal region of SNAP25 and the SNARE region of syntaxin 1a Deposited 2001-08-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–82（82 aa） Fragment：N-terminal SNARE motif
Chain C 1–82（82 aa） Fragment：N-terminal SNARE motif
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；294 K；ammonium sulfate, MES, pH 6.5, VAPOR DIFFUSION, temperature 294K
Resolution 2.00 Å R-free 0.289
1N7S High Resolution Structure of a Truncated Neuronal SNARE Complex Deposited 2002-11-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 7–83（77 aa） Fragment：SN1b
Chain D 141–204（64 aa） Fragment：SN2c
Not recorded CA CALCIUM ION × 3 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；MPD, CaCl2, MES, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 4.0K
Resolution 1.45 Å R-free 0.224
3HD7 HELICAL EXTENSION OF THE NEURONAL SNARE COMPLEX INTO THE MEMBRANE, spacegroup C 1 2 1 Deposited 2009-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 7–83（77 aa） Fragment：N-terminal fragment, UNP residues 7-83
Chain D 141–204（64 aa） Fragment：C-terminal fragment, UNP residues 141-204
Not recorded GGG glycylglycylglycine × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；29% PEG 400, 0.1M HEPES, 0.2M lithium sulfate, 0.1M sodium chloride, 0.03M glycylglycylglycine, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.40 Å R-free 0.271
3HD7 HELICAL EXTENSION OF THE NEURONAL SNARE COMPLEX INTO THE MEMBRANE, spacegroup C 1 2 1 Deposited 2009-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 7–83（77 aa） Fragment：N-terminal fragment, UNP residues 7-83
Chain H 141–204（64 aa） Fragment：C-terminal fragment, UNP residues 141-204
Not recorded GGG glycylglycylglycine × 1 SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；29% PEG 400, 0.1M HEPES, 0.2M lithium sulfate, 0.1M sodium chloride, 0.03M glycylglycylglycine, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.40 Å R-free 0.271
3IPD Helical extension of the neuronal SNARE complex into the membrane, spacegroup I 21 21 21 Deposited 2009-08-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 7–83（77 aa） Fragment：N-terminal fragment, UNP Residues 7-83
Chain D 141–204（64 aa） Fragment：C-terminal fragment, UNP Residues 141-204
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；293 K；16% MPD, 0.1M TRIS, 0.05M MAGNESIUM CHLORIDE, 3% SORBITOL, pH 8.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 4.80 Å R-free 0.332
3IPD Helical extension of the neuronal SNARE complex into the membrane, spacegroup I 21 21 21 Deposited 2009-08-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 7–83（77 aa） Fragment：N-terminal fragment, UNP Residues 7-83
Chain H 141–204（64 aa） Fragment：C-terminal fragment, UNP Residues 141-204
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；293 K；16% MPD, 0.1M TRIS, 0.05M MAGNESIUM CHLORIDE, 3% SORBITOL, pH 8.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 4.80 Å R-free 0.332
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 7–83（77 aa） Fragment：UNP residues 7-83
Chain D 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded CA CALCIUM ION × 18 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.352
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain I 7–83（77 aa） Fragment：UNP residues 7-83
Chain J 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded CA CALCIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.352
5CCH Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 7–83（77 aa） Fragment：UNP residues 7-83
Chain D 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded CA CALCIUM ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.60 Å R-free 0.289
5CCI Structure of the Mg2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 7–83（77 aa） Fragment：UNP residues 7-83
Chain D 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded MG MAGNESIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.75% v/v PEG3350, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2
Resolution 4.10 Å R-free 0.323
5KJ7 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from XFEL diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 9–83（75 aa） Fragment：UNP residues 9-83
Chain D 141–204（64 aa） Fragment：UNP residues 141- 204
Not recorded CA CALCIUM ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.329
5KJ7 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from XFEL diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain I 9–83（75 aa） Fragment：UNP residues 9-83
Chain J 141–204（64 aa） Fragment：UNP residues 141- 204
Not recorded CA CALCIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 3.50 Å R-free 0.329
5KJ8 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from synchrotron diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 9–83（75 aa） Fragment：UNP residues 9-83
Chain D 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded CA CALCIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 4.10 Å R-free 0.297
5KJ8 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from synchrotron diffraction Deposited 2016-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain I 9–83（75 aa） Fragment：UNP residues 9-83
Chain J 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2
Resolution 4.10 Å R-free 0.297
5LOB Structure of the Ca2+-bound Rabphilin3A C2B- SNAP25 complex (C2 space group) Deposited 2016-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 7–82（76 aa） Fragment：N-terminal helix
Chain E 141–203（63 aa） Fragment：C-terminal helix
Chain F 7–82（76 aa） Fragment：N-terminal helix
Chain G 141–203（63 aa） Fragment：C-terminal helix
Not recorded CA CALCIUM ION × 6 SO4 SULFATE ION × 10 GOL GLYCEROL × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；30% PEG3350 0.35 M Ammonium sulfate 0.1 M Tris pH 8.5
Resolution 3.30 Å R-free 0.286
5LOW Structure of the Ca2+-bound Rabphilin 3A C2B domain SNAP25 complex (P21 space group) Deposited 2016-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 7–82（76 aa）
Chain E 141–203（63 aa）
Chain F 7–82（76 aa）
Chain G 141–203（63 aa）
Not recorded GOL GLYCEROL × 3 CA CALCIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；20% PEG3350 0.35 M Ammonium sulfate 0.1 M Tris (pH 8.5) al's oil
Resolution 2.80 Å R-free 0.269
5LOW Structure of the Ca2+-bound Rabphilin 3A C2B domain SNAP25 complex (P21 space group) Deposited 2016-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain K 7–82（76 aa）
Chain L 141–203（63 aa）
Chain M 7–82（76 aa）
Chain N 141–203（63 aa）
Not recorded GOL GLYCEROL × 4 CA CALCIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；20% PEG3350 0.35 M Ammonium sulfate 0.1 M Tris (pH 8.5) al's oil
Resolution 2.80 Å R-free 0.269
5W5C Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2AB complex Deposited 2017-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain C 7–83（77 aa） Fragment：UNP residues 7-83
Chain D 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded MG MAGNESIUM ION × 2 GOL GLYCEROL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM HEPES, pH7.4, 15-20% PEG3350, 200 mM ammonium formate
Resolution 1.85 Å R-free 0.232
5W5D Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2B complex Deposited 2017-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain C 7–83（77 aa） Fragment：UNP residues 7-83
Chain D 141–204（64 aa） Fragment：UNP residues 141-204
Not recorded MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；100 mM HEPES, pH7.0, 15-17% PEG3350, 240 mM sodium malonate
Resolution 2.50 Å R-free 0.231
6IP1 alpha-SNAP-SNARE subcomplex in the whole 20S complex Deposited 2018-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–100（100 aa） Fragment：UNP residues 1-100
Chain D 126–206（81 aa） Fragment：UNP residues 126-206
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6MDM The 20S supercomplex engaging the SNAP-25 N-terminus (class 1) Deposited 2018-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain H 1–204（204 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 4.40 Å
6MDN The 20S supercomplex engaging the SNAP-25 N-terminus (class 2) Deposited 2018-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain H 1–204（204 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 4.40 Å
6MDO The D1 and D2 domain rings of NSF engaging the SNAP-25 N-terminus within the 20S supercomplex (focused refinement on D1/D2 rings, class 1) Deposited 2018-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 1–204（204 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 3.90 Å
6MDP The D1 and D2 domain rings of NSF engaging the SNAP-25 N-terminus within the 20S supercomplex (focused refinement on D1/D2 rings, class 2) Deposited 2018-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 1–204（204 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 3.5 seconds before plunging.
Resolution 3.80 Å
6MTI Synaptotagmin-1 C2A, C2B domains and SNARE-pin proteins (5CCI) individually docked into Cryo-EM map of C2AB-SNARE complexes helically organized on lipid nanotube surface in presence of Mg2+ Deposited 2018-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain C 7–83（77 aa） Fragment：residues 7-83
Chain D 141–204（64 aa） Fragment：residues 141-204
Chain G 7–83（77 aa） Fragment：residues 7-83
Chain H 141–204（64 aa） Fragment：residues 141-204
Chain K 7–83（77 aa） Fragment：residues 7-83
Chain L 141–204（64 aa） Fragment：residues 141-204
Chain O 7–83（77 aa） Fragment：residues 7-83
Chain P 141–204（64 aa） Fragment：residues 141-204
Chain S 7–83（77 aa） Fragment：residues 7-83
Chain T 141–204（64 aa） Fragment：residues 141-204
Chain W 7–83（77 aa） Fragment：residues 7-83
Chain X 141–204（64 aa） Fragment：residues 141-204
Not recorded MG MAGNESIUM ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.40 Å
6WVW Crystal structure of the R59P-SNAP25 containing SNARE complex Deposited 2020-05-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 10–83（74 aa）
Chain D 141–204（64 aa）
Mutation：R59P CA CALCIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM MES (pH 6.0), 100 mM CaCl2, 20-25% (v/v)
Resolution 2.11 Å R-free 0.244
6WVW Crystal structure of the R59P-SNAP25 containing SNARE complex Deposited 2020-05-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 10–83（74 aa）
Chain H 141–204（64 aa）
Mutation：R59P CA CALCIUM ION × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM MES (pH 6.0), 100 mM CaCl2, 20-25% (v/v)
Resolution 2.11 Å R-free 0.244
9OJR 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 3 Deposited 2025-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 1–83（83 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9OJU 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 4 Deposited 2025-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 1–83（83 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9OJZ 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 5 Deposited 2025-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9OK3 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), 3:2:1 alphaSNAP-syntaxin-1a-SNAP-25 subcomplex local refinement, non-hydrolyzing, class 13 Deposited 2025-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–206（206 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.74 Å
9OLO 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 19 Deposited 2025-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain I 1–206（206 aa）
Chain J 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 10 PO4 PHOSPHATE ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9OM6 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), 4:2:2 alphaSNAP-syntaxin-1a-SNAP-25 subcomplex local refinement, hydrolyzing, class 23 Deposited 2025-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–206（206 aa）
Chain D 1–206（206 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.14 Å
9PAF 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 6 Deposited 2025-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 1–206（206 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.82 Å
9PAG 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 7 Deposited 2025-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9PB9 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 8 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.45 Å
9PBA 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 9 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9PBF 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 10 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain H 1–206（206 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.01 Å
9PBV 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 11 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain H 1–206（206 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
9PC3 21bin20S complex (NSF-alphaSNAP-2:1 syntaxin-1a:SNAP-25), non-hydrolyzing, class 12 Deposited 2025-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.69 Å
9PCX 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 14 Deposited 2025-06-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain I 1–206（206 aa）
Chain J 1–206（206 aa）
Chain K 1–206（206 aa）
Chain L 1–206（206 aa）
Chain M 1–206（206 aa）
Chain N 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.03 Å
9PCZ 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 15 Deposited 2025-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain K 1–206（206 aa）
Chain L 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 10 PO4 PHOSPHATE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.65 Å
9PD1 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 20 Deposited 2025-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain I 1–206（206 aa）
Chain J 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9PD8 22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a:SNAP-25), hydrolyzing, class 21 Deposited 2025-06-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain I 1–206（206 aa）
Chain J 1–206（206 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.23 Å
9PFF Min22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a H3:SNAP-25 SN1), non-hydrolyzing, class 27 Deposited 2025-07-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain G 1–83（83 aa）
Chain I 1–83（83 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
9PFG Min22bin20S complex (NSF-alphaSNAP-2:2 syntaxin-1a H3:SNAP-25 SN1), 4:2:2 alphaSNAP-syntaxin-1a H3-SNAP-25 SN1 subcomplex local refinement, non-hydrolyzing, class 28 Deposited 2025-07-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–83（83 aa）
Chain C 1–83（83 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å

39 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SNP25_RAT
Isoform —
PDB entities 3, 4
Chains and sequence ranges Author chain C； PDBConstruct 1–83； UniProt 1–83 Author chain G； PDBConstruct 1–83； UniProt 1–83 Author chain K； PDBConstruct 1–83； UniProt 1–83 Author chain D； PDBConstruct 1–87； UniProt 120–206 Author chain H； PDBConstruct 1–87； UniProt 120–206 Author chain L； PDBConstruct 1–87； UniProt 120–206

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1sfc

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1sfc
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1sfc
Deposition date deposition_date1998-08-24
Structure title titleNEURONAL SYNAPTIC FUSION COMPLEX
Keywords keywordsMEMBRANE FUSION PROTEIN COMPLEX, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier39.78 Å
Radius of gyration Rg (electron density) rg_electron40.75 Å
Forward intensity I(0) i0186285000.00
Molecular weight molecular_weight102570.0 kDa
Excluded volume excluded_volume125160 ų
Envelope volume envelope_volume162260 ų
Hydration-shell volume shell_volume38406 ų
Envelope diameter envelope_diameter167.2 Å
Shell Rg shell_rg38.65 Å
Envelope Rg envelope_rg42.36 Å
Shape Rg shape_rg40.77 Å
Total Rg total_rg40.57 Å
Total atoms total_atoms7086
Residues n_residues867
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax157.7 Å
Rg (real space) rg_real40.66 Å
Rg uncertainty (real space) rg_real_error2.18 Å
I(0) (real space) i0_real1.8630e+08
I(0) uncertainty (real space) i0_real_error3.6460e+06
Rg (reciprocal space) rg_reciprocal40.11 Å
I(0) (reciprocal space) i0_reciprocal186200000.0000
Solution quality estimate total_estimate0.6704
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary39.4 Å
Skewness Skewness skewness0.742
Kurtosis Kurtosis kurtosis0.236
Angular range angular_range— – 0.2000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha9299000.0000
Real-space data points n_real_points41
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.464; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.322; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▼

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_idd1sfca_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfcb_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfcc_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfcd_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfce_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfcf_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfcg_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfch_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfci_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfcj_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfck_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex
Domain ID domain_idd1sfcl_
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.15 — SNARE fusion complex
Family Family familyh.1.15.1 — SNARE fusion complex

CATH v4.4 (12 domains)

Domain ID domain_id1sfcA00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcB00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcC00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcD00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcE00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcF00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcG00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcH00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcI00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcJ00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcK00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
Domain ID domain_id1sfcL00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily110 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
