SAXSdb — 5cci

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vesicle-associated membrane protein 2

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Syntaxin-1A × 1 （P32851） Synaptosomal-associated protein 25 × 1 （P60881） Synaptosomal-associated protein 25 × 1 （P60881） Synaptotagmin-1 × 3 （P21707） MAGNESIUM ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VAMP2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–63； UniProt 28–89

Syntaxin-1A

Rattus norvegicus

UniProt P32851

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Vesicle-associated membrane protein 2 × 1 （P63045） Synaptosomal-associated protein 25 × 1 （P60881） Synaptosomal-associated protein 25 × 1 （P60881） Synaptotagmin-1 × 3 （P21707） MAGNESIUM ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STX1A_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–67； UniProt 191–256

Synaptosomal-associated protein 25

Rattus norvegicus

UniProt P60881

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Vesicle-associated membrane protein 2 × 1 （P63045） Syntaxin-1A × 1 （P32851） Synaptotagmin-1 × 3 （P21707） MAGNESIUM ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SNP25_RAT
Isoform	P60881-2
PDB entities	3, 4
Chains and sequence ranges	Author chain C； PDBConstruct 1–77； UniProt 7–83 Author chain D； PDBConstruct 2–65； UniProt 141–204

Synaptotagmin-1

Rattus norvegicus

UniProt P21707

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Vesicle-associated membrane protein 2 × 1 （P63045） Syntaxin-1A × 1 （P32851） Synaptosomal-associated protein 25 × 1 （P60881） Synaptosomal-associated protein 25 × 1 （P60881） MAGNESIUM ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYT1_RAT
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–281； UniProt 141–421 Author chain F； PDBConstruct 1–281； UniProt 141–421

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5cci
Deposition date deposition_date	2015-07-02
Structure title title	Structure of the Mg2+-bound synaptotagmin-1 SNARE complex (short unit cell form)
Keywords keywords	synaptic fusion complex, Synaptotagmin1, neuronal SNARE complex, ENDOCYTOSIS, EXOCYTOSIS; ENDOCYTOSIS,EXOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5cci__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

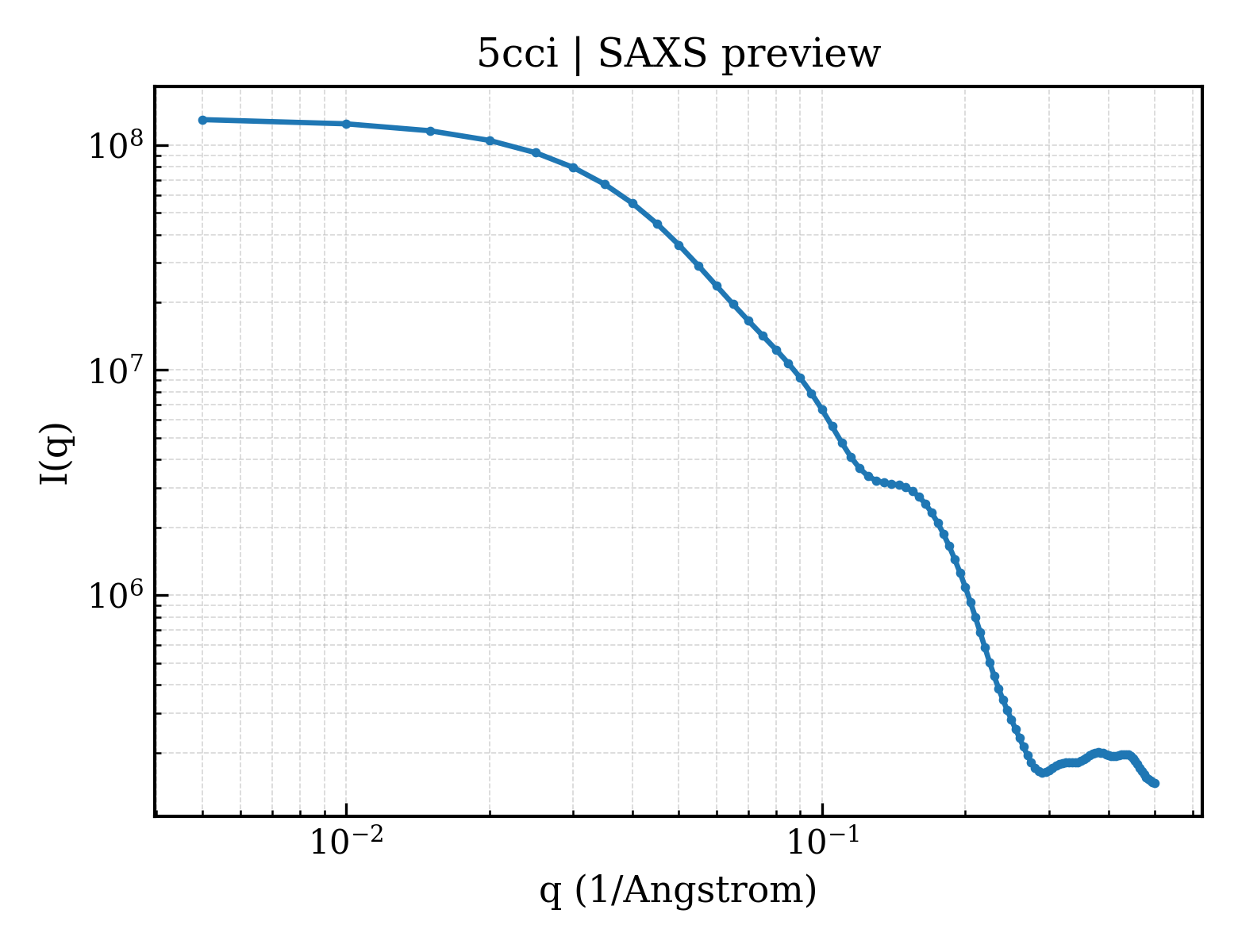

5cci__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

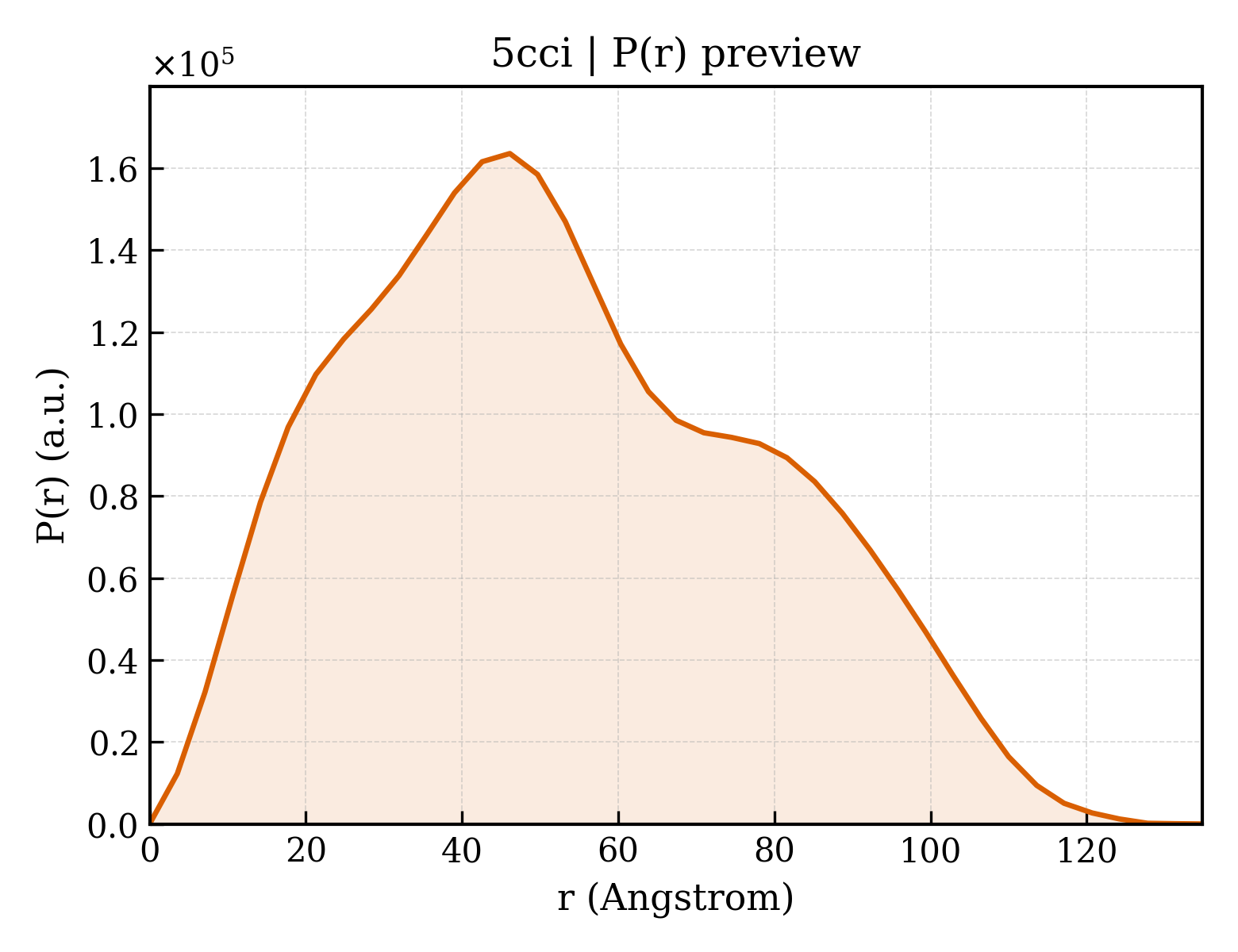

5cci__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.83 Å
Rg (electron density)	43.03 Å
Total Rg	43.01 Å
Atom count	8489
Residues	1082
Excluded volume	150630 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5cci__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Vesicle-associated membrane protein 2
Molecular weight formula_weight	7231.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6406

GSNRRLQQTQAQVDEVVDIMRVNVDKVLERDQKLSELDDRADALQAGASQFETSAAKLKRKYW

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Syntaxin-1A
Molecular weight formula_weight	7838.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MALSEIETRHSEIIKLENSIRELHDMFMDMAMLVESQGEMIDRIEYNVEHAVDYVERAVSDTKKAVK

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Synaptosomal-associated protein 25
Molecular weight formula_weight	9030.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MRNELEEMQRRADQLADESLESTRRMLQLVEESKDAGIRTLVMLDEQGEQLDRVEEGMNHINQDMKEAEKNLKDLGK

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Synaptosomal-associated protein 25
Molecular weight formula_weight	7471.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MARENEMDENLEQVSGIIGNLRHMALDMGNEIDTQNRQIDRIMEKADSNKTRIDEANQRATKMLG

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Synaptotagmin-1
Molecular weight formula_weight	32247.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

KLGKLQYSLDYDFQNNQLLVGIIQAAELPALDMGGTSDPYVKVFLLPDKKKKFETKVHRKTLNPVFNEQFTFKVPYSELGGKTLVMAVYDFDRFSKHDIIGEFKVPMNTVDFGHVTEEWRDLQSAEKEEQEKLGDICFSLRYVPTAGKLTVVILEAKNLKKMDVGGLSDPYVKIHLMQNGKRLKKKKTTIKKNTLNPYYNESFSFEVPFEQIQKVQVVVTVLDYDKIGKNDAIGKVFVGYNSTGAELRHWSDMLANPRRPIAQWHTLQVEEEVDAMLAVKK

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	69.064 Å
Unit-cell length b length_b	171.759 Å
Unit-cell length c length_c	146.561 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	4.100 Å
Low-resolution limit resolution_low	48.240 Å
R factor r_factor	0.2790
R_work r_work	0.2760
R_free r_free	0.3230

Structure of the Mg2+-bound synaptotagmin-1 SNARE complex (short unit cell form)
