5w5c

Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2AB complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vesicle-associated membrane protein 2

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Syntaxin-1A × 2 （P32851） Synaptosomal-associated protein 25 × 2 （P60881） Synaptosomal-associated protein 25 × 2 （P60881） Complexin-1 × 2 （P63041） Synaptotagmin-1 × 2 （P21707） MAGNESIUM ION × 2 GLYCEROL × 10 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VAMP2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–40； UniProt 28–66

Syntaxin-1A

Rattus norvegicus

UniProt P32851

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Vesicle-associated membrane protein 2 × 2 （P63045） Synaptosomal-associated protein 25 × 2 （P60881） Synaptosomal-associated protein 25 × 2 （P60881） Complexin-1 × 2 （P63041） Synaptotagmin-1 × 2 （P21707） MAGNESIUM ION × 2 GLYCEROL × 10 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STX1A_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–67； UniProt 191–256

Synaptosomal-associated protein 25

Rattus norvegicus

UniProt P60881

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Vesicle-associated membrane protein 2 × 2 （P63045） Syntaxin-1A × 2 （P32851） Complexin-1 × 2 （P63041） Synaptotagmin-1 × 2 （P21707） MAGNESIUM ION × 2 GLYCEROL × 10 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SNP25_RAT
Isoform	P60881-2
PDB entities	3, 4
Chains and sequence ranges	Author chain C； PDBConstruct 1–77； UniProt 7–83 Author chain D； PDBConstruct 2–65； UniProt 141–204

Complexin-1

Rattus norvegicus

UniProt P63041

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Vesicle-associated membrane protein 2 × 2 （P63045） Syntaxin-1A × 2 （P32851） Synaptosomal-associated protein 25 × 2 （P60881） Synaptosomal-associated protein 25 × 2 （P60881） Synaptotagmin-1 × 2 （P21707） MAGNESIUM ION × 2 GLYCEROL × 10 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPLX1_RAT
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–83； UniProt 1–83

Synaptotagmin-1

Rattus norvegicus

UniProt P21707

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Vesicle-associated membrane protein 2 × 2 （P63045） Syntaxin-1A × 2 （P32851） Synaptosomal-associated protein 25 × 2 （P60881） Synaptosomal-associated protein 25 × 2 （P60881） Complexin-1 × 2 （P63041） MAGNESIUM ION × 2 GLYCEROL × 10 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYT1_RAT
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–282； UniProt 140–421

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5w5c
Deposition date deposition_date	2017-06-14
Structure title title	Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2AB complex
Keywords keywords	;Prefusion primed complex, Neuronal Exocytosis, Synaptotagmin, SNARE complex, Complexin, synchronous neurotransmitter release, EXOCYTOSIS ;; EXOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5w5c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

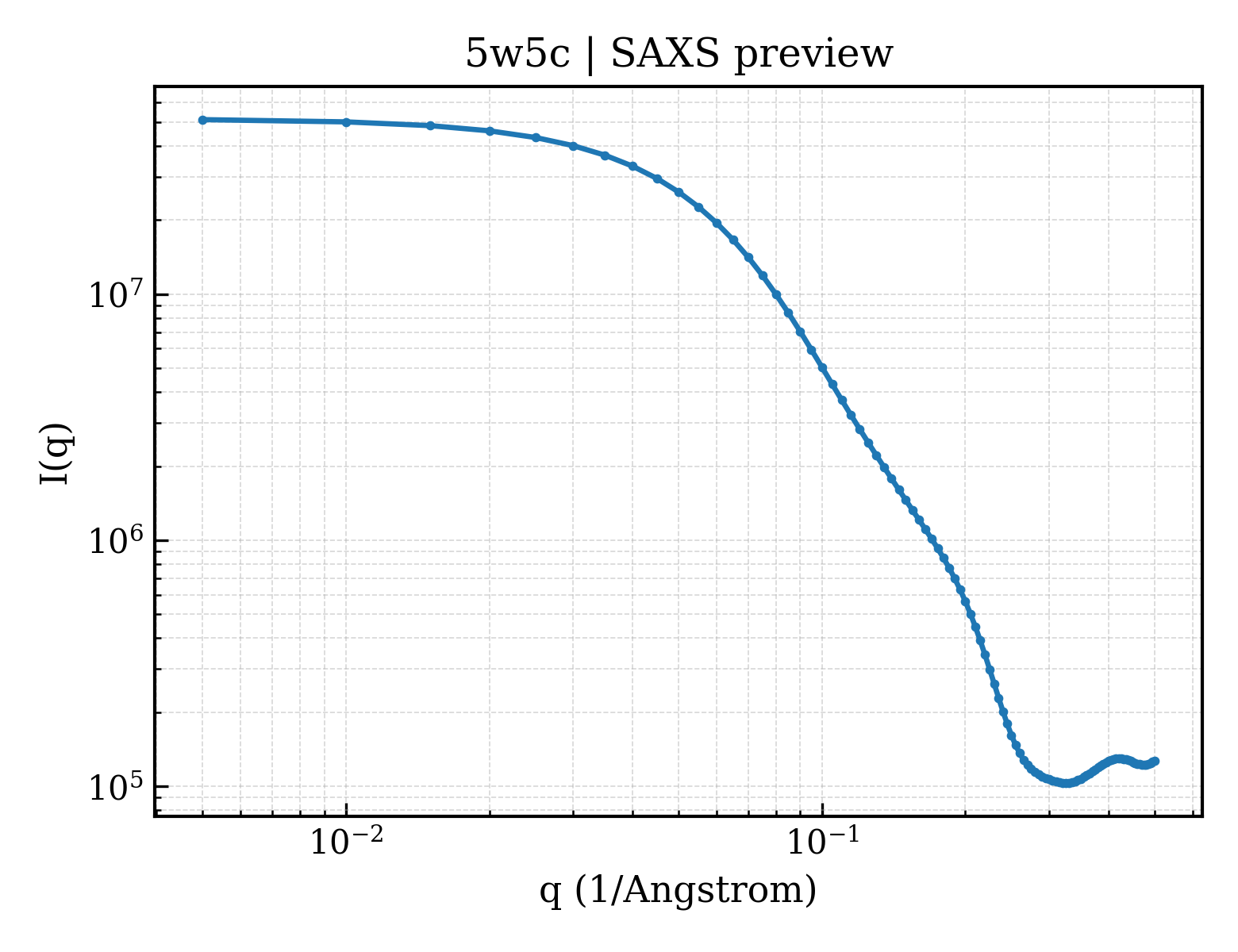

5w5c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5w5c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.98 Å
Rg (electron density)	37.29 Å
Total Rg	37.29 Å
Atom count	7478
Residues	996
Excluded volume	131250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5w5c__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Vesicle-associated membrane protein 2
Molecular weight formula_weight	4704.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4044

GSNRRLQQTQAQVDEVVDIMRVNVDKVLERDQKLSELDDR

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Syntaxin-1A
Molecular weight formula_weight	7838.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MALSEIETRHSEIIKLENSIRELHDMFMDMAMLVESQGEMIDRIEYNVEHAVDYVERAVSDTKKAVK

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Synaptosomal-associated protein 25
Molecular weight formula_weight	9030.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MRNELEEMQRRADQLADESLESTRRMLQLVEESKDAGIRTLVMLDEQGEQLDRVEEGMNHINQDMKEAEKNLKDLGK

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Synaptosomal-associated protein 25
Molecular weight formula_weight	7471.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MARENEMDENLEQVSGIIGNLRHMALDMGNEIDTQNRQIDRIMEKADSNKTRIDEANQRATKMLG

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Complexin-1
Molecular weight formula_weight	9612.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MEFVMKQALGGATKDMGKMLGGDEEKDPDAAKKEEERQEALRQAEEERKAKYAKMEAEREVMRQGIRDKYGIKKKEEREAEAQ

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Synaptotagmin-1
Molecular weight formula_weight	32376.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

EKLGKLQYSLDYDFQNNQLLVGIIQAAELPALDMGGTSDPYVKVFLLPDKKKKFETKVHRKTLNPVFNEQFTFKVPYSELGGKTLVMAVYDFDRFSKHDIIGEFKVPMNTVDFGHVTEEWRDLQSAEKEEQEKLGDICFSLRYVPTAGKLTVVILEAKNLKKMDVGGLSDPYVKIHLMQNGKRLKKKKTTIKKNTLNPYYNESFSFEVPFEQIQKVQVVVTVLDYDKIGKNDAIGKVFVGYNSTGAELRHWSDMLANPRRPIAQWHTLQVEEEVDAMLAVKK

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	279

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d5w5cb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d5w5cc_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d5w5cd_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d5w5cf1
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.2 — Synaptotagmin-like (S variant)

Domain ID domain_id	d5w5cf2
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.2 — Synaptotagmin-like (S variant)

CATH v4.4 (3 domains)

Domain ID domain_id	5w5cD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	5w5cF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

Domain ID domain_id	5w5cF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

▶

Unit-cell length a length_a	85.663 Å
Unit-cell length b length_b	89.683 Å
Unit-cell length c length_c	91.728 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	64.126 Å
R factor r_factor	0.1961
R_work r_work	0.1949
R_free r_free	0.2320

Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2AB complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vesicle-associated membrane protein 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Syntaxin-1A

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Synaptosomal-associated protein 25

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Complexin-1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Synaptotagmin-1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

5w5c__assembly_1__model_1

5w5c__assembly_1__model_1 | I(q)

5w5c__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 polymer

Polymer Polymer

Source Source

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (5 domains)

CATH v4.4 (3 domains)

7. Citations (1)
