SAXSdb — 8c5h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Synaptotagmin-1

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain S； UniProt 142–265	Not recorded	NbSyt1 nanobody × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.15 M Di-Malic acid pH 7.0, 20% PEG 3350	Resolution 1.68 Å R-free 0.222

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8C5H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BYN SOLUTION STRUCTURE OF THE CALCIUM-BOUND FIRST C2-DOMAIN OF SYNAPTOTAGMIN I Deposited 1998-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 140–267（128 aa） Fragment：C2A-DOMAIN	Not recorded	CA CALCIUM ION × 3	SOLUTION NMR NMR measurement conditions pH 5；307 K；Ionic strength (raw mmCIF value) 100 mM NACL	Resolution not provided
1K5W THREE-DIMENSIONAL STRUCTURE OF THE SYNAPTOTAGMIN 1 C2B-DOMAIN: SYNAPTOTAGMIN 1 AS A PHOSPHOLIPID BINDING MACHINE Deposited 2001-10-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 270–421（152 aa） Fragment：Residues 270-421, C2B-Domain	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 6.3；303 K；Ionic strength (raw mmCIF value) 150mM NaCl；Pressure 1 NMR sample composition 0.0013M 15N, 13C C2B-Domain \| 50mM Mes 2mM DTT 20mM CaCl2 5%D2O NMR sample composition 1.3mM 15N, C2B-Domain \| 50mM Mes 2mM DTT 20mM CaCl2 5%D2O NMR sample composition 0.4mM 15N, C2B-Domain \| 50mM Mes 2mM DTT 0.5mM EDTA 5%D2O NMR sample composition 1mM 10% 13C, C2B-Domain \| 50mM Mes 2mM DTT 20mM CaCl2 5%D2O	Resolution not provided
1RSY STRUCTURE OF THE FIRST C2-DOMAIN OF SYNAPTOTAGMIN I: A NOVEL CA2+(SLASH)PHOSPHOLIPID BINDING FOLD Deposited 1995-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 132–266（135 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.249
1TJM Crystallographic Identification of Sr2+ Coordination Site in Synaptotagmin I C2B Domain Deposited 2004-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 271–421（151 aa） Fragment：C2B domain	Not recorded	SR STRONTIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.18 Å R-free 0.174
1TJX Crystallographic Identification of Ca2+ Coordination Sites in Synaptotagmin I C2B Domain Deposited 2004-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 296–446（151 aa） Fragment：C2B domain, residues 296-446	Not recorded	CA CALCIUM ION × 2 ACT ACETATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；277 K；ammonium sulfate , pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K, pH 5.00	Resolution 1.04 Å R-free 0.184
1UOV Calcium binding domain C2B Deposited 2003-09-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 271–421（151 aa） Fragment：C2B DOMAIN, RESIDUES 271-421	Not recorded	CA CALCIUM ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；pH 5.00	Resolution 1.65 Å R-free 0.196
1UOW Calcium binding domain C2B Deposited 2003-09-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 271–421（151 aa） Fragment：C2B DOMAIN, RESIDUES 271-421	Not recorded	CA CALCIUM ION × 2 GOL GLYCEROL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；pH 5.00	Resolution 1.04 Å R-free 0.184
2YOA Synaptotagmin-1 C2B domain with phosphoserine Deposited 2012-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 271–421（151 aa） Fragment：C2B DOMAIN, RESIDUES 271-421	Not recorded	CA CALCIUM ION × 4 SEP PHOSPHOSERINE × 1 SCN THIOCYANATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M KSCN, 20 % PEG 600	Resolution 1.50 Å R-free 0.204
2YOA Synaptotagmin-1 C2B domain with phosphoserine Deposited 2012-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 271–421（151 aa） Fragment：C2B DOMAIN, RESIDUES 271-421	Not recorded	CA CALCIUM ION × 3 SEP PHOSPHOSERINE × 1 SCN THIOCYANATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M KSCN, 20 % PEG 600	Resolution 1.50 Å R-free 0.204
4WEE High-resolution structure of Synaptotagmin 1 C2A Deposited 2014-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 140–266（127 aa） Fragment：UNP residues 140-266	Not recorded	NA SODIUM ION × 7 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；1.5M ammonium sulfate, 1% PEG400	Resolution 0.89 Å R-free 0.164
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain E 141–421（281 aa） Fragment：UNP residues 141-421 Chain F 141–421（281 aa） Fragment：UNP residues 141-421	Not recorded	CA CALCIUM ION × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 3.50 Å R-free 0.352
5CCG Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) Deposited 2015-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain K 141–421（281 aa） Fragment：UNP residues 141-421	Not recorded	CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 3.50 Å R-free 0.352
5CCH Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain E 141–421（281 aa） Fragment：UNP residues 141-421 Chain F 141–421（281 aa） Fragment：UNP residues 141-421	Not recorded	CA CALCIUM ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 3.60 Å R-free 0.289
5CCI Structure of the Mg2+-bound synaptotagmin-1 SNARE complex (short unit cell form) Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain E 141–421（281 aa） Fragment：UNP residues 141-421 Chain F 141–421（281 aa） Fragment：UNP residues 141-421	Not recorded	MG MAGNESIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.75% v/v PEG3350, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2	Resolution 4.10 Å R-free 0.323
5CCJ Crystal structure of the quintuple mutant of the synaptotagmin-1 C2B domain Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 271–421（151 aa） Fragment：UNP residues 271-421	Mutation：R281A, E295A, Y338W, R398A, R399A	GOL GLYCEROL × 6 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；1.5 M Ammioum sulfate, 100 mM Tris-HCl, 150 mM NaCl	Resolution 1.65 Å R-free 0.178
5CCJ Crystal structure of the quintuple mutant of the synaptotagmin-1 C2B domain Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 271–421（151 aa） Fragment：UNP residues 271-421	Mutation：R281A, E295A, Y338W, R398A, R399A	GOL GLYCEROL × 7 SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；1.5 M Ammioum sulfate, 100 mM Tris-HCl, 150 mM NaCl	Resolution 1.65 Å R-free 0.178
5CCJ Crystal structure of the quintuple mutant of the synaptotagmin-1 C2B domain Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 271–421（151 aa） Fragment：UNP residues 271-421	Mutation：R281A, E295A, Y338W, R398A, R399A	GOL GLYCEROL × 6 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；1.5 M Ammioum sulfate, 100 mM Tris-HCl, 150 mM NaCl	Resolution 1.65 Å R-free 0.178
5CCJ Crystal structure of the quintuple mutant of the synaptotagmin-1 C2B domain Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 271–421（151 aa） Fragment：UNP residues 271-421	Mutation：R281A, E295A, Y338W, R398A, R399A	GOL GLYCEROL × 8 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；1.5 M Ammioum sulfate, 100 mM Tris-HCl, 150 mM NaCl	Resolution 1.65 Å R-free 0.178
5CCJ Crystal structure of the quintuple mutant of the synaptotagmin-1 C2B domain Deposited 2015-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 271–421（151 aa） Fragment：UNP residues 271-421 Chain B 271–421（151 aa） Fragment：UNP residues 271-421 Chain C 271–421（151 aa） Fragment：UNP residues 271-421 Chain D 271–421（151 aa） Fragment：UNP residues 271-421	Mutation：R281A, E295A, Y338W, R398A, R399A Mutation：R281A, E295A, Y338W, R398A, R399A Mutation：R281A, E295A, Y338W, R398A, R399A Mutation：R281A, E295A, Y338W, R398A, R399A	GOL GLYCEROL × 27 SO4 SULFATE ION × 22	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；1.5 M Ammioum sulfate, 100 mM Tris-HCl, 150 mM NaCl	Resolution 1.65 Å R-free 0.178
5KJ7 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from XFEL diffraction Deposited 2016-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 141–419（279 aa） Fragment：UNP residues 141-419	Not recorded	CA CALCIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 3.50 Å R-free 0.329
5KJ7 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from XFEL diffraction Deposited 2016-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 141–419（279 aa） Fragment：UNP residues 141-419	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 3.50 Å R-free 0.329
5KJ7 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from XFEL diffraction Deposited 2016-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain K 141–419（279 aa） Fragment：UNP residues 141-419	Not recorded	CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 3.50 Å R-free 0.329
5KJ8 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from synchrotron diffraction Deposited 2016-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 141–419（279 aa） Fragment：UNP residues 141-419	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 4.10 Å R-free 0.297
5KJ8 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from synchrotron diffraction Deposited 2016-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 141–419（279 aa） Fragment：UNP residues 141-419	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 4.10 Å R-free 0.297
5KJ8 Structure of the Ca2+-bound synaptotagmin-1 SNARE complex (long unit cell form) - from synchrotron diffraction Deposited 2016-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain K 141–419（279 aa） Fragment：UNP residues 141-419	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.25% v/v PEG8000, 25 mM HEPES-Na, 75 mM NaCl, 25 mM MgCl2, 0.25 mM CaCl2	Resolution 4.10 Å R-free 0.297
5W5C Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2AB complex Deposited 2017-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain F 140–421（282 aa） Fragment：UNP residues 140-421	Not recorded	MG MAGNESIUM ION × 2 GOL GLYCEROL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；100 mM HEPES, pH7.4, 15-20% PEG3350, 200 mM ammonium formate	Resolution 1.85 Å R-free 0.232
5W5D Crystal structure of the primed SNARE-Complexin-Synaptotagmin-1 C2B complex Deposited 2017-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain F 270–421（152 aa） Fragment：UNP residues 270-421	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；100 mM HEPES, pH7.0, 15-17% PEG3350, 240 mM sodium malonate	Resolution 2.50 Å R-free 0.231
6CXW Synaptotagmin 1 C2A beta4 chimera with enhanced PIP2 binding function Deposited 2018-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 140–182（43 aa） Chain A 201–265（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；300 K；50% PEG-4000, 0.4 mM Sodium acetate, 100 mM Tris	Resolution 1.83 Å R-free 0.211
6MTI Synaptotagmin-1 C2A, C2B domains and SNARE-pin proteins (5CCI) individually docked into Cryo-EM map of C2AB-SNARE complexes helically organized on lipid nanotube surface in presence of Mg2+ Deposited 2018-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain 1 141–267（127 aa） Fragment：C2A domain, residues 141-267 Chain 2 141–421（281 aa） Fragment：C2A and C2B domains, residues 141-421 Chain 3 141–421（281 aa） Fragment：C2A and C2B domains, residues 141-421 Chain 4 141–421（281 aa） Fragment：C2A and C2B domains, residues 141-421 Chain 5 141–421（281 aa） Fragment：C2A and C2B domains, residues 141-421 Chain 6 141–267（127 aa） Fragment：C2A domain, residues 141-267	Not recorded	MG MAGNESIUM ION × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.40 Å

19 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SYT1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain S； PDBConstruct 9–132； UniProt 142–265

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8c5h
Deposition date deposition_date	2023-01-09
Structure title title	NbSyt1 anti-(rat Synaptotagmin-1) nanobody bound to target cytosolic domain of Synaptotagmin-1
Keywords keywords	Nanobody, Synaptotagmin 1, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.91 Å
Radius of gyration Rg (electron density) rg_electron	18.96 Å
Forward intensity I(0) i0	13603800.00
Molecular weight molecular_weight	27931.0 kDa
Excluded volume excluded_volume	35022 Å³
Envelope volume envelope_volume	39984 Å³
Hydration-shell volume shell_volume	17921 Å³
Envelope diameter envelope_diameter	68.5 Å
Shell Rg shell_rg	24.91 Å
Envelope Rg envelope_rg	19.32 Å
Shape Rg shape_rg	18.92 Å
Total Rg total_rg	19.94 Å
Total atoms total_atoms	1965
Residues n_residues	244
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

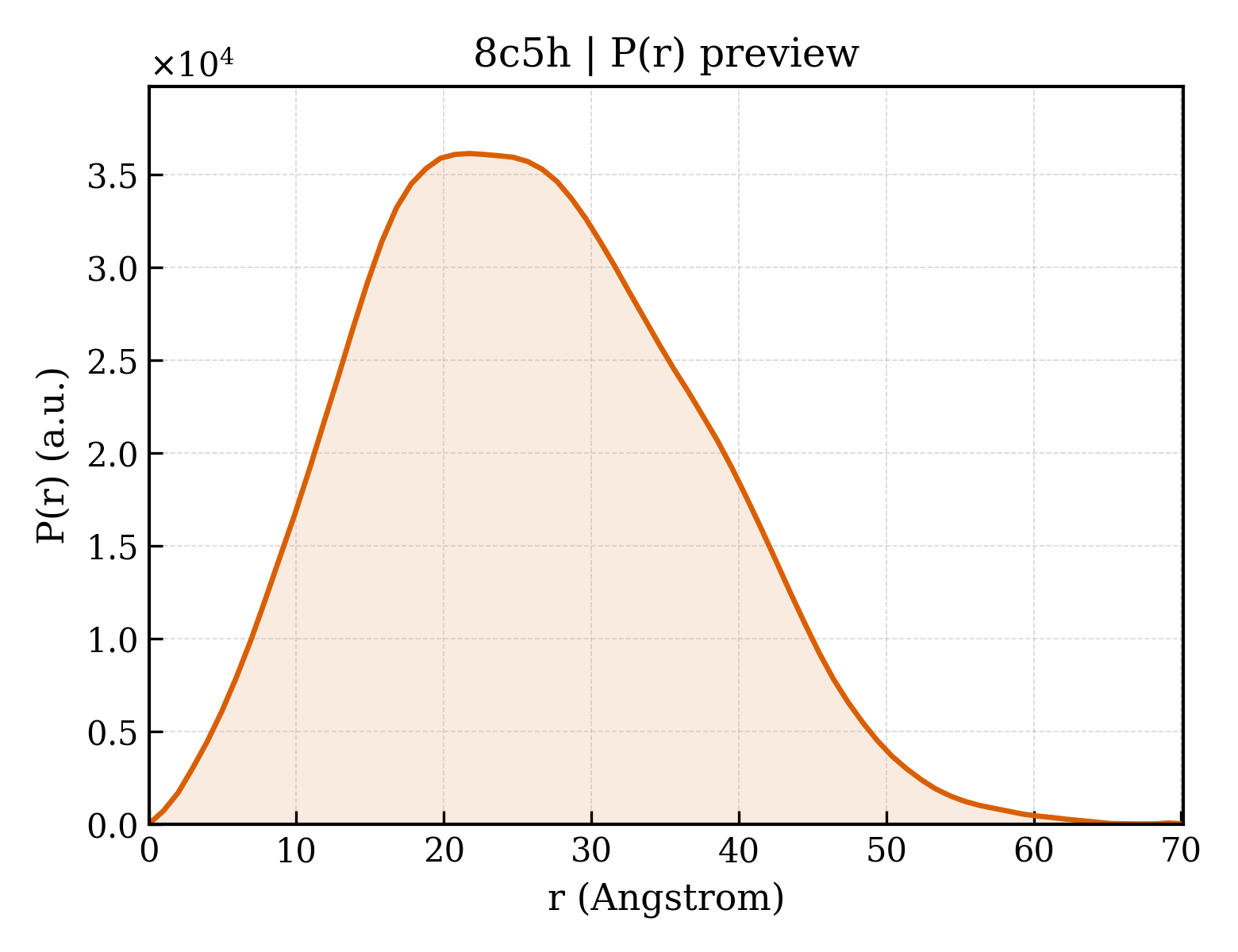

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.2 Å
Rg (real space) rg_real	19.86 Å
Rg uncertainty (real space) rg_real_error	0.63 Å
I(0) (real space) i0_real	1.3600e+07
I(0) uncertainty (real space) i0_real_error	1.8730e+05
Rg (reciprocal space) rg_reciprocal	19.87 Å
I(0) (reciprocal space) i0_reciprocal	13600000.0000
Solution quality estimate total_estimate	0.8572
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.7 Å
Skewness Skewness skewness	0.284
Kurtosis Kurtosis kurtosis	-0.376
Angular range angular_range	— – 0.4000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4389000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.753; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.921; Smooth: 0.975

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Synaptotagmin-1
Molecular weight formula_weight	15365.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S
Atom count atom_count	2034

MHHHHHHHLGKLQYSLDYDFQNNQLLVGIIQAAELPALDMGGTSDPYVKVFLLPDKKKKFETKVHRKTLNPVFNEQFTFKVPYSELGGKTLVMAVYDFDRFSKHDIIGEFKVPMNTVDFGHVTEEWRDLQSA

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	NbSyt1 nanobody
Molecular weight formula_weight	13537.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

SGDASDSEVQLEESGGGLVRPGGSLRLSCAASGFPFSKYFMSWVRQAPGKGLEWVSTISASGNYETYTESVKGRFTIARDNAKNTLYLQMNSLKPEDTAVYYCAKGSWARDMTRGQGTQVTVSSE

来源 Source

来源生物 organism	Vicugna pacos
NCBI Class编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	46

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	8c5hN01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	52.410 Å
Unit-cell length b length_b	65.750 Å
Unit-cell length c length_c	66.910 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.680 Å
Low-resolution limit resolution_low	41.260 Å
R factor r_factor	0.2098
R_work r_work	0.2091
R_free r_free	0.2216

fit	/app/data/saxs_computation/c5/8c5h/8c5h.fit
pddf	/app/data/pr_computation/c5/8c5h/8c5h.pr.out
profile	/app/data/saxs_computation/c5/8c5h/8c5h.dat
