SAXSdb — 9pec

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9pec
沉积日期 deposition_date	2025-07-02
结构标题 title	Cryo-EM structure of Arabidopsis thaliana Met1 (RFTS free)
关键词 keywords	DNA (cytosine-5)-methyltransferase, TRANSFERASE; TRANSFERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.75 Å
回转半径 Rg (电子) rg_electron	29.86 Å
零角强度 I(0) i0	94274700.00
分子量 molecular_weight	76455.0 kDa
排除体积 excluded_volume	95671 Å³
包络体积 envelope_volume	127930 Å³
水化壳体积 shell_volume	36228 Å³
包络直径 envelope_diameter	102.5 Å
壳层 Rg shell_rg	36.64 Å
包络 Rg envelope_rg	29.77 Å
形状 Rg shape_rg	29.82 Å
总 Rg total_rg	30.64 Å
总原子数 total_atoms	5383
残基数 n_residues	678
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	96.8 Å
Rg (实空间) rg_real	30.71 Å
Rg 误差 (实空间) rg_real_error	0.69 Å
I(0) (实空间) i0_real	9.4270e+07
I(0) 误差 (实空间) i0_real_error	1.2820e+06
Rg (倒空间) rg_reciprocal	30.73 Å
I(0) (倒空间) i0_reciprocal	94280000.0000
解质量估计 total_estimate	0.9014
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.5 Å
偏度 Skewness skewness	0.260
峰度 Kurtosis kurtosis	-0.526
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	19900000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.951; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.865

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	DNA (cytosine-5)-methyltransferase 1
分子量 formula_weight	169669.5 kDa
EC 编号 ec_number	2.1.1.37
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5383

STRRPRRAAACTSFKEKSIRVCEKSATIEVKKQQIVEEEFLALRLTALETDVEDRPTRRLNDFVLFDSDGVPQPLEMLEIHDIFVSGAILPSDVCTDKEKEKGVRCTSFGRVEHWSISGYEDGSPVIWISTELADYDCRKPAASYRKVYDYFYEKARASVAVYKKLSKSSGGDPDIGLEELLAAVVRSMSSGSKYFSSGAAIIDFVISQGDFIYNQLAGLDETAKKHESSYVEIPVLVALREKSSKIDKPLQRERNPSNGVRIKEVSQVAESEALTSDQLVDGTDDDRRYAILLQDEENRKSMQQPRKNSSSGSASNMFYIKINEDEIANDYPLPSYYKTSEEETDELILYDASYEVQSEHLPHRMLHNWALYNSDLRFISLELLPMKQCDDIDVNIFGSGVVTDDNGSWISLNDPDSGSQSHDPDGMCIFLSQIKEWMIEFGSDDIISISIRTDVAWYRLGKPSKLYAPWWKPVLKTARVGISILTFLRVESRVARLSFADVTKRLSGLQANDKAYISSDPLAVERYLVVHGQIILQLFAVYPDDNVKRCPFVVGLASKLEDRHHTKWIIKKKKISLKELNLNPRAGMAPVASKRKAMQATTTRLVNRIWGEFYSNYSPEDPLQATAAENGEDEVEEEGGNGEEEVEEEGENGLTEDTVPEPVEVQKPHTPKKIRGSSGKREIKWDGESLGKTSAGEPLYQQALVGGEMVAVGGAVTLEVDDPDEMPAIYFVEYMFESTDHCKMLHGRFLQRGSMTVLGNAANERELFLTNECMTTQLKDIKGVASFEIRSRPWGHQYRKKNITADKLDWARALERKVKDLPTEYYCKSLYSPERGGFFSLPLSDIGRSSGFCTSCKIREDEEKRSTIKLNVSKTGFFINGIEYSVEDFVYVNPDSIGGLKEGSKTSFKSGRNIGLRAYVVCQLLEIVPKESRKADLGSFDVKVRRFYRPEDVSAEKAYASDIQELYFSQDTVVLPPGALEGKCEVRKKSDMPLSREYPISDHIFFCDLFFDTSKGSLKQLPANMKPKFSTIKDDTLLRKKKGKGVESEIESEIVKPVEPPKEIRLATLDIFAGCGGLSHGLKKAGVSDAKWAIEYEEPAGQAFKQNHPESTVFVDNCNVILRAIMEKGGDQDDCVSTTEANELAAKLTEEQKSTLPLPGQVDFINGGPPCQGFSGMNRFNQSSWSKVQCEMILAFLSFADYFRPRYFLLENVRTFVSFNKGQTFQLTLASLLEMGYQVRFGILEAGAYGVSQSRKRAFIWAAAPEEVLPEWPEPMHVFGVPKLKISLSQGLHYAAVRSTALGAPFRPITVRDTIGDLPSVENGDSRTNKEYKEVAVSWFQKEIRGNTIALTDHICKAMNELNLIRCKLIPTRPGADWHDLPKRKVTLSDGRVEEMIPFCLPNTAERHNGWKGLYGRLDWQGNFPTSVTDPQPMGKVGMCFHPEQHRILTVRECARSQGFPDSYEFAGNINHKHRQIGNAVPPPLAFALGRKLKEALHLKKSPQHQP

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	thale cress
NCBI 分类编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	S-ADENOSYL-L-HOMOCYSTEINE
分子量 formula_weight	384.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.29 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	266522

fit	/app/data/saxs_computation/pe/9pec/9pec.fit
pddf	/app/data/pr_computation/pe/9pec/9pec.pr.out
profile	/app/data/saxs_computation/pe/9pec/9pec.dat

Cryo-EM structure of Arabidopsis thaliana Met1 (RFTS free)

SAXS 散射曲线 SAXS Profile

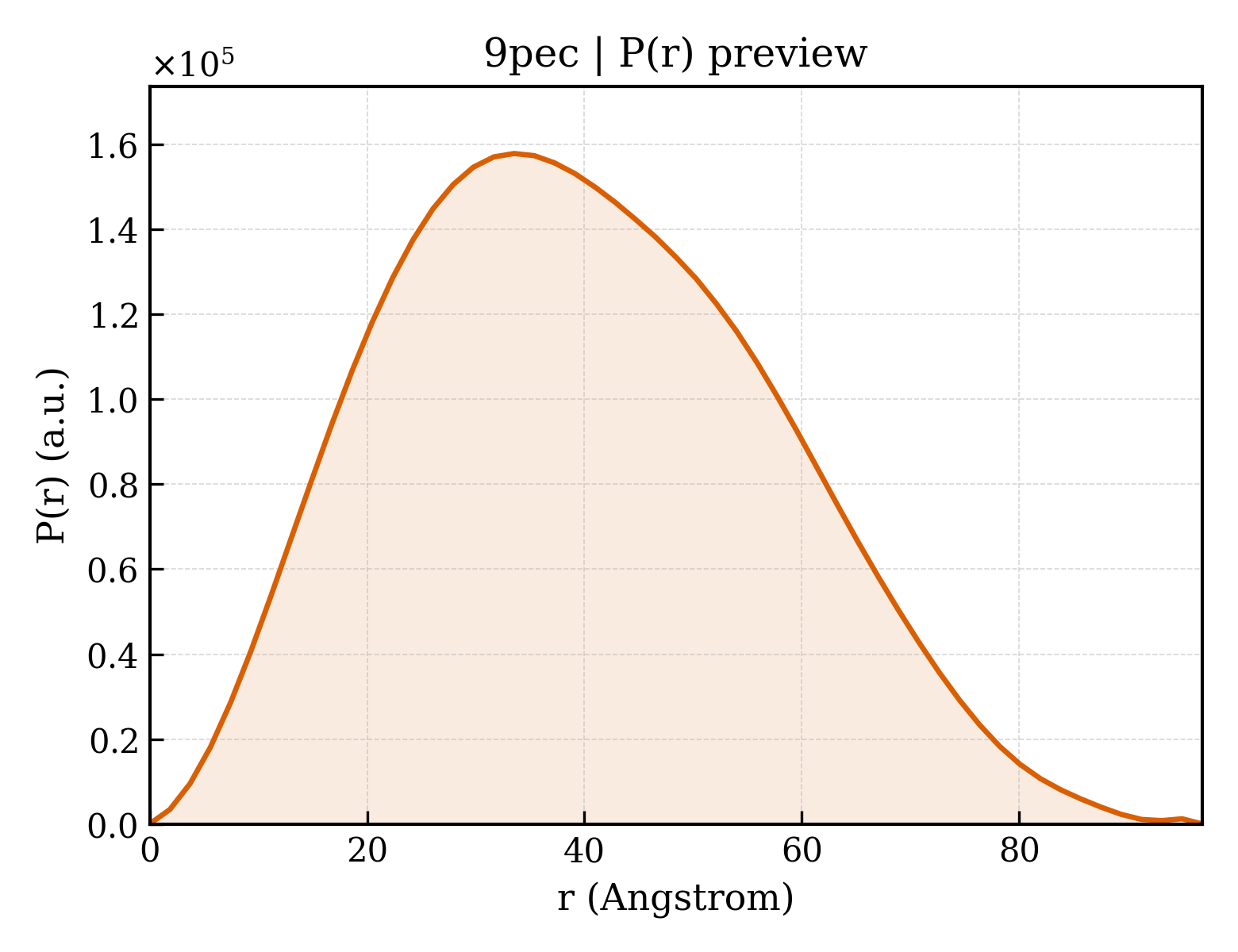

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D
