SAXSdb — 9phh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin polyglutamylase TTLL5, Isoform 6 of X-linked retinitis pigmentosa GTPase regulator chimera

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TTLL5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–164； UniProt 658–820

Tubulin polyglutamylase TTLL5, Isoform 6 of X-linked retinitis pigmentosa GTPase regulator chimera

Homo sapiens

UniProt Q92834

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPGR_HUMAN
Isoform	Q92834-6
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 183–209； UniProt 1126–1152

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9phh
Deposition date deposition_date	2025-07-09
Last revision last_revision	2026-04-15
Structure title title	TTLL5 CID-RPGR BD Complex
Keywords keywords	Complex, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9phh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

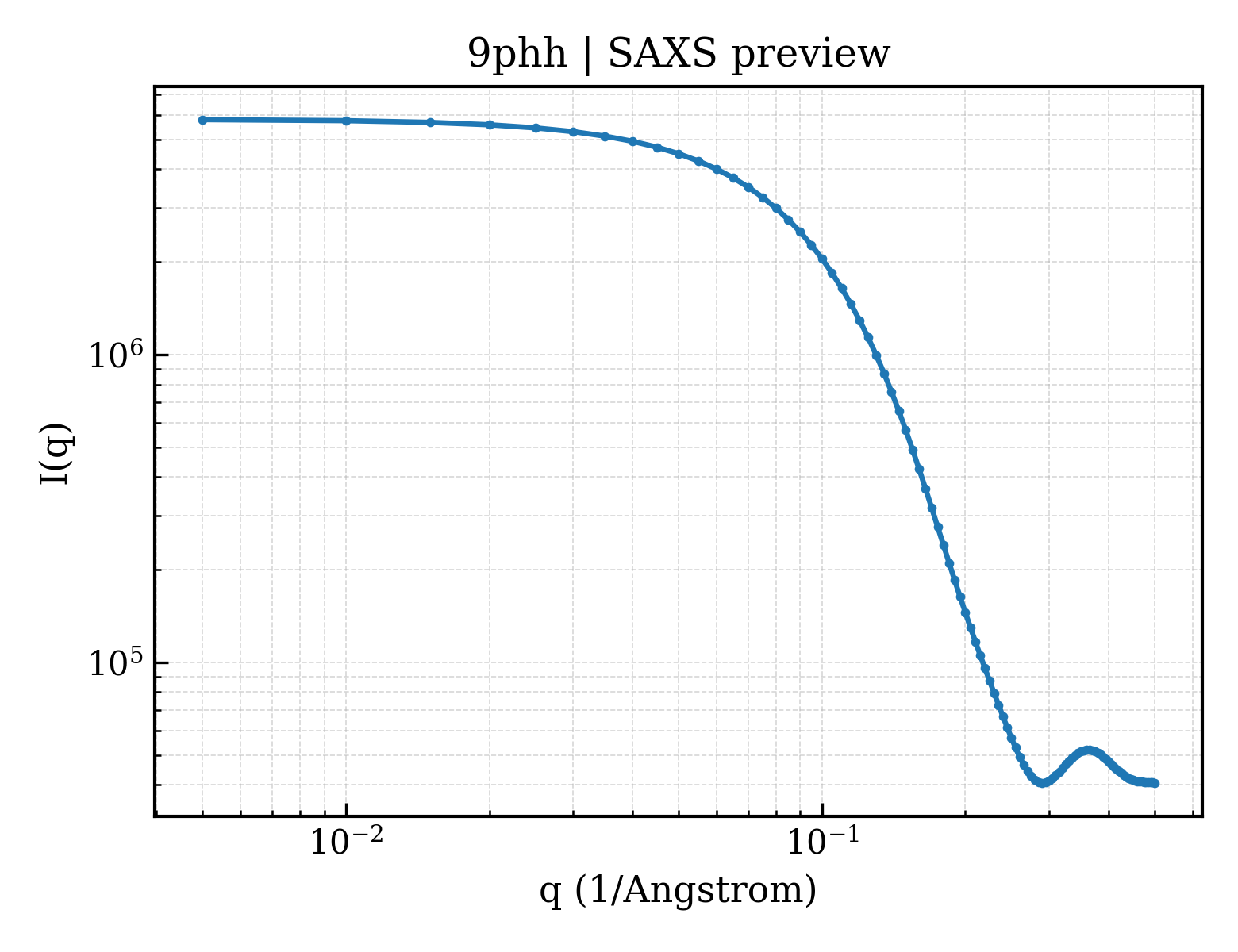

9phh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9phh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.59 Å
Rg (electron density)	16.23 Å
Total Rg	17.31 Å
Atom count	1223
Residues	164
Excluded volume	21735 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9phh__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	62.906 Å
Unit-cell length b length_b	62.906 Å
Unit-cell length c length_c	166.631 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	tetragonal

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	42.980 Å
R factor r_factor	0.2607
R_work r_work	0.2576
R_free r_free	0.2891

Description description	Tubulin polyglutamylase TTLL5, Isoform 6 of X-linked retinitis pigmentosa GTPase regulator chimera
Molecular weight formula_weight	23751.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1223

TTLL5 CID-RPGR BD Complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin polyglutamylase TTLL5, Isoform 6 of X-linked retinitis pigmentosa GTPase regulator chimera

State in the Current Structure

Other States of the Same Protein in the Database

Tubulin polyglutamylase TTLL5, Isoform 6 of X-linked retinitis pigmentosa GTPase regulator chimera

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

9phh__assembly_1__model_1

9phh__assembly_1__model_1 | I(q)

9phh__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli
