9pmd

Human OCTN2 in an inward-facing conformation

Method: ELECTRON MICROSCOPY Dmax: 105.3 Å Quality: GOOD

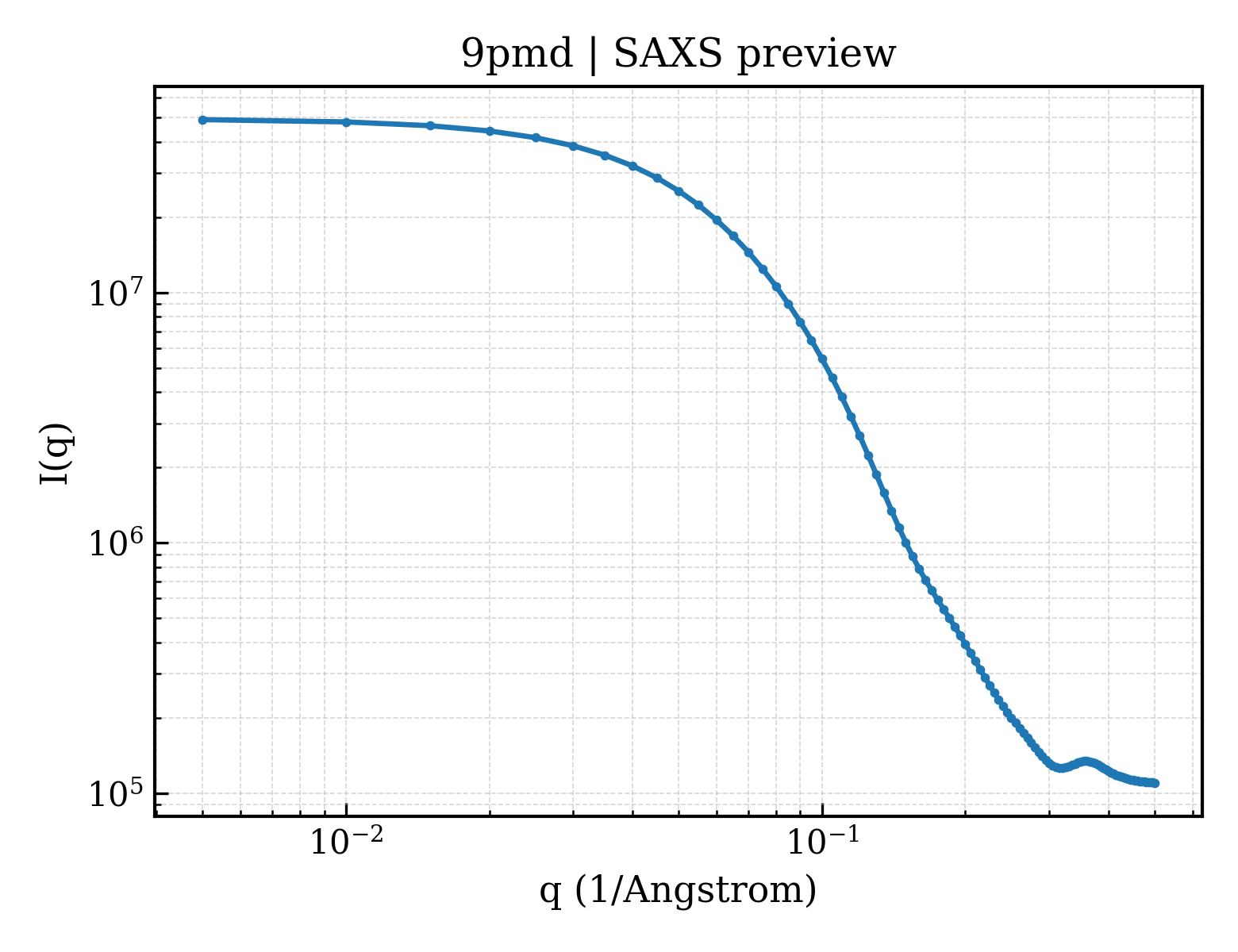

SAXS Profile

SAXS profile for 9pmd

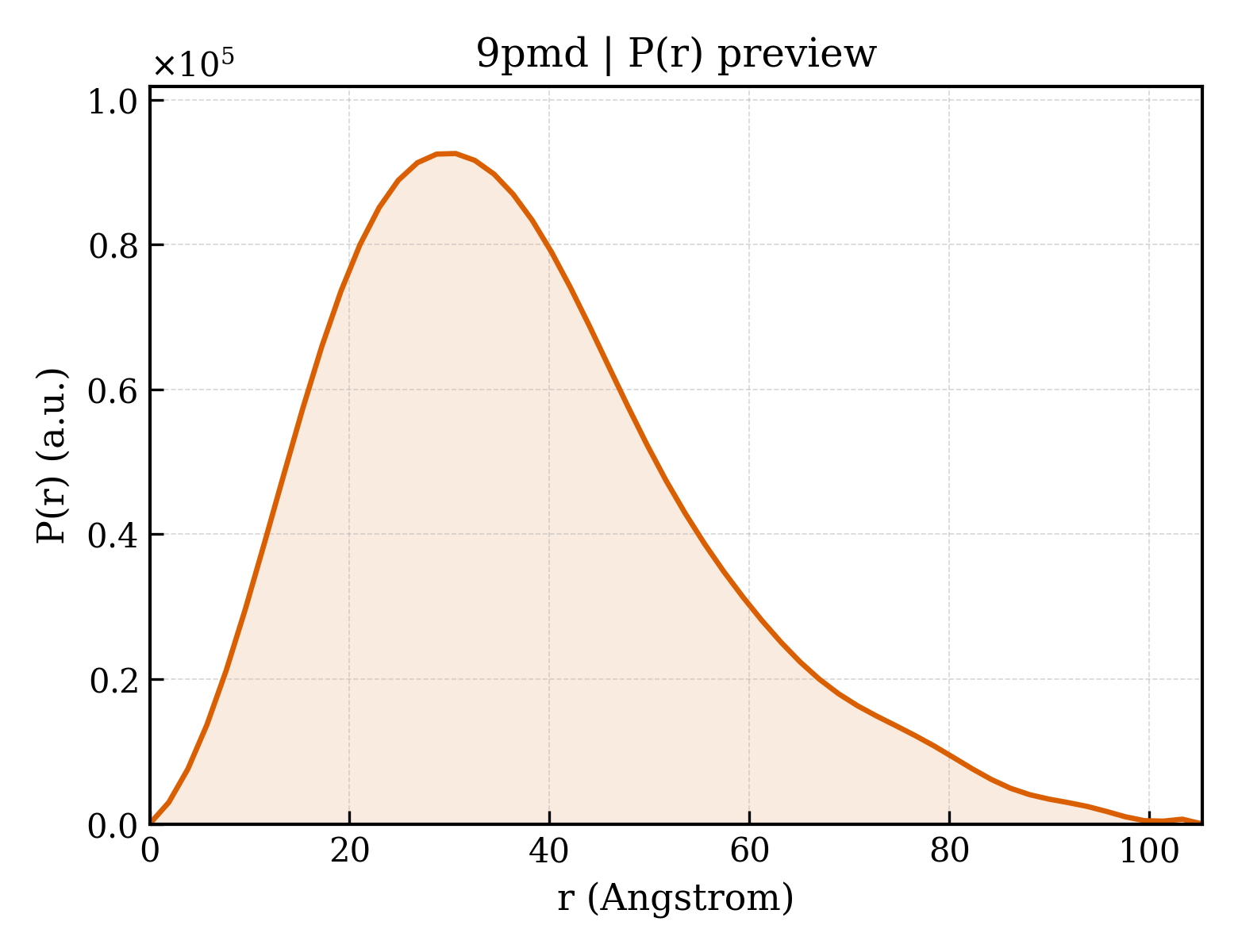

P(r) Distribution

P(r) distribution for 9pmd
▼

1. Structure Basics

entry_id9pmd
deposition_date2025-07-17
titleHuman OCTN2 in an inward-facing conformation
keywords;transporter, carnitine transporter, organic cation transporter, SLC22 family, sodium-dependent transport, membrane protein, solute carrier, metabolic transport, fatty acid oxidation, OCTN2, SLC22A5, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier28.71 Å
rg_electron27.79 Å
i049472000.00
molecular_weight59420.0 kDa
excluded_volume76260 ų
envelope_volume95089 ų
shell_volume30232 ų
envelope_diameter111.1 Å
shell_rg33.16 Å
envelope_rg28.36 Å
shape_rg27.80 Å
total_rg28.35 Å
total_atoms8433
n_residues528
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax105.3 Å
rg_real28.96 Å
rg_real_error0.92 Å
i0_real4.9470e+07
i0_real_error7.8670e+05
rg_reciprocal28.85 Å
i0_reciprocal49470000.0000
total_estimate0.8034
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary30.6 Å
skewness0.666
kurtosis0.187
angular_range— – 0.2750 Å−1
current_alpha0.0000
highest_alpha9538000.0000
n_real_points56
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.620; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.652; Smooth: 0.928
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

7. Files & Curves (10)
