SAXSdb — 9pqi

▼

1. Structure Basics

entry_id	9pqi
deposition_date	2025-07-22
title	NMR Structure of Ca2+/Calmodulin bound to the GluN2A C0 domain of the NMDA receptor
keywords	METAL BINDING PROTEIN; METAL BINDING PROTEIN
method	SOLUTION NMR

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	12.84 Å
rg_electron	12.38 Å
i0	165049000.00
molecular_weight	100690.0 kDa
excluded_volume	123090 Å³
envelope_volume	18017 Å³
shell_volume	11509 Å³
envelope_diameter	46.6 Å
shell_rg	19.05 Å
envelope_rg	13.81 Å
shape_rg	12.37 Å
total_rg	12.63 Å
total_atoms	13680
n_residues	870
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	41.4 Å
rg_real	12.74 Å
rg_real_error	0.23 Å
i0_real	1.6500e+08
i0_real_error	1.6970e+06
rg_reciprocal	12.75 Å
i0_reciprocal	165000000.0000
total_estimate	0.8570
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	17.3 Å
skewness	0.039
kurtosis	-0.160
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	155300.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.734; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.950

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Calmodulin-1
formula_weight	16852.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	13680

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	Glutamate receptor ionotropic, NMDA 2A
formula_weight	165481.9 kDa
src_method	syn
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MGRVGYWTLLVLPALLVWRGPAPSAAAEKGPPALNIAVMLGHSHDVTERELRTLWGPEQAAGLPLDVNVVALLMNRTDPKSLITHVCDLMSGARIHGLVFGDDTDQEAVAQMLDFISSHTFVPILGIHGGASMIMADKDPTSTFFQFGASIQQQATVMLKIMQDYDWHVFSLVTTIFPGYREFISFVKTTVDNSFVGWDMQNVITLDTSFEDAKTQVQLKKIHSSVILLYCSKDEAVLILSEARSLGLTGYDFFWIVPSLVSGNTELIPKEFPSGLISVSYDDWDYSLEARVRDGIGILTTAASSMLEKFSYIPEAKASCYGQMERPEVPMHTLHPFMVNVTWDGKDLSFTEEGYQVHPRLVVIVLNKDREWEKVGKWENHTLSLRHAVWPRYKSFSDCEPDDNHLSIVTLEEAPFVIVEDIDPLTETCVRNTVPCRKFVKINNSTNEGMNVKKCCKGFCIDILKKLSRTVKFTYDLYLVTNGKHGKKVNNVWNGMIGEVVYQRAVMAVGSLTINEERSEVVDFSVPFVETGISVMVSRSNGTVSPSAFLEPFSASVWVMMFVMLLIVSAIAVFVFEYFSPVGYNRNLAKGKAPHGPSFTIGKAIWLLWGLVFNNSVPVQNPKGTTSKIMVSVWAFFAVIFLASYTANLAAFMIQEEFVDQVTGLSDKKFQRPHDYSPPFRFGTVPNGSTERNIRNNYPYMHQYMTKFNQKGVEDALVSLKTGKLDAFIYDAAVLNYKAGRDEGCKLVTIGSGYIFATTGYGIALQKGSPWKRQIDLALLQFVGDGEMEELETLWLTGICHNEKNEVMSSQLDIDNMAGVFYMLAAAMALSLITFIWEHLFYWKLRFCFTGVCSDRPGLLFSISRGIYSCIHGVHIEEKKKSPDFNLTGSQSNMLKLLRSAKNISSMSNMNSSRMDSPKRAADFIQRGSLIMDMVSDKGNLMYSDNRSFQGKESIFGDNMNELQTFVANRQKDNLNNYVFQGQHPLTLNESNPNTVEVAVSTESKANSRPRQLWKKSVDSIRQDSLSQNPVSQRDEATAENRTHSLKSPRYLPEEMAHSDISETSNRATCHREPDNSKNHKTKDNFKRSVASKYPKDCSEVERTYLKTKSSSPRDKIYTIDGEKEPGFHLDPPQFVENVTLPENVDFPDPYQDPSENFRKGDSTLPMNRNPLHNEEGLSNNDQYKLYSKHFTLKDKGSPHSETSERYRQNSTHCRSCLSNMPTYSGHFTMRSPFKCDACLRMGNLYDIDEDQMLQETGNPATGEQVYQQDWAQNNALQLQKNKLRISRQHSYDNIVDKPRELDLSRPSRSISLKDRERLLEGNFYGSLFSVPSSKLSGKKSSLFPQGLEDSKRSKSLLPDHTSDNPFLHSHRDDQRLVIGRCPSDPYKHSLPSQAVNDSYLRSSLRSTASYCSRDSRGHNDVYISEHVMPYAANKNNMYSTPRVLNSCSNRRVYKKMPSIESDV

Entity 3 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

fit	/app/data/saxs_computation/pq/9pqi/9pqi.fit
pddf	/app/data/pr_computation/pq/9pqi/9pqi.pr.out
profile	/app/data/saxs_computation/pq/9pqi/9pqi.dat

NMR Structure of Ca2+/Calmodulin bound to the GluN2A C0 domain of the NMDA receptor

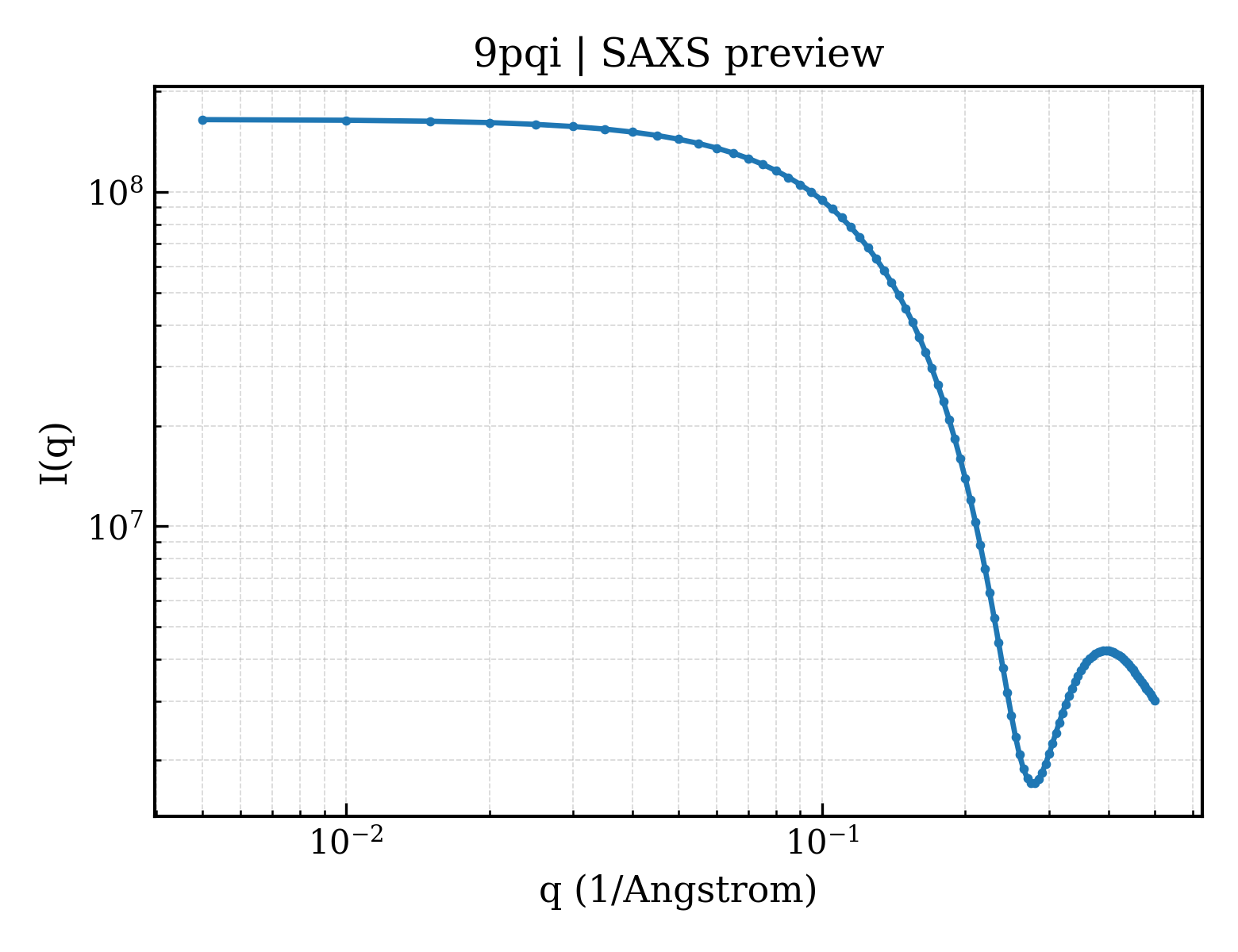

SAXS Profile

P(r) Distribution
