SAXSdb — 9pqx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-oxoacyl-ACP synthase

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	FLAVIN MONONUCLEOTIDE × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A9P1LAJ1_MYCTX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–3069； UniProt 1–3069 Author chain B； PDBConstruct 1–3069； UniProt 1–3069 Author chain C； PDBConstruct 1–3069； UniProt 1–3069 Author chain D； PDBConstruct 1–3069； UniProt 1–3069 Author chain E； PDBConstruct 1–3069； UniProt 1–3069 Author chain F； PDBConstruct 1–3069； UniProt 1–3069

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9pqx
Deposition date deposition_date	2025-07-23
Structure title title	Structure of M. tuberculosis type-I FAS in the apo state
Keywords keywords	Fatty acid synthase, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9pqx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

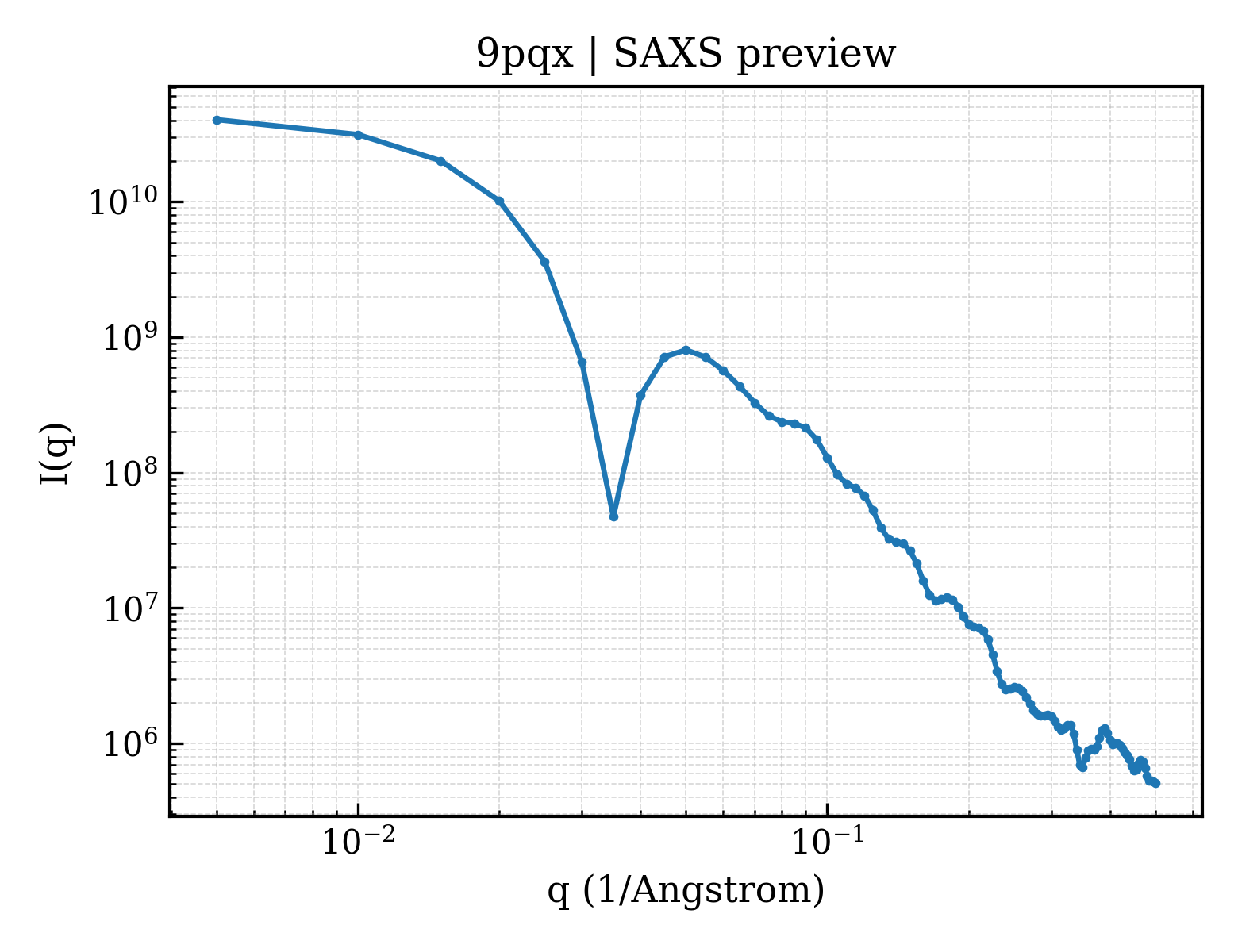

9pqx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

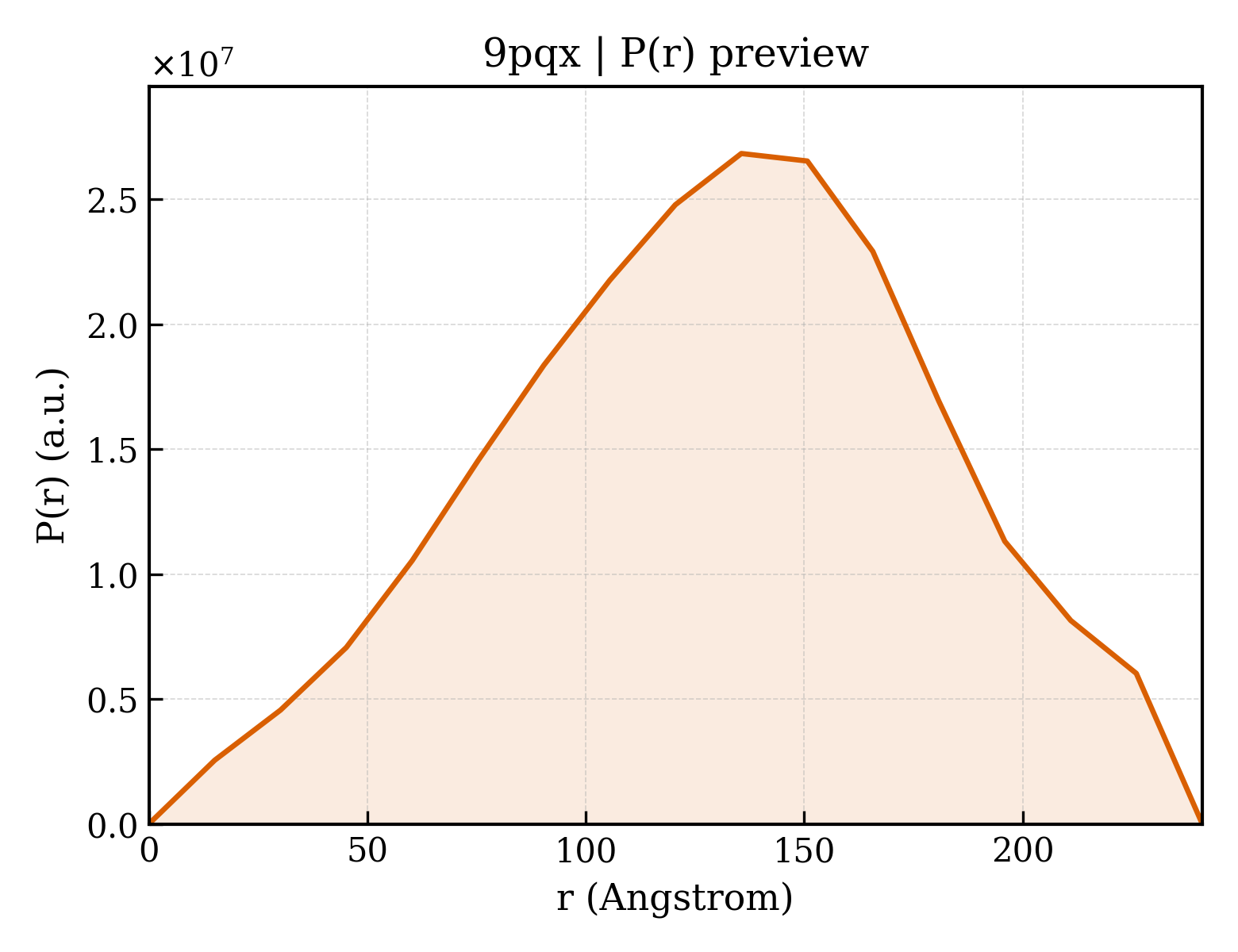

9pqx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	99.23 Å
Total Rg	99.28 Å
Atom count	124914
Residues	16620
Excluded volume	2212500 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9pqx__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	3-oxoacyl-ACP synthase
Molecular weight formula_weight	326601.6 kDa
EC 编号 ec_number	2.3.1.41
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	124914

MTIHEHDRVSADRGGDSPHTTHALVDRLMAGEPYAVAFGGQGSAWLETLEELVSATGIETELATLVGEAELLLDPVTDELIVVRPIGFEPLQWVRALAAEDPVPSDKHLTSAAVSVPGVLLTQIAATRALARQGMDLVATPPVAMAGHSQGVLAVEALKAGGARDVELFALAQLIGAAGTLVARRRGISVLGDRPPMVSVTNADPERIGRLLDEFAQDVRTVLPPVLSIRNGRRAVVITGTPEQLSRFELYCRQISEKEEADRKNKVRGGDVFSPVFEPVQVEVGFHTPRLSDGIDIVAGWAEKAGLDVALARELADAILIRKVDWVDEITRVHAAGARWILDLGPGDILTRLTAPVIRGLGIGIVPAATRGGQRNLFTVGATPEVARAWSSYAPTVVRLPDGRVKLSTKFTRLTGRSPILLAGMTPTTVDAKIVAAAANAGHWAELAGGGQVTEEIFGNRIEQMAGLLEPGRTYQFNALFLDPYLWKLQVGGKRLVQKARQSGAAIDGVVISAGIPDLDEAVELIDELGDIGISHVVFKPGTIEQIRSVIRIATEVPTKPVIMHVEGGRAGGHHSWEDLDDLLLATYSELRSRANITVCVGGGIGTPRRAAEYLSGRWAQAYGFPLMPIDGILVGTAAMATKESTTSPSVKRMLVDTQGTDQWISAGKAQGGMASSRSQLGADIHEIDNSASRCGRLLDEVAGDAEAVAERRDEIIAAMAKTAKPYFGDVADMTYLQWLRRYVELAIGEGNSTADTASVGSPWLADTWRDRFEQMLQRAEARLHPQDFGPIQTLFTDAGLLDNPQQAIAALLARYPDAETVQLHPADVPFFVTLCKTLGKPVNFVPVIDQDVRRWWRSDSLWQAHDARYDADAVCIIPGTASVAGITRMDEPVGELLDRFEQAAIDEVLGAGVEPKDVASRRLGRADVAGPLAVVLDAPDVRWAGRTVTNPVHRIADPAEWQVHDGPENPRATHSSTGARLQTHGDDVALSVPVSGTWVDIRFTLPANTVDGGTPVIATEDATSAMRTVLAIAAGVDSPEFLPAVANGTATLTVDWHPERVADHTGVTATFGEPLAPSLTNVPDALVGPCWPAVFAAIGSAVTDTGEPVVEGLLSLVHLDHAARVVGQLPTVPAQLTVTATAANATDTDMGRVVPVSVVVTGADGAVIATLEERFAILGRTGSAELADPARAGGAVSANATDTPRRRRRDVTITAPVDMRPFAVVSGDHNPIHTDRAAALLAGLESPIVHGMWLSAAAQHAVTATDGQARPPARLVGWTARFLGMVRPGDEVDFRVERVGIDQGAEIVDVAARVGSDLVMSASARLAAPKTVYAFPGQGIQHKGMGMEVRARSKAARKVWDTADKFTRDTLGFSVLHVVRDNPTSIIASGVHYHHPDGVLYLTQFTQVAMATVAAAQVAEMREQGAFVEGAIACGHSVGEYTALACVTGIYQLEALLEMVFHRGSKMHDIVPRDELGRSNYRLAAIRPSQIDLDDADVPAFVAGIAESTGEFLEIVNFNLRGSQYAIAGTVRGLEALEAEVERRRELTGGRRSFILVPGIDVPFHSRVLRVGVAEFRRSLDRVMPRDADPDLIIGRYIPNLVPRLFTLDRDFIQEIRDLVPAEPLDEILADYDTWLRERPREMARTVFIELLAWQFASPVRWIETQDLLFIEEAAGGLGVERFVEIGVKSSPTVAGLATNTLKLPEYAHSTVEVLNAERDAAVLFATDTDPEPEPEEDEPVAESPAPDVVSEAAPVAPAASSAGPRPDDLVFDAADATLALIALSAKMRIDQIEELDSIESITDGASSRRNQLLVDLGSELNLGAIDGAAESDLAGLRSQVTKLARTYKPYGPVLSDAINDQLRTVLGPSGKRPGAIAERVKKTWELGEGWAKHVTVEVALGTREGSSVRGGAMGHLHEGALADAASVDKVIDAAVASVAARQGVSVALPSAGSGGGATIDAAALSEFTDQITGREGVLASAARLVLGQLGLDDPVNALPAAPDSELIDLVTAELGADWPRLVAPVFDPKKAVVFDDRWASAREDLVKLWLTDEGDIDADWPRLAERFEGAGHVVATQATWWQGKSLAAGRQIHASLYGRIAAGAENPEPGRYGGEVAVVTGASKGSIAASVVARLLDGGATVIATTSKLDEERLAFYRTLYRDHARYGAALWLVAANMASYSDVDALVEWIGTEQTESLGPQSIHIKDAQTPTLLFPFAAPRVVGDLSEAGSRAEMEMKVLLWAVQRLIGGLSTIGAERDIASRLHVVLPGSPNRGMFGGDGAYGEAKSALDAVVSRWHAESSWAARVSLAHALIGWTRGTGLMGHNDAIVAAVEEAGVTTYSTDEMAALLLDLCDAESKVAAARSPIKADLTGGLAEANLDMAELAAKAREQMSAAAAVDEDAEAPGAIAALPSPPRGFTPAPPPQWDDLDVDPADLVVIVGGAEIGPYGSSRTRFEMEVENELSAAGVLELAWTTGLIRWEDDPQPGWYDTESGEMVDESELVQRYHDAVVQRVGIREFVDDGAIDPDHASPLLVSVFLEKDFAFVVSSEADARAFVEFDPEHTVIRPVPDSTDWQVIRKAGTEIRVPRKTKLSRVVGGQIPTGFDPTVWGISADMAGSIDRLAVWNMVATVDAFLSSGFSPAEVMRYVHPSLVANTQGTGMGGGTSMQTMYHGNLLGRNKPNDIFQEVLPNIIAAHVVQSYVGSYGAMIHPVAACATAAVSVEEGVDKIRLGKAQLVVAGGLDDLTLEGIIGFGDMAATADTSMMCGRGIHDSKFSRPNDRRRLGFVEAQGGGTILLARGDLALRMGLPVLAVVAFAQSFGDGVHTSIPAPGLGALGAGRGGKDSPLARALAKLGVAADDVAVISKHDTSTLANDPNETELHERLADALGRSEGAPLFVVSQKSLTGHAKGGAAVFQMMGLCQILRDGVIPPNRSLDCVDDELAGSAHFVWVRDTLRLGGKFPLKAGMLTSLGFGHVSGLVALVHPQAFIASLDPAQRADYQRRADARLLAGQRRLASAIAGGAPMYQRPGDRRFDHHAPERPQEASMLLNPAARLGDGEAYIG

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.83 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	113758
