SAXSdb — 9prw

▼

1. Structure Basics

entry_id	9prw
deposition_date	2025-07-24
title	Cryo-EM structure of human DNMT3A/3L
keywords	DNA (cytosine-5)-methyltransferase, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.57 Å
rg_electron	49.96 Å
i0	560777000.00
molecular_weight	193420.0 kDa
excluded_volume	240580 Å³
envelope_volume	347560 Å³
shell_volume	60862 Å³
envelope_diameter	185.4 Å
shell_rg	50.15 Å
envelope_rg	49.54 Å
shape_rg	49.90 Å
total_rg	50.16 Å
total_atoms	13546
n_residues	1701
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

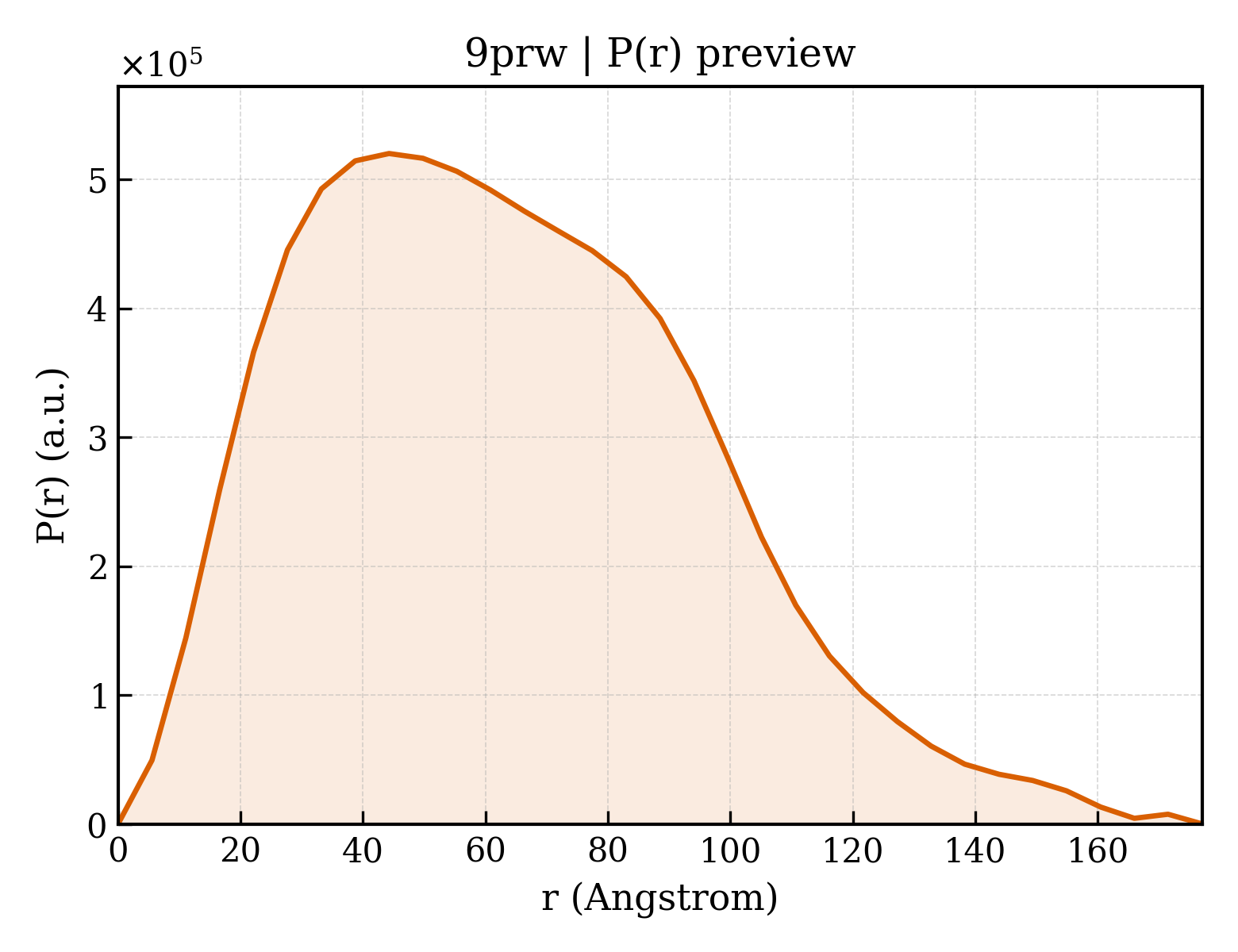

3. P(r) Analysis (GNOM)

dmax	177.1 Å
rg_real	50.10 Å
rg_real_error	2.08 Å
i0_real	5.6080e+08
i0_real_error	1.1900e+07
rg_reciprocal	49.58 Å
i0_reciprocal	560400000.0000
total_estimate	0.8135
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	44.3 Å
skewness	0.494
kurtosis	-0.178
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	40750000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.742; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.781; Smooth: 0.565

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DNA (cytosine-5)-methyltransferase 3A
formula_weight	72297.8 kDa
ec_number	2.1.1.37,2.1.1.-
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,D
atom_count	13546

SEPEYEDGRGFGIGELVWGKLRGFSWWPGRIVSWWMTGRSRAAEGTRWVMWFGDGKFSVVCVEKLMPLSSFCSAFHQATYNKQPMYRKAIYEVLQVASSRAGKLFPVCHDSDESDTAKAVEVQNKPMIEWALGGFQPSGPKGLEPPEEEKNPYKEVYTDMWVEPEAAAYAPPPPAKKPRKSTAEKPKVKEIIDERTRERLVYEVRQKCRNIEDICISCGSLNVTLEHPLFVGGMCQNCKNCFLECAYQYDDDGYQSYCTICCGGREVLMCGNNNCCRCFCVECVDLLVGPGAAQAAIKEDPWNCYMCGHKGTYGLLRRREDWPSRLQMFFANNHDQEFDPPKVYPPVPAEKRKPIRVLSLFDGIATGLLVLKDLGIQVDRYIASEVCEDSITVGMVRHQGKIMYVGDVRSVTQKHIQEWGPFDLVIGGSPCNDLSIVNPARKGLYEGTGRLFFEFYRLLHDARPKEGDDRPFFWLFENVVAMGVSDKRDISRFLESNPVMIDAKEVSAAHRARYFWGNLPGMNRPLASTVNDKLELQECLEHGRIAKFSKVRTITTRSNSIKQGKDQHFPVFMNEKEDILWCTEMERVFGFPVHYTDVSNMSRLARQRLLGRSWSVPVIRHLFAPLKEYFACV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	DNA (cytosine-5)-methyltransferase 3-like
formula_weight	43630.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,C

MAAIPALDPEAEPSMDVILVGSSELSSSVSPGTGRDLIAYEVKANQRNIEDICICCGSLQVHTQHPLFEGGICAPCKDKFLDALFLYDDDGYQSYCSICCSGETLLICGNPDCTRCYCFECVDSLVGPGTSGKVHAMSNWVCYLCLPSSRSGLLQRRRKWRSQLKAFYDRESENPLEMFETVPVWRRQPVRVLSLFEDIKKELTSLGFLESGSDPGQLKHVVDVTDTVRKDVEEWGPFDLVYGATPPLGHTCDRPPSWYLFQFHRLLQYARPKPGSPRPFFWMFVDNLVLNKEDLDVASRFLEMEPVTIPDVHGGSLQNAVRVWSNIPAIRSRHWALVSEEELSLLAQNKQSSKLAAKWPTKLVKNCFLPLREYFKYFSTELTSSL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

description	S-ADENOSYL-L-HOMOCYSTEINE
formula_weight	384.4 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	12

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.66 Å
resolution_method	—
num_particles	65578

fit	/app/data/saxs_computation/pr/9prw/9prw.fit
pddf	/app/data/pr_computation/pr/9prw/9prw.pr.out
profile	/app/data/saxs_computation/pr/9prw/9prw.dat
