9psv
Q108K:K40L:T51V:T53S:R58W:Y19W:L117E mutant of hCRBPII bound to fluorophore TD-1V-7
SAXS Profile

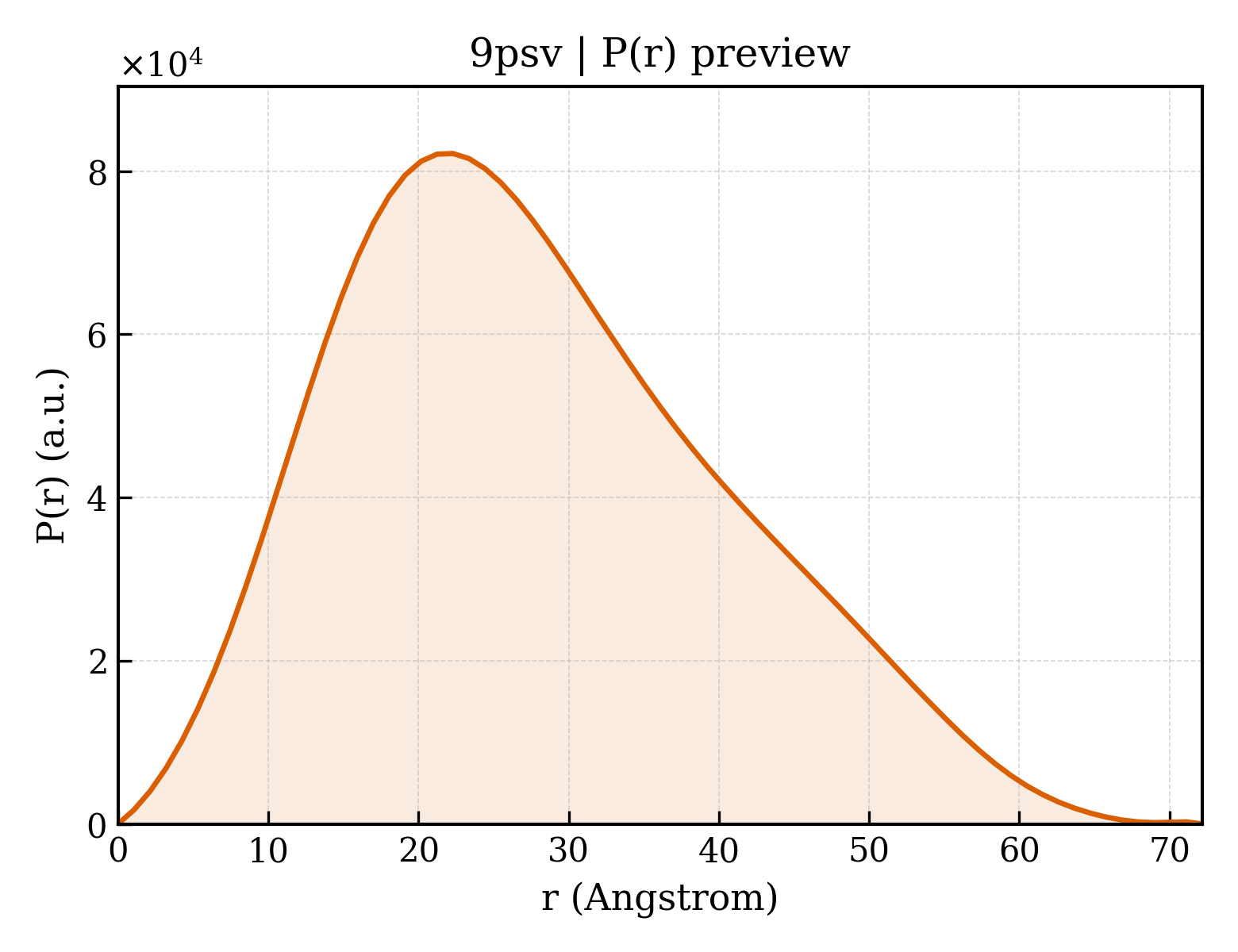

P(r) Distribution
1. Structure Basics
| entry_id | 9psv |
| deposition_date | 2025-07-27 |
| last_revision | 2025-10-01 |
| title | Q108K:K40L:T51V:T53S:R58W:Y19W:L117E mutant of hCRBPII bound to fluorophore TD-1V-7 |
| keywords | human cellular retinol binding protein II, hCRBPII, fluorescent protein, engineered protein, retinol binding protein; RETINOL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.54 Å |
| rg_electron | 20.94 Å |
| i0 | 32351300.00 |
| molecular_weight | 29383.0 kDa |
| excluded_volume | 28483 ų |
| envelope_volume | 45862 ų |
| shell_volume | 19034 ų |
| envelope_diameter | 72.0 Å |
| shell_rg | 26.41 Å |
| envelope_rg | 21.11 Å |
| shape_rg | 20.88 Å |
| total_rg | 21.57 Å |
| total_atoms | 2246 |
| n_residues | 266 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 72.2 Å |
| rg_real | 21.62 Å |
| rg_real_error | 0.45 Å |
| i0_real | 3.2350e+07 |
| i0_real_error | 4.1130e+05 |
| rg_reciprocal | 21.61 Å |
| i0_reciprocal | 32350000.0000 |
| total_estimate | 0.8703 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.3 Å |
| skewness | 0.439 |
| kurtosis | -0.382 |
| angular_range | — – 0.3700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7669000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.801; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.910; Smooth: 0.996 |
