9psx
Q108K:K40L:T51V:T53S:R58W:Y19W:L117E mutant of hCRBPII bound to fluorophore TD-1V-3

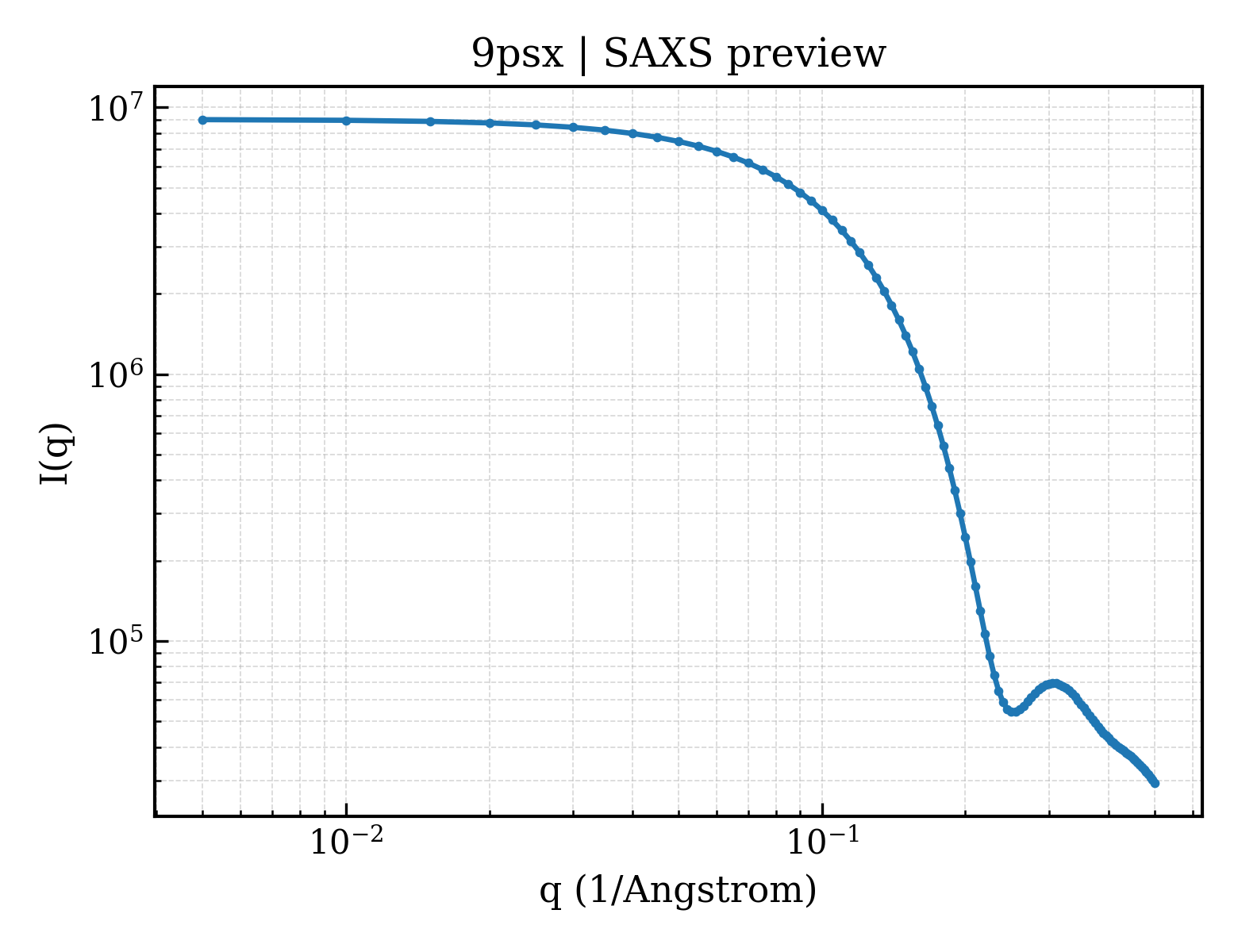

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9psx |
| deposition_date | 2025-07-27 |
| last_revision | 2025-10-29 |
| title | Q108K:K40L:T51V:T53S:R58W:Y19W:L117E mutant of hCRBPII bound to fluorophore TD-1V-3 |
| keywords | human cellular retinol binding protein II, hCRBPII, fluorescent protein, engineered protein, RETINOL BINDING PROTEIN; RETINOL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.16 Å |
| rg_electron | 14.05 Å |
| i0 | 9019500.00 |
| molecular_weight | 14869.0 kDa |
| excluded_volume | 14369 ų |
| envelope_volume | 21791 ų |
| shell_volume | 13013 ų |
| envelope_diameter | 46.6 Å |
| shell_rg | 20.00 Å |
| envelope_rg | 14.32 Å |
| shape_rg | 14.04 Å |
| total_rg | 14.94 Å |
| total_atoms | 1124 |
| n_residues | 133 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.1 Å |
| rg_real | 15.04 Å |
| rg_real_error | 0.31 Å |
| i0_real | 9.0200e+06 |
| i0_real_error | 1.0030e+05 |
| rg_reciprocal | 15.05 Å |
| i0_reciprocal | 9020000.0000 |
| total_estimate | 0.7944 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.9 Å |
| skewness | 0.119 |
| kurtosis | -0.420 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1813000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.791; Stabil: 0.984; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
