SAXSdb — 9pxb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sterol regulatory element-binding protein cleavage-activating protein

Cricetulus griseus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 1	Insulin-induced gene protein × 1 （Q8CFA5） Fab4G10 heavy chain × 1 Fab4G10 light chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SCAP_CRIGR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 47–797； UniProt 2–752

Insulin-induced gene protein

Cricetulus griseus

UniProt Q8CFA5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 1	Sterol regulatory element-binding protein cleavage-activating protein × 1 （P97260） Fab4G10 heavy chain × 1 Fab4G10 light chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8CFA5_CRIGR
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–225； UniProt 1–225

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9pxb
Deposition date deposition_date	2025-08-05
Structure title title	Hamster Scap/Insig-2 complex with cholesterol and bound Fab4G10
Keywords keywords	Complex, sterol-binding, COPII-binding, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9pxb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9pxb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

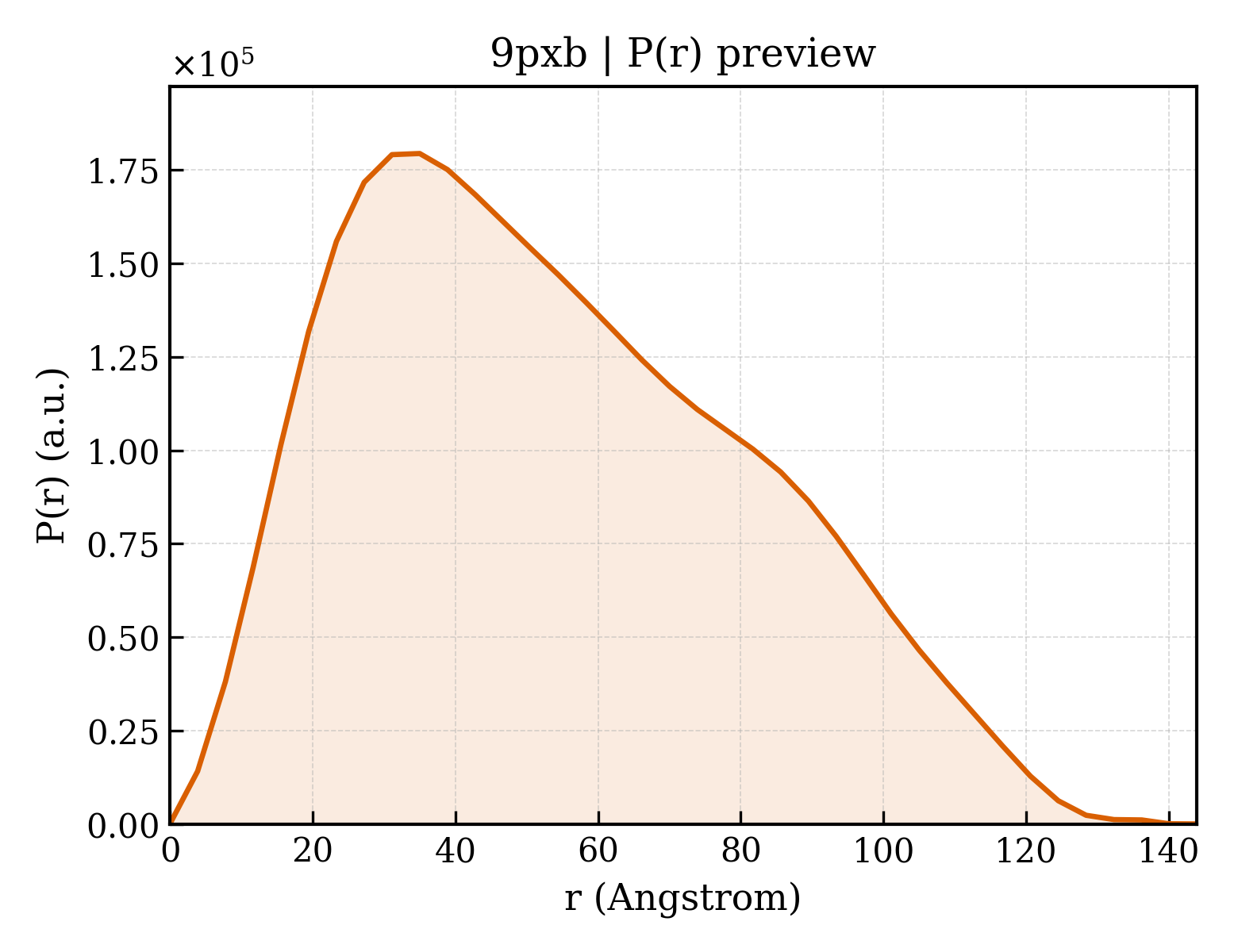

9pxb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.35 Å
Rg (electron density)	42.24 Å
Total Rg	42.53 Å
Atom count	7638
Residues	950
Excluded volume	137840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9pxb__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Sterol regulatory element-binding protein cleavage-activating protein
Molecular weight formula_weight	89014.7 kDa
Mutation mutation	V133A, T140V, H244D, A245S, K246R, A253S, M256K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7638

MDYKDDDDKGSDYKDDDDKGSDYKDDDDKENLYFQGTGHHHHHHHHTLTERLREKISQAFYNHGLLCASYPIPIILFTGLCILACCYPLLKLPLPGTGPVEFSTPVKDYSPPPVDSDHKQGEPSEQPEWYVGAPVAYIQQIFVKSSVSPWHKNLLAVDVFRLPLSRAFQLVEEIRNHALRDSSGVKSLEEVCLQVTDLLPGLRKLRNLLPEHGCLLLSPGNFWQNDWERFHADPDIIGTIHQHEPKTLQTSATLKDLLFGVPGKYSGVSLYTRKRTVSYTITLVFQRYDSRFLSSLRSRLKLLHPSPNCSLRAENLVHVHFKEEIGIAELIPLVTTYIILFAYIYFSTRKIDMVKSKWGLALAAVVTVLSSLLMSVGLCTLFGLTPTLNGGEIFPYLVVVIGLENVLVLTKSVVSTPVDLEVKLRIAQGLSSESWSIMKNVATELGIILIGYFTLVPAIQEFCLFAVVGLVSDFFLQMFFFTTVLSIDIRRMELADLNKRLPPESCLPSAKPVGRPARYERQLAVRPAMPHTITLQPSSFRNLRLPKRLRVIYFLARTRLAQRLIMAGTVVWIGILVYTDPAGLRTYLAAQVTEQSPLGEGSLGPMPVPSGVLPASRPDPAFSIFPPDAPKLPENQTVPGELPEHAAPAEGVHDSRAPEVTWGPEDEELWRRLSFRHWPTLFNYYNITLAKRYISLLPVIPVTLRLNPQEALEGRQPQDGRSAWAPPESLPAGLWEAGPKGPGGTQAHGDITLYKVAALGLAAGIVLVLLLLCLYRVLCPRNYGQPGGGAGRRRRGE

Source Source

Source organism organism	Cricetulus griseus
Common name common_name	Chinese hamster
NCBI taxonomy ID ncbi_taxonomy_id	10029
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Insulin-induced gene protein
Molecular weight formula_weight	24929.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MAEGKTESPGPKRRGPYISSVTSQSVNVVIRGVVLFFIGVFLALVLNLLQIQRNVTLFPPDVVTSIFSSAWWVPPCCGTASAVIGLLYPCIDRHLGEPHKFKREWSSVMRCVAVFVGINHASAKVDFDNNFQFSLTLAALSVGLWWTFDRSRSGFGLGVGIAFLATVVTQLLVYNGVYQYTSPDFLYVRSWLPCIFFAGGITMGNIGRQLAMYECKVIPEKSHQE

Source Source

Source organism organism	Cricetulus griseus
Common name common_name	Chinese hamster
NCBI taxonomy ID ncbi_taxonomy_id	10029
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Fab4G10 heavy chain
Molecular weight formula_weight	27016.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

TGVHSEVQLQQSGAELVRPGASVKLSCTASGFKIKDDYIHWVKQRPEQGLEWIGRIDPANGHTRYAPKFQDKATITADTSSNTAYLQLSSLTSEDTAVYYCTRYNDYDAFYFDYWGQGTTLTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTGSGATNFSLLKQAGDVEENPG

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Fab4G10 light chain
Molecular weight formula_weight	25545.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

TGVHSDIQMTQTTSSLSASLGDRVTISCRASQDIRNYLNWYQQKPDGTVKLLIYYTSRLHSGVPSRFSGSGSGTDYSLTISNLEQEDIATYFCQQTNTLPWTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGECHHHHHHHHHH

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	160849
