9pzs

Native GluN1/GluN2A/GluN2B in complex with 5F11 and 3D2 Fabs (class 1), glycine and glutamate bound state

Method: ELECTRON MICROSCOPY D_max: 202.6 Å Quality: GOOD

SAXS Profile

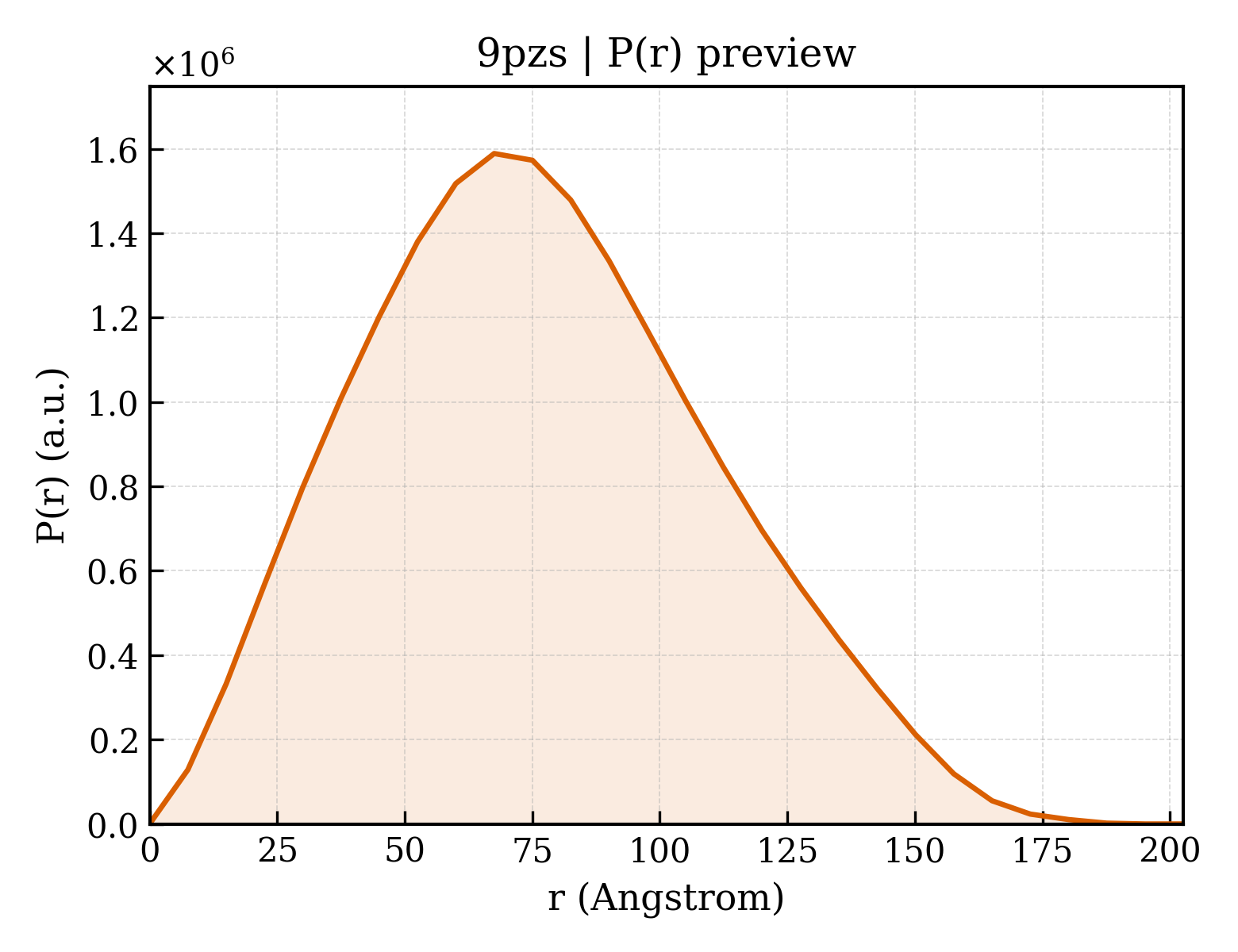

P(r) Distribution

▼

1. Structure Basics

entry_id	9pzs
deposition_date	2025-08-11
title	Native GluN1/GluN2A/GluN2B in complex with 5F11 and 3D2 Fabs (class 1), glycine and glutamate bound state
keywords	ligand-gated ion channel, NMDA, antibody, native, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	59.09 Å
rg_electron	58.25 Å
i0	1731620000.00
molecular_weight	344350.0 kDa
excluded_volume	428460 Å³
envelope_volume	719070 Å³
shell_volume	105470 Å³
envelope_diameter	205.7 Å
shell_rg	58.37 Å
envelope_rg	57.39 Å
shape_rg	58.33 Å
total_rg	58.01 Å
total_atoms	24307
n_residues	3413
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	202.6 Å
rg_real	59.05 Å
rg_real_error	2.29 Å
i0_real	1.7320e+09
i0_real_error	4.0170e+07
rg_reciprocal	59.10 Å
i0_reciprocal	1732000000.0000
total_estimate	0.8795
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	67.5 Å
skewness	0.284
kurtosis	-0.431
angular_range	— – 0.1350 Å⁻¹
current_alpha	0.0000
highest_alpha	112100000.0000
n_real_points	28
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.871

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (10)

Entity 1 polymer

description	Glutamate receptor ionotropic, NMDA 2B
formula_weight	166162.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D
atom_count	24307

MKPSAECCSPKFWLVLAVLAVSGSKARSQKSAPSIGIAVILVGTSDEVAIKDAHEKDDFHHLSVVPRVELVAMNETDPKSIITRICDLMSDRKIQGVVLADDTDQEAIAQILDFISAQTLTPILGIHGGSSMIMADKDESSMFFQFGPSIEQQASVMLNIMEEYDWYIFSIVTTYFPGYQDFVNKIRSTIENSFVGWELEEVLLLDMSLDDGDSKIQNQLKKLQSPIILLYCTKEEATYIFEVANSVGLTGYGYTWIVPSLVAGDTDTVPSEFPTGLISVSYDEWDYGLPARVRDGIAIITTAASDMLSEHSFIPEPKSSCYNTHEKRIYQSNMLNRYLINVTFEGRNLSFSEDGYQMHPKLVIILLNKERKWERVGKWKDKSLQMKYYVWPRMCPETEEQEDDHLSIVTLEEAPFVIVESVDPLSGTCMRNTVPCQKRIISENKTDEEPGYIKKCCKGFCIDILKKISKSVKFTYDLYLVTNGKHGKKINGTWNGMIGEVVMKRAYMAVGSLTINEERSEVVDFSVPFIETGISVMVSRSNGTVSPSAFLEPFSADVWVMMFVMLLIVSAVAVFVFEYFSPVGYNRCLADGREPGGPSFTIGKAIWLLWGLVFNNSVPVQNPKGTTSKIMVSVWAFFAVIFLASYTANLAAFMIQEEYVDQVSGLSDKKFQRPNDFSPPFRFGTVPNGSTERNIRNNYAEMHAYMGKFNQRGVDDALLSLKTGKLDAFIYDAAVLNYMAGRDEGCKLVTIGSGKVFASTGYGIAIQKDSGWKRQVDLAILQLFGDGEMEELEALWLTGICHNEKNEVMSSQLDIDNMAGVFYMLGAAMALSLITFICEHLFYWQFRHCFMGVCSGKPGMVFSISRGIYSCIHGVAIEERQSVMNSPTATMNNTHSNILRLLRTAKNMANLSGVNGSPQSALDFIRRESSVYDISEHRRSFTHSDCKSYNNPPCEENLFSDYISEVERTFGNLQLKDSNVYQDHYHHHHRPHSIGSTSSIDGLYDCDNPPFTTQPRSISKKPLDIGLPSSKHSQLSDLYGKFSFKSDRYSGHDDLIRSDVSDISTHTVTYGNIEGNAAKRRKQQYKDSLKKRPASAKSRREFDEIELAYRRRPPRSPDHKRYFRDKEGLRDFYLDQFRTKENSPHWEHVDLTDIYKERSDDFKRDSVSGGGPCTNRSHLKHGTGDKHGVVGGVPAPWEKNLTNVDWEDRSGGNFCRSCPSKLHNYSSTVAGQNSGRQACIRCEACKKAGNLYDISEDNSLQELDQPAAPVAVSSNASTTKYPQSPTNSKAQKKNRNKLRRQHSYDTFVDLQKEEAALAPRSVSLKDKGRFMDGSPYAHMFEMPAGESSFANKSSVTTAGHHHNNPGSGYMLSKSLYPDRVTQNPFIPTFGDDQCLLHGSKSYFFRQPTVAGASKTRPDFRALVTNKPVVSALHGAVPGRFQKDICIGNQSNPCVPNNKNPRAFNGSSNGHVYEKLSSIESDV

Entity 2 polymer

description	Glutamate receptor ionotropic, NMDA 1
formula_weight	105617.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C

MSTMHLLTFALLFSCSFARAACDPKIVNIGAVLSTRKHEQMFREAVNQANKRHGSWKIQLNATSVTHKPNAIQMALSVCEDLISSQVYAILVSHPPTPNDHFTPTPVSYTAGFYRIPVLGLTTRMSIYSDKSIHLSFLRTVPPYSHQSSVWFEMMRVYNWNHIILLVSDDHEGRAAQKRLETLLEERESKAEKVLQFDPGTKNVTALLMEARDLEARVIILSASEDDAATVYRAAAMLNMTGSGYVWLVGEREISGNALRYAPDGIIGLQLINGKNESAHISDAVGVVAQAVHELLEKENITDPPRGCVGNTNIWKTGPLFKRVLMSSKYADGVTGRVEFNEDGDRKFANYSIMNLQNRKLVQVGIYNGTHVIPNDRKIIWPGGETEKPRGYQMSTRLKIVTIHQEPFVYVKPTMSDGTCKEEFTVNGDPVKKVICTGPNDTSPGSPRHTVPQCCYGFCVDLLIKLARTMNFTYEVHLVADGKFGTQERVNNSNKKEWNGMMGELLSGQADMIVAPLTINNERAQYIEFSKPFKYQGLTILVKKEIPRSTLDSFMQPFQSTLWLLVGLSVHVVAVMLYLLDRFSPFGRFKVNSEEEEEDALTLSSAMWFSWGVLLNSGIGEGAPRSFSARILGMVWAGFAMIIVASYTANLAAFLVLDRPEERITGINDPRLRNPSDKFIYATVKQSSVDIYFRRQVELSTMYRHMEKHNYESAAEAIQAVRDNKLHAFIWDSAVLEFEASQKCDLVTTGELFFRSGFGIGMRKDSPWKQNVSLSILKSHENGFMEDLDKTWVRYQECDSRSNAPATLTFENMAGVFMLVAGGIVAGIFLIFIEIAYKRHKDARRKQMQLAFAAVNVWRKNLQDRKSGRAEPDPKKKATFRAITSTLASSFKRRRSSKDTSTGGGRGALQNQKDTVLPRRAIEREEGQLQLCSRHRES

Entity 3 polymer

description	Heavy chain of GluN1-specific monoclonal Fab fragment, termed 5F11
formula_weight	29432.5 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	F,H

MVSAIVLYVLLAAAAHSAFAQGQMQQSGAELVKPGASVKLSCKTSGFSFSTSYINWLKQKPGQSLEWIAWIYAGTDGTSYNQKFTDKAQLTVDTSSSTAYMQFSSLTTDDSAIYYCAREGIYYGNYAGFTYWGQGTLVTVSAAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKLVPRGSAAAAGTGSGGGDYKDHDGDYKDHDIDYKDDDDK

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Light chain of GluN1-specific monoclonal Fab fragment, termed 5F11
formula_weight	26910.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	G,I

MVSAIVLYVLLAAAAHSAFADIVMTQSPSSLAVTAGEKVTMRCKSSQSLLWSVNQNNYLSWYQQKQGQPPKLLIYGASIRESWVPDRFTGSGSGTDFTLTISNVHAEDLAVYYCQHNHGSFLPYTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNECSN

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	Glutamate receptor ionotropic, NMDA 2A
formula_weight	165619.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MGRLGYWTLLVLPALLVWHGPAQNAAAEKGTPALNIAVLLGHSHDVTERELRNLWGPEQATGLPLDVNVVALLMNRTDPKSLITHVCDLMSGARIHGLVFGDDTDQEAVAQMLDFISSQTFIPILGIHGGASMIMADKDPTSTFFQFGASIQQQATVMLKIMQDYDWHVFSLVTTIFPGYRDFISFIKTTVDNSFVGWDMQNVITLDTSFEDAKTQVQLKKIHSSVILLYCSKDEAVLILSEARSLGLTGYDFFWIVPSLVSGNTELIPKEFPSGLISVSYDDWDYSLEARVRDGLGILTTAASSMLEKFSYIPEAKASCYGQTEKPETPLHTLHQFMVNVTWDGKDLSFTEEGYQVHPRLVVIVLNKDREWEKVGKWENQTLSLRHAVWPRYKSFSDCEPDDNHLSIVTLEEAPFVIVEDIDPLTETCVRNTVPCRKFVKINNSTNEGMNVKKCCKGFCIDILKKLSRTVKFTYDLYLVTNGKHGKKVNNVWNGMIGEVVYQRAVMAVGSLTINEERSEVVDFSVPFVETGISVMVSRSNGTVSPSAFLEPFSASVWVMMFVMLLIVSAIAVFVFEYFSPVGYNRNLAKGKAPHGPSFTIGKAIWLLWGLVFNNSVPVQNPKGTTSKIMVSVWAFFAVIFLASYTANLAAFMIQEEFVDQVTGLSDKKFQRPHDYSPPFRFGTVPNGSTERNIRNNYPYMHQYMTKFNQRGVEDALVSLKTGKLDAFIYDAAVLNYKAGRDEGCKLVTIGSGYIFATTGYGIALQKGSPWKRQIDLALLQFVGDGEMEELETLWLTGICHNEKNEVMSSQLDIDNMAGVFYMLAAAMALSLITFIWEHLFYWKLRFCFTGVCSDRPGLLFSISRGIYSCIHGVHIEEKKKSPDFNLTGSQSNMLKLLRSAKNISNMSNMNSSRMDSPKRAADFIQRGSLIVDMVSDKGNLIYSDNRSFQGKDSIFGENMNELQTFVANRHKDSLSNYVFQGQHPLTLNESNPNTVEVAVSTESKGNSRPRQLWKKSMESLRQDSLNQNPVSQRDEKTAENRTHSLKSPRYLPEEVAHSDISETSSRATCHREPDNNKNHKTKDNFKRSMASKYPKDCSEVERTYVKTKASSPRDKIYTIDGEKEPSFHLDPPQFIENIVLPENVDFPDTYQDHNENFRKGDSTLPMNRNPLHNEDGLPNNDQYKLYAKHFTLKDKGSPHSEGSDRYRQNSTHCRSCLSNLPTYSGHFTMRSPFKCDACLRMGNLYDIDEDQMLQETGNPATREEAYQQDWSQNNALQFQKNKLKINRQHSYDNILDKPREIDLSRPSRSISLKDRERLLEGNLYGSLFSVPSSKLLGNKSSLFPQGLEDSKRSKSLLPDHTSDNPFLHTYGDDQRLVIGRCPSDPYKHSLPSQAVNDSYLRSSLRSTASYCSRDSRGHSDVYISEHVMPYAANKNNMYSTPRVLNSCSNRRVYKKMPSIESDV

Entity 6 polymer

description	Heavy chain of GluN2A-specific monoclonal Fab fragment, termed 3D2
formula_weight	15448.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	J

MVSAIVLYVLLAAAAHSAFAQVQLQQSGAELMKPGASVKISCKATGYTFRSYWIEWLKQRPGHGLEWIGEILPGSGRTNYNEKFKGKATITADTSSNTAYMQLSSLTSEDSAVYYCTRSRGTMITREFTYWGQGALVTVSA

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 7 polymer

description	Light chain of GluN2A-specific monoclonal Fab fragment, termed 3D2
formula_weight	13989.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

MVSAIVLYVLLAAAAHSAFADIVLTQSPASLAVSLGQRATISCRASESVEYYGTTLMQWYQQKPGQPPKLLIYAASNVDSGVPARFSGSGSGTDFSLNIHPVEEDDIAMYFCQQSRKVPSTFGGGTKLEIK

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 8 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	syn
entity_count	5

Entity 9 branched

description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	586.5 kDa
src_method	man
entity_count	1

Entity 10 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	3

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.200 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.20 Å
resolution_method	—
num_particles	296585

fit	/app/data/saxs_computation/pz/9pzs/9pzs.fit
pddf	/app/data/pr_computation/pz/9pzs/9pzs.pr.out
profile	/app/data/saxs_computation/pz/9pzs/9pzs.dat
