9q2n

Nucleotide-free structure of PmtCD in nanodisc

Method: ELECTRON MICROSCOPY D_max: 126.6 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9q2n
deposition_date	2025-08-15
last_revision	2025-11-26
title	Nucleotide-free structure of PmtCD in nanodisc
keywords	ABC transporter, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.48 Å
rg_electron	35.89 Å
i0	193747000.00
molecular_weight	122750.0 kDa
excluded_volume	158430 Å³
envelope_volume	216940 Å³
shell_volume	51110 Å³
envelope_diameter	129.9 Å
shell_rg	41.37 Å
envelope_rg	35.87 Å
shape_rg	35.95 Å
total_rg	36.11 Å
total_atoms	8662
n_residues	1078
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

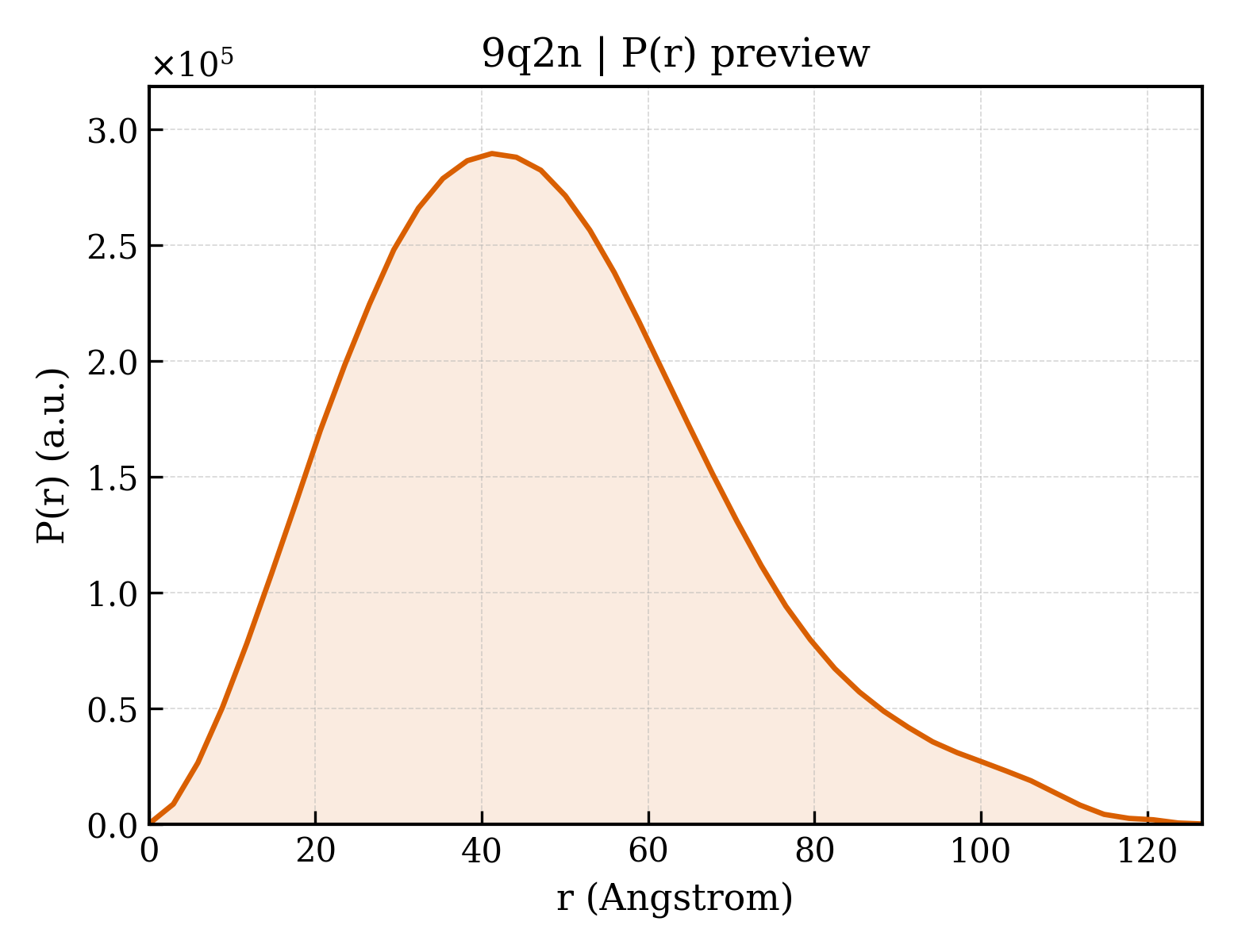

3. P(r) Analysis (GNOM)

dmax	126.6 Å
rg_real	36.61 Å
rg_real_error	1.51 Å
i0_real	1.9370e+08
i0_real_error	3.7420e+06
rg_reciprocal	36.53 Å
i0_reciprocal	193700000.0000
total_estimate	0.8515
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	41.2 Å
skewness	0.515
kurtosis	0.002
angular_range	— – 0.2150 Å⁻¹
current_alpha	0.0000
highest_alpha	37610000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.764; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.824

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Phenol-soluble modulin export ABC transporter permease subunit PmtD
formula_weight	28435.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	8662

RGSHRILNLVKYDLYSIFKSPLTYLAILVVSSLIATQSILMANSMDNPKHIIVYGSVFAAAKWLLLIIGLMFVVKTITRDFSQGTIQLYMSKVKTRVGYIISKTISIILISILFALIHYVILIVVQASSNGKNLAFSKYVDNLWFFLIFLLFFGLFLFLITLASQKTAMIFSLGVFLVLIVPFIKPFITFIPRYGEKVLDAFDYIPFAYLTDKMISSNFDFSNWQWVISLGSIVIFFILNILYVAKKDI

Source

organism	Staphylococcus aureus
ncbi_taxonomy_id	1280
host_organism	Staphylococcus aureus

Entity 2 polymer

description	ABC transporter ATP-binding protein
formula_weight	33001.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,D

MKLEHITKKYGSNVVLNDIDFDFGDSRIVGLIGKNGVGKTTVMKVMNGNIIKFDGKVDIDNADNIGFLIEHPKLYDNKSGLYNLKLFAQVLGKGFDKAYTDKIIDAFGMRPYIKKKVKKYSMGMKQKLAIAVSLMNKPKFLILDEPTNGMDPDGSIDVLTTIKSLVNELDMRILISSHKLEDIELICDRAVFLRDGHFVQDVNMEEGVASDTTIVTVDHKDFDRTEKYLAEHFQLQNVDKADGHLMINAQKNYQVILKALSELDIYPKYIETRKSSLRDTYFNINQRGDK

Source

organism	Staphylococcus aureus
ncbi_taxonomy_id	1280
host_organism	Staphylococcus aureus

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.30 Å
resolution_method	—
num_particles	143119

fit	/app/data/saxs_computation/q2/9q2n/9q2n.fit
pddf	/app/data/pr_computation/q2/9q2n/9q2n.pr.out
profile	/app/data/saxs_computation/q2/9q2n/9q2n.dat
