9q9h

Cryo-EM structure of human Mre11-Rad50 complex bound to DNA

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA repair protein RAD50

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	Double-strand break repair protein MRE11 × 2 （P49959） DNA (50-MER) × 1 DNA (50-MER) × 1 MAGNESIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 MANGANESE (II) ION × 4 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD50_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1312； UniProt 1–1312 Author chain B； PDBConstruct 1–1312； UniProt 1–1312

Double-strand break repair protein MRE11

Homo sapiens

UniProt P49959

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	DNA repair protein RAD50 × 2 （Q92878） DNA (50-MER) × 1 DNA (50-MER) × 1 MAGNESIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2 BERYLLIUM TRIFLUORIDE ION × 2 MANGANESE (II) ION × 4 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MRE11_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–708； UniProt 1–708 Author chain E； PDBConstruct 1–708； UniProt 1–708

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9q9h
Deposition date deposition_date	2025-02-26
Last revision last_revision	2025-10-01
Structure title title	Cryo-EM structure of human Mre11-Rad50 complex bound to DNA
Keywords keywords	Mre11-Rad50-DNA complex, double-strand DNA break repair, nuclease, HYDROLASE; HYDROLASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9q9h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9q9h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

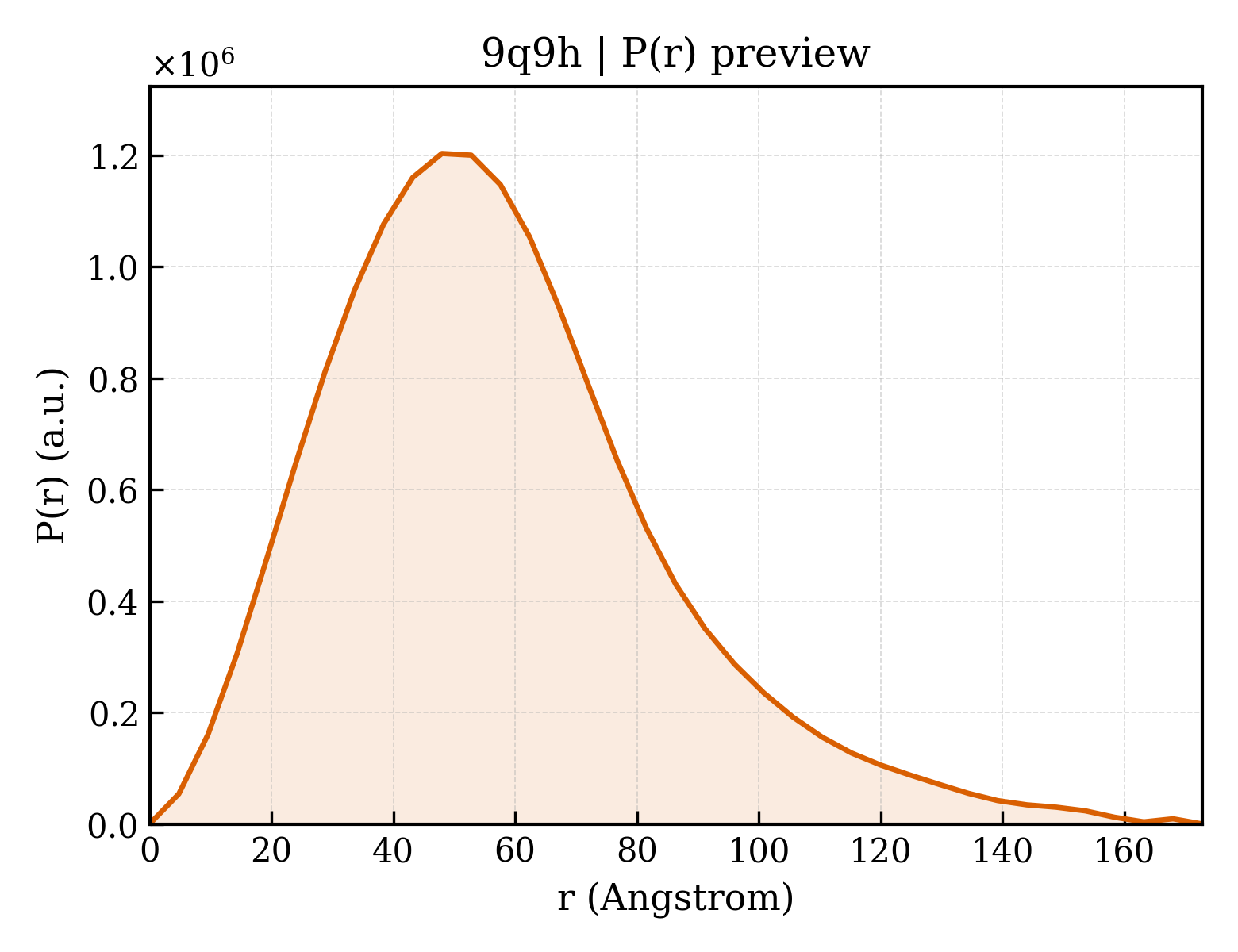

9q9h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.14 Å
Rg (electron density)	44.76 Å
Total Rg	44.72 Å
Atom count	16781
Residues	1982
Excluded volume	295800 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9q9h__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	DNA repair protein RAD50
Molecular weight formula_weight	154150.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	16786

MSRIEKMSILGVRSFGIEDKDKQIITFFSPLTILVGPNGAGKTTIIECLKYICTGDFPPGTKGNTFVHDPKVAQETDVRAQIRLQFRDVNGELIAVQRSMVCTQKSKKTEFKTLEGVITRTKHGEKVSLSSKCAEIDREMISSLGVSKAVLNNVIFCHQEDSNWPLSEGKALKQKFDEIFSATRYIKALETLRQVRQTQGQKVKEYQMELKYLKQYKEKACEIRDQITSKEAQLTSSKEIVKSYENELDPLKNRLKEIEHNLSKIMKLDNEIKALDSRKKQMEKDNSELEEKMEKVFQGTDEQLNDLYHNHQRTVREKERKLVDCHRELEKLNKESRLLNQEKSELLVEQGRLQLQADRHQEHIRARDSLIQSLATQLELDGFERGPFSERQIKNFHKLVRERQEGEAKTANQLMNDFAEKETLKQKQIDEIRDKKTGLGRIIELKSEILSKKQNELKNVKYELQQLEGSSDRILELDQELIKAERELSKAEKNSNVETLKMEVISLQNEKADLDRTLRKLDQEMEQLNHHTTTRTQMEMLTKDKADKDEQIRKIKSRHSDELTSLLGYFPNKKQLEDWLHSKSKEINQTRDRLAKLNKELASSEQNKNHINNELKRKEEQLSSYEDKLFDVCGSQDFESDLDRLKEEIEKSSKQRAMLAGATAVYSQFITQLTDENQSCCPVCQRVFQTEAELQEVISDLQSKLRLAPDKLKSTESELKKKEKRRDEMLGLVPMRQSIIDLKEKEIPELRNKLQNVNRDIQRLKNDIEEQETLLGTIMPEEESAKVCLTDVTIMERFQMELKDVERKIAQQAAKLQGIDLDRTVQQVNQEKQEKQHKLDTVSSKIELNRKLIQDQQEQIQHLKSTTNELKSEKLQISTNLQRRQQLEEQTVELSTEVQSLYREIKDAKEQVSPLETTLEKFQQEKEELINKKNTSNKIAQDKLNDIKEKVKNIHGYMKDIENYIQDGKDDYKKQKETELNKVIAQLSECEKHKEKINEDMRLMRQDIDTQKIQERWLQDNLTLRKRNEELKEVEEERKQHLKEMGQMQVLQMKSEHQKLEENIDNIKRNHNLALGRQKGYEEEIIHFKKELREPQFRDAEEKYREMMIVMRTTELVNKDLDIYYKTLDQAIMKFHSMKMEEINKIIRDLWRSTYRGQDIEYIEIRSDADENVSASDKRRNYNYRVVMLKGDTALDMRGRCSAGQKVLASLIIRLALAETFCLNCGIIALDEPTTNLDRENIESLAHALVEIIKSRSQQRNFQLLVITHDEDFVELLGRSEYVEKFYRIKKNIDQCSEIVKCSVSSLGFNVH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Double-strand break repair protein MRE11
Molecular weight formula_weight	84032.7 kDa
EC 编号 ec_number	3.1.-.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

MSTADALDDENTFKILVATDIHLGFMEKDAVRGNDTFVTLDEILRLAQENEVDFILLGGDLFHENKPSRKTLHTCLELLRKYCMGDRPVQFEILSDQSVNFGFSKFPWVNYQDGNLNISIPVFSIHGNHDDPTGADALCALDILSCAGFVNHFGRSMSVEKIDISPVLLQKGSTKIALYGLGSIPDERLYRMFVNKKVTMLRPKEDENSWFNLFVIHQNRSKHGSTNFIPEQFLDDFIDLVIWGHEHECKIAPTKNEQQLFYISQPGSSVVTSLSPGEAVKKHVGLLRIKGRKMNMHKIPLHTVRQFFMEDIVLANHPDIFNPDNPKVTQAIQSFCLEKIEEMLENAERERLGNSHQPEKPLVRLRVDYSGGFEPFSVLRFSQKFVDRVANPKDIIHFFRHREQKEKTGEEINFGKLITKPSEGTTLRVEDLVKQYFQTAEKNVQLSLLTERGMGEAVQEFVDKEEKDAIEELVKYQLEKTQRFLKERHIDALEDKIDEEVRRFRETRQKNTNEEDDEVREAMTRARALRSQSEESASAFSADDLMSIDLAEQMANDSDDSISAATNKGRGRGRGRRGGRGQNSASRGGSQRGRADTGLETSTRSRNSKTAVSASRNMSIIDAFKSTRQQPSRNVTTKNYSEVIEVDESDVEEDIFPTTSKTDQRWSSTSSSKIMSQSQVSKGVDFESSEDDDDDPFMNTSSLRRNRRSGGSLEVLFQGPDYKDDDDKGTDYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	DNA (50-MER)
Molecular weight formula_weight	15164.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P

TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT

Entity 4 Entity 4 polymer

Description description	DNA (50-MER)
Molecular weight formula_weight	15615.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	BERYLLIUM TRIFLUORIDE ION
Molecular weight formula_weight	66.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.11 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	95397

Cryo-EM structure of human Mre11-Rad50 complex bound to DNA
