9qcz

Crystal structure of Rhizobium etli L-asparaginase ReAV K263A mutant

Method: X-RAY DIFFRACTION Dmax: 128.7 Å Quality: GOOD

SAXS Profile

SAXS profile for 9qcz

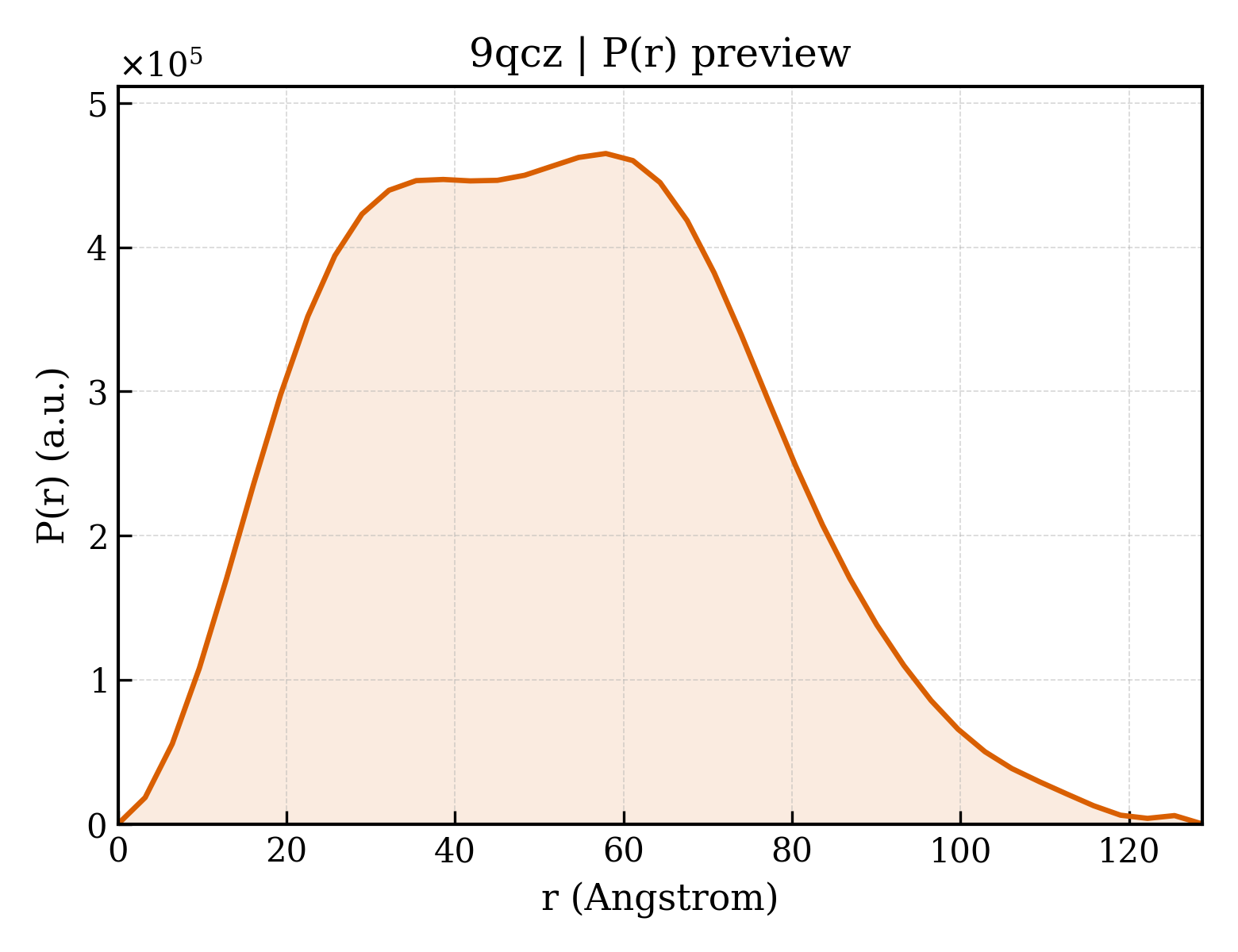

P(r) Distribution

P(r) distribution for 9qcz

1. Structure Basics

entry_id9qcz
deposition_date2025-03-05
titleCrystal structure of Rhizobium etli L-asparaginase ReAV K263A mutant
keywordsRhizobium etli; amidohydrolases; L-asparaginases; site-directed mutagenesis, HYDROLASE; HYDROLASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier39.69
rg_electron39.34
i0389896000.00
molecular_weight151680.0 kDa
excluded_volume186060 ų
envelope_volume241440 ų
shell_volume51146 ų
envelope_diameter137.4
shell_rg45.39
envelope_rg38.48
shape_rg39.37
total_rg39.57
total_atoms10567
n_residues1395
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax128.7
rg_real39.70
rg_real_error1.12
i0_real3.8990e+08
i0_real_error7.4060e+06
rg_reciprocal39.70
i0_reciprocal389900000.0000
total_estimate0.8773
solution_quality GOOD a GOOD solution
n_peaks3
r_peak_primary57.9
skewness0.261
kurtosis-0.500
angular_range— – 0.2000 −1
current_alpha0.0000
highest_alpha171000000.0000
n_real_points41
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.733

4. Crystallography & Experiment

5. Entities & Polymer Info (10)

6. Citations (5)

7. Files & Curves (10)
