9qdr
Structure of Staphylococcus aureus MarR-type repressor MhqR
SAXS Profile

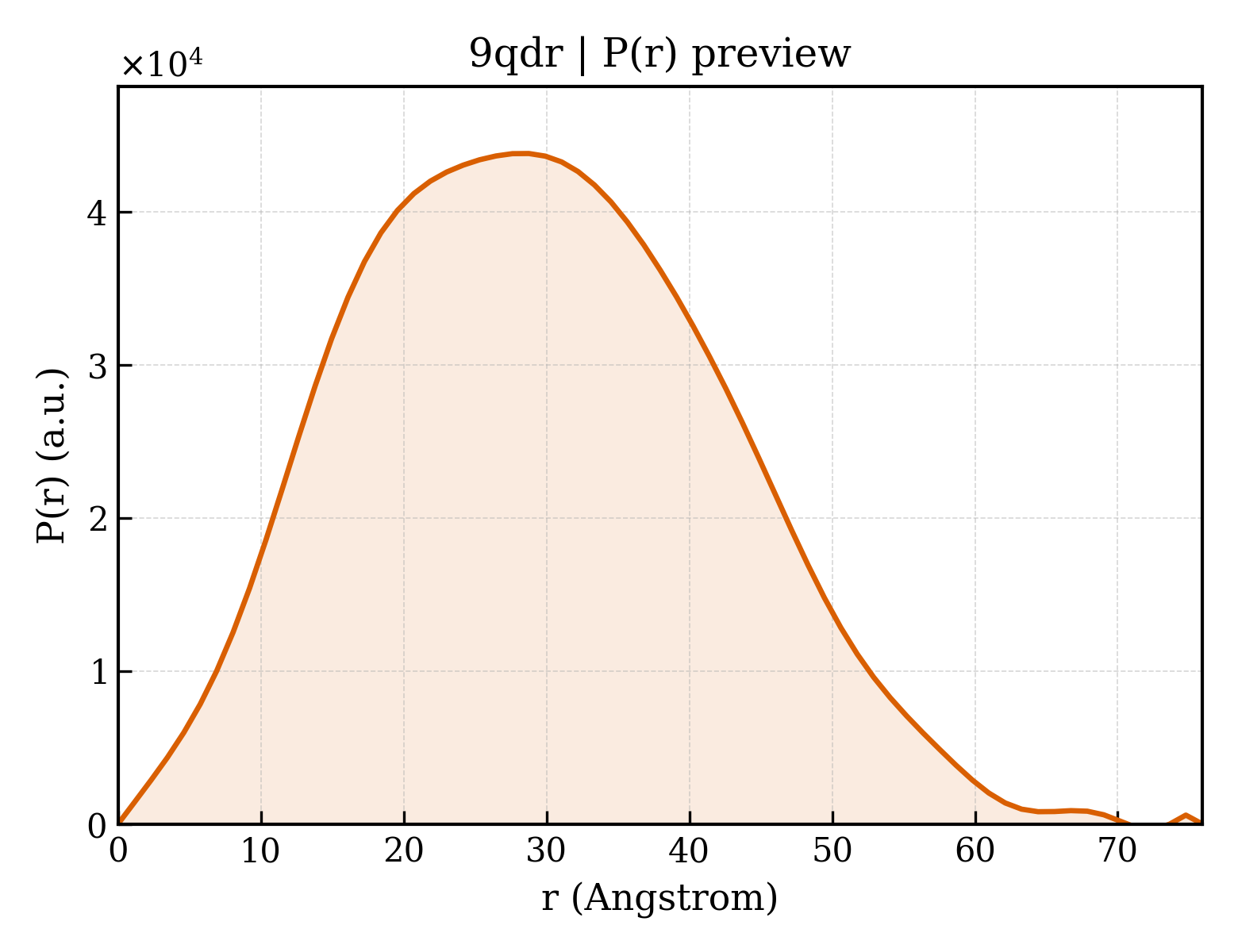

P(r) Distribution
1. Structure Basics
| entry_id | 9qdr |
| deposition_date | 2025-03-06 |
| title | Structure of Staphylococcus aureus MarR-type repressor MhqR |
| keywords | MarR-type Repressor, Winged Helix-Turn-Helix, Dimer, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.68 Å |
| rg_electron | 21.46 Å |
| i0 | 19211700.00 |
| molecular_weight | 33443.0 kDa |
| excluded_volume | 42039 ų |
| envelope_volume | 52587 ų |
| shell_volume | 20798 ų |
| envelope_diameter | 81.0 Å |
| shell_rg | 27.87 Å |
| envelope_rg | 21.76 Å |
| shape_rg | 21.45 Å |
| total_rg | 22.36 Å |
| total_atoms | 2348 |
| n_residues | 290 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 75.9 Å |
| rg_real | 22.62 Å |
| rg_real_error | 0.56 Å |
| i0_real | 1.9210e+07 |
| i0_real_error | 2.4020e+05 |
| rg_reciprocal | 22.64 Å |
| i0_reciprocal | 19210000.0000 |
| total_estimate | 0.8129 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 28.8 Å |
| skewness | 0.233 |
| kurtosis | -0.432 |
| angular_range | — – 0.3500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4785000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000 |
