9qdv
Crystal structure of the polyester hydrolase Leipzig 7 (PHL7) mut3 variant expressed in E. coli (E_PHL7mut3)

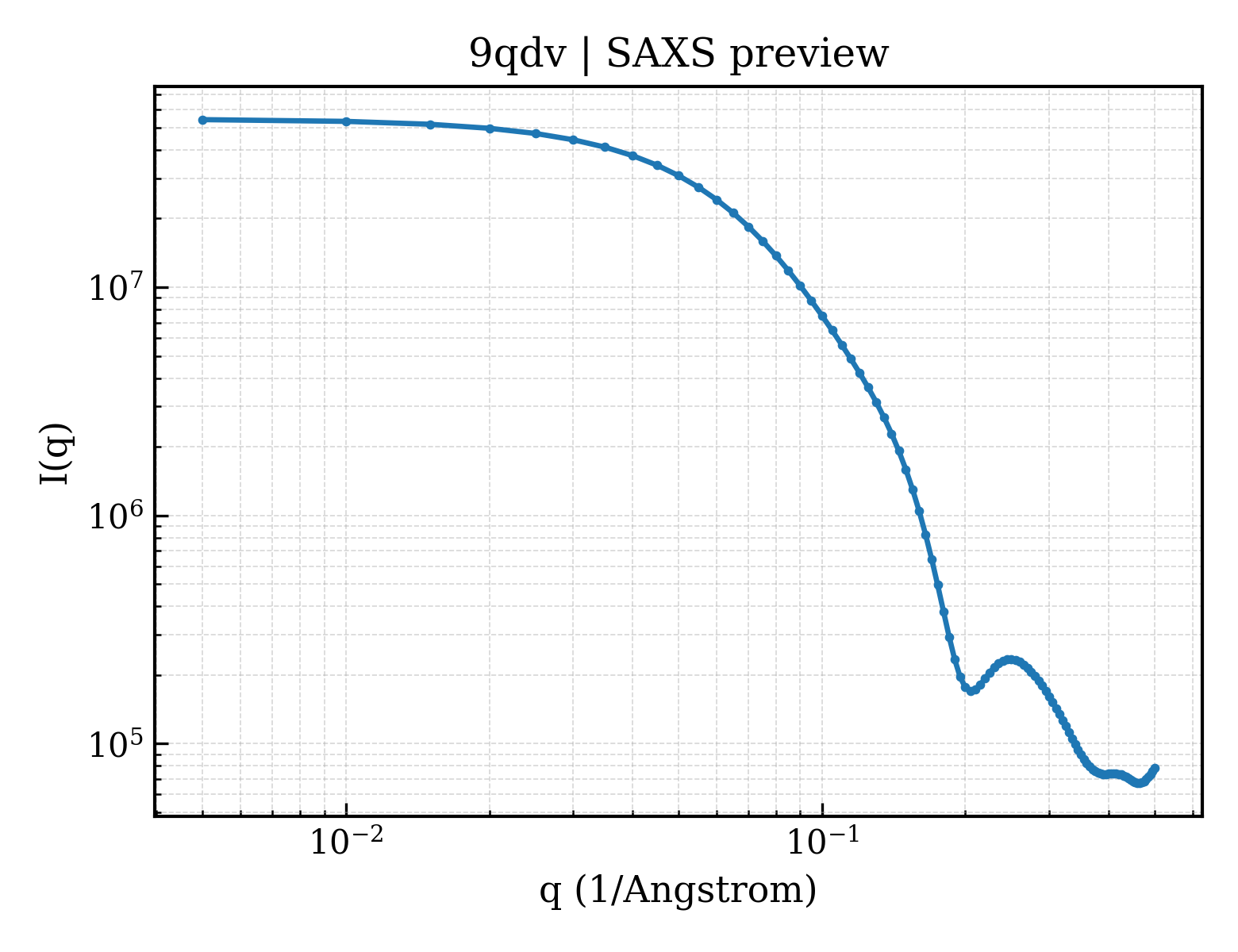

SAXS Profile

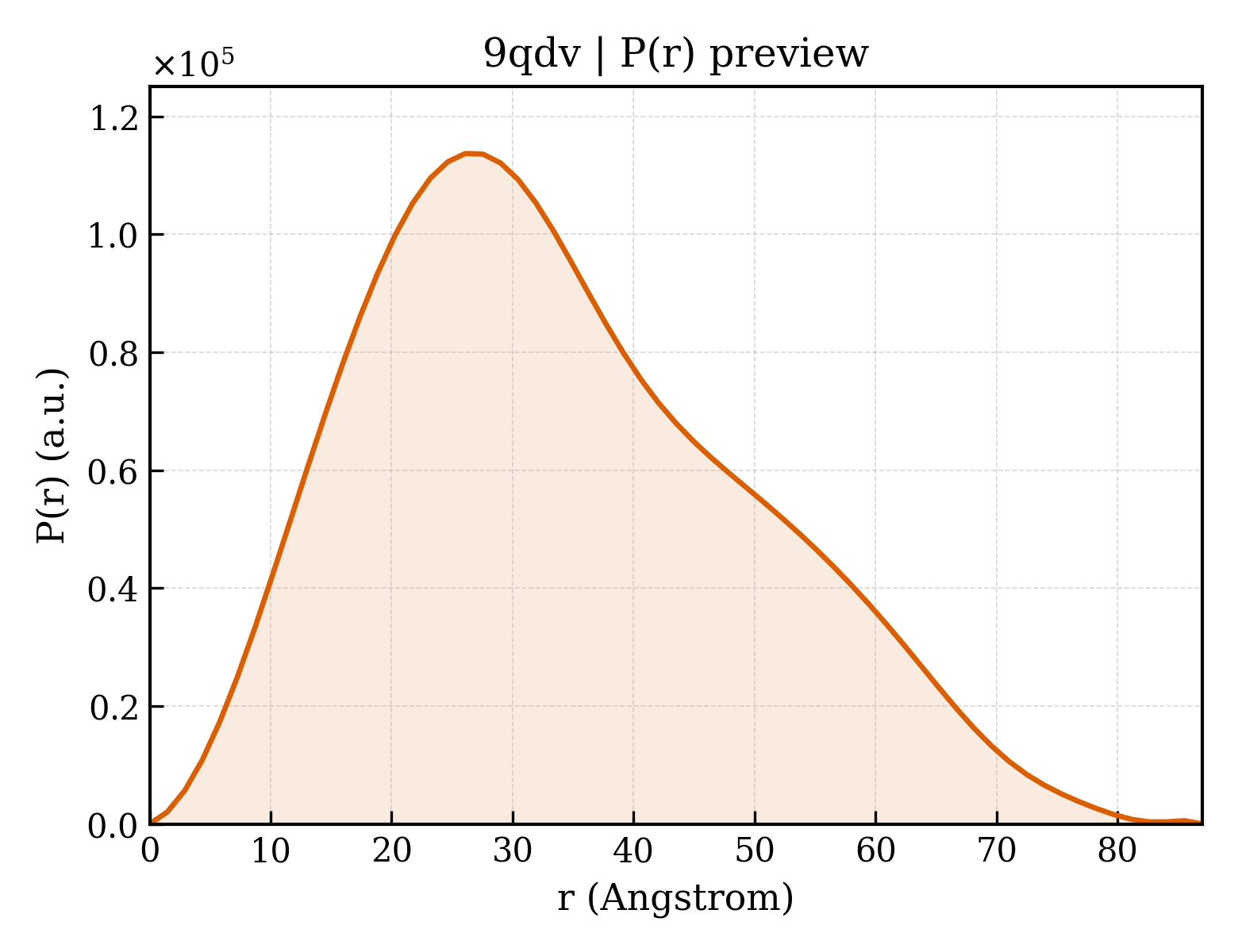

P(r) Distribution
1. Structure Basics
| entry_id | 9qdv |
| deposition_date | 2025-03-07 |
| title | Crystal structure of the polyester hydrolase Leipzig 7 (PHL7) mut3 variant expressed in E. coli (E_PHL7mut3) |
| keywords | E. coli, LCC, K. phaffii, PETase, P. pastoris, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.34 Å |
| rg_electron | 25.67 Å |
| i0 | 54533600.00 |
| molecular_weight | 55800.0 kDa |
| excluded_volume | 69084 ų |
| envelope_volume | 79031 ų |
| shell_volume | 26271 ų |
| envelope_diameter | 92.5 Å |
| shell_rg | 32.23 Å |
| envelope_rg | 25.86 Å |
| shape_rg | 25.66 Å |
| total_rg | 26.36 Å |
| total_atoms | 7735 |
| n_residues | 518 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 87.0 Å |
| rg_real | 26.45 Å |
| rg_real_error | 0.57 Å |
| i0_real | 5.4530e+07 |
| i0_real_error | 7.4010e+05 |
| rg_reciprocal | 26.42 Å |
| i0_reciprocal | 54530000.0000 |
| total_estimate | 0.8682 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 26.1 Å |
| skewness | 0.445 |
| kurtosis | -0.441 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 12360000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.805; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.912; Smooth: 0.956 |
