SAXSdb — 9qe7

▼

1. Structure Basics

entry_id	9qe7
deposition_date	2025-03-07
title	Membrane-distal part of extracellular domain of the Fap2 autotransporter adhesin from Fusobacterium nucleatum ATCC23726
keywords	Type V secretion system, autotransporter, colorectal cancer, bacterial adhesion, CELL ADHESION; CELL ADHESION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	62.15 Å
rg_electron	64.42 Å
i0	368154000.00
molecular_weight	154180.0 kDa
excluded_volume	191170 Å³
envelope_volume	257610 Å³
shell_volume	41333 Å³
envelope_diameter	226.7 Å
shell_rg	45.82 Å
envelope_rg	65.49 Å
shape_rg	64.39 Å
total_rg	64.03 Å
total_atoms	10826
n_residues	1483
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

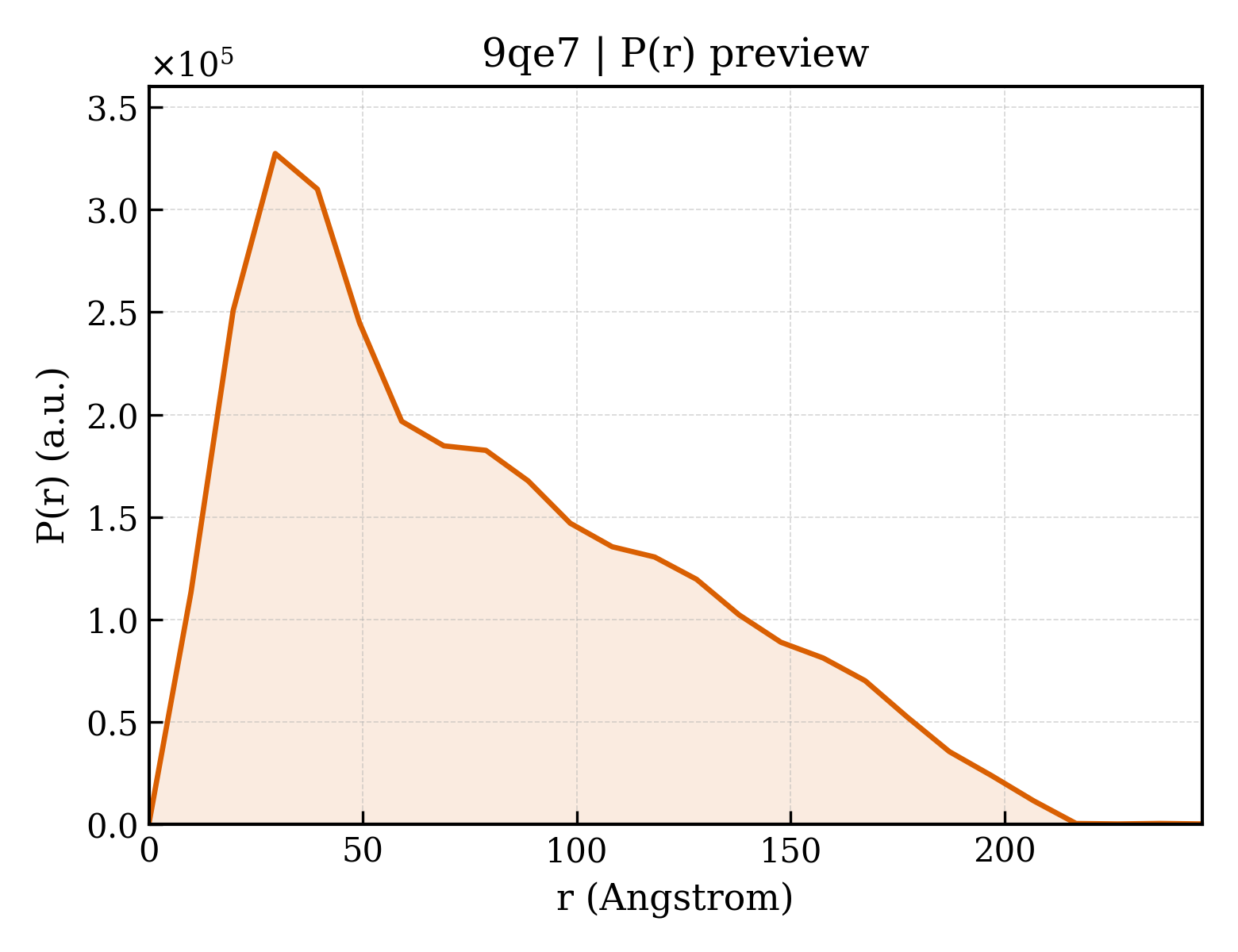

3. P(r) Analysis (GNOM)

dmax	246.2 Å
rg_real	64.07 Å
rg_real_error	4.87 Å
i0_real	3.6820e+08
i0_real_error	8.9150e+06
rg_reciprocal	60.48 Å
i0_reciprocal	366000000.0000
total_estimate	0.5898
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	29.5 Å
skewness	0.637
kurtosis	-0.557
angular_range	— – 0.1250 Å⁻¹
current_alpha	0.0000
highest_alpha	7656000.0000
n_real_points	26
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.022; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.021; Smooth: 0.581

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Outer membrane autotransporter barrel domain protein
formula_weight	340269.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	10826

EEVNLENSQVATREELKTSVGNVQTKLNILRNENKEKIKNLRLELIQLMEQGDQVVKSPWSSWQFGMNYFYENWRSTYKGSGDKSEKYVFNGIYTRGNWKVRNAMDMAENQRVGGRPLTPGNDSLNSWKNASNSSGGGVTIDKDTSIGSSTNGNKSWGLVDLRDLREPTNEVEILAHISPKEVTKQVISLNITEPTVQTLEAPDVNPQVNEPLPAPVIELPEVETVTINPLSINAPSAPTAPSAPTINIAITAPSAPVPPTINVVPASPSTPSAPTINIGIQPPSITPLSITTPDSVDAPNVVSPQIKPVDFTVDPGGDSNVYSSEKHNSHQGWKATWDKTINVTELTNRNYVSLTRDVVDSTIPDDQVINVTKPNNRAMVVDEVRKNGIKVDFKGTINLQRSQNVGIDLQGTHQGSISTPLIANIYNSGKIIGNAKYGSTANKEQIAFGFNNADGSNNTTMTNMVNKGEITLNAPSSAGIQLKPEDPHDWQPGAPNYWNAAPLQIGNKTPNKIKGRVLMKADNQKDINLNGSGSFGMVTVFNEGVPKRLFAPSYVANYENLRSERTYDGERVLPGGEIGRSALSDSKYTSGVYNTGNININGDSSIGVGLLQEIQEVKLAGNINIGTKAVAQETDISNLPNAGSKTYDKNKVEEAVGVFAGVPTMPVKPGEKDTLINSSGARNTATSLVGTETVEINGNISLGEHATQSIGALVGDTEIDLNKGQLTENGVNKGSNVDRKLKRSGDITAKSNSVINVGGKKNYGFVVSNSAHSSKFGTTVDSLEYNVDKTHHGKGINEGIINIIGDESVGFAMIKGGNSKSSGTISVKDNAENSIGFYGKEDSFTNSGTIEVTSAKKKNKAVVLDGTNASNKINFTNTGNIYVNTSDNNNTNLDGNGNIGIYAQGNYKVEHNSGIVKAGKDVIAFYVKDSTGEVNINAPIELANSSKGTTIGIYSDGNAKVKFGTGSKLKIGEKAVGLYSADPTKFNNTFKIESGKTLDVELGKNSTFGLLNGNNTVTNSPLLSKYLNNNTSDKINIVSFGEGASLFYATSKAKAILDEDYKVTNGDAISTAVLVANNGANVEIASGKKLETNTNAGLIAINGTVGFTSVAKNNGTLISTRIDKGIGIYTSAANGENSGTITMQNKNAVGILGSKDSNLKNTGKIELEAVSSAGVYAEDSNMINSGTTSEIIVNKETSVGIYAKETSISSVSKNVKNEGKIEIKADGDGKSAGIYSKKEGGAKLTIENTGNIEVAQKASAGIYAKNESTQANTQSEVTNSGLVKMSAENSIGIMGEKSKITNTGTGTKGIEIVEKKSAGILVTNESAVINSGRISLSNSSISASSDGLVGISVDGSSTGENDASGEIKVDAAYSTGMLSSGGGITNAGKIALEKKESVGMYATNANVTNSGATPKGIFIKDEKSVGIYSKINSSSIANKTVTNSGTIDIAGTSKTGSAGIYSIIESGATKKLSVVNNGNITINQKKSVGIYAKNESSHANTESDVTNSGKIEVKNEGSAGVLAEKYKVTNTGSGTNGIIVSAKKSAGIIGKLGSEIINSGIIKTEIATPTVATDGVVGISLNNSKATNTSGGVITLDTDYSTGMYGEANSQLTNEGNITGTNKEYIVGMAGDSSTVTNKNIITLNGKKATGIFGKNSSTLLNETTGKITTKEEESVGMYSSSSLKATNKGTIITEKKTSAGMLGDKANIENDSSITTKEEMSAGMYVKNGTSKATNKGTVTTEKKTSAGILAEIDEANGGTVSGLNETTGTITVSEETSAGMLGKVKSAVTASTAKLSLTNKKDININTKNSAGIMVVNESTAVGKENVLAENTGIINLTSSSATNEKNIGILANKATGINTGNINVNSKESIGMLGQNASSITNNKTITLSGEKGIGMLSKDTSSIADNNDTINVNGKESLGMLGEDSGTVKNNKTISVTAEKGVGIFVRDNGVGKGSGTGENTSTGTITLENKEAVGIFAKNNGTSDSAKNSGTINLGKADGSTIKESLIGMFAQAEAGKKANVKNTKDINVNTKKSVGIYAKNDASNITDVDLENTGDININSKESAGVYAPKANISKVGTITLKNSIDSNGSSAVYVSKGGKVANTAGAKINLGTVNQNRVAYYVNGKDSALAGADIGKITGYGVGVYLQGTSGDKATLDKNTSKLDYTLQGTGNGIIGLLLKGETDIQSYTKGIKVGNTVAATSPSDKAKYAIGIYADAQGTAGTPYNITTPITAGKSGVGIFADKDSNINYTGNMEIGDGTTAGTGIFITKKIGATGGKVTLGTNTIKLKGTKGVVAIASEGTTFNGGNATIELVGSNIQGVGVYAKKGSTVNIDHWTFNNNGNSAEEVRSEEGRVYINANKNLKPKMVLTHVINGETSIATGKTVTSVNDGSITAKENIGLMAEGIKNHSMTWQEGNFEAVNHGIIDFSAAEKSTAMFINSARAKNDGTIKVGKNSIGIYGFYNKDTRKYDGASTNPDPNKLELETTSNSKMSLGDASTGMYLTNAEKIENKGGQITSESGATKNVGIYAVNGQDTKVSANNKILNMTTATNINLGNGSVGLYSKGQSNTVRNTVTNTGDITVGDKITGSPSVAMYAENTNLTTNSKITVGKDGIAFYGKNSDITAKGSANFSNKGVLAYLENSKFVSHLGNLGSTQNTMLYLKNSIAQLDGAGTKVDMDVADGYTGAYIEGNSTLTGVKTIKLGQDSTGLFLKDANFVSNAESITGTKDKARGILATNSNLTNNSKIFLSGAESIGIYSNANNTKSVVNNGELTIAGKKTLGVFLKGSQSFENKANINIADSANSLEPTIGIYTAEGSSNIKHTSGTIDVGQKSIGIYSTTNSNVEMNGGKIHVKDQGVGIYKQNGKATIKGELDIDTHIATTKDSEPTGVYAVNGTEINDQASKISIGAKSYGFILNNTDPNKTNIYTNTDAGTVSLGNDSVFLYSNGKANIINNRTINANGASHLIAFYIKNGGNFTNNGTIDFSTGKGNIGIYAPGGKATNKGRVYVGKTDDIDPMTGKVYSDVSKIVYGIGMAADNGGYIKNDGEIRIYNNKSIGMYGKGIGTTVENTGKIYLDGSRATATDKIQSMTGVYVDDGAKFINRGEIRTTDSYAGRDGKVNENVTGLVGVAVMNGSTLENHGKILIDADNSYGVIIRGKRDSKGNVERYAVIKNYGEIKVRGKGTWGISWKDVSQAYIDELQKQINDKISSDPEGQALRAGSAHHHHHHHHSAGENLYFQ

Source

organism	Fusobacterium nucleatum
ncbi_taxonomy_id	851
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.400 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.40 Å
resolution_method	—
num_particles	151825

fit	/app/data/saxs_computation/qe/9qe7/9qe7.fit
pddf	/app/data/pr_computation/qe/9qe7/9qe7.pr.out
profile	/app/data/saxs_computation/qe/9qe7/9qe7.dat
