9qfh

The composite map of of the AMPAR complex GluA3- TARP gamma2 in the apo state.

Method: ELECTRON MICROSCOPY D_max: 226.2 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform Flip of Glutamate receptor 3,Voltage-dependent calcium channel gamma-2 subunit

Rattus norvegicus

UniProt P19492

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 24–865 Chain B； UniProt 24–865 Chain C； UniProt 24–865 Chain D； UniProt 24–865 Chain W； UniProt 24–865 Chain X； UniProt 24–865 Chain Y； UniProt 24–865 Chain Z； UniProt 24–865	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9QFH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3DLN Crystal structure of the binding domain of the AMPA subunit GluR3 bound to glutamate Deposited 2008-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 416–530（115 aa） Fragment：S1S2 binding domain Chain A 658–800（143 aa） Fragment：S1S2 binding domain	Not recorded	ZN ZINC ION × 1 GLU GLUTAMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；277 K；15% PEG 8000, 0.2 M Zn acetate, 0.1 M Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.91 Å R-free 0.235
3DP4 Crystal structure of the binding domain of the AMPA subunit GluR3 bound to AMPA Deposited 2008-07-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 416–530（115 aa） Fragment：S1S2 binding domain Chain A 658–800（143 aa） Fragment：S1S2 binding domain	Not recorded	ZN ZINC ION × 2 AMQ (S)-ALPHA-AMINO-3-HYDROXY-5-METHYL-4-ISOXAZOLEPROPIONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；277 K；15-17% PEG 1450, 0.2 M Zn acetate, 0.2 M Ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.11 Å R-free 0.260
3LSW Aniracetam bound to the ligand binding domain of GluA3 Deposited 2010-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa）	Not recorded	GLU GLUTAMIC ACID × 2 4MP 1-(4-METHOXYBENZOYL)-2-PYRROLIDINONE × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16-18% PEG8K, 0.1 M Na Cacodylate, 0.1-0.15 M zinc acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.217
3LSX Piracetam bound to the ligand binding domain of GluA3 Deposited 2010-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa）	Not recorded	GLU GLUTAMIC ACID × 2 PZI 2-(2-oxopyrrolidin-1-yl)acetamide × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16-18% PEG8K, 0.1 M Na Cacodylate, 0.1-0.15 M zinc acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.01 Å R-free 0.222
3M3F PEPA bound to the ligand binding domain of GluA3 (flop form) Deposited 2010-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Fragment：UNP residues 417-530, 658-799 Chain A 658–799（142 aa） Fragment：UNP residues 417-530, 658-799	Not recorded	GLU GLUTAMIC ACID × 2 P99 2-[2,6-difluoro-4-({2-[(phenylsulfonyl)amino]ethyl}sulfanyl)phenoxy]acetamide × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.285
3M3K Ligand binding domain (S1S2) of GluA3 (flop) Deposited 2010-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Fragment：UNP residues 417-530, 658-799 Chain A 658–799（142 aa） Fragment：UNP residues 417-530, 658-799 Chain C 417–530（114 aa） Fragment：UNP residues 417-530, 658-799 Chain C 658–799（142 aa） Fragment：UNP residues 417-530, 658-799	Not recorded	GLU GLUTAMIC ACID × 2 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8000, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.79 Å R-free 0.240
3M3K Ligand binding domain (S1S2) of GluA3 (flop) Deposited 2010-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 417–530（114 aa） Fragment：UNP residues 417-530, 658-799 Chain E 658–799（142 aa） Fragment：UNP residues 417-530, 658-799	Not recorded	GLU GLUTAMIC ACID × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8000, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.79 Å R-free 0.240
3O21 High resolution structure of GluA3 N-terminal domain (NTD) Deposited 2010-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–403（381 aa） Fragment：N-terminal domain Chain B 23–403（381 aa） Fragment：N-terminal domain	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；18% PEG 3350, 230mM sodium dihydrogen phosphate, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.20 Å R-free 0.258
3O21 High resolution structure of GluA3 N-terminal domain (NTD) Deposited 2010-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 23–403（381 aa） Fragment：N-terminal domain Chain D 23–403（381 aa） Fragment：N-terminal domain	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；18% PEG 3350, 230mM sodium dihydrogen phosphate, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.20 Å R-free 0.258
3P3W Structure of a dimeric GluA3 N-terminal domain (NTD) at 4.2 A resolution Deposited 2010-10-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–403（381 aa） Fragment：N-terminal domain Chain C 23–403（381 aa） Fragment：N-terminal domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.7；293 K；200mM ammonium phosphate, 20% PEG3350, pH 4.7, VAPOR DIFFUSION, temperature 293K	Resolution 4.20 Å R-free 0.338
3P3W Structure of a dimeric GluA3 N-terminal domain (NTD) at 4.2 A resolution Deposited 2010-10-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 23–403（381 aa） Fragment：N-terminal domain Chain D 23–403（381 aa） Fragment：N-terminal domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.7；293 K；200mM ammonium phosphate, 20% PEG3350, pH 4.7, VAPOR DIFFUSION, temperature 293K	Resolution 4.20 Å R-free 0.338
3RT6 Fluorowillardiine bound to the ligand binding domain of GluA3 Deposited 2011-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 417–530（114 aa） Fragment：SEE REMARK 999 Chain B 658–799（142 aa） Fragment：SEE REMARK 999	Not recorded	FWD 2-AMINO-3-(5-FLUORO-2,4-DIOXO-3,4-DIHYDRO-2H-PYRIMIDIN-1-YL)-PROPIONIC ACID × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG8000, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, 0.1 M sodium cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.84 Å R-free 0.255
3RT8 Chlorowillardiine bound to the ligand binding domain of GluA3 Deposited 2011-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Fragment：SEE REMARK 999 Chain A 658–799（142 aa） Fragment：SEE REMARK 999	Not recorded	CWD 3-(5-chloro-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-L-alanine × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG8000, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, 0.1 M sodium cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.43 Å R-free 0.278
4F1Y CNQX bound to the ligand binding domain of GluA3 Deposited 2012-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa） Chain C 417–530（114 aa） Chain C 658–799（142 aa）	Not recorded	CNI 7-nitro-2,3-dioxo-2,3-dihydroquinoxaline-6-carbonitrile × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.79 Å R-free 0.251
4F22 Kainate bound to the K660A mutant of the ligand binding domain of GluA3 Deposited 2012-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Mutation：K660A Mutation：K660A	KAI 3-(CARBOXYMETHYL)-4-ISOPROPENYLPROLINE × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.06 Å R-free 0.244
4F29 Quisqualate bound to the ligand binding domain of GluA3i Deposited 2012-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Not recorded	QUS (S)-2-AMINO-3-(3,5-DIOXO-[1,2,4]OXADIAZOLIDIN-2-YL)-PROPIONIC ACID × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, temperature 277K	Resolution 1.75 Å R-free 0.240
4F2O Quisqualate bound to the D655A mutant of the ligand binding domain of GluA3 Deposited 2012-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Mutation：D655A Mutation：D655A	QUS (S)-2-AMINO-3-(3,5-DIOXO-[1,2,4]OXADIAZOLIDIN-2-YL)-PROPIONIC ACID × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.91 Å R-free 0.228
4F2O Quisqualate bound to the D655A mutant of the ligand binding domain of GluA3 Deposited 2012-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Mutation：D655A Mutation：D655A	QUS (S)-2-AMINO-3-(3,5-DIOXO-[1,2,4]OXADIAZOLIDIN-2-YL)-PROPIONIC ACID × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.91 Å R-free 0.228
4F2Q Quisqualate bound to the D655A mutant of the ligand binding domain of GluA3 Deposited 2012-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Mutation：D655A Mutation：D655A	QUS (S)-2-AMINO-3-(3,5-DIOXO-[1,2,4]OXADIAZOLIDIN-2-YL)-PROPIONIC ACID × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.261
4F31 Kainate bound to the D655A mutant of the ligand binding domain of GluA3 Deposited 2012-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 417–530（114 aa） Chain B 658–799（142 aa） Chain D 417–530（114 aa） Chain D 658–799（142 aa）	Mutation：D655A Mutation：D655A Mutation：D655A Mutation：D655A	KAI 3-(CARBOXYMETHYL)-4-ISOPROPENYLPROLINE × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.29 Å R-free 0.248
4F39 Kainate bound to the ligand binding domain of GluA3 Deposited 2012-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Not recorded	KAI 3-(CARBOXYMETHYL)-4-ISOPROPENYLPROLINE × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.83 Å R-free 0.225
4F3B Glutamate bound to the D655A mutant of the ligand binding domain of GluA3 Deposited 2012-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Mutation：D655A Mutation：D655A	GLU GLUTAMIC ACID × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.82 Å R-free 0.238
4F3G Kainate bound to the ligand binding domain of GluA3i Deposited 2012-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 417–530（114 aa） Chain A 658–799（142 aa）	Not recorded	KAI 3-(CARBOXYMETHYL)-4-ISOPROPENYLPROLINE × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；14-15% PEG 8K, 0.1 M sodium cacodylate, 0.1-0.15 M zinc acetate, 0.25 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, temperature 277K	Resolution 2.06 Å R-free 0.245
5FWY Crystal structure of the AMPA receptor GluA2/A3 N-terminal domain heterodimer Deposited 2016-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–403（381 aa） Fragment：RESIDUES 23-403	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 SO4 SULFATE ION × 5 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 14-16 % PEG 3350, 0.27 M AMMONIUM SULPHATE AND 0.1 M BICINE PH 9	Resolution 2.12 Å R-free 0.231
5FWY Crystal structure of the AMPA receptor GluA2/A3 N-terminal domain heterodimer Deposited 2016-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–403（381 aa） Fragment：RESIDUES 23-403	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions 14-16 % PEG 3350, 0.27 M AMMONIUM SULPHATE AND 0.1 M BICINE PH 9	Resolution 2.12 Å R-free 0.231
5IDE Cryo-EM structure of GluA2/3 AMPA receptor heterotetramer (model I) Deposited 2016-02-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 24–888（865 aa） Chain D 24–888（865 aa）	Mutation：R439G, R265C Mutation：R439G, R265C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；25 mM Tris pH 7.4, 0.25 % DDM, 150 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE；Incubated for 1 minute, blotted for 3 seconds	Resolution 8.25 Å
5IDF Cryo-EM structure of GluA2/3 AMPA receptor heterotetramer (model II) Deposited 2016-02-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 24–888（865 aa） Chain D 24–888（865 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；25 mM Tris pH 7.4, 0.25 % DDM, 150 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE；Incubated for 1 minute, blotted for 3 seconds	Resolution 10.31 Å
6FLR Super-open structure of the AMPAR GluA3 N-terminal domain Deposited 2018-01-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–403（381 aa） Chain B 23–403（381 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；18% PEG3350 and 0.2 M ammonium citrate	Resolution 2.51 Å R-free 0.257
6FPJ Structure of the AMPAR GluA3 N-terminal domain bound to phosphate Deposited 2018-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–403（381 aa） Chain C 23–403（381 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 PO4 PHOSPHATE ION × 2 DMS DIMETHYL SULFOXIDE × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；Ammonium dihydrogen phosphate pH 4.6 PEG3350	Resolution 1.96 Å R-free 0.219
6FPJ Structure of the AMPAR GluA3 N-terminal domain bound to phosphate Deposited 2018-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 23–403（381 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PO4 PHOSPHATE ION × 10 DMS DIMETHYL SULFOXIDE × 4 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；Ammonium dihydrogen phosphate pH 4.6 PEG3350	Resolution 1.96 Å R-free 0.219
6NJM Architecture and subunit arrangement of native AMPA receptors Deposited 2019-01-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–888（888 aa） Chain C 1–888（888 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
6NJN Architecture and subunit arrangement of native AMPA receptors Deposited 2019-01-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain C 1–888（888 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
9HPC The TMD and the LBD region of the AMPAR complex GluA3- TARP gamma2 in the apo state. Deposited 2024-12-12	Different mutation/modification Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 24–865（842 aa） Chain B 24–865（842 aa） Chain C 24–865（842 aa） Chain D 24–865（842 aa） Chain W 24–865（842 aa） Chain X 24–865（842 aa） Chain Y 24–865（842 aa） Chain Z 24–865（842 aa）	Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å
9HPD The NTD dimer and the interfacing LBD region of the AMPAR complex GluA3- TARP gamma2 in the open state. Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 24–865（842 aa） Chain C 24–865（842 aa）	Mutation：R439G Mutation：R439G	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å
9HPE The NTD dimer and the interfacing LBD region of the AMPAR complex GluA3- TARP gamma2 in the apo state Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 24–865（842 aa） Chain C 24–865（842 aa）	Mutation：R439G Mutation：R439G	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9HPF The NTD dimer and the interfacing LBD region of the AMPAR complex GluA3- TARP gamma2 in the desensitised state. Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–865（842 aa） Chain B 24–865（842 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.77 Å
9HPG The NTD dimer and the interfacing LBD region of the AMPAR complex GluA3(R439G,R163I)- TARP gamma2 in the apo state. Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 24–865（842 aa） Chain C 24–865（842 aa）	Mutation：R439G,R163I Mutation：R439G,R163I	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
9HPK Open state TMD-LBD of the GluA3(R439G) with TARP gamma2 Deposited 2024-12-13	Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 24–865（842 aa） Chain B 24–865（842 aa） Chain C 24–865（842 aa） Chain D 24–865（842 aa） Chain W 24–865（842 aa） Chain X 24–865（842 aa） Chain Y 24–865（842 aa） Chain Z 24–865（842 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å

32 other PDB entries and 38 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GRIA3_RAT
Isoform	P19492-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–842； UniProt 24–865 Author chain B； PDBConstruct 1–842； UniProt 24–865 Author chain C； PDBConstruct 1–842； UniProt 24–865 Author chain D； PDBConstruct 1–842； UniProt 24–865 Author chain W； PDBConstruct 1–842； UniProt 24–865 Author chain X； PDBConstruct 1–842； UniProt 24–865 Author chain Y； PDBConstruct 1–842； UniProt 24–865 Author chain Z； PDBConstruct 1–842； UniProt 24–865

Isoform Flip of Glutamate receptor 3,Voltage-dependent calcium channel gamma-2 subunit

Rattus norvegicus

UniProt Q71RJ2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 2–323 Chain B； UniProt 2–323 Chain C； UniProt 2–323 Chain D； UniProt 2–323 Chain W； UniProt 2–323 Chain X； UniProt 2–323 Chain Y； UniProt 2–323 Chain Z； UniProt 2–323	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.90 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9QFH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5KK2 Architecture of fully occupied GluA2 AMPA receptor - TARP complex elucidated by single particle cryo-electron microscopy Deposited 2016-06-20	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.30 Å
5VOT Structure of AMPA receptor-TARP complex Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
5VOU Structure of AMPA receptor-TARP complex Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.40 Å
5VOV Structure of AMPA receptor-TARP complex Deposited 2017-05-03	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.70 Å
6NJL Architecture and subunit arrangement of native AMPA receptors Deposited 2019-01-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain F 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
6NJM Architecture and subunit arrangement of native AMPA receptors Deposited 2019-01-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain F 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
6NJN Architecture and subunit arrangement of native AMPA receptors Deposited 2019-01-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain F 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
8C1R Resting state homomeric GluA2 F231A mutant AMPA receptor in complex with TARP gamma-2 Deposited 2022-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 2–323（322 aa） Chain F 2–323（322 aa） Chain G 2–323（322 aa） Chain H 2–323（322 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 PLM PALMITIC ACID × 7 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8C1S Transmembrane domain of resting state homomeric GluA2 F231A mutant AMPA receptor in complex with TARP gamma 2 Deposited 2022-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 2–323（322 aa） Chain F 2–323（322 aa） Chain G 2–323（322 aa） Chain H 2–323（322 aa）	Not recorded	PLM PALMITIC ACID × 6 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8P3Q Homomeric GluA2 flip R/G-unedited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 3 Deposited 2023-05-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 7 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
8P3S Homomeric GluA2 flip R/G-unedited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 2 Deposited 2023-05-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 7 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
8P3X Homomeric GluA2 flip R/G-edited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 1 Deposited 2023-05-18	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.36 Å
8P3Y Homomeric GluA2 flip R/G-edited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 3 Deposited 2023-05-18	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8P3Z Homomeric GluA2 flip R/G-edited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 2 Deposited 2023-05-18	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.46 Å
8PIV Homomeric GluA2 flip R/G-unedited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 1 Deposited 2023-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 7 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.46 Å
9E9D Structure of full length AMPA receptor GluA2 and auxiliary subunit TARP gamma-2 in complex with anti-miR 17 oligonucleotide RGLS4326 Deposited 2024-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–208（207 aa） Chain B 2–208（207 aa） Chain C 2–208（207 aa） Chain D 2–208（207 aa）	Not recorded	A1BX3 O-{[(1S,3S,4R,6S,7R)-7-{[(R)-{[(1R,3R,4R,6S,7R)-3-(2-amino-6-oxo-1,6-dihydro-9H-purin-9-yl)-7-hydroxy-6-methyl-2,5-dioxabicyclo[2.2.1]heptan-1-yl]methoxy}(sulfanyl)phosphoryl]oxy}-3-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-6-methyl-2,5-dioxabicyclo[2.2.1]heptan-1-yl]methyl} O-[(2R,3S,4R,5S)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-methoxy-2-methyloxolan-3-yl] hydrogen (R)-phosphorothioate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
9E9E Structure of AMPA receptor GluA2 and auxiliary subunit TARP gamma-2 (LBD-TMD) in complex with anti-miR 17 oligonucleotide RGLS4326 Deposited 2024-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–208（207 aa） Chain B 2–208（207 aa） Chain C 2–208（207 aa） Chain D 2–208（207 aa）	Mutation：N48D Mutation：N48D Mutation：N48D Mutation：N48D	A1BX3 O-{[(1S,3S,4R,6S,7R)-7-{[(R)-{[(1R,3R,4R,6S,7R)-3-(2-amino-6-oxo-1,6-dihydro-9H-purin-9-yl)-7-hydroxy-6-methyl-2,5-dioxabicyclo[2.2.1]heptan-1-yl]methoxy}(sulfanyl)phosphoryl]oxy}-3-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-6-methyl-2,5-dioxabicyclo[2.2.1]heptan-1-yl]methyl} O-[(2R,3S,4R,5S)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-methoxy-2-methyloxolan-3-yl] hydrogen (R)-phosphorothioate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
9HPC The TMD and the LBD region of the AMPAR complex GluA3- TARP gamma2 in the apo state. Deposited 2024-12-12	Different mutation/modification Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–323（322 aa） Chain B 2–323（322 aa） Chain C 2–323（322 aa） Chain D 2–323（322 aa） Chain W 2–323（322 aa） Chain X 2–323（322 aa） Chain Y 2–323（322 aa） Chain Z 2–323（322 aa）	Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G Mutation：R439G	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å
9HPE The NTD dimer and the interfacing LBD region of the AMPAR complex GluA3- TARP gamma2 in the apo state Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 2–323（322 aa） Chain C 2–323（322 aa）	Mutation：R439G Mutation：R439G	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9HPF The NTD dimer and the interfacing LBD region of the AMPAR complex GluA3- TARP gamma2 in the desensitised state. Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–323（322 aa） Chain B 2–323（322 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.77 Å
9HPG The NTD dimer and the interfacing LBD region of the AMPAR complex GluA3(R439G,R163I)- TARP gamma2 in the apo state. Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 2–323（322 aa） Chain C 2–323（322 aa）	Mutation：R439G,R163I Mutation：R439G,R163I	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
9HPK Open state TMD-LBD of the GluA3(R439G) with TARP gamma2 Deposited 2024-12-13	Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–323（322 aa） Chain B 2–323（322 aa） Chain C 2–323（322 aa） Chain D 2–323（322 aa） Chain W 2–323（322 aa） Chain X 2–323（322 aa） Chain Y 2–323（322 aa） Chain Z 2–323（322 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å
9NR7 The structure of GluA1/A4 LBD-TMD in Noelin-AMPAR complex Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 5–208（204 aa） Chain H 5–208（204 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
9NR9 The structure of GluA1/A4 LBD-TMD with 2 TARPs Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 5–208（204 aa） Chain H 5–208（204 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.22 Å
9NRA The structure of GluA1/A4 LBD-TMD with 4 auxiliary subunits Deposited 2025-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 5–208（204 aa） Chain H 5–208（204 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
9QDN GluA4 in complex with TARP-2, resting state I, structure of TMD/LBD Deposited 2025-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 16 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 E2Q 6-nitro-2,3-bis(oxidanylidene)-1,4-dihydrobenzo[f]quinoxaline-7-sulfonamide × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.71 Å
9RMS GluA4 in complex with TARP-2, Resting II state, structure of TMD/LBD domains Deposited 2025-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	E2Q 6-nitro-2,3-bis(oxidanylidene)-1,4-dihydrobenzo[f]quinoxaline-7-sulfonamide × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9RMW GluA4 in complex with TARP-2, open state, structure of TMD/LBD domains Deposited 2025-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 18 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 2 CYZ CYCLOTHIAZIDE × 4 GLU GLUTAMIC ACID × 4 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9RN4 GluA4 in complex with TARP-2, desensitized state, structure of TMD/LBD domains Deposited 2025-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 4 CA CALCIUM ION × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9RN7 GluA4 in complex with TARP-2, Desensitized state, structure of TMD domain Deposited 2025-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 4 CA CALCIUM ION × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9RNH GluA4 in complex with TARP-2, Resting II state, structure of TMD domain Deposited 2025-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–323（323 aa） Chain F 1–323（323 aa） Chain G 1–323（323 aa） Chain H 1–323（323 aa）	Not recorded	PLM PALMITIC ACID × 2 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

31 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CCG2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 849–1170； UniProt 2–323 Author chain B； PDBConstruct 849–1170； UniProt 2–323 Author chain C； PDBConstruct 849–1170； UniProt 2–323 Author chain D； PDBConstruct 849–1170； UniProt 2–323 Author chain W； PDBConstruct 849–1170； UniProt 2–323 Author chain X； PDBConstruct 849–1170； UniProt 2–323 Author chain Y； PDBConstruct 849–1170； UniProt 2–323 Author chain Z； PDBConstruct 849–1170； UniProt 2–323

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

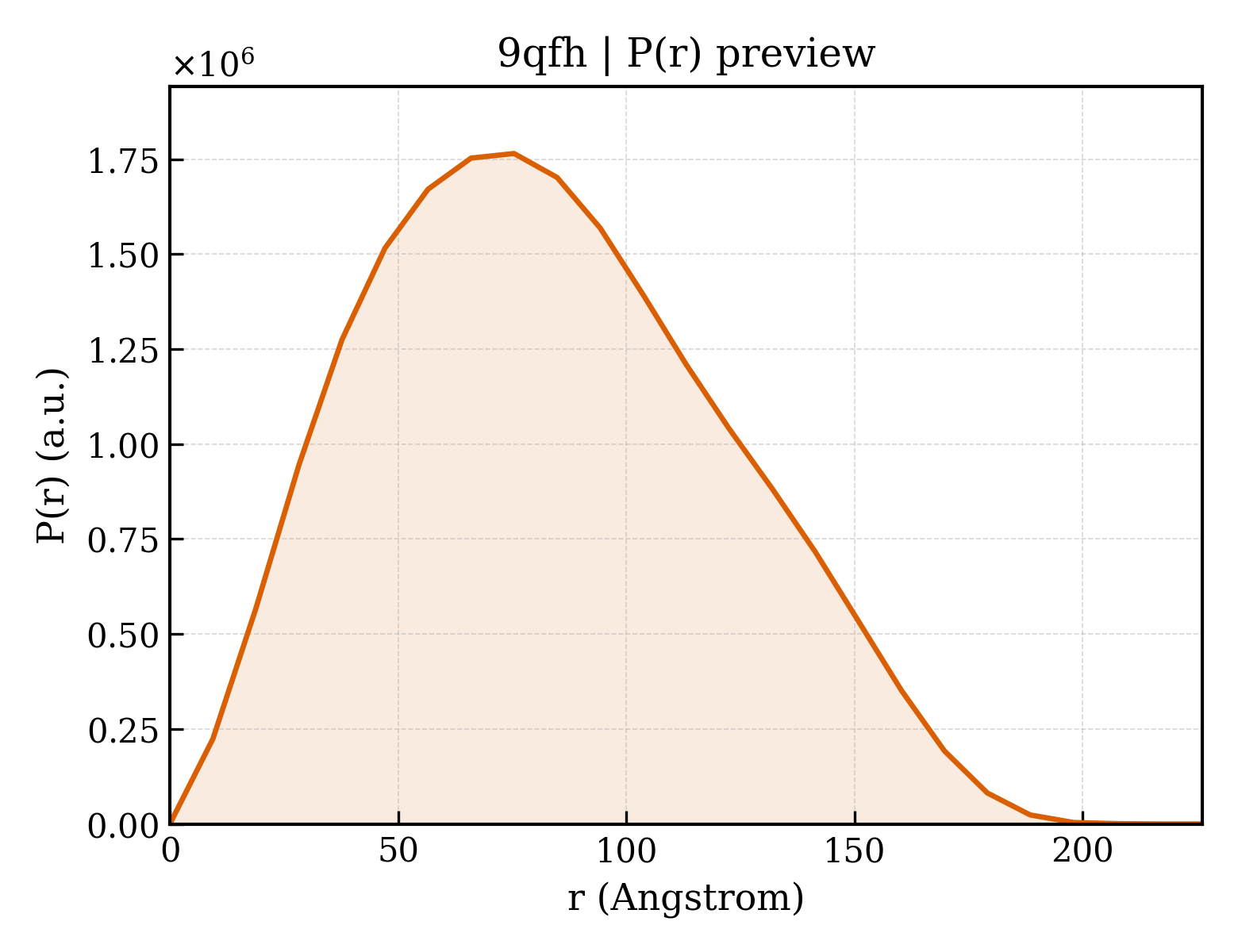

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qfh
Deposition date deposition_date	2025-03-11
Structure title title	The composite map of of the AMPAR complex GluA3- TARP gamma2 in the apo state.
Keywords keywords	AMPAR, ion channels, neurotransmission, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	64.37 Å
Radius of gyration Rg (electron density) rg_electron	64.46 Å
Forward intensity I(0) i0	2300120000.00
Molecular weight molecular_weight	419360.0 kDa
Excluded volume excluded_volume	530870 Å³
Envelope volume envelope_volume	791470 Å³
Hydration-shell volume shell_volume	108810 Å³
Envelope diameter envelope_diameter	210.8 Å
Shell Rg shell_rg	58.86 Å
Envelope Rg envelope_rg	62.45 Å
Shape Rg shape_rg	64.51 Å
Total Rg total_rg	64.16 Å
Total atoms total_atoms	29581
Residues n_residues	3759
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	226.2 Å
Rg (real space) rg_real	64.49 Å
Rg uncertainty (real space) rg_real_error	2.72 Å
I(0) (real space) i0_real	2.3000e+09
I(0) uncertainty (real space) i0_real_error	5.1830e+07
Rg (reciprocal space) rg_reciprocal	64.22 Å
I(0) (reciprocal space) i0_reciprocal	2299000000.0000
Solution quality estimate total_estimate	0.8139
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	75.4 Å
Skewness Skewness skewness	0.285
Kurtosis Kurtosis kurtosis	-0.598
Angular range angular_range	— – 0.1200 Å⁻¹
Current regularization parameter α current_alpha	0.0003
Highest regularization parameter α highest_alpha	136200000.0000
Real-space data points n_real_points	25
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Description description	Isoform Flip of Glutamate receptor 3,Voltage-dependent calcium channel gamma-2 subunit
Molecular weight formula_weight	131711.9 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,W,X,Y,Z
Atom count atom_count	29625

FPNTISIGGLFMRNTVQEHSAFRFAVQLYNTNQNTTEKPFHLNYHVDHLDSSNSFSVTNAFCSQFSRGVYAIFGFYDQMSMNTLTSFCGALHTSFVTPSFPTDADVQFVIQMRPALKGAILSLLSYYKWEKFVYLYDTERGFSVLQAIMEAAVQNNWQVTARSVGNIKDVQEFRRIIEEMDRRQEKRYLIDCEVERINTILEQVVILGKHSRGYHYMLANLGFTDILLERVMHGGANITGFQIVNNENPMVQQFIQRWVRLDEREFPEAKNAPLKYTSALTHDAILVIAEAFRYLRRQRVDVSRRGSAGDCLANPAVPWSQGIDIERALKMVQVQGMTGNIQFDTYGRRTNYTIDVYEMKVSGSRKAGYWNEYERFVPFSDQQISNDSSSSENRTIVVTTILESPYVMYKKNHEQLEGNERYEGYCVDLAYEIAKHVRIKYKLSIVGDGKYGARDPETKIWNGMVGELVYGRADIAVAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHLEDNNEEPRDPQSPPDPPNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLAKQTEIAYGTLDSGSTKEFFRRSKIAVYEKMWSYMKSAEPSVFTKTTADGVARVRKSKGKFAFLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGVATPKGSALGTPVNLAVLKLSEQGILDKLKNKWWYDKGECGAKDSGSKDKTSALSLSNVAGVFYILVGGLGLAMMVALIEFCYKSRAESKRMKLTKNTQNFKPAPAGGSGSGGLFDRGVQMLLTTVGAFAAFSLMTIAVGTDYWLYSRGVCKTKSVSENETSKKNEEVMTHSGLWRTCCLEGNFKGLCKQIDHFPEDADYEADTAEYFLRAVRASSIFPILSVILLFMGGLCIAASEFYKTRHNIILSAGIFFVSAGLSNIIGIIVYISANAGDPSKSDSKKNSYSYGWSFYFGALSFIIAEMVGVLAVHMFIDRHKQLRATARATDYLQASAITRIPSYRYRYQRRSRSSSRSTEPSHSRDASPVGVKGFNTLPSTEISMYTLSRDPLKAATTPTATYNSDRDNSFLQVHNCIQKDSKDSLHANTANRRTTPV

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	1184304

fit	/app/data/saxs_computation/qf/9qfh/9qfh.fit
pddf	/app/data/pr_computation/qf/9qfh/9qfh.pr.out
profile	/app/data/saxs_computation/qf/9qfh/9qfh.dat
