1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8p3s
沉积日期 deposition_date	2023-05-18
结构标题 title	Homomeric GluA2 flip R/G-unedited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 2
关键词 keywords	AMPAR, ion channels, neurotransmission, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.76 Å
回转半径 Rg (电子) rg_electron	44.90 Å
零角强度 I(0) i0	831704000.00
分子量 molecular_weight	257730.0 kDa
排除体积 excluded_volume	330210 Å³
包络体积 envelope_volume	454620 Å³
水化壳体积 shell_volume	82513 Å³
包络直径 envelope_diameter	147.6 Å
壳层 Rg shell_rg	51.20 Å
包络 Rg envelope_rg	43.82 Å
形状 Rg shape_rg	44.90 Å
总 Rg total_rg	45.20 Å
总原子数 total_atoms	18144
残基数 n_residues	2316
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	137.7 Å
Rg (实空间) rg_real	45.49 Å
Rg 误差 (实空间) rg_real_error	0.89 Å
I(0) (实空间) i0_real	8.3170e+08
I(0) 误差 (实空间) i0_real_error	1.4980e+07
Rg (倒空间) rg_reciprocal	45.76 Å
I(0) (倒空间) i0_reciprocal	832000000.0000
解质量估计 total_estimate	0.6634
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	56.7 Å
偏度 Skewness skewness	0.123
峰度 Kurtosis kurtosis	-0.452
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	48650000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.951; Stabil: 1.000; Sysdev: 0.115; Positv: 1.000; Valcen: 0.970; Smooth: 0.453

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Glutamate receptor 2
分子量 formula_weight	98984.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	18195

MQKIMHISVLLSPVLWGLIFGVSSNSIQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTNAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGANVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVVTLTELPSGNDTSGLENKTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETQSSESTNEFGIFNSLWFSLGAFMRQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLRTPVNLAVLKLSEQGVLDKLKNKWWYDKGECGAKDSGSKEKTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRAEAKRMKVAKNPQNINPSSSQNSQNFATYKEGYNVYGIESVKI

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Voltage-dependent calcium channel gamma-2 subunit
分子量 formula_weight	35938.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H

MGLFDRGVQMLLTTVGAFAAFSLMTIAVGTDYWLYSRGVCKTKSVSENETSKKNEEVMTHSGLWRTCCLEGNFKGLCKQIDHFPEDADYEADTAEYFLRAVRASSIFPILSVILLFMGGLCIAASEFYKTRHNIILSAGIFFVSAGLSNIIGIIVYISANAGDPSKSDSKKNSYSYGWSFYFGALSFIIAEMVGVLAVHMFIDRHKQLRATARATDYLQASAITRIPSYRYRYQRRSRSSSRSTEPSHSRDASPVGVKGFNTLPSTEISMYTLSRDPLKAATTPTATYNSDRDNSFLQVHNCIQKDSKDSLHANTANRRTTPV

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Homo sapiens

Entity 3 non-polymer

描述 description	PALMITIC ACID
分子量 formula_weight	256.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 4 non-polymer

描述 description	(2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate
分子量 formula_weight	356.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
分子量 formula_weight	760.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	7

▼

6. 折叠分类 (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

结构域编号 domain_id	8p3sE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
同源超家族 H-superfamily homologous superfamily	150 —

结构域编号 domain_id	8p3sF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
同源超家族 H-superfamily homologous superfamily	150 —

结构域编号 domain_id	8p3sG01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
同源超家族 H-superfamily homologous superfamily	150 —

结构域编号 domain_id	8p3sH01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
同源超家族 H-superfamily homologous superfamily	150 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.95 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	58914

fit	/app/data/saxs_computation/p3/8p3s/8p3s.fit
pddf	/app/data/pr_computation/p3/8p3s/8p3s.pr.out
profile	/app/data/saxs_computation/p3/8p3s/8p3s.dat

Homomeric GluA2 flip R/G-unedited Q/R-edited F231A mutant in tandem with TARP gamma-2, desensitized conformation 2

SAXS 散射曲线 SAXS Profile

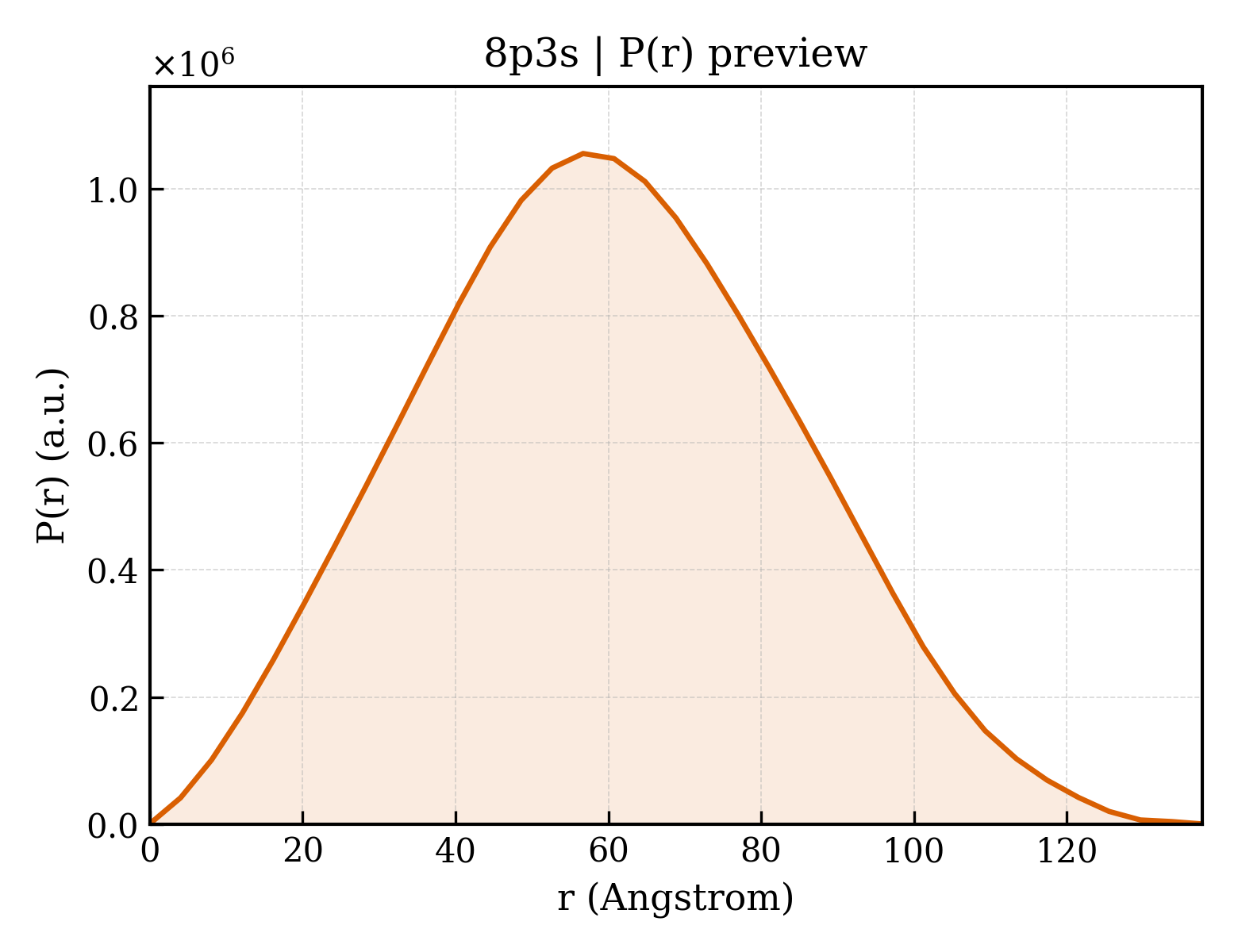

P(r) 距离分布 P(r) Distribution
